2014 Lexus CT200h Owner's Manual (in English)

577

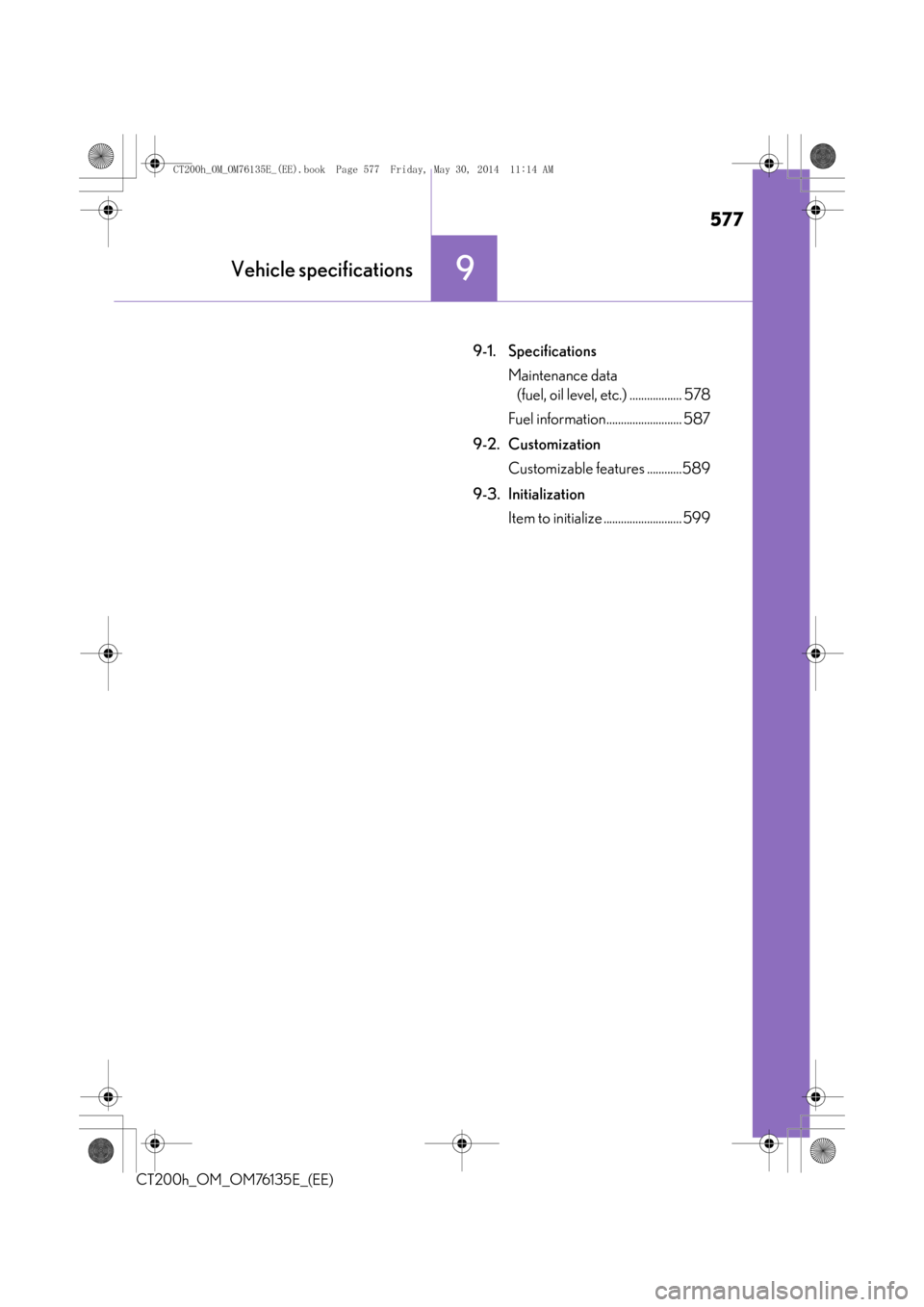

9Vehicle specifications
CT200h_OM_OM76135E_(EE)
9-1. SpecificationsMaintenance data (fuel, oil level, etc.) .................. 578
Fuel information.......................... 587
9-2. Customization Customizable features ............589
9-3. Initialization Item to initialize ........................... 599
CT200h_OM_OM76135E_(EE).book Page 577 Friday, May 30, 2014 1 1:14 AM

5789-1. Specifications
CT200h_OM_OM76135E_(EE)
Maintenance data (fuel, oil level, etc.)
*1:Unladen vehicle
*2: Vehicles with 16-inch and 17-inch tires
*3: Vehicles with 15-inch tires
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
Dimensions
Overall length4350 mm (171.3 in.)
Overall width1765 mm (69.5 in.)
Overall height*11455 mm (57.3 in.)*2
1445 mm (56.9 in)*3
Wheelbase2600 mm (102.4 in.)
Tr e a d
Front1525 mm (60.0 in.)*2
1535 mm (60.4 in.)*3
Rear1520 mm (59.8 in.)*2
1530 mm (60.2 in.)*3
Gross vehicle mass1845 kg (4068 lb.)*2
1790 kg (3946 lb.)*3
Maximum permissible axle
capacityFront1020 kg (2249 lb.)*2
1060 kg (2337 lb.)*3
Rear980 kg (2161 lb.)
Vehicle identification
CT200h_OM_OM76135E_(EE).book Page 578 Friday, May 30, 2014 1 1:14 AM

579
9
9-1. Specifications
Vehicle specifications
CT200h_OM_OM76135E_(EE)
This number is also on the manufac-
turer’s label.
This number is also stamped under
the right-hand front seat.
■Engine number
The engine number is stamped on
the engine block as shown.
Engine
Model2ZR-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5
× 88.3 mm (3.17 × 3.48 in.)
Displacement1798 cm3 (109.7 cu.in.)
Valve clearance (engine cold)Automatic adjustment
CT200h_OM_OM76135E_(EE).book Page 579 Friday, May 30, 2014 1 1:14 AM

5809-1. Specifications
CT200h_OM_OM76135E_(EE)
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
Fuel
Fuel type
XEU area
Unleaded gasoline conforming to European stan-
dard EN228 only
XExcept EU area
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity (Reference)45 L (11.9 gal., 9.9 lmp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V
Lubrication system
Oil capacity
(Drain and refill  reference*)
With filter
Without filter4.2 L (4.4 qt., 3.7 Imp.qt.)
3.9 L (4.1 qt., 3.4 Imp.qt.)
CT200h_OM_OM76135E_(EE).book Page 580 Friday, May 30, 2014 1 1:14 AM

581
9
9-1. Specifications
Vehicle specifications
CT200h_OM_OM76135E_(EE)
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Ge
nuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
1 5 W- 4 0 a n d 2 0 W- 5 0 :
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0 W-20, 5W-20 or 5W-30 engine
oil is recommended.
Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosit y characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
Temperature range anticipated
before next oil change Preferred
CT200h_OM_OM76135E_(EE).book Page 581 Friday, May 30, 2014 1
1:14 AM

5829-1. Specifications
CT200h_OM_OM76135E_(EE)
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use. API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Conserv-
ing” means that the oil has fuel-saving
and environmental protection capa-
bilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the container.
1
2
Cooling system
Capacity
Gasoline
engine
XWithout exhaust heat recirculator system
6.5 L (6.9 qt., 5.7 Imp.qt.)
XWith an exhaust heat recirculator system
6.9 L (7.3 qt., 6.1 Imp.qt.)
Pow e r
control unit2.1 L (2.2 qt., 1.8 Imp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
CT200h_OM_OM76135E_(EE).book Page 582 Friday, May 30, 2014 1 1:14 AM

583
9
9-1. Specifications
Vehicle specifications
CT200h_OM_OM76135E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Ignition system (spark plug)
MakeDENSO SC20HR11
Gap1.1 mm (0.043 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage at 20 °C (68 °F):12.5 V or higher: Fully charged
11.0 — 12.4 V: Half charged
10.9 V or lower: Discharged
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)
Charging rates
XWith a S46B24R battery
4.2 A max.
XWith a S34B20R battery
3.5 A max.
Hybrid transmission
Fluid capacity*3.4 L (3.6 qt., 3.0 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transmission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.
CT200h_OM_OM76135E_(EE).book Page 583 Friday, May 30, 2014 1 1:14 AM

5849-1. Specifications
CT200h_OM_OM76135E_(EE)
*1: Minimum pedal clearance when depressed with a force of 196 N (20.0 kgf, 44.1 lbf) while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf, 67.5 lbf).
Brakes
Pe d a l
clearance
*1
Left-hand
drive vehicles
XWithout an aluminum pedal
77 mm (3.03 in.) Min.
XWith an aluminum pedal
79 mm (3.11 in.) Min.
Right-hand drive
vehicles
XWithout an aluminum pedal
80 mm (3.15 in.) Min.
XWith an aluminum pedal
82 mm (3.23 in.) Min.
Pedal free play1.0 — 6.0 mm (0.04 — 0.24 in.)
Parking brake pedal travel*28 — 11 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Steering
Free playLess than 30 mm (1.2 in.)
CT200h_OM_OM76135E_(EE).book Page 584 Friday, May 30, 2014 1 1:14 AM
