When trouble arises

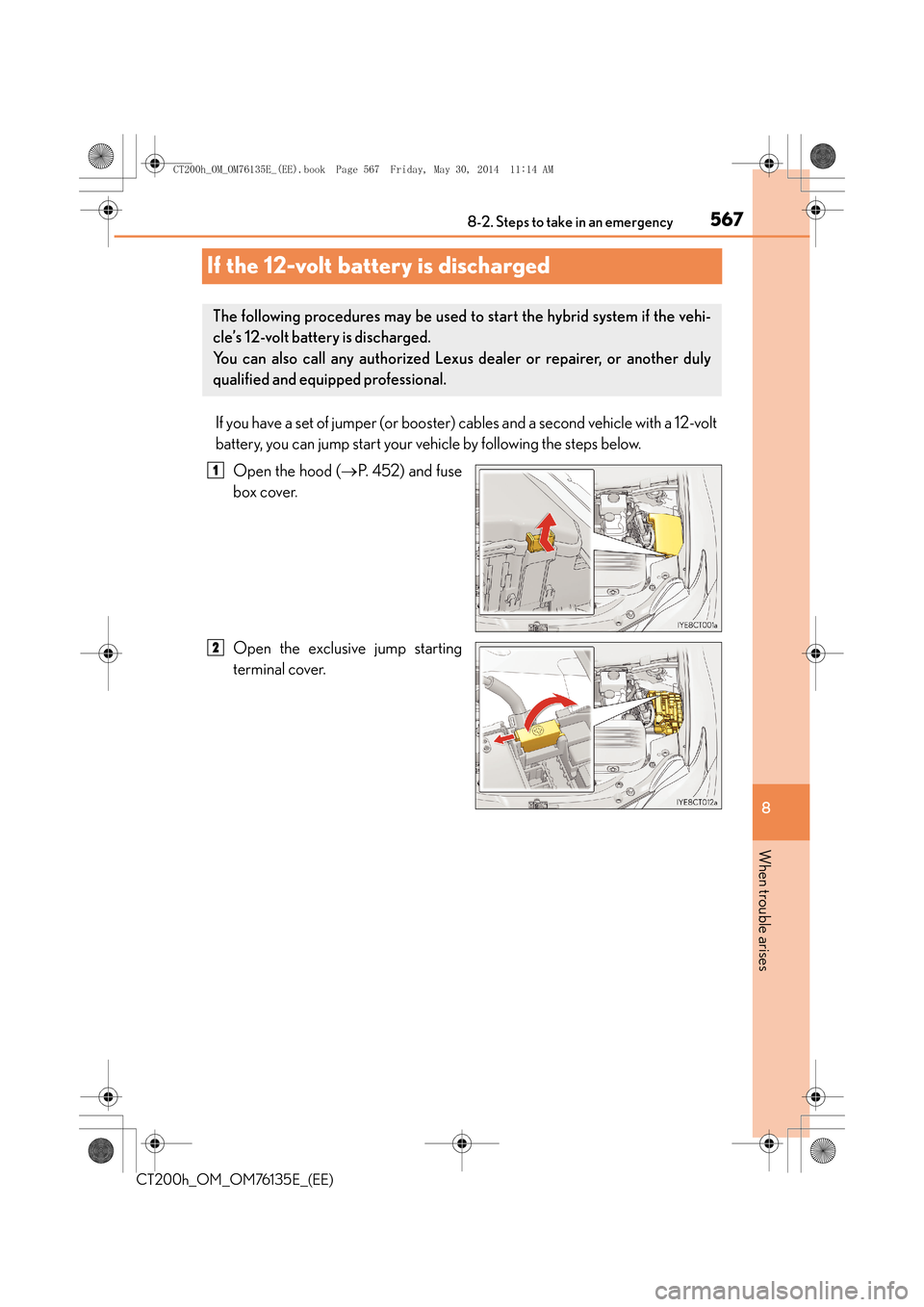

If the 12-volt battery is discharged
If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt
battery, you can jump start your vehicle by following the steps below. Open the hood ( →P. 4 5 2 ) a n d f u s e
box cover.
Open the exclusive jump starting
terminal cover.
The following procedures may be used to start the hybrid system if the vehi-
cle’s 12-volt battery is discharged.
You can also call any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
1
2
CT200h_OM_OM76135E_(EE).book Page 567 Friday, May 30, 2014 1 1:14 AM

5688-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)

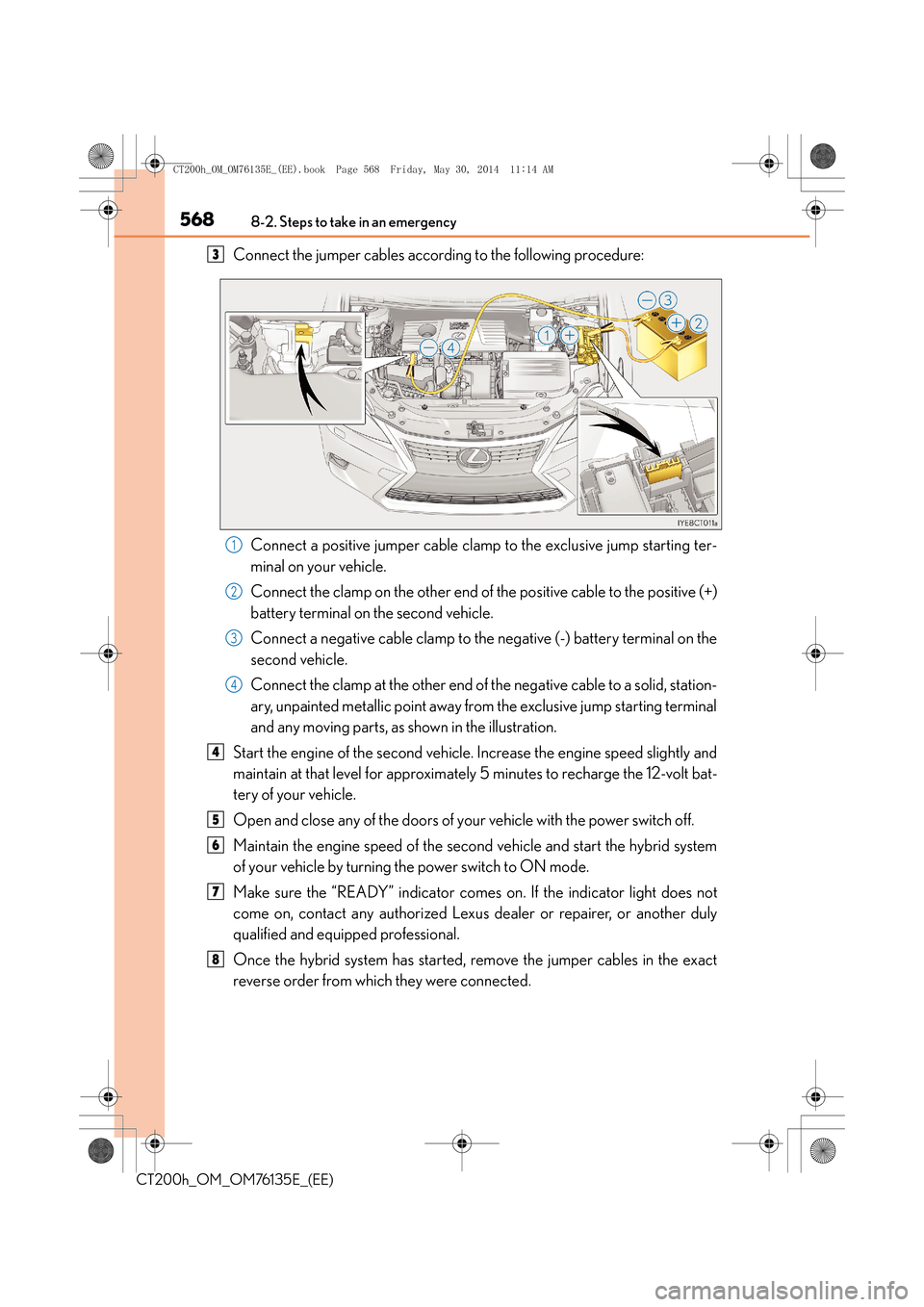

Connect the jumper cables according to the following procedure:Connect a positive jumper cable clamp to the exclusive jump starting ter-
minal on your vehicle.
Connect the clamp on the other end of the positive cable to the positive (+)
battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal on the
second vehicle.
Connect the clamp at the other end of the negative cable to a solid, station-
ary, unpainted metallic point away from the exclusive jump starting terminal
and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the 12-volt bat-
tery of your vehicle.
Open and close any of the doors of your vehicle with the power switch off.
Maintain the engine speed of the second vehicle and start the hybrid system
of your vehicle by turning the power switch to ON mode.
Make sure the “READY” indicator comes on. If the indicator light does not
come on, contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
Once the hybrid system has started, remove the jumper cables in the exact
reverse order from which they were connected.3
1
2
3
4
4
5
6
7
8
CT200h_OM_OM76135E_(EE).book Page 568 Friday, May 30, 2014 1 1:14 AM

5698-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
Close the exclusive jump starting terminal cover, and reinstall the fuse box
cover to its original position.
Once the hybrid system starts, have the vehicle inspected at any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional as
soon as possible.
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■To prevent 12-volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■When the 12-volt battery is removed or discharged
●The hybrid system may not start. ( →P. 4 6 5 )
●If the 12-volt battery discharges while the shift position is in P, it may not be possible to
shift the shift position to other positions. In this case, the vehicle cannot be towed with-
out lifting both front wheels because the front wheels will be locked. ( →P. 5 1 0 )
●When the 12-volt battery is reconnected, start the hybrid system and confirm that the
shift position can be changed to each position using the shift position indicator.
●Make sure that the key is not inside the vehicle when recharging or replacing the 12-
volt battery. The key may be locked in the vehicle if the alarm is activated. (→P. 8 5 )
■Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when the vehicle
is not in use, due to natural discharge and the draining effects of certain electrical appli-
ances. If the vehicle is left for a long time, the 12-volt battery may discharge, and the
hybrid system may be unable to start. (The 12-volt battery recharges automatically while
the hybrid system is operating.)
WA R N I N G
■Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable gas
that may be emitted from the 12-volt battery:
●Make sure each jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to come
into contact with any other parts or metal surfaces in the area, such as brackets or
unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact with each
other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the 12-volt
battery.
9
CT200h_OM_OM76135E_(EE).book Page 569 Friday, May 30, 2014 1 1:14 AM

5708-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
WA R N I N G
■12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte, while related
parts contain lead and lead compounds. Observe the following precautions when han-
dling the 12-volt battery:
●When working with the 12-volt battery, always wear safety glasses and take care not
to allow any battery fluids (acid) to come into contact with skin, clothing or the vehicle
body.
●Do not lean over the 12-volt battery.
●In the event that battery fluid comes into contact with the skin or eyes, immediately
wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the 12-volt battery support, terminals, and
other battery-related parts.
●Do not allow children near the 12-volt battery.
■After recharging the 12-volt battery
Have the 12-volt battery inspected at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional as soon as possible.
If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery to
emit a malodorous gas, which may be detrimental to the health of passengers.
■When replacing the 12-volt battery
→ P. 4 6 6
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled in the
cooling fans or belt.
■To prevent damaging the vehicle
The exclusive jump starting terminal is to be used when charging the 12-volt battery
from another vehicle in an emergency. It cannot be used to jump start another vehicle.
CT200h_OM_OM76135E_(EE).book Page 570 Friday, May 30, 2014 1 1:14 AM
