Reinstall the fender liner with 2
screws, a bolt and clip.
■Front turn signal light s (halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
■Front turn signal lights (LED headlights)
XLeft side
Remove the power control unit
cover.
6
1
2
3
1
CT200h_OM_OM76135E_(EE).book Page 497 Friday, May 30, 2014 1 1:14 AM

4987-3. Do-it-yourself maintenance
CT200h_OM_OM76135E_(EE)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
XRight side
Move the washer fluid filler opening. (→P. 4 9 3 )
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
2
3
4
1
2
3
4
CT200h_OM_OM76135E_(EE).book Page 498 Friday, May 30, 2014 1 1:14 AM

4997-3. Do-it-yourself maintenance
CT200h_OM_OM76135E_(EE)
7
Maintenance and care

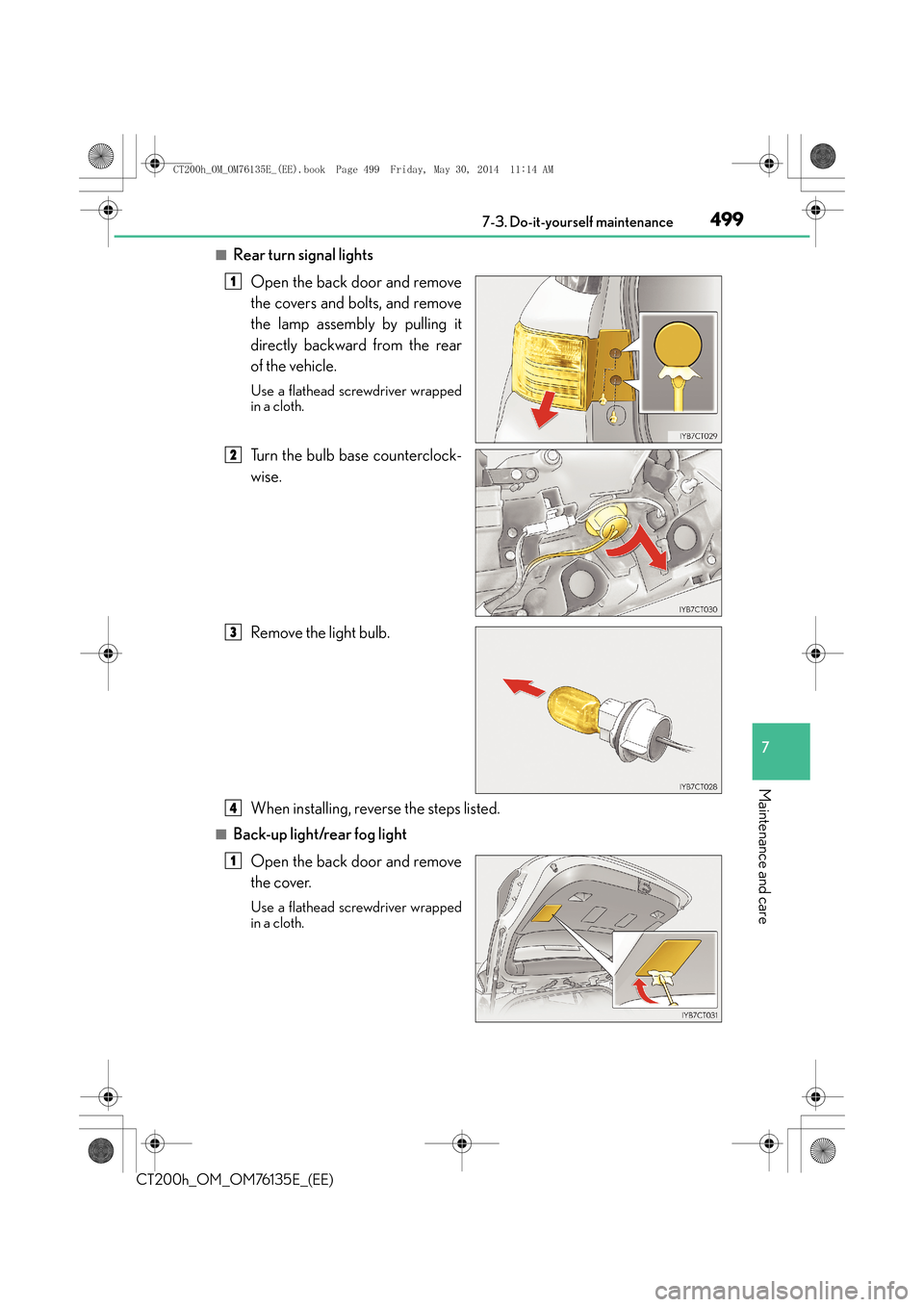

■Rear turn signal lights Open the back door and remove
the covers and bolts, and remove
the lamp assembly by pulling it
directly backward from the rear
of the vehicle.
Use a flathead screwdriver wrapped
in a cloth.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
■Back-up light/rear fog lightOpen the back door and remove
the cover.
Use a flathead screwdriver wrapped
in a cloth.
1
2
3
4
1
CT200h_OM_OM76135E_(EE).book Page 499 Friday, May 30, 2014 1 1:14 AM

5007-3. Do-it-yourself maintenance
CT200h_OM_OM76135E_(EE)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
The illustrations show the removal of a back-up light from a right-hand drive
vehicle.
■Outer foot lights
Press the upper part of the out-
side rear view mirror to tilt the
mirror face upward, and apply
protective tape to the lower part
of the mirror cover.
Insert 2 flathead screwdrivers
wrapped in protective tape, and
disconnect the tabs behind the
mirror.
Pry the mirror out toward you, dis-
connecting the tabs 2 at a time.
Work carefully, ensuring that you do
not drop the mirror.
2
3
4
1
2
CT200h_OM_OM76135E_(EE).book Page 500 Friday, May 30, 2014 1 1:14 AM

5017-3. Do-it-yourself maintenance
CT200h_OM_OM76135E_(EE)
7
Maintenance and care
Disconnect the connectors
behind the mirror, and remove
the mirror.
When removing the thin connectors,
make sure to mark one of the con-
nectors with a piece of tape, to avoid
mixing them up when reinstalling.
Work carefully, ensuring that you do
not drop the mirror.
When handling the mirror, do not touch the parts applied with grease.
The number of connectors equipped differs by vehicle specification.
Remove the screws and take off
the mirror cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
3
4
5
6
CT200h_OM_OM76135E_(EE).book Page 501 Friday, May 30, 2014 1 1:14 AM

5027-3. Do-it-yourself maintenance
CT200h_OM_OM76135E_(EE)
After installing the new bulb,
secure the socket to the light
body.
When inserting the socket, align the
marks printed on the light body and
the socket.
Install the visor cover on the mir-
ror frame, secure it with a screw,
and install the side turn signal light
and outer foot light.
Use only the screw position shown in
the illustration.
Side turn signal light: Align the tabs
on the light and th e cover and install.
Outer foot light: Interlock the tabs in
the groove of the light body with
those on the cover, and secure.
Disconnect the tabs, and sepa-
rate the top and bottom of the
rear side cover of the mirror.
7
8
9
CT200h_OM_OM76135E_(EE).book Page 502 Friday, May 30, 2014 1 1:14 AM

5037-3. Do-it-yourself maintenance
CT200h_OM_OM76135E_(EE)
7
Maintenance and care
Install the cover of the back end
of the mirror, installing the lower
side and the upper side in that
order.
When installin g the lower side of the
cover, insert the side turn signal light
pin into the hole in the cover.
Secure the cover with screws and
reconnect the connectors back
together.
Secure the cords by returning them
to the hooks as they were.
Align the tabs, and secure the
mirror by pushing in each diago-
nally-opposite pair of tabs in
order.
Make sure to insert the tabs in order
as shown in the illustration, and push
them in until a click is heard.
If you do not hear the click, do not
force the tabs in. Instead, remove the
mirror and check that the tabs are
aligned.
10
11
12
CT200h_OM_OM76135E_(EE).book Page 503 Friday, May 30, 2014 1 1:14 AM

5047-3. Do-it-yourself maintenance
CT200h_OM_OM76135E_(EE)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
●Headlight low beams (LED type)
●Daytime running lights and front position lights
●LED front fog lights (if equipped)
●Side turn signal lights
●Stop/tail lights
●High mounted stoplight
●License plate lights
■After replacing the bulbs
■LED lights
The headlight low beams (LED type), front position lights, daytime running lights, LED
front fog lights (if equipped), side turn signal lights, stop/tail lights, high mounted stoplight
and license plate lights consist of a number of LEDs. If any of the LEDs burn out, take
your vehicle to any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
→ P. 4 8 8
After removing the power control unit cover,
return the cover to original position with the
clips.
Push up center portion
Insert
Press
1
2
3
