2014 Lexus CT200h Owner's Manual (in English)

1934-3. Operating the lights and wipers
4
Driving
CT200h_OM_OM76135E_(EE)
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.
CT200h_OM_OM76135E_(EE).book Page 193 Friday, May 30, 2014 11:14 AM

1944-3. Operating the lights and wipers
CT200h_OM_OM76135E_(EE)

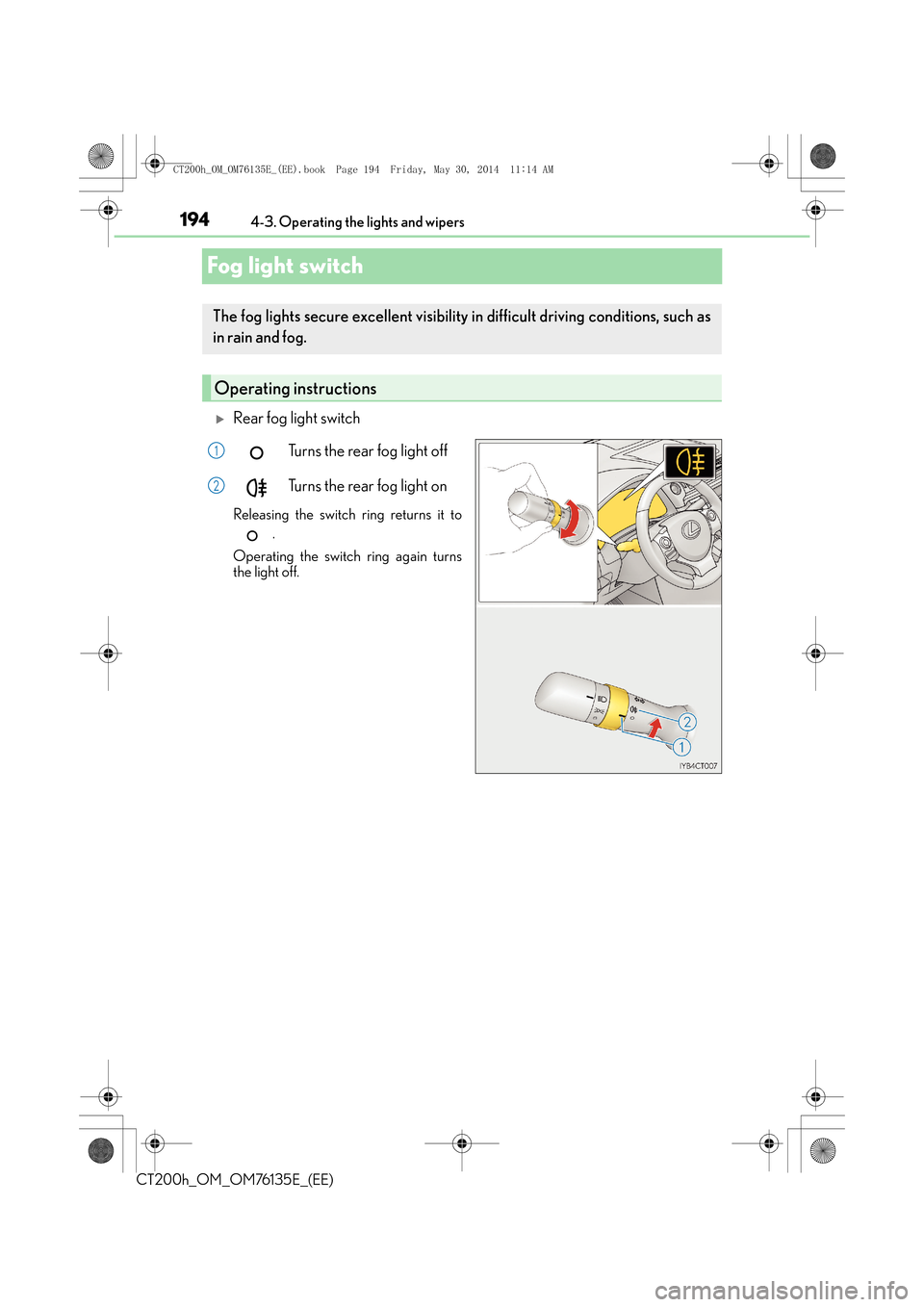

Fog light switch
XRear fog light switch Turns the rear fog light off
Turns the rear fog light on
Releasing the switch ring returns it to.
Operating the switch ring again turns
the light off.
The fog lights secure excellent visibility in difficult driving conditions, such as
in rain and fog.
Operating instructions
1
2
CT200h_OM_OM76135E_(EE).book Page 194 Friday, May 30, 2014 1 1:14 AM

1954-3. Operating the lights and wipers
4
Driving
CT200h_OM_OM76135E_(EE)

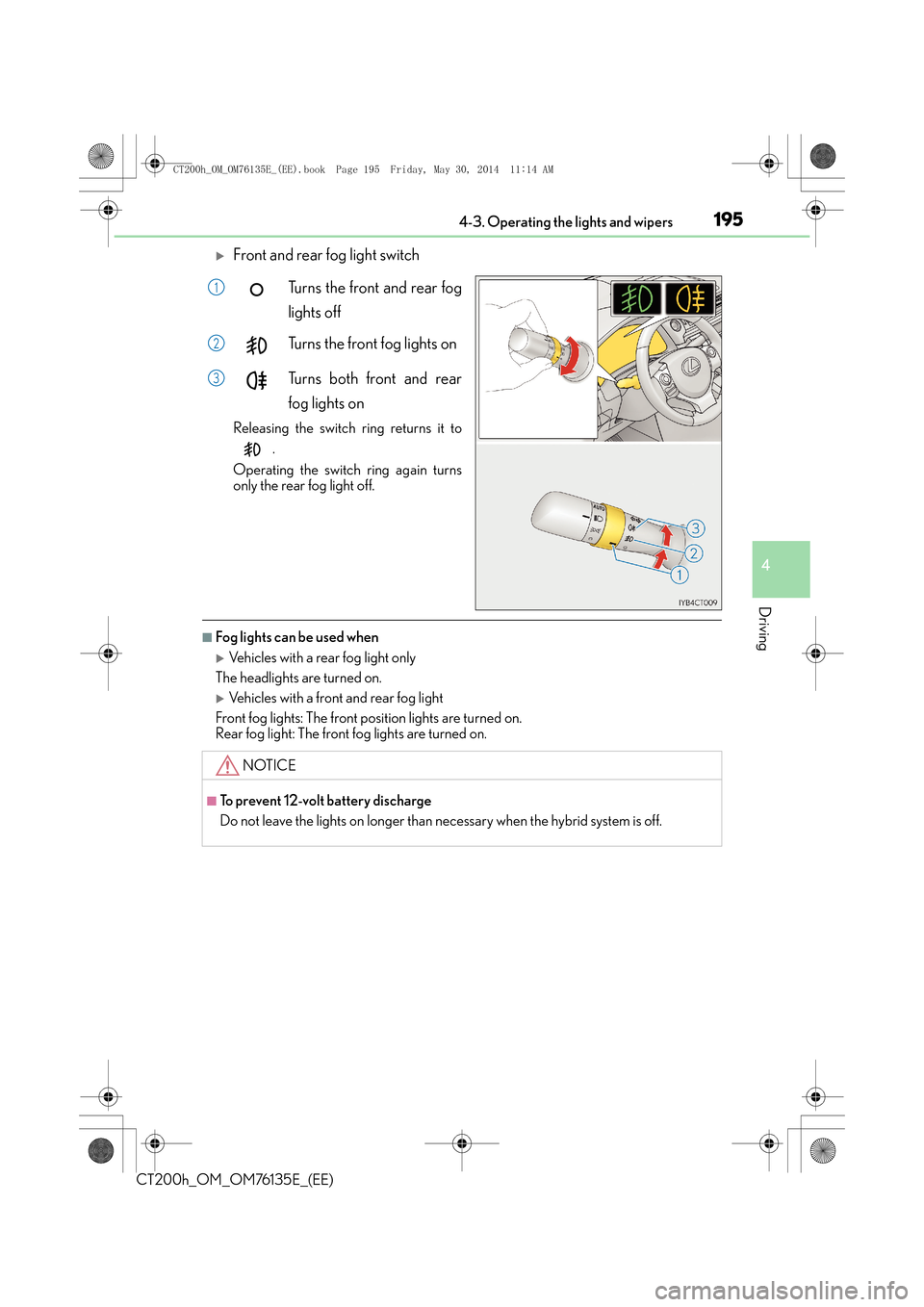

XFront and rear fog light switchTurns the front and rear fog
lights off
Turns the front fog lights on
Turns both front and rear
fog lights on
Releasing the switch ring returns it to.
Operating the switch ring again turns
only the rear fog light off.
■Fog lights can be used when
XVehicles with a rear fog light only
The headlights are turned on.
XVehicles with a front and rear fog light
Front fog lights: The front position lights are turned on.
Rear fog light: The front fog lights are turned on.
1
2
3
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.
CT200h_OM_OM76135E_(EE).book Page 195 Friday, May 30, 2014 1 1:14 AM

1964-3. Operating the lights and wipers
CT200h_OM_OM76135E_(EE)
Windshield wipers and washer
The wiper operation is selected by moving the lever as follows.
XIntermittent windshield wipers with interval adjuster
Intermittent operation
Low speed operation
High speed operation
Temporary operation
Wiper intervals can be adjusted when intermittent operation is selected. Increases the intermittent windshield
wiper frequency
Decreases the intermittent wind-
shield wiper frequency
Operating the wiper lever
1
2
3
4
5
6
CT200h_OM_OM76135E_(EE).book Page 196 Friday, May 30, 2014 1 1:14 AM

1974-3. Operating the lights and wipers
4
Driving
CT200h_OM_OM76135E_(EE)
Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer squirts.
Vehicles with headlight cleaners: If the
headlights are on, the headlight cleaners
will operate once.
XRain-sensing windshield wipers
Rain-sensing operation
Low speed operation
High speed operation
Temporary operation
When “AUTO” is selected, the wipers
will operate automatically when the sen-
sor detects falling rain. The system auto-
matically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
7
1
2
3
4
CT200h_OM_OM76135E_(EE).book Page 197 Friday, May 30, 2014 11:14 AM

1984-3. Operating the lights and wipers
CT200h_OM_OM76135E_(EE)
The sensor sensitivity can be adjusted when “AUTO” is selected.Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer squirts.
Vehicles with headlight cleaners: If the
headlights are on, the headlight cleaners
will operate once.
■The windshield wipers and washer can be operated when
The power switch is in ON mode.
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper switch is turned to the “AUTO” position while the power switch is in ON
mode, the wipers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 90 °C (194 °F) or higher, or -15 °C (5 °F) or
lower, automatic operation may not occur. In this case, operate the wipers in any mode
other than “AUTO”.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the washer fluid
tank.
5
6
7
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not oper-
ate properly when sunlight from the rising or
setting of the sun intermittently strikes the
windshield, or if bugs etc. are present on the
windshield.
CT200h_OM_OM76135E_(EE).book Page 198 Friday, May 30, 2014 1 1:14 AM

1994-3. Operating the lights and wipers
4
Driving
CT200h_OM_OM76135E_(EE)
WA R N I N G
■Caution regarding the use of windshield wipers in “AUTO” mode (vehicles with rain-
sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or the wind-
shield is subject to vibration in “AUTO” mode. Take care that your fingers etc. do not
become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fl uid until the windshield becomes warm. The
fluid may freeze on the windshield and cause low visibility. This may lead to an accident,
resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.
■When a nozzle becomes blocked
In this case, contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■To prevent 12-volt battery discharge
Do not leave the wipers on longer than necessary when the hybrid system is off.
CT200h_OM_OM76135E_(EE).book Page 199 Friday, May 30, 2014 1 1:14 AM

2004-3. Operating the lights and wipers
CT200h_OM_OM76135E_(EE)
Rear window wiper and washer∗
Turning the end of the lever turns on the rear window wiper and washer.
Intermittent operation
Normal operation
Washer/wiper dual operation
Washer/wiper dual operation
■The rear window wiper and washer can be operated when
The power switch is in ON mode.
∗: If equipped
Operating the wiper lever
1
2
3
4
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.
