2014 HYUNDAI IX35 Owners Manual

49
Features of your vehicle
Battery replacement
Transmitter uses a 3 volt lithium battery
which will normally last for several years.
When replacement is necessary, use the
following procedure.
1. Insert a slim tool into the slot and gen-tly pry open the transmitter centre
cover. 2. Replace the battery with a new battery
(CR2032). When replacing the battery,
make sure the battery position.
3. Install the battery in the reverse order of removal.
For transmitter replacement, we recom-
mend that you contact an authorised
HYUNDAI dealer.
■ Type B OLM042302
■
Type A
OLM043439
CAUTION
 The keyless entry system trans-
mitter is designed to give you
years of trouble-free use, howev- er it can malfunction if exposed tomoisture or static electricity. Ifyou are unsure how to use your
transmitter or replace the battery,we recommend that you contact an authorised HYUNDAI dealer.
 Using the wrong battery can cause the transmitter to malfunc-tion. Be sure to use the correctbattery.
 To avoid damaging the transmit- ter, don't drop it, get it wet, orexpose it to heat or sunlight.
CAUTION
An inappropriately disposed bat- tery can be harmful to the environ- ment and human health.
Dispose the battery according toyour local law(s) or regulation.
EL(FL) Aust 4a.QXP 7/26/2013 2:31 PM Page 9

Features of your vehicle
10
4
With a smart key, you can lock or unlock
a door (and tailgate) and even start the
engine without inserting the key.
The functions of the buttons on a smart
key are similar to the remote keyless
entry. (Refer to the “Remote keyless
entry” in this section.) Smart key functions
Carrying the smart key, you may lock and
unlock the vehicle doors (and tailgate).
Also, you may start the engine. Refer to
the following, for more details.
Locking
Pressing the button of the front outside door handles with all doors (and tailgate)
closed and any door unlocked, locks all
the doors (and tailgate). The hazard
warning lights will blink once to indicate
that all doors (and tailgate) are locked.
The button will only operate when the
smart key is within 0.7~1 m (28~40 in.)
from the outside door handle. If you want
to make sure that a door has locked or
not, you should check the door lock but-
ton inside the vehicle or pull the outside
door handle.
Even though you press the button, the
doors will not lock and the chime sounds
3 seconds if any of the following occurs:
 The smart key is in the vehicle.
 The engine start/stop button is in the
ACC or ON position.
 Any door except the tailgate is opened.
SMART KEY (IF EQUIPPED)
OLMB043005OLM049007/H
EL(FL) Aust 4a.QXP 7/26/2013 2:31 PM Page 10

411
Features of your vehicle
Unlocking
Pressing the button of the front outside door handles with all doors (and tailgate)
closed and locked, unlocks all the doors
(and tailgate). The hazard warning lights
will blink twice to indicate that all doors
(and tailgate) are unlocked. The button
will only operate when the smart key iswithin 0.7~1 m (28~40 in.) from the out-
side door handle.
When the smart key is recognized in the area of 0.7~1 m (28~40 in.) from the front
outside door handle, other people canalso open a door without possession of
the smart key.
Tailgate unlocking
If you are within 0.7 ~ 1 m (28 ~ 40 in.)
from the outside tailgate handle, with
your smart key in possession, the tail-
gate will unlock and open when you
press the tailgate handle switch.
The hazard warning lights will blink twice
to indicate that the tailgate is unlocked.
Also, once the tailgate is opened and
then closed, the tailgate will lock auto-
matically.
Start-up
You can start the engine without inserting
the key. For detailed information refer to
“Starting the engine with a smart key” insection 5.Smart key precautions
✽✽
NOTICE

Features of your vehicle
12
4

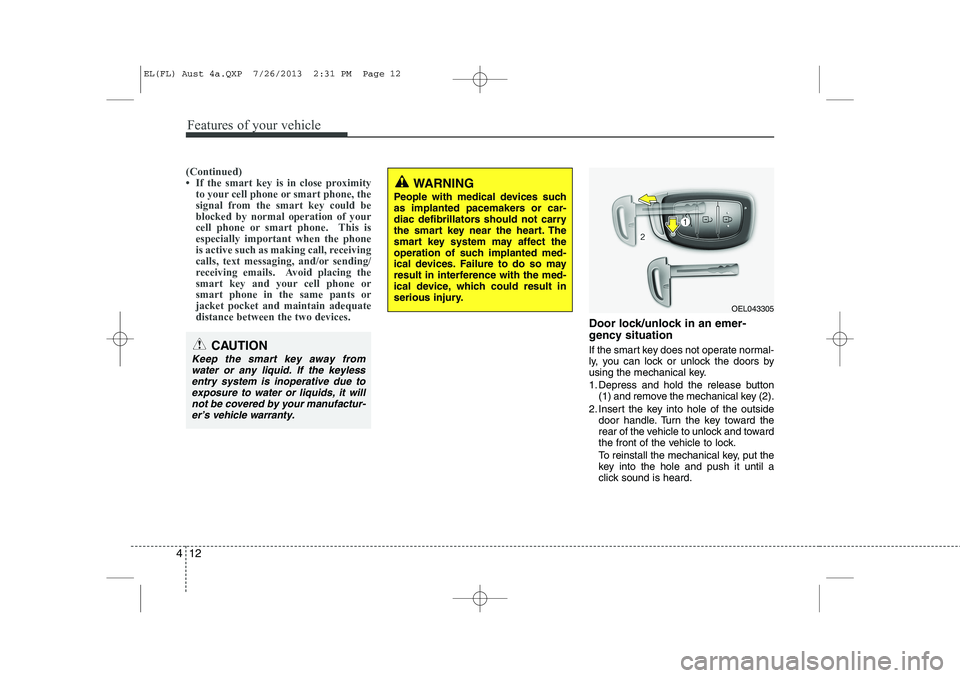

(Continued)

413
Features of your vehicle
This system is designed to provide pro-
tection from unauthorised entry into the
vehicle. This system is operated in three
stages: the first is the "Armed" stage, the
second is the "Theft-alarm" stage, and
the third is the "Disarmed" stage. If trig-
gered, the system provides an audible
alarm with blinking of the hazard warning
lights.Armed stage
Park the vehicle and stop the engine.
Arm the system as described below.
1. Remove the ignition key from the igni-
tion switch or turn off the engine.
2. Make sure that all doors (and tailgate) and the engine bonnet are closed and latched.
3.  Lock the doors by depressing the door lock button on the transmitter
(or smart key).
After completion of the steps above,
the hazard warning lights will blinkonce to indicate that the system is
armed.
If any door, tailgate remains open, the
hazard warning lights won’t operate
and theft-alarm will not arm. Close
the door and try again to lock the
doors.
 Lock the doors by pressing the button of the front outside door handles with
the smart key in your possession.
After completion of the steps above,
the hazard warning lights will blinkonce to indicate that the system is
armed. If any door (and tailgate) remains
open, the hazard warning lights won’t
operate and theft-alarm will not arm.
Close the door and try again to lock
the doors. If engine bonnet remains open, the
hazard warning lights won’t operate
and theft-alarm will not arm. Close
the engine bonnet. The hazard warn-
ing lights blink once and theft-alarm
arms.
 Do not arm the system until all pas- sengers have left the vehicle. If thesystem is armed whilst a passen-
ger(s) remains in the vehicle, the
alarm may be activated when the
remaining passenger(s) leave the
vehicle. If any door, tailgate orengine bonnet is opened within 30seconds after entering the armed
stage, the system is disarmed to
prevent unnecessary alarm.
THEFT-ALARM SYSTEM (IF EQUIPPED)
Armed
stage
Theft-alarm stageDisarmedstage
EL(FL) Aust 4a.QXP 7/26/2013 2:31 PM Page 13

Features of your vehicle
14
4
Theft-alarm stage
The alarm will be activated if any of the
following occurs whilst the system is
armed.
 A front or rear door is opened without
using transmitter (or smart key).
 The tailgate is opened without using transmitter (or smart key).
 The engine bonnet is opened.The siren will sound and the hazard
warning lights will blink continuously for
27 seconds, unless the system is dis-
armed. To turn off the system, unlock the
doors with the transmitter. (or smart key) Disarmed stage
The system will be disarmed when:
Transmitter
- The door unlock button is pressed.
- The engine is started.
- The ignition switch is in the “ON” posi-
tion for 30 seconds or more.
Smart key
- The door unlock button is pressed.
- The button of the front outside door ispressed whilst carrying the smart key.
- The engine is started.
After the doors are unlocked, the hazard
warning lights will blink twice to indicate
that the system is disarmed.
After pressing the unlock button, if anydoor (or tailgate) is not opened within 30
seconds, the system will be rearmed.
✽✽ NOTICE - Immobiliser system

415
Features of your vehicle

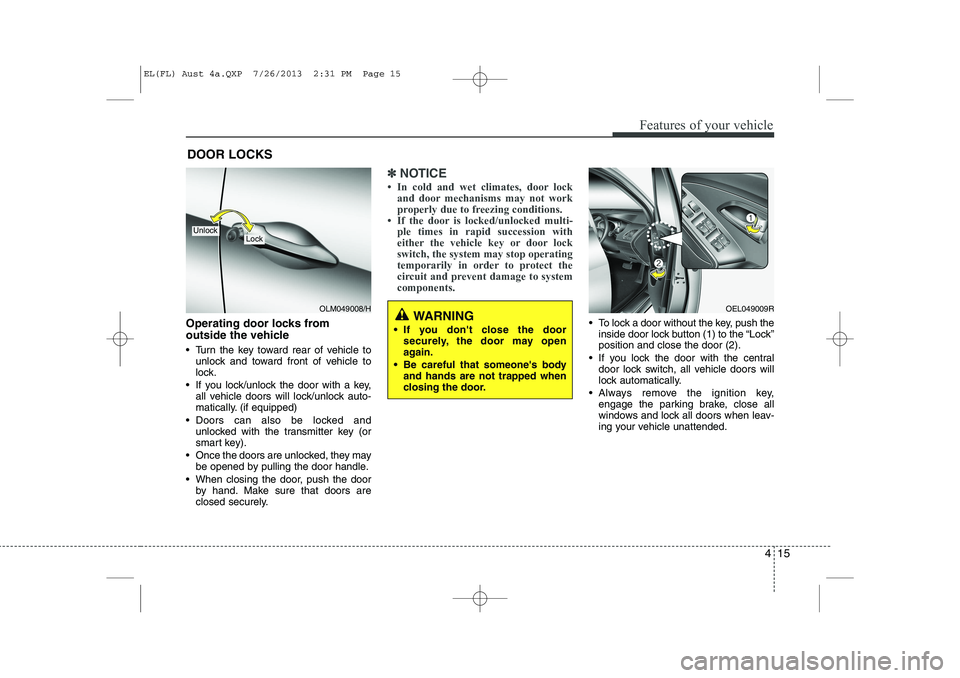

Operating door locks from
outside the vehicle
 Turn the key toward rear of vehicle tounlock and toward front of vehicle to
lock.
 If you lock/unlock the door with a key, all vehicle doors will lock/unlock auto-
matically. (if equipped)
 Doors can also be locked and unlocked with the transmitter key (or
smart key).
 Once the doors are unlocked, they may be opened by pulling the door handle.
 When closing the door, push the door by hand. Make sure that doors are
closed securely.
✽✽ NOTICE

Features of your vehicle
16
4
Operating door locks from inside
the vehicle
With the door lock button
 To unlock a door, push the door lock
button (1) to the “Unlock” position. The
red mark (2) on the button will be visi-
ble.
 To lock a door, push the door lock but- ton (1) to the “Lock” position. If the door
is locked properly, the red mark (2) on
the door lock button will not be visible.
 To open a door, pull the door handle (3) outward.  If the inner door handle of all doors are
pulled when the door lock button is in
the lock position, the button will unlock
and the door will open. (if equipped)
 Front doors cannot be locked if the ignition key is in the ignition switch and
any front door is opened.
 Doors cannot be locked if the smart key is in the vehicle and any door isopened.
With central door lock switch
Operate by depressing the central door
lock switch.
 When pushing down on the front por-tion (1) of the switch, all vehicle doors
will lock.
 When pushing down on the rear por- tion (2) of the switch, all vehicle doors
will unlock.
 However, if any door (and tailgate) is open, the doors will not lock even
though the front portion (1) of central
door lock switch is pressed.
 However, if the smart key is in the vehi- cle and any door is open, the doors will
not lock even though the front portion
(1) of central door lock switch ispressed.
OLM049010R
Lock
Unlock
OLM049011R
Driver’s door
EL(FL) Aust 4a.QXP 7/26/2013 2:31 PM Page 16
