2014 HYUNDAI IX35 Owners Manual

457
Features of your vehicle
Service Interval
On this mode, you can activate the serv-
ice interval function with mileage (km or
mi.) and period (months).
✽✽NOTICE
If it is not available to set service inter-
val on your vehicle, we recommend thatyou consult an authorised HYUNDAI
dealer.
Warning Messages (if equipped)
Shift to "P" position (for smart key system and automatic transaxle)
 This warning message illuminates if you try to turn off the engine without
the shift lever in P (Park) position.
 At this time, the Engine Start/Stop Button turns to the ACC position (If you
press the Engine Start/Stop Button
once more, it will turn to the ON posi-tion).
Low Key Battery
(for smart key system)
 This warning message illuminates if the battery of the smart key is dis-
charged when the Engine Start/StopButton changes to the OFF position.
OLM043407EOLM043413EOLM043410E
EL(FL) Aust 4a.QXP 7/26/2013 2:34 PM Page 57

Features of your vehicle
58
4
Press start button whilst turn steer-
ing (for smart key system)
 This warning message illuminates if the steering wheel does not unlock
normally when the Engine Start/StopButton is pressed.
 It means that you should press the Engine Start/Stop Button whilst turning
the steering wheel right and left.
Steering wheel unlocked
(for smart key system)
 This warning message illuminates if the steering wheel does not lock when
the Engine Start/Stop Button changesto the OFF position.
Check steering wheel lock
system (for smart key system)
 This warning message illuminates if the steering wheel does not lock nor-
mally when the Engine Start/StopButton changes to the OFF position.
OLM043500NOLM043502NOLM043503N
EL(FL) Aust 4a.QXP 7/26/2013 2:34 PM Page 58

459
Features of your vehicle
Press brake pedal to start engine (for smart key system and automatic
transaxle)
 This warning message illuminates if the Engine Start/Stop Button changes to
the ACC position twice by pressing the
button repeatedly without depressing
the brake pedal.
 It means that you should depress the brake pedal to start the engine.
Press clutch pedal to start engine
(for smart key system and manual
transaxle)
 This warning message illuminates if the Engine Start/Stop Button changes to
the ACC position twice by pressing the
button repeatedly without depressingthe clutch pedal.
 It means that you should depress the clutch pedal to start the engine.
Key not in vehicle
(for smart key system)
 This warning message illuminates if the smart key is not in the vehicle when
you press the Engine Start/StopButton.
 It means that you always have the smart key with you.
OLM043415EOLM043416EOLM043408E
EL(FL) Aust 4a.QXP 7/26/2013 2:34 PM Page 59

Features of your vehicle
60
4
Key not detected
(for smart key system)
 This warning message illuminates if the smart key is not detected when you
press the Engine Start/Stop Button.
Press start button again
(for smart key system)
 This warning message illuminates if you can not operate the Engine
Start/Stop Button when there is a prob-
lem with the Engine Start/Stop Buttonsystem.
 It means that you could start the engine by pressing the Engine Start/
Stop Button once more.
 If the warning illuminates each time you press the Engine Start/Stop
Button, we recommend that you have
the vehicle inspected by an authorised
HYUNDAI dealer.
Press start button with smart key
(for smart key system)
 This warning message illuminates if you press the Engine Start/Stop Button
whilst the warning message “Key not
detected” is illuminating.
 At this time, the immobiliser indicator light blinks.
OLM043409EOLM043411EOLM043412E
EL(FL) Aust 4a.QXP 7/26/2013 2:34 PM Page 60

461
Features of your vehicle

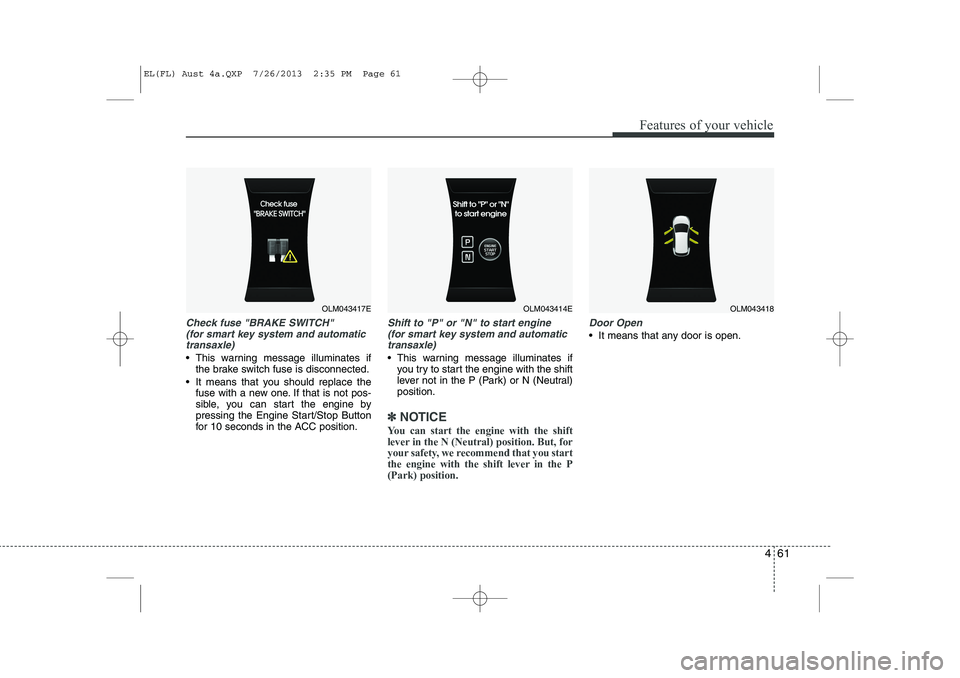

Check fuse "BRAKE SWITCH" (for smart key system and automatic
transaxle)
 This warning message illuminates if the brake switch fuse is disconnected.
 It means that you should replace the fuse with a new one. If that is not pos-
sible, you can start the engine by
pressing the Engine Start/Stop Button
for 10 seconds in the ACC position.
Shift to "P" or "N" to start engine
(for smart key system and automatic
transaxle)
 This warning message illuminates if you try to start the engine with the shift
lever not in the P (Park) or N (Neutral)position.
✽✽ NOTICE
You can start the engine with the shift
lever in the N (Neutral) position. But, for
your safety, we recommend that you start
the engine with the shift lever in the P(Park) position.
Door Open
 It means that any door is open.
OLM043417EOLM043414EOLM043418
EL(FL) Aust 4a.QXP 7/26/2013 2:35 PM Page 61

Features of your vehicle
62
4
Tailgate Open
 It means that the tailgate is open.
Sunroof Open (if equipped)
 It means that the sunroof is open.
Low Washer Fluid (if equipped)
 This warning message illuminates on
the service reminder mode if the wash-
er fluid level in the reservoir is nearly
empty.
 It means that you should refill the washer fluid.
OLM043419OLM043420OLM043501N
EL(FL) Aust 4a.QXP 7/26/2013 2:35 PM Page 62

463
Features of your vehicle
Overview
Description
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
✽✽NOTICE
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery isdisconnected.Trip Modes
Trip mode is changed as below whenev-
er pushing the button shortly.
- Type A : TRIP button
- Type B :
[]
 Type A (if equipped)
* : if equipped
TRIP COMPUTER
OEL043703
OEL043702
■ Type A
■Type BTRIPElapsed time
Distance
to empty *Average
vehicle speed
Average fuel economy *Instant fueleconomy *
EL(FL) Aust 4a.QXP 7/26/2013 2:35 PM Page 63

Features of your vehicle
64
4
 Type B (if equipped)
Trip A/B
Tripmeter (1)
 Type ATRIP : Tripmeter
 Type B TRIP A :
Tripmeter A →
: Order changed
TRIP B :
Tripmeter B →:
Order changed  The tripmeter is the total driving dis-
tance since the last tripmeter reset.
- Distance range: 0.0 ~ 9999.9 km or mi.
 To reset the tripmeter, press Trip button (Type A : TRIP, Type B : )
for more
than 1 second when the tripmeter is
displayed.
Average Vehicle Speed (2)
 The average vehicle speed is calculat- ed by the total driving distance and
driving time since the last average
vehicle speed reset.
- Speed range: 0 ~ 999 km/h or MPH
 To reset the average vehicle speed, press the trip button (Type A : TRIP,
Type B : )
for more than 1 second
when the average vehicle speed is dis-
played.
Distance to empty /
Average fuel economy / Instant fuel economy
Tripmeter B /
Average vehicle speed B / Elapsed time B
Tripmeter A /
Average vehicle speed A / Elapsed time A
❈For controlling the LCD modes, refer
to "LCD Display Control" in this chap-
ter.
OLM049320/OEL049325/
OEL049326/OLM043403E
■
Type A ■Type B
EL(FL) Aust 4a.QXP 7/26/2013 2:35 PM Page 64
