2014 HYUNDAI IX35 Owners Manual

Specifications & Consumer information
4
8

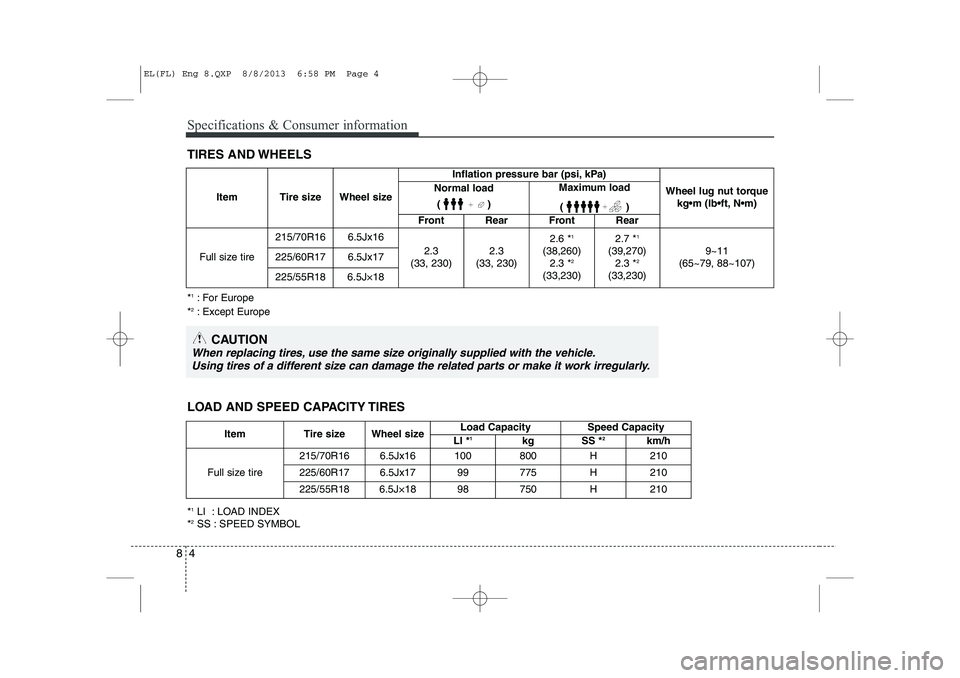

TIRES AND WHEELS
Item Tire size Wheel size Inflation pressure bar (psi, kPa)
Wheel lug nut torquekg•m (lbft, Nm)
Normal load
()
Maximum load
()
Front Rear Front Rear
Full size tire 215/70R16 6.5Jx16
2.3
(33, 230) 2.3
(33, 230) 2.6 *
1
(38,260) 2.3 * 2
(33,230) 2.7 *
1
(39,270) 2.3 * 2
(33,230) 9~11
(65~79, 88~107)
225/60R17 6.5Jx17
225/55R18 6.5J×18
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
* 1
LI : LOAD INDEX
* 2
SS : SPEED SYMBOL Item Tire size Wheel size
Load Capacity Speed Capacity
LI * 1
kg SS * 2
km/h
Full size tire 215/70R16 6.5Jx16 100 800 H 210
225/60R17 6.5Jx17 99 775 H 210
225/55R186.5J×1898750H210
LOAD AND SPEED CAPACITY TIRES
*
1
: For Europe
* 2
: Except Europe
EL(FL) Eng 8.QXP 8/8/2013 6:58 PM Page 4

85
Specifications & Consumer information
GROSS VEHICLE WEIGHT
Item1.6 GDI NU 2.0 MPI R2.0U2 1.7
2WD 4WD 2WD 4WD 2WD
4WD2WD 4WD
5 seater 1,930 (4034) - 1,980 (4365) 2,030 (4475) 2,090 (4607)
2,140 (4717)1,940 (4276) -
Kg (lbs)
ltem 5 Seater
VDA MIN.
465
l(16.4 cu.ft)
MAX. 1436
l(50.7 cu.ft)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
LUGGAGE VOLUME
EL(FL) Eng 8.QXP 8/8/2013 6:58 PM Page 5

Specifications & Consumer information
6
8
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.

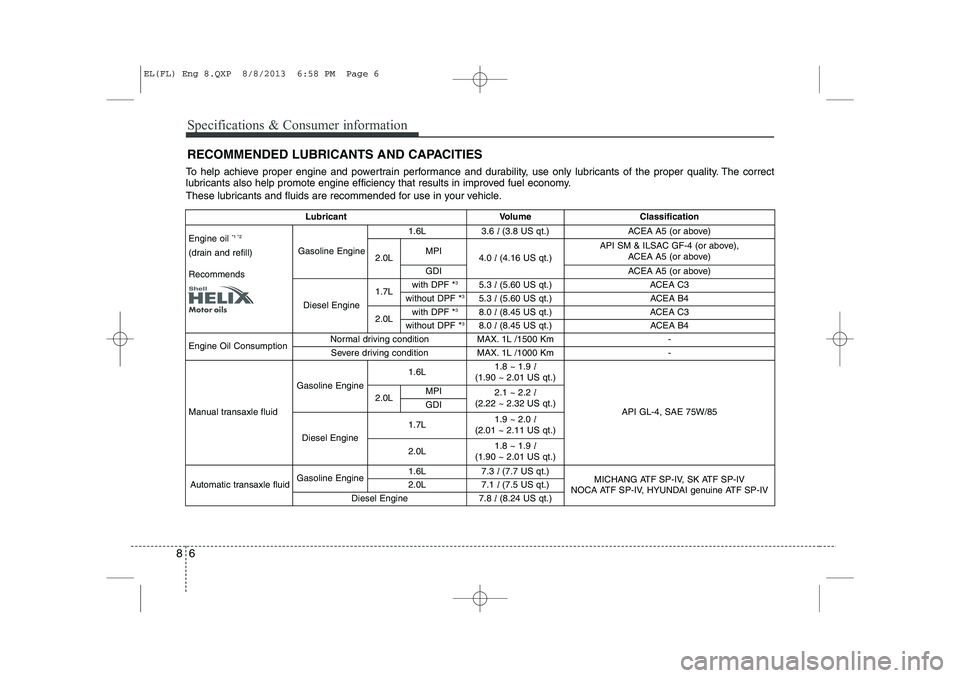

These lubricants and fluids are recommended for use in your vehicle. RECOMMENDED LUBRICANTS AND CAPACITIES
LubricantVolume Classification
Engine oil
*1 *2
(drain and refill) Recommends
Gasoline Engine
1.6L3.6 l(3.8 US qt.)ACEA A5 (or above)
2.0LMPI4.0 l(4.16 US qt.)
API SM & ILSAC GF-4 (or above),
ACEA A5 (or above)
GDIACEA A5 (or above)
Diesel Engine
1.7Lwith DPF * 35.3
l(5.60 US qt.)ACEA C3
without DPF * 35.3
l(5.60 US qt.)ACEA B4
2.0Lwith DPF * 38.0
l(8.45 US qt.)ACEA C3
without DPF * 38.0
l(8.45 US qt.)ACEA B4
Engine Oil ConsumptionNormal driving conditionMAX. 1L /1500 Km-
Severe driving conditionMAX. 1L /1000 Km-
Manual transaxle fluid
Gasoline Engine
1.6L1.8 ~ 1.9 l
(1.90 ~ 2.01 US qt.)
API GL-4, SAE 75W/85
2.0LMPI2.1 ~ 2.2 l
(2.22 ~ 2.32 US qt.)
GDI
Diesel Engine
1.7L1.9 ~ 2.0 l
(2.01 ~ 2.11 US qt.)
2.0L1.8 ~ 1.9 l
(1.90 ~ 2.01 US qt.)
Automatic transaxle fluidGasoline Engine1.6L7.3 l(7.7 US qt.)MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV2.0L7.1 l(7.5 US qt.)
Diesel Engine7.8 l(8.24 US qt.)
EL(FL) Eng 8.QXP 8/8/2013 6:58 PM Page 6

87
Specifications & Consumer information
Lubricant Volume Classification
Coolant Gasoline Engine6.7 l(7.08 US qt.)Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
Diesel Engine8.5 l(8.98 US qt.)
Brake/clutch fluid0.7~0.8 l
(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD) 0.65
l( 0.69 US qt.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (4WD) 0.6
l(0.63 US qt.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel Gasoline Engine
58 l(15.3 US gal.)
Refer to “Fuel requirements” in section 1
Diesel Engine
Available Engine oil
Supplier Product
Gasoline Engine Diesel Engine
Shell HELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
SK ZIC LD5W-30 ZIC LS 5W-30
Chevron KIXX G1 LL KIXX D1 5W-30
Total QUARTZ HKS G-310
QUARTZ INEO MC3 5W-30
QUARTZ INEO MC3 5W-30
Fuchs TITAN SUPERSYN LONG LIFE 5W-30/40
* 1
Refer to the recommended SAE viscosity numbers on 8-8 page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
* 3
Diesel Particulate Filter
EL(FL) Eng 8.QXP 8/8/2013 6:58 PM Page 7

Specifications & Consumer information
8
8
Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather.Using oils of any viscosity other thanthose recommended could result in
engine damage.
When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areas
and when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engine
and other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil (1.7L)
5W-30
15W-40
10W-30
0W-30
Diesel
Engine Oil (2.0L)
5W-30
15W-40
10W-30
0W-30/40
Gasoline Engine Oil
(1.6L GDI/2.0L GDI)
20W-50
10W-30
15W-40
5W-30, 5W-40
Gasoline Engine Oil (2.0L MPI)0W-40, 5W-20, 5W-30, 5W-40
EL(FL) Eng 8.QXP 8/8/2013 6:58 PM Page 8

89
Specifications & Consumer information

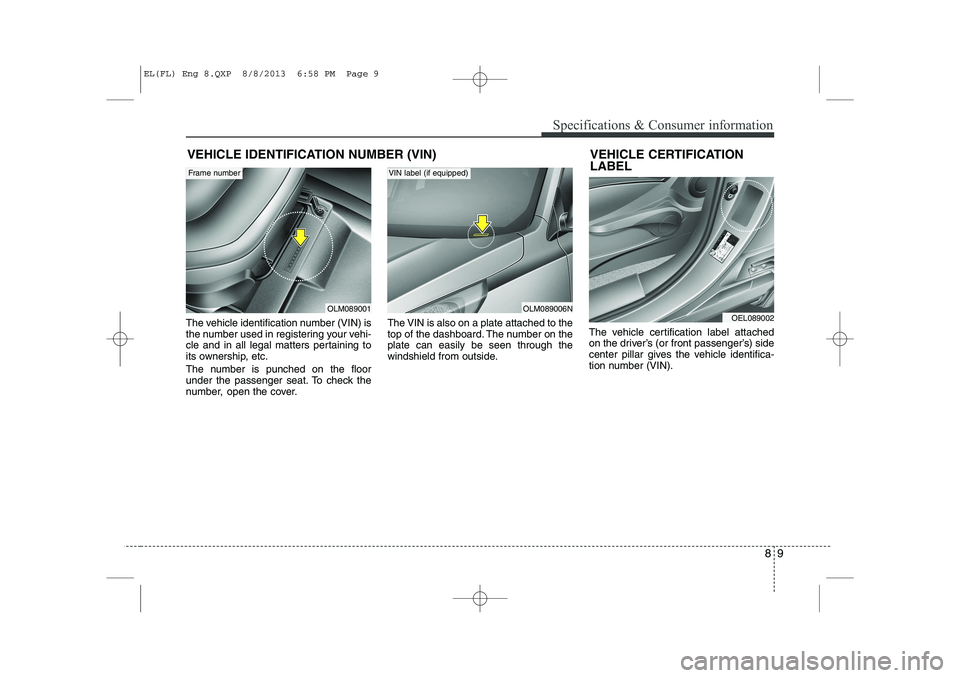

The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windshield from outside.
The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OLM089001
Frame number
VEHICLE CERTIFICATION LABEL
OLM089006N
VIN label (if equipped)
OEL089002
EL(FL) Eng 8.QXP 8/8/2013 6:58 PM Page 9

Specifications & Consumer information
10
8

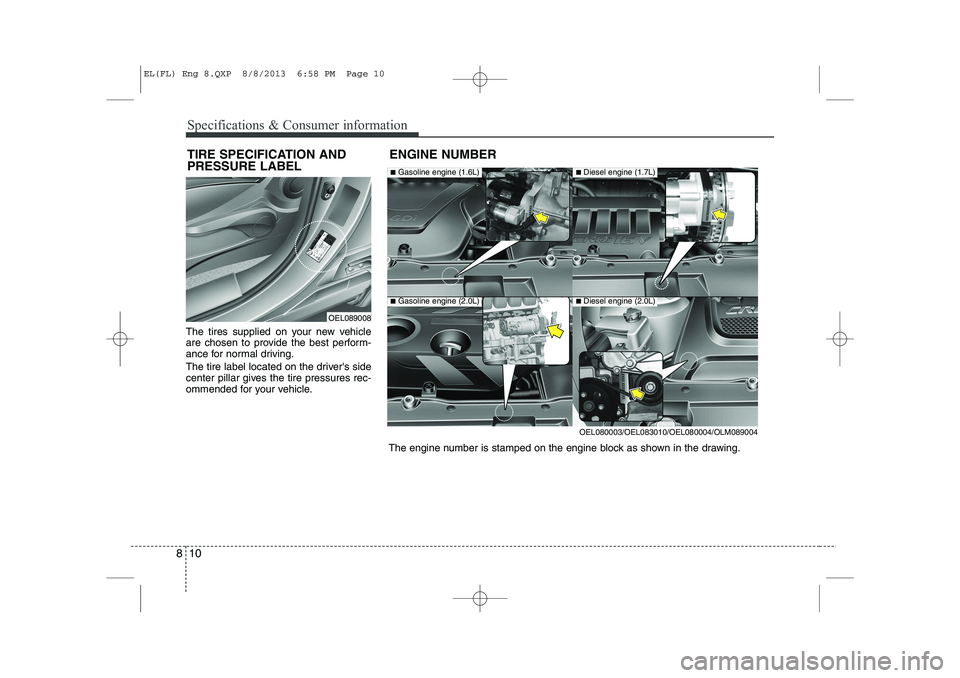

The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your vehicle. TIRE SPECIFICATION AND PRESSURE LABEL
ENGINE NUMBER
OEL089008
■
Gasoline engine (1.6L)
■Gasoline engine (2.0L)
■Diesel engine (1.7L)
■Diesel engine (2.0L)
OEL080003/OEL083010/OEL080004/OLM089004
The engine number is stamped on the engine block as shown in the drawing.
EL(FL) Eng 8.QXP 8/8/2013 6:58 PM Page 10

811
Specifications & Consumer information

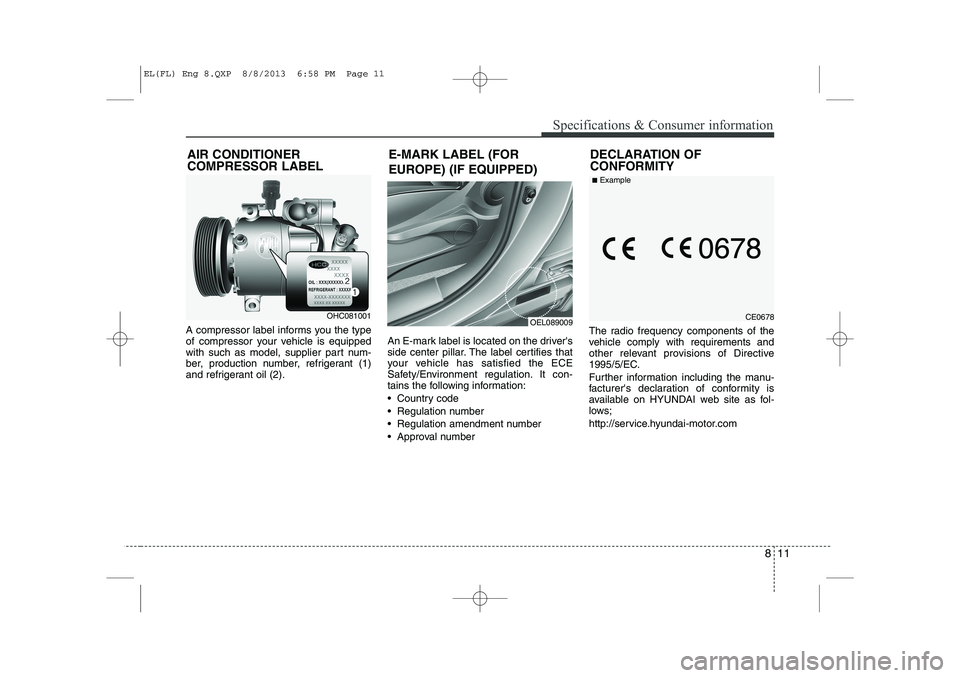

A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part num-
ber, production number, refrigerant (1)
and refrigerant oil (2).An E-mark label is located on the driver's
side center pillar. The label certifies that
your vehicle has satisfied the ECE
Safety/Environment regulation. It con-
tains the following information:
 Country code
 Regulation number
 Regulation amendment number
 Approval numberThe radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the manu-
facturer's declaration of conformity is
available on HYUNDAI web site as fol-
lows;
http://service.hyundai-motor.comOEL089009
AIR CONDITIONER COMPRESSOR LABELOHC081001
E-MARK LABEL (FOR
EUROPE) (IF EQUIPPED)
DECLARATION OF CONFORMITYCE0678
■
Example
