2014 HYUNDAI IX35 Owners Manual

761
Maintenance

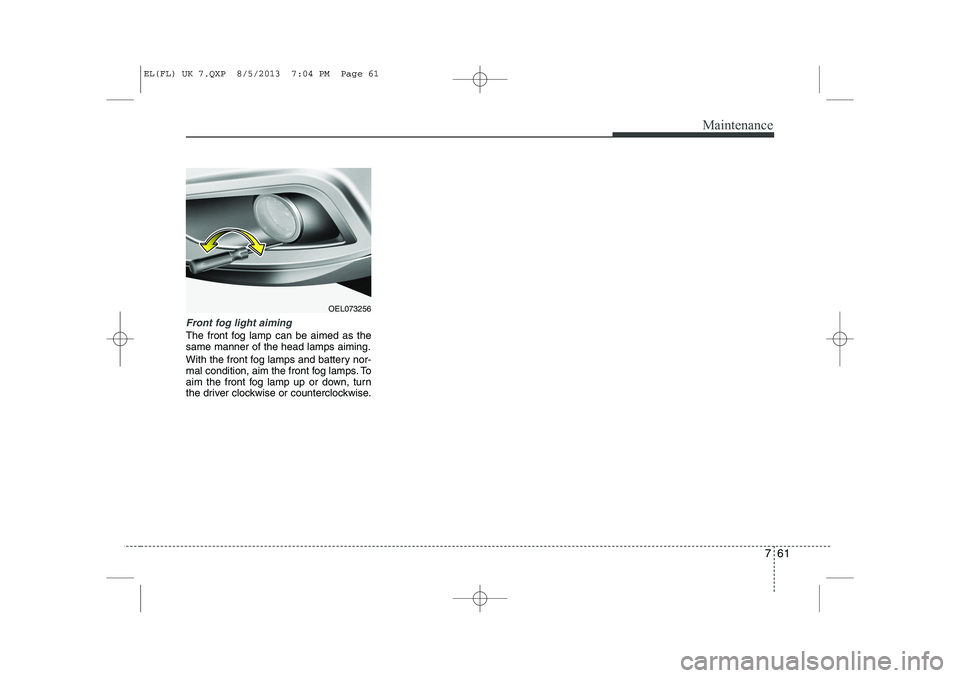

Front fog light aiming
The front fog lamp can be aimed as the same manner of the head lamps aiming.
With the front fog lamps and battery nor-
mal condition, aim the front fog lamps. To
aim the front fog lamp up or down, turn
the driver clockwise or counterclockwise.
OEL073256
EL(FL) UK 7.QXP 8/5/2013 7:04 PM Page 61

Maintenance
62
7

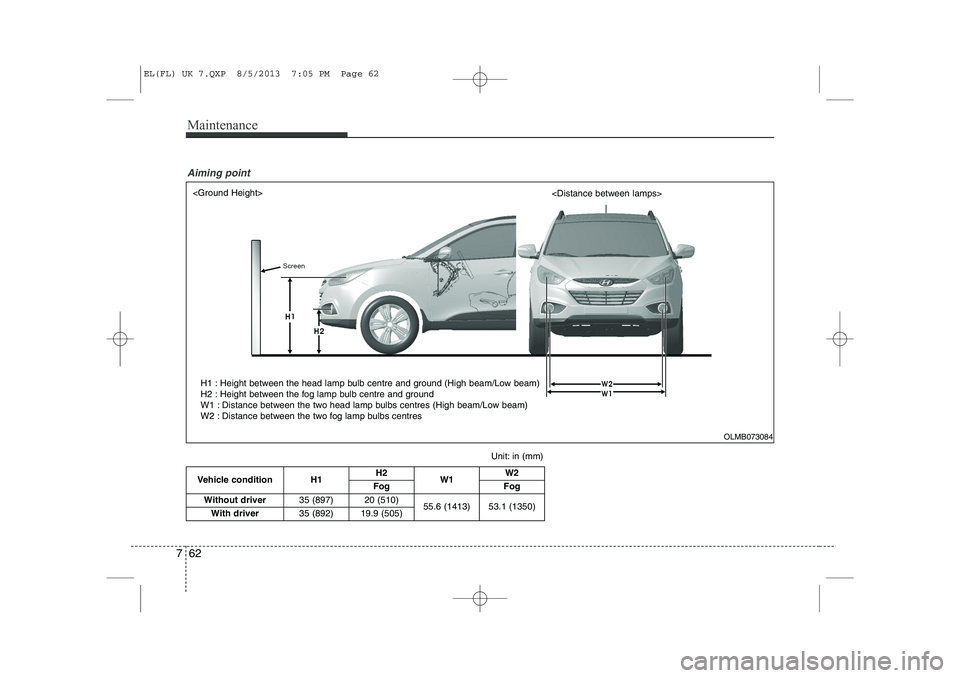

Vehicle condition H1 H2
W1 W2
Fog Fog
Without driver 35 (897) 20 (510)
55.6 (1413) 53.1 (1350)
With driver 35 (892) 19.9 (505)
Unit: in (mm)


H1 : Height between the head lamp bulb centre and ground (High beam/Low beam)
H2 : Height between the fog lamp bulb centre and ground
W1 : Distance between the two head lamp bulbs centres (High beam/Low beam)
W2 : Distance between the two fog lamp bulbs centres
Aiming point
OLMB073084
EL(FL) UK 7.QXP 8/5/2013 7:05 PM Page 62

763
Maintenance

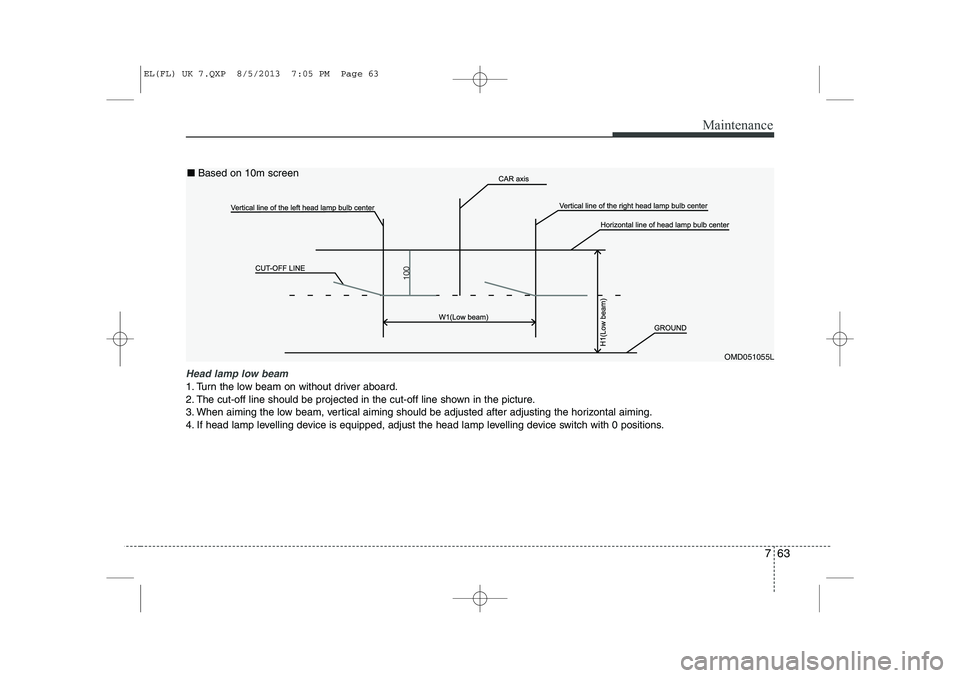

Head lamp low beam
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
OMD051055L
■
Based on 10m screen
EL(FL) UK 7.QXP 8/5/2013 7:05 PM Page 63

Maintenance
64
7

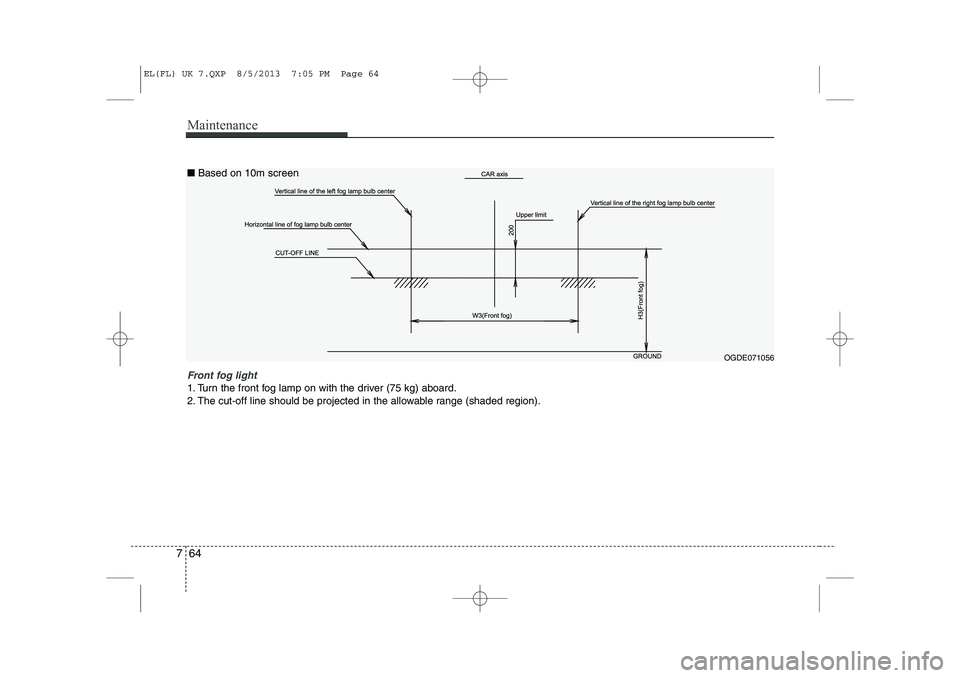

Front fog light
1. Turn the front fog lamp on with the driver (75 kg) aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
OGDE071056
■
Based on 10m screen
EL(FL) UK 7.QXP 8/5/2013 7:05 PM Page 64

765
Maintenance

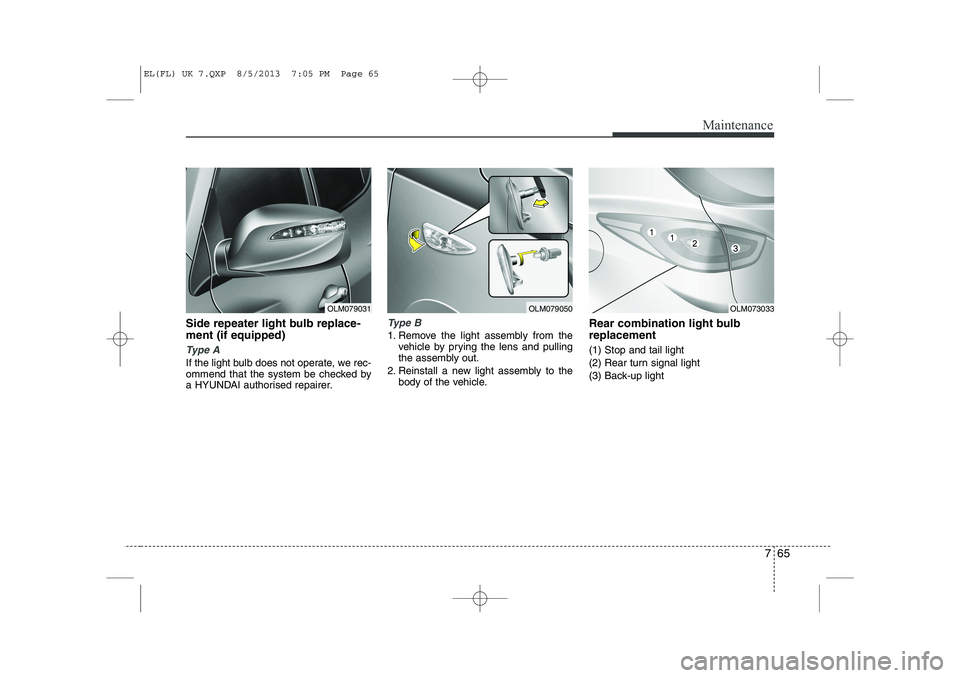

Side repeater light bulb replace- ment (if equipped)
Type A
If the light bulb does not operate, we rec-
ommend that the system be checked by
a HYUNDAI authorised repairer.
Type B
1. Remove the light assembly from thevehicle by prying the lens and pulling
the assembly out.
2. Reinstall a new light assembly to the body of the vehicle. Rear combination light bulb replacement (1) Stop and tail light
(2) Rear turn signal light
(3) Back-up light
OLM079031OLM079050OLM073033
EL(FL) UK 7.QXP 8/5/2013 7:05 PM Page 65

Maintenance
66
7

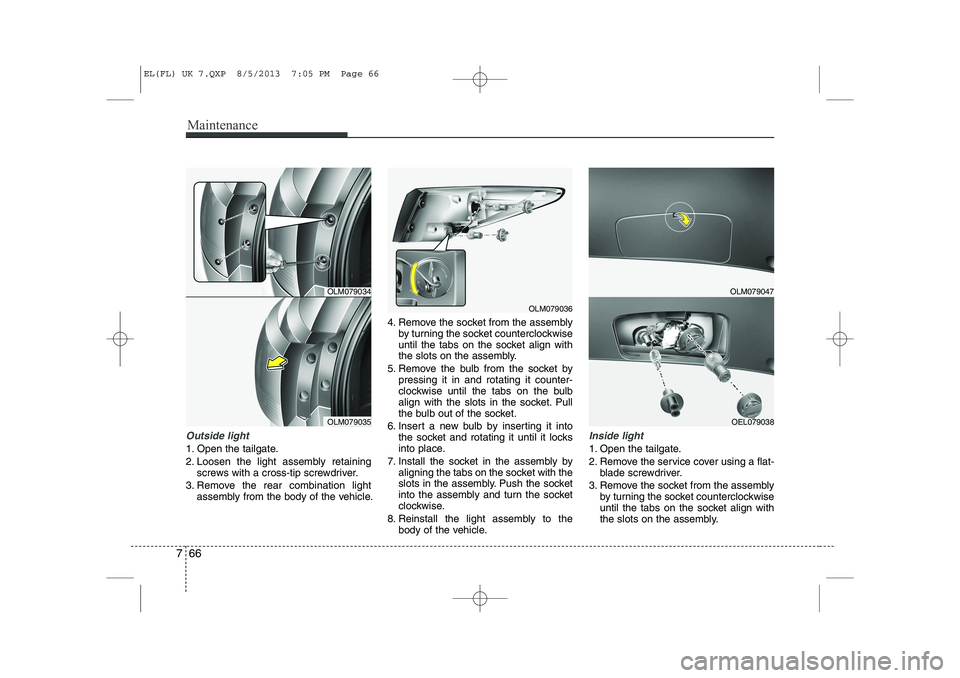

Outside light
1. Open the tailgate.
2. Loosen the light assembly retaining
screws with a cross-tip screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle. 4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
6. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
7. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
8. Reinstall the light assembly to the body of the vehicle.
Inside light
1. Open the tailgate.
2. Remove the service cover using a flat- blade screwdriver.
3. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
OLM079034
OLM079035
OLM079036
OLM079047
OEL079038
EL(FL) UK 7.QXP 8/5/2013 7:05 PM Page 66

767
Maintenance

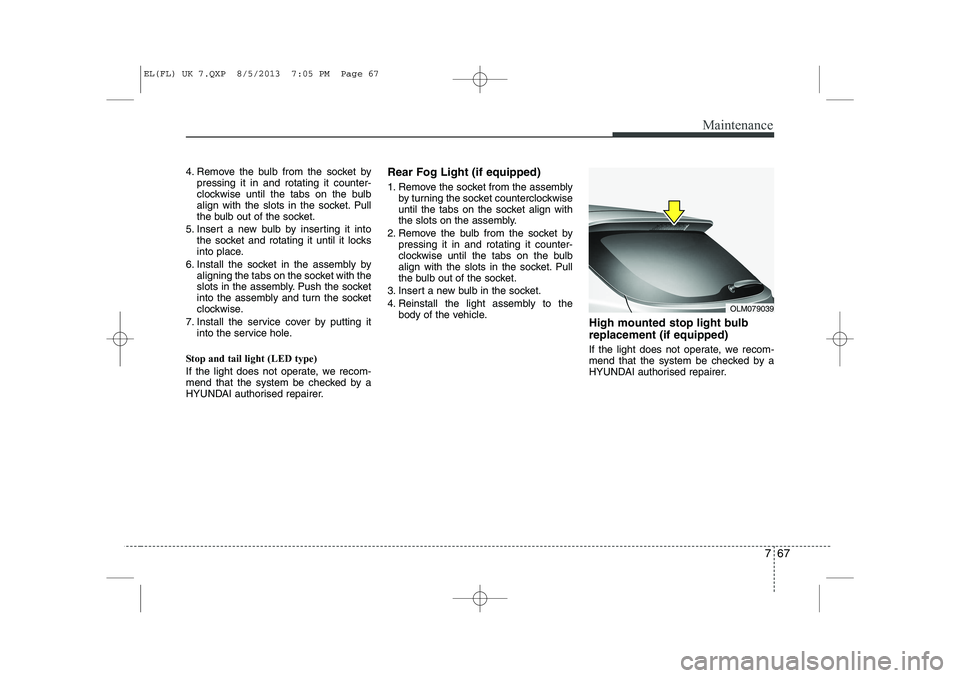

4. Remove the bulb from the socket bypressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
5. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
7. Install the service cover by putting it into the service hole.
Stop and tail light (LED type)
If the light does not operate, we recom-
mend that the system be checked by a
HYUNDAI authorised repairer. Rear Fog Light (if equipped)
1. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
2. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
3. Insert a new bulb in the socket.
4. Reinstall the light assembly to the body of the vehicle. High mounted stop light bulb replacement (if equipped)
If the light does not operate, we recom-
mend that the system be checked by a
HYUNDAI authorised repairer.
OLM079039
EL(FL) UK 7.QXP 8/5/2013 7:05 PM Page 67

Maintenance
68
7

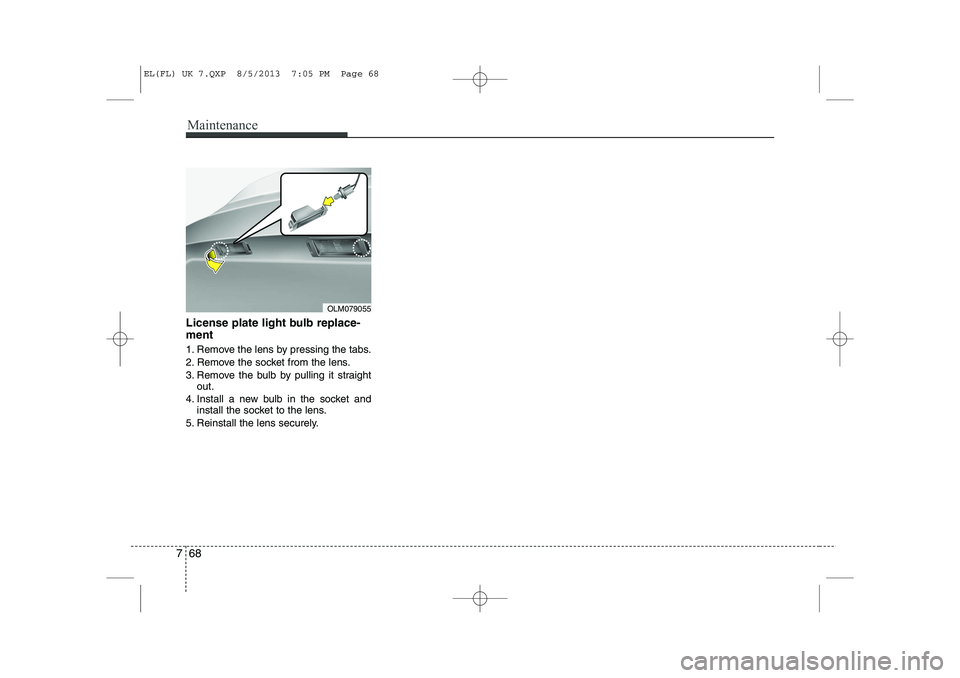

License plate light bulb replace- ment
1. Remove the lens by pressing the tabs.
2. Remove the socket from the lens.
3. Remove the bulb by pulling it straight
out.
4. Install a new bulb in the socket and install the socket to the lens.
5. Reinstall the lens securely.
OLM079055
