Specifications & Consumer information

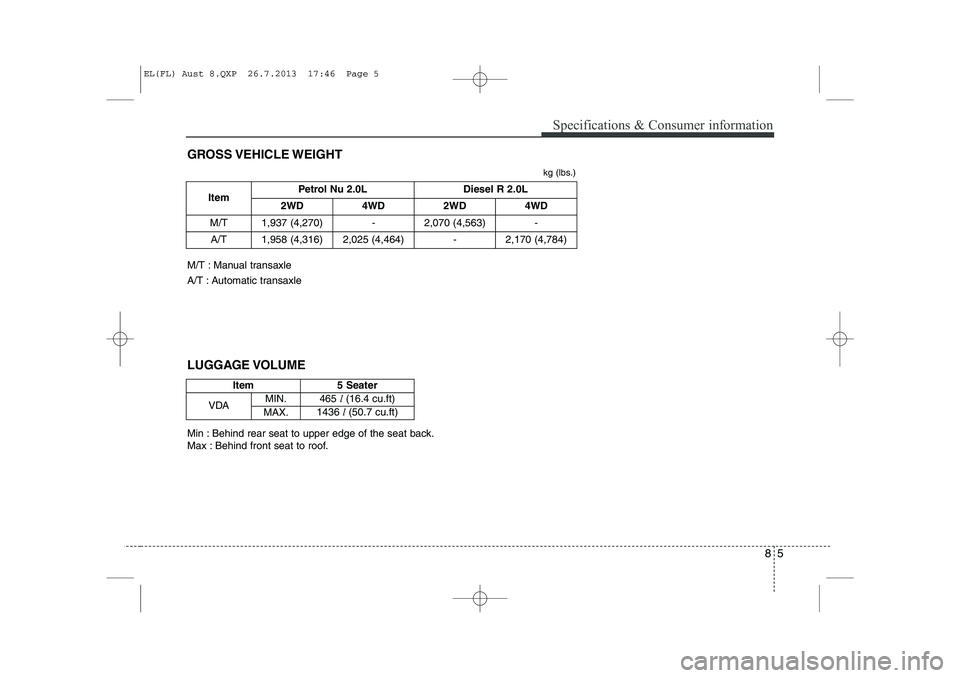

GROSS VEHICLE WEIGHT
ItemPetrol Nu 2.0L Diesel R 2.0L
2WD 4WD 2WD4WD
M/T 1,937 (4,270) - 2,070 (4,563)
-
A/T1,958 (4,316)2,025 (4,464)-2,170 (4,784)
ltem 5 Seater
VDA MIN.
465
l(16.4 cu.ft)
MAX. 1436
l(50.7 cu.ft)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
LUGGAGE VOLUME
M/T : Manual transaxle
A/T : Automatic transaxle kg (lbs.)
EL(FL) Aust 8.QXP 26.7.2013 17:46 Page 5

Specifications & Consumer information
6
8
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle. RECOMMENDED LUBRICANTS AND CAPACITIES
LubricantVolume Classification
Engine oil
*1 *2
(drain and refill)
Recommends Petrol Engine2.0L4.0 lACEA A5 or above
Diesel Engine2.0L
with DPF * 38.0
lACEA C3
without DPF * 38.0
lACEA B4
Manual transaxle fluidPetrol Engine2.0L2.1 ~ 2.2 lAPI GL-4, SAE 75W/85Diesel Engine2.0L1.8 ~ 1.9 l
Automatic transaxle fluid Petrol Engine2.0L7.1 lMICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV
Diesel Engine2.0L7.8 l
Coolant Petrol Engine6.7 lMixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
Diesel Engine8.5 l
Brake/clutch fluid0.7~0.8 lFMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD)0.65 lHYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (4WD)0.6 lHYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
FuelPetrol Engine2.0L58 lRefer to “Fuel requirements” in section 1Diesel Engine2.0L
EL(FL) Aust 8.QXP 26.7.2013 17:47 Page 6

87
Specifications & Consumer information

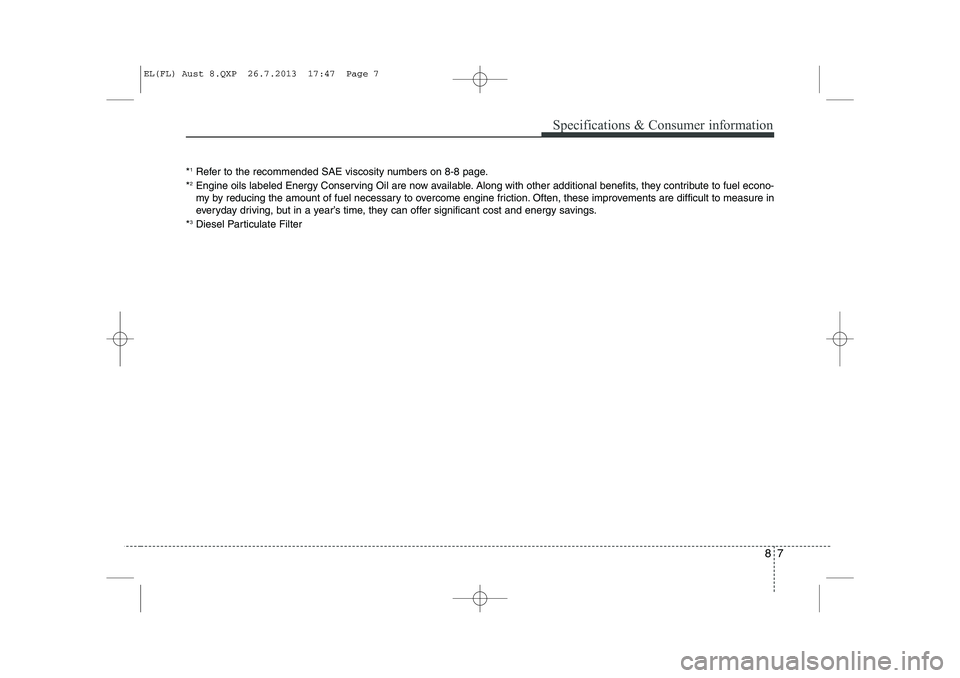

*1
Refer to the recommended SAE viscosity numbers on 8-8 page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo -
my by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
* 3
Diesel Particulate Filter
EL(FL) Aust 8.QXP 26.7.2013 17:47 Page 7

Specifications & Consumer information
8
8
Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather.Using oils of any viscosity other thanthose recommended could result in
engine damage.
When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areas
and when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engine
and other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel Engine (2.0L)5W-30/40
15W-40
10W-30/40
0W-30/40
Petrol Engine (2.0L)
20W-50
10W-30
15W-40
5W-30, 5W-40
EL(FL) Aust 8.QXP 26.7.2013 17:47 Page 8

89
Specifications & Consumer information

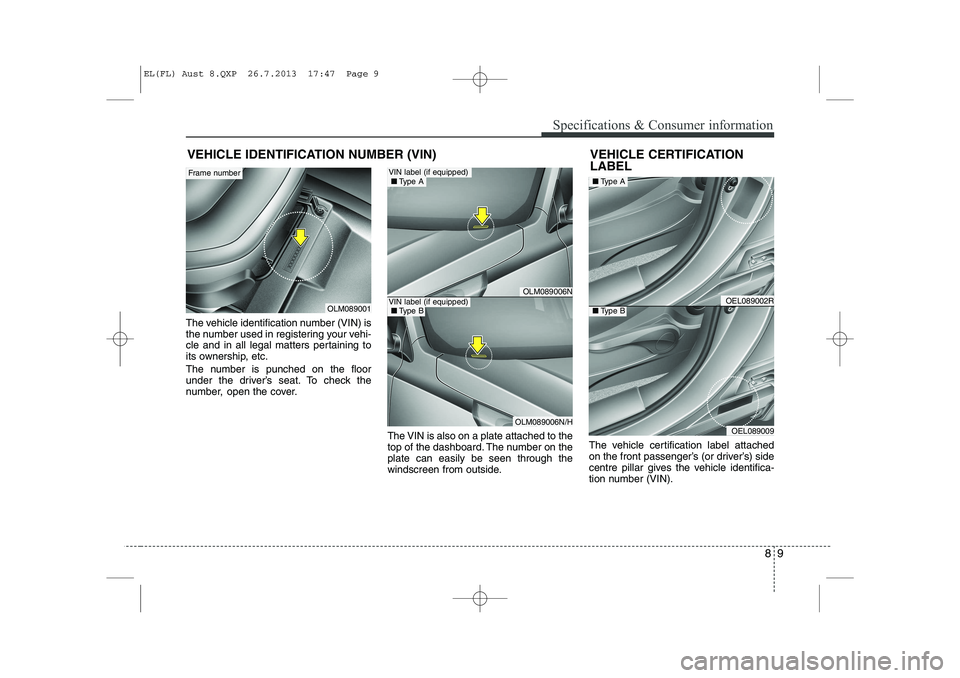

The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched on the floor
under the driver’s seat. To check the
number, open the cover.The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windscreen from outside.The vehicle certification label attached
on the front passenger’s (or driver’s) side
centre pillar gives the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OLM089001
Frame number
VEHICLE CERTIFICATION LABEL
OLM089006N
OLM089006N/H
VIN label (if equipped)
VIN label (if equipped)
■
Type A
■Type BOEL089002R
OEL089009
■Type A
■Type B
EL(FL) Aust 8.QXP 26.7.2013 17:47 Page 9

Specifications & Consumer information
10
8
AIR CONDITIONER COMPRESSOR LABEL

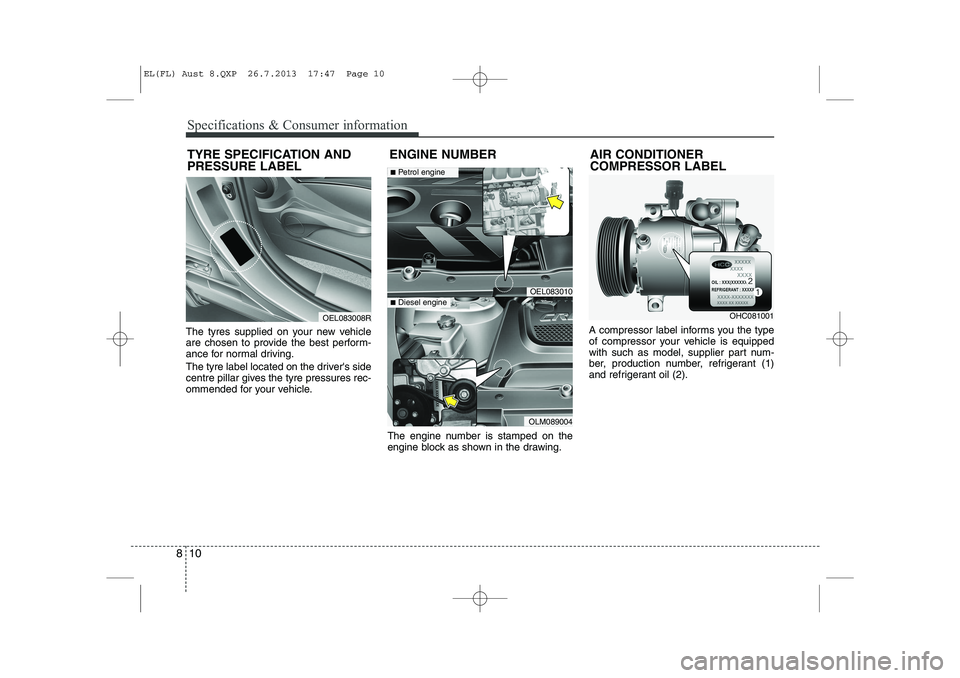

The tyres supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tyre label located on the driver's side
centre pillar gives the tyre pressures rec-
ommended for your vehicle. The engine number is stamped on the
engine block as shown in the drawing.A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part num-
ber, production number, refrigerant (1)
and refrigerant oil (2).
TYRE SPECIFICATION AND PRESSURE LABEL
ENGINE NUMBER
OEL083010
OLM089004
■
Petrol engine
■Diesel engine
OEL083008ROHC081001
EL(FL) Aust 8.QXP 26.7.2013 17:47 Page 10

OOWW NNEERR ''SS MM AANN UUAA LL
Operation MaintenanceSpecifications
All information in this Owner's Manual is current at the time of publication.
However, in line with the Hyundai policy of continual product improvement,
the right to amend or change specifications without prior notice or obliga-
tion to incorporate such amendments or changes into vehicles already pro-
duced, is reserved.
This manual applies to all models of this vehicle and includes descriptions
and explanations of optional as well as standard equipment. As a result,
you may find material in this manual that does not apply to your specific
vehicle.
EL(FL) Aust FOREWORD.QXP 7/26/2013 1:59 PM Page 1

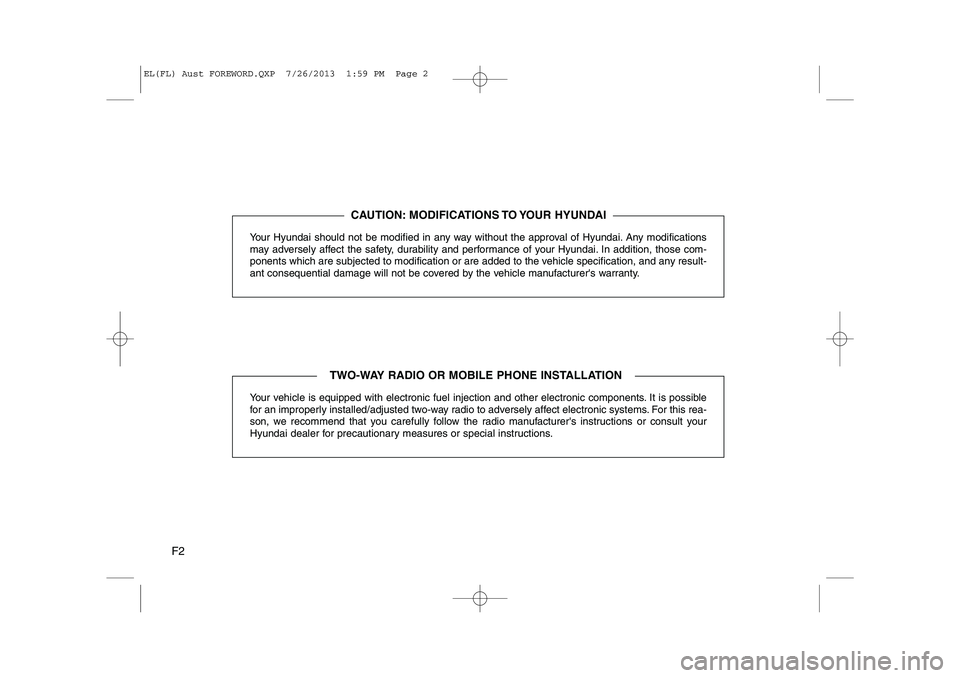

F2Your Hyundai should not be modified in any way without the approval of Hyundai. Any modifications
