2014 FORD FUSION (AMERICAS) Owners Manual

MANUAL CLIMATE CONTROL (IF EQUIPPED)
Fan speed control: Controls the volume of air circulated in your vehicle. Adjustto select the desired fan speed.A
A/C: Press the button to turn air conditioning compressor on or off. Use airconditioning with recirculated air to improve cooling performance and efficiency.B
Note: In certain conditions (such as when using Max Defrost), the airconditioning compressor may continue to operate even after you switch off theair conditioning with the A/C button.
Power: Press the button to turn the system on and off. Switching off the climatecontrol system prevents outside air from entering the vehicle.C
Heated rear window: Turns the heated rear window on and off. See HeatedWindows and Mirrors (page 119).D
Temperature control: Controls the temperature of the airflow in your vehicle.Adjust to select the desired temperature.E
MAX Defrost: Turn the temperature control dial all the way past the full heatposition to maximize defrosting. Outside air flows through the windshield vents,fan automatically adjusts to the highest speed and the temperature dial returnsto the full heat position. You can use this setting to defog or clear a thin coveringof ice from the windshield. The heated rear window also automatically turnson when you select MAX Defrost.
F
Note: To prevent window fogging, you cannot select recirculated air when MAXDefrost is on.
110Fusion (CC7) , enUSAClimate ControlE144491

MAX A/C: Turn the temperature control dial all the way past the full coolposition to maximize cooling. Recirculated air flows through the instrumentpanel vents, air conditioning automatically turns on, the fan automaticallyadjusts to the highest speed and the temperature dial returns to the full coolposition.
G
Air distribution control: Press these buttons to turn airflow from thewindshield, instrument panel, or footwell vents on or off. The system candistribute air through any combination of these vents.
H
Note: At least one of these buttons remain on while the system is on.
Heated seats (if equipped): Turn the driver or passenger heated seats onand off. See Heated Seats (page 127).I
Recirculated air: Press the button to switch between outside air andrecirculated air. When recirculated air is selected, the air currently in thepassenger compartment recirculates. This may reduce the time needed to coolthe interior(when used with A/C) and may also reduce unwanted odors fromentering your vehicle.
J
Note: Recirculated air may turn off automatically (or be prevented from turningon) in all airflow modes except MAX A/C to reduce risk of fogging. Recirculatedair may also turn on and off automatically in Panel or Panel and Floor airflowmodes during hot weather in order to improve cooling efficiency.
Fan speed indicators: Illuminate to indicate fan speed.K
AUTOMATIC CLIMATE CONTROL (IF EQUIPPED)
111Fusion (CC7) , enUSAClimate ControlE144492

Driver temperature control: Turn to increase or decrease the air temperaturefor the driver side of the vehicle. This control also adjusts the passenger sidetemperature when not in dual zone mode.
A
Recirculated air: Press the button to switch between outside air andrecirculated air. When you select recirculated air, the air currently in thepassenger compartment recirculates. This may reduce the time needed to coolthe interior (when used with A/C) and may reduce unwanted odors fromentering your vehicle.
B
Note: Recirculated air may turn off automatically (or be prevented from turningon) in all airflow modes except MAX A/C to reduce risk of fogging. Recirculatedair may also turn on and off automatically in Panel or Panel and Floor airflowmodes during hot weather in order to improve cooling efficiency.
Fan speed control -: Press to decrease the volume of air circulated in yourvehicle.C
Fan speed indicator: Illuminates to indicate fan speed. When the system iscontrolling the fan automatically, all of the fan speed indicators turn off.D
Note: When the system is controlling the fan speed automatically, all of thefan speed indicators turn off.
Air distribution control: Press these buttons to turn airflow from thewindshield, instrument panel, or footwell vents on or off. The system candistribute air through any combination of these vents.
E
Note: At least one of these buttons remains on while the system is on.
Fan speed control +: Press to increase the volume of air circulated in yourvehicle.F
AUTO: Press the button to turn on automatic operation. Select the desiredtemperature using the temperature control. The system adjusts fan speed, airdistribution, air conditioning operation, and selects outside air or recirculatedair to heat or cool the vehicle in order to maintain the desired temperature. Youcan also use the AUTO button to turn off dual zone operation by pressing andholding the button for more than two seconds.
G
Passenger temperature control: Turn to increase or decrease the airtemperature on the passenger side of the vehicle. This turns on dual zone mode.H
Heated rear window: Turns the heated rear window on and off. See HeatedWindows and Mirrors (page 119).I
MAX Defrost: Press the button to maximize defrosting. Outside air flowsthrough the windshield vents, and the fan automatically adjusts to the highestspeed. You can use this setting to defog or clear a thin covering of ice from thewindshield. The heated rear window also automatically turns on when youselect MAX Defrost.
J
Note: To prevent window fogging, you cannot select recirculated air when MAXDefrost is on.
112Fusion (CC7) , enUSAClimate Control

Power: Press the button to turn the system on and off. Switching off the climatecontrol system prevents outside air from entering the vehicle.K
Heated seat (if equipped): Turn the driver or passenger heated seats on andoff. See Heated Seats (page 127).L
MAX A/C: Press the button to maximize cooling. Recirculated air flows throughthe instrument panel vents, air conditioning automatically turns on, and the fanautomatically adjusts to the highest speed.
M
A/C: Press the button to turn air conditioning compressor on or off. Use airconditioning with recirculated air to improve cooling performance and efficiency.N
Note: In certain conditions (such as when using Max Defrost), the airconditioning compressor may continue to operate even after you switch off theair conditioning with the A/C button.

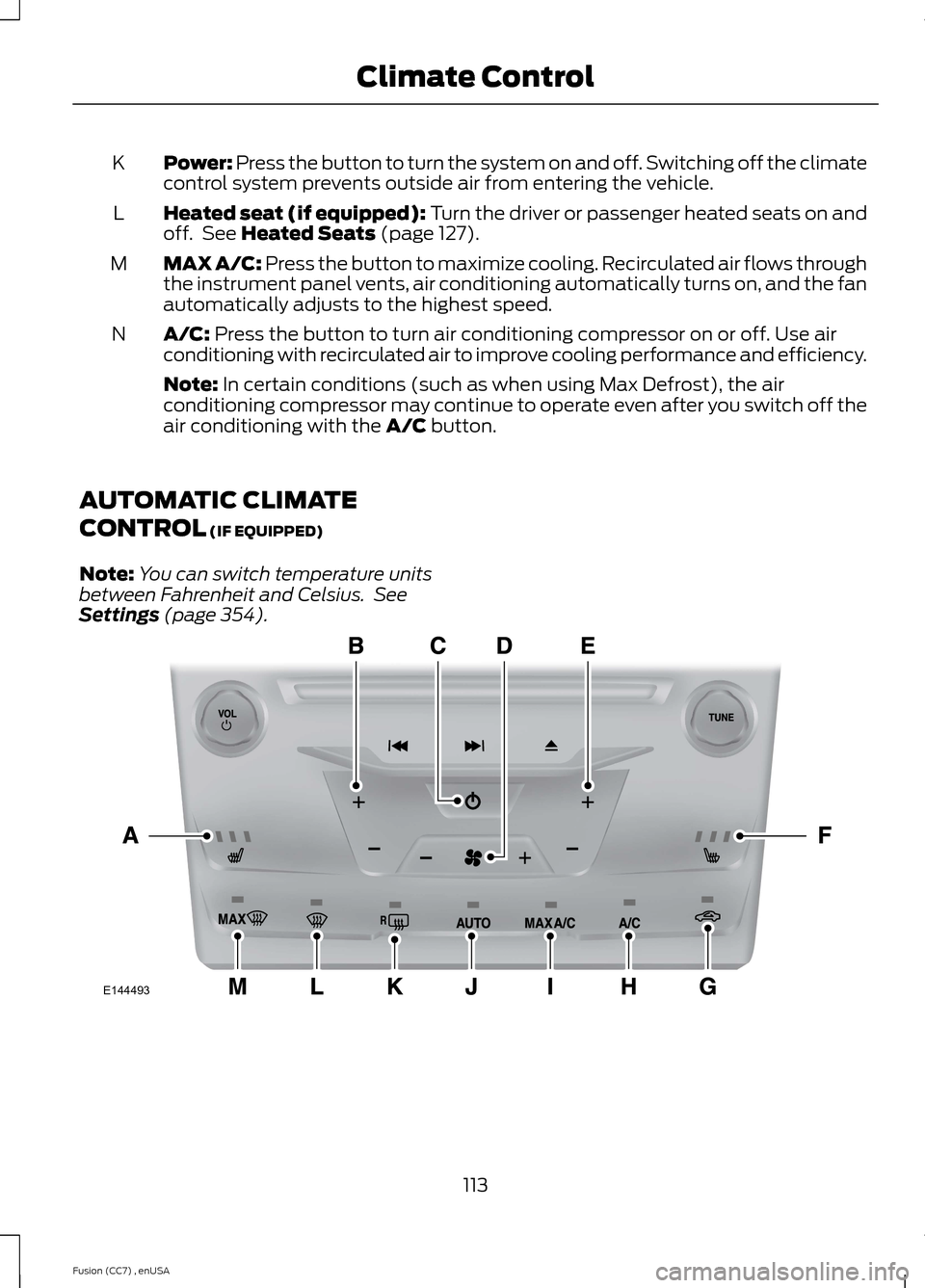

AUTOMATIC CLIMATE
CONTROL (IF EQUIPPED)
Note:You can switch temperature unitsbetween Fahrenheit and Celsius. SeeSettings (page 354).
113Fusion (CC7) , enUSAClimate ControlE144493

Driver heated seat control (if equipped): Turn the driver heated seat offand on. See Heated Seats (page 127).A
Driver temperature control: Press + or - to increase or decrease the airtemperature for the driver side of the vehicle. This control also adjusts thepassenger side temperature when not in dual zone mode.
B
Power: Press the button to turn the system on and off. Switching off the climatecontrol system prevents outside air from entering the vehicle.C
Fan speed control: Touch + or - to increase or decrease the volume of aircirculated in the vehicle.D
Passenger temperature control: Press + or - to increase or decrease the airtemperature on the passenger side of the vehicle. This turns on dual zone mode.E
Passenger heated seat control (if equipped): Turn the passenger heatedseat off and on. See Heated Seats (page 127).F
Recirculated air: Press the button to switch between outside air andrecirculated air. When you select recirculated air, the air currently in thepassenger compartment recirculates. This may reduce the time needed to coolthe interior (when used with A/C) and may reduce unwanted odors fromentering your vehicle.
G
Note: Recirculated air may turn off automatically (or be prevented from turningon) in all airflow modes except MAX A/C to reduce risk of fogging. Recirculatedair may also turn on and off automatically in Panel or Panel and Floor airflowmodes during hot weather in order to improve cooling efficiency.
A/C: Press the button to turn air conditioning compressor on or off. Use airconditioning with recirculated air to improve cooling performance and efficiency.H
Note: In certain conditions (such as when using Max Defrost), the airconditioning compressor may continue to operate even after you switch off theair conditioning with the A/C button.
MAX A/C: Press the button to maximize cooling. Recirculated air flows throughthe instrument panel vents, air conditioning automatically turns on, and the fanautomatically adjusts to the highest speed.
I
AUTO: Press the button to turn on automatic operation. Select the desiredtemperature using the temperature control. The system adjusts fan speed, airdistribution, air conditioning operation, and selects outside air or recirculatedair to heat or cool the vehicle in order to maintain the desired temperature. Youcan also use the AUTO button to turn off dual zone operation by pressing andholding the button for more than two seconds.
J
Heated rear window: Turns the heated rear window on and off. See HeatedWindows and Mirrors (page 119).K
Defrost: Press the button to distribute air to the windshield vents and de-mister.Air distribution to instrument panel and footwell vents turn off. You can usethis setting to defog and clear the windshield of a thin covering of ice.
L
114Fusion (CC7) , enUSAClimate Control

MAX Defrost: Press the button to maximize defrosting. Outside air flowsthrough the windshield vents, fan automatically adjusts to the highest speedand the temperature dial returns to the full heat position. You can use thissetting to defog or clear a thin covering of ice from the windshield. The heatedrear window also automatically turns on when you select MAX Defrost.
M
Note: To prevent window fogging, you cannot select recirculated air when MAXDefrost is on.
AUTOMATIC CLIMATE
CONTROL (IF EQUIPPED)
Note:You can switch temperature unitsbetween Fahrenheit and Celsius. SeeSettings (page 354).
AUTO: Press the button to turn on automatic operation. Select the desiredtemperature using the temperature control. The system adjusts fan speed, airdistribution, air conditioning operation, and selects outside air or recirculatedair to heat or cool the vehicle in order to maintain the desired temperature. Youcan also use the AUTO button to turn off dual zone operation by pressing andholding the button for more than two seconds.
A
CLIMATE: Press the button to turn the system on and off. Switching off theclimate control system prevents outside air from entering the vehicle.B
115Fusion (CC7) , enUSAClimate ControlE144494

MAX A/C: Press the button to maximize cooling. Recirculated air flows throughthe instrument panel vents, air conditioning automatically turns on, and the fanautomatically adjusts to the highest speed.
C
A/C: Press the button to turn air conditioning compressor on or off. Use airconditioning with recirculated air to improve cooling performance and efficiency.D
Note: In certain conditions (such as when using Max Defrost), the airconditioning compressor may continue to operate even after you switch off theair conditioning with the A/C button.
Recirculated air: Press the button to switch between outside air andrecirculated air. When you select recirculated air, the air currently in thepassenger compartment recirculates. This may reduce the time needed to coolthe interior (when used with A/C) and may reduce unwanted odors fromentering your vehicle.
E
Note: Recirculated air may turn off automatically (or be prevented from turningon) in all airflow modes except MAX A/C to reduce risk of fogging. Recirculatedair may also turn on and off automatically in Panel or Panel and Floor airflowmodes during hot weather in order to improve cooling efficiency.
Passenger temperature control: Press + or - to increase or decrease the airtemperature on the passenger side of the vehicle. This turns on dual zone mode.F
Fan speed control: Touch + or - to increase or decrease the volume of aircirculated in the vehicle.G
Driver temperature control: Press + or - to increase or decrease the airtemperature for the driver side of the vehicle. This control also adjusts thepassenger side temperature when not in dual zone mode.
H
MAX Defrost: Press the button to maximize defrosting. Outside air flowsthrough the windshield vents, and the fan automatically adjusts to the highestspeed. You can use this setting to defog or clear a thin covering of ice from thewindshield. The heated rear window also automatically turns on when youselect MAX Defrost.
I
Note: To prevent window fogging, you cannot select recirculated air when MAXDefrost is on.
Heated rear window: Turns the heated rear window on and off. See HeatedWindows and Mirrors (page 119).J
Defrost: Press the button to distribute air to the windshield vents and de-mister.Air distribution to instrument panel and footwell vents turn off. You can usethis setting to defog and clear the windshield of a thin covering of ice.
K
116Fusion (CC7) , enUSAClimate Control

HINTS ON CONTROLLING THE
INTERIOR CLIMATE
General Hints
Note:Prolonged use of recirculated air maycause the windows to fog up.
Note:You may feel a small amount of airfrom the footwell air vents regardless of theair distribution setting.
Note:To reduce humidity build-up insideyour vehicle, do not drive with the systemswitched off or with recirculated air alwaysswitched on.
Note:Do not place objects under the frontseats as this may interfere with the airflowto the rear seats.
Note:Remove any snow, ice or leaves fromthe air intake area at the base of thewindshield.
Note:To improve the time to reach comfortin hot weather, drive with the windowsslightly open for 2-3 minutes after start-upor until your vehicle airs out.
Manual Climate Control
Note:To reduce fogging of the windshieldduring humid weather, adjust the airdistribution control to the windshield airvents position.
Automatic Climate Control
Note:Adjusting the settings when yourvehicle interior is extremely hot or cold isnot necessary. The system automaticallyadjusts to heat or cool the cabin to yourselected temperature as quickly as possible.For the system to function efficiently, theinstrument panel and side air vents shouldbe fully open.
Note:If you select AUTO during coldoutside temperatures, the system directsairflow to the windshield and side windowvents. In addition, the fan may run at aslower speed until the engine warms up.
Note:If you select AUTO during hot outsidetemperatures, or when the inside of thevehicle is hot, the system automatically usesrecirculated air to maximize interior cooling.When the interior reaches the selectedtemperature, the system automaticallyswitches to using outside air.
Heating the Interior Quickly
Vehicle with automatic climate controlVehicle with manual climate control
Press the AUTO button.Adjust the fan speed to the highestspeed setting.1
Adjust the temperature control to thedesired setting.Adjust the temperature control to thehighest setting.2
Select the footwell air vents using theair distribution buttons.3
117Fusion (CC7) , enUSAClimate Control
