2014.5 Peugeot 308 Owner's Manual - RHD (UK, Australia)

127

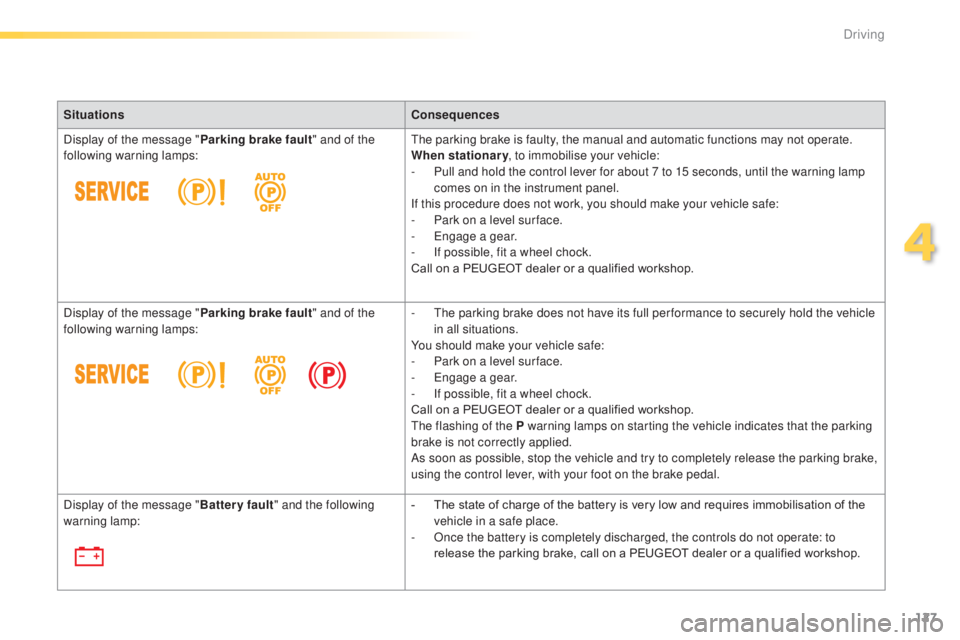

SituationsConsequences
Display of the message " Parking brake fault" and of the
following warning lamps:
th

e parking brake is faulty, the manual and automatic functions may not operate.
When stationary , to immobilise your vehicle:
-

P
ull and hold the control lever for about 7 to 15 seconds, until the warning lamp
comes on in the instrument panel.
If this procedure does not work, you should make your vehicle safe:
-

P
ark on a level sur face.
-
e
n
gage a gear.
-

I
f possible, fit a wheel chock.
Call on a PEUGEOT dealer or a qualified workshop.
Display of the message " Parking brake fault" and of the
following warning lamps: -
t
h
e parking brake does not have its full per formance to securely hold the vehicle
in all situations.
You should make your vehicle safe:
-

P
ark on a level sur face.
-
e
n
gage a gear.
-

I
f possible, fit a wheel chock.
Call on a PEUGEOT dealer or a qualified workshop.
th

e flashing of the P warning lamps on starting the vehicle indicates that the parking
brake is not correctly applied.
As soon as possible, stop the vehicle and try to completely release the parking brake,
using the control lever, with your foot on the brake pedal.
Display of the message " Battery fault" and the following
warning lamp: -

T
he state of charge of the battery is very low and requires immobilisation of the
vehicle in a safe place.
-

O
nce the battery is completely discharged, the controls do not operate: to
release the parking brake, call on a PEUGEOT dealer or a qualified workshop.
4
Driving

128

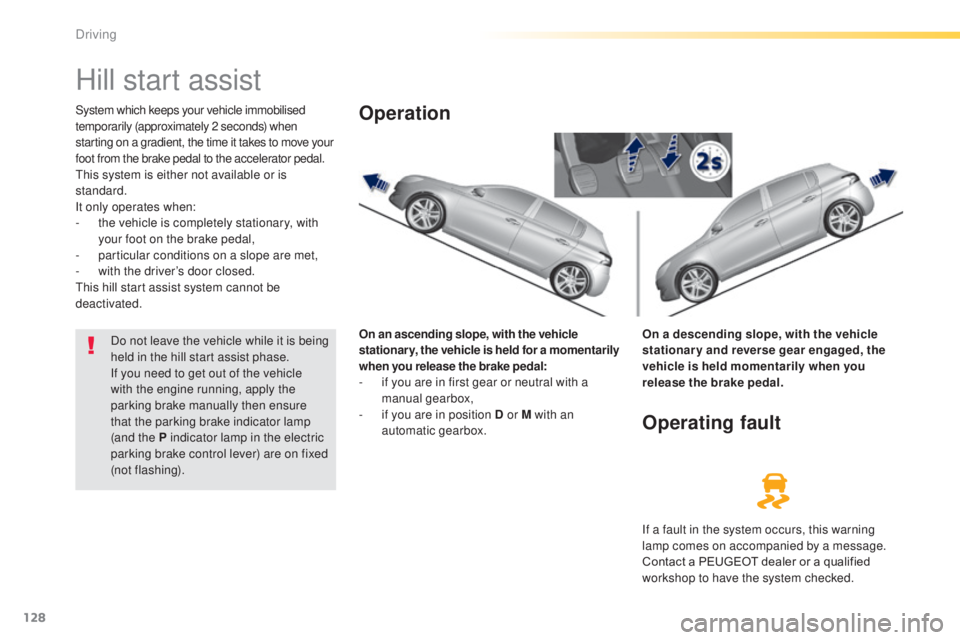

Hill start assist
System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) when
starting on a gradient, the time it takes to move your
foot from the brake pedal to the accelerator pedal.
this system is either not available or is
standard.
It only operates when:
-
t
he vehicle is completely stationary, with
your foot on the brake pedal,
-

p
articular conditions on a slope are met,
-

w
ith the driver’s door closed.
th

is hill start assist system cannot be
deactivated.
On an ascending slope, with the vehicle
stationary, the vehicle is held for a momentarily
when you release the brake pedal:
-

i
f you are in first gear or neutral with a
manual gearbox,
-

i
f you are in position D or M with an
automatic gearbox.
Operation
On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held momentarily when you
release the brake pedal.
Operating fault
If a fault in the system occurs, this warning
lamp comes on accompanied by a message.
Contact a PEUGEOT dealer or a qualified
workshop to have the system checked.
Do not leave the vehicle while it is being
held in the hill start assist phase.
If you need to get out of the vehicle
with the engine running, apply the
parking brake manually then ensure
that the parking brake indicator lamp
(and the

P

indicator lamp in the electric
parking brake control lever) are on fixed
(not flashing).
Driving

129
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
starting of the engine:
-
a
lways select neutral,
-

p
ress the clutch pedal.

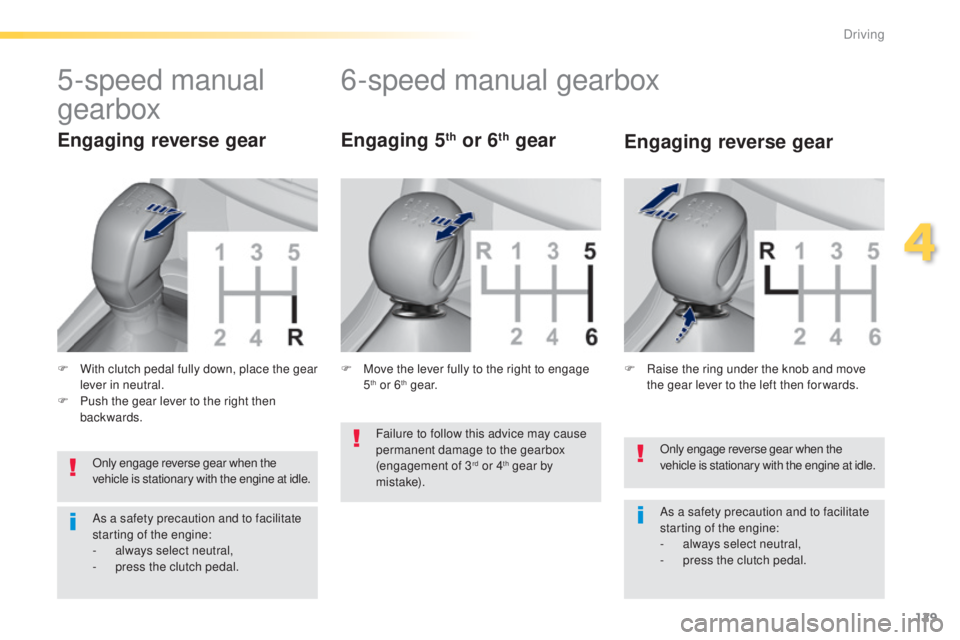

6-speed manual gearbox
Engaging 5th or 6th gear
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
starting of the engine:
-
a
lways select neutral,
-

p
ress the clutch pedal.
5-speed manual
gearbox
F With clutch pedal fully down, place the gear lever in neutral.
F

P
ush the gear lever to the right then
backwards.
Engaging reverse gear Engaging reverse gear
F Raise the ring under the knob and move
the gear lever to the left then for wards.
F
M
ove the lever fully to the right to engage
5th or 6th g e a r.
Failure to follow this advice may cause
permanent damage to the gearbox
(engagement of 3
rd or 4th gear by
m i st a ke).
4
Driving

130

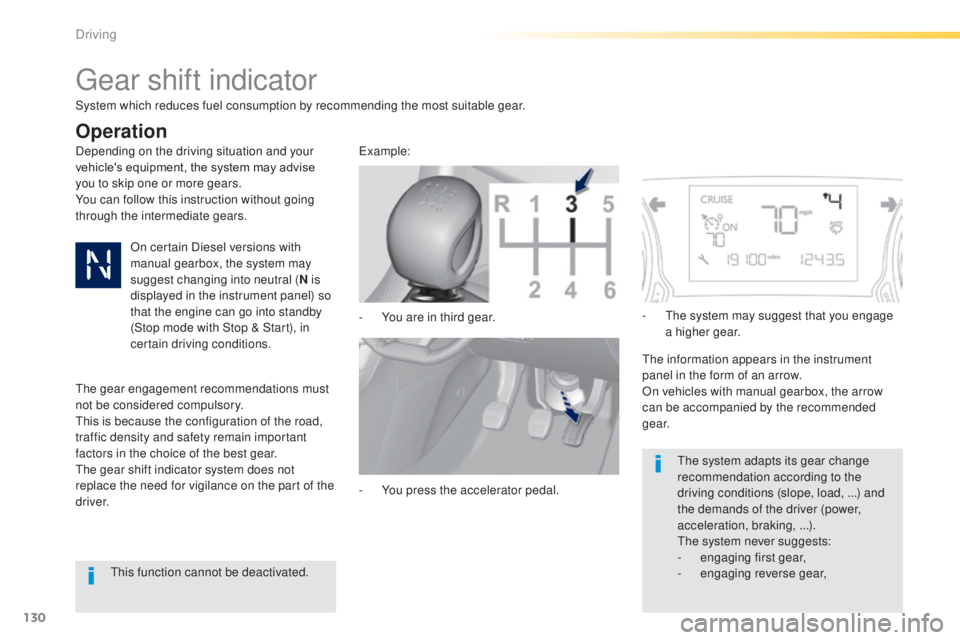

gear shift indicator
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one or more gears.
You can follow this instruction without going
through the intermediate gears.-

Y
ou are in third gear.example:
-
Y
ou press the accelerator pedal.-
t
h
e system may suggest that you engage
a higher gear.
th

e information appears in the instrument
panel in the form of an arrow.
On vehicles with manual gearbox, the arrow
can be accompanied by the recommended
g e a r.
th

e system adapts its gear change
recommendation according to the
driving conditions (slope, load,
...) and
the demands of the driver (power,
acceleration, braking,


...).
th

e system never suggests:
-
e

ngaging first gear,
-
enga

ging reverse gear,
System which reduces fuel consumption by recommending the most suitable gear.
Operation
On certain Diesel versions with
manual gearbox, the system may
suggest changing into neutral (
N is
displayed in the instrument panel) so
that the engine can go into standby
(Stop mode with Stop & Start), in
certain driving conditions.
the

gear engagement recommendations must
not be considered compulsory.
th

is is because the configuration of the road,
traffic density and safety remain important
factors in the choice of the best gear.
th

e gear shift indicator system does not
replace the need for vigilance on the part of the
driver.
th

is function cannot be deactivated.
Driving

131

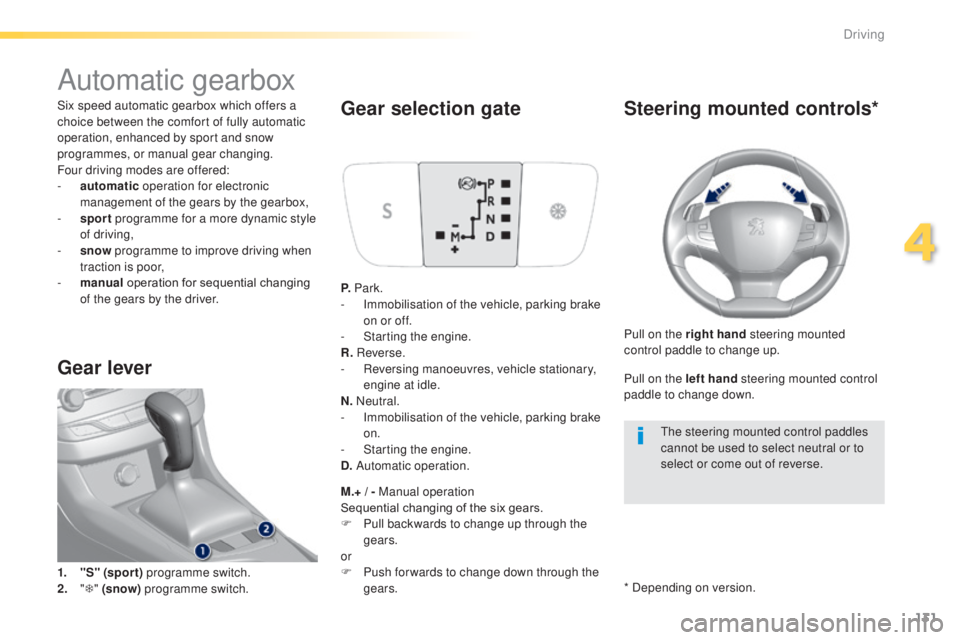

Automatic gearbox
Six speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation, enhanced by sport and snow
programmes, or manual gear changing.
Four driving modes are offered:
-
a
utomatic operation for electronic
management of the gears by the gearbox,
-

sp
ort programme for a more dynamic style
of driving,
-

s
now programme to improve driving when
traction is poor,
-

m
anual operation for sequential changing
of the gears by the driver.
Gear lever
1. "S" (spor t) programme switch.
2. " T "
(snow) programme switch.
Gear selection gate
P. Park.
- I mmobilisation of the vehicle, parking brake
on or off.
-
S

tarting the engine.
R. Reverse.
-

R
eversing manoeuvres, vehicle stationary,
engine at idle.
N. Neutral.
-

I
mmobilisation of the vehicle, parking brake
on.
-
S

tarting the engine.
D. Automatic operation.
M.+ / - Manual operation
Sequential changing of the six gears.
F

P
ull backwards to change up through the
gears.
or
F

P
ush for wards to change down through the
gears.
Steering mounted controls*
Pull on the right hand steering mounted
control paddle to change up.
Pull on the left hand steering mounted control
paddle to change down.
th

e steering mounted control paddles
cannot be used to select neutral or to
select or come out of reverse.
* Depending on version.
4
Driving

132

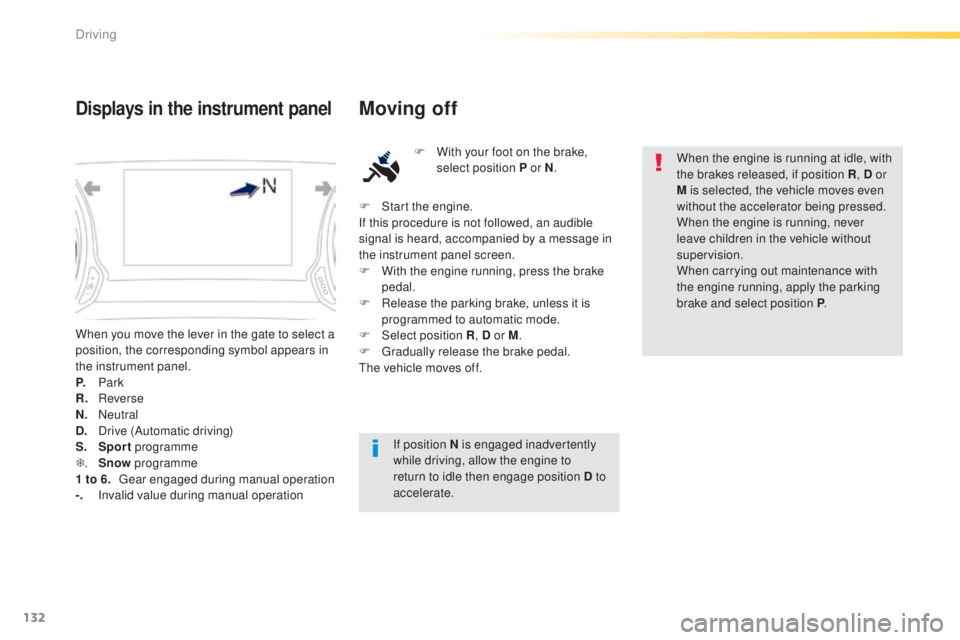

When you move the lever in the gate to select a
position, the corresponding symbol appears in
the instrument panel.
P.

Park
R.
R

everse
N.
N

eutral
D.
D

rive (Automatic driving)
S.
Sport programme
T .

S
now programme
1 to 6.
g
ea
r engaged during manual operation
-.
I

nvalid value during manual operation
Displays in the instrument panelMoving off
F With your foot on the brake, select position P or N .
If position N is engaged inadvertently
while driving, allow the engine to
return to idle then engage position D to
accelerate. When the engine is running at idle, with
the brakes released, if position R
, D or
M is selected, the vehicle moves even
without the accelerator being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P .
F

S

tart the engine.
If this procedure is not followed, an audible
signal is heard, accompanied by a message in
the instrument panel screen.
F

W

ith the engine running, press the brake
pedal.
F

R

elease the parking brake, unless it is
programmed to automatic mode.
F

Sel

ect position R , D or M.
F
g
r

adually release the brake pedal.
th

e vehicle moves off.
Driving

133

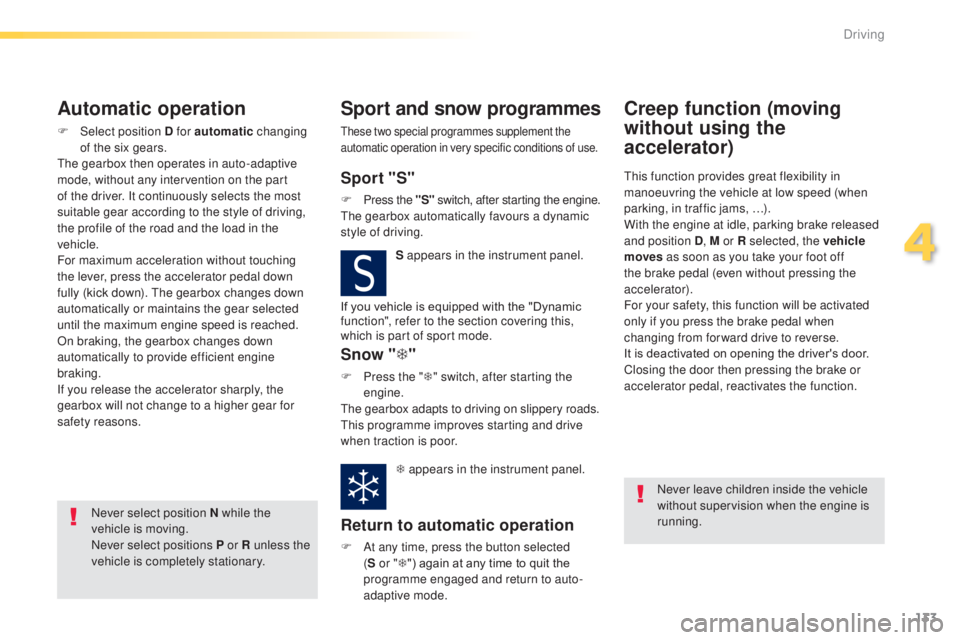

Automatic operation
F Select position D for automatic changing
of the six gears.
th

e gearbox then operates in auto-adaptive
mode, without any intervention on the part
of the driver. It continuously selects the most
suitable gear according to the style of driving,
the profile of the road and the load in the
vehicle.
For maximum acceleration without touching
the lever, press the accelerator pedal down
fully (kick down).
t
h
e gearbox changes down
automatically or maintains the gear selected
until the maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide efficient engine
braking.
If you release the accelerator sharply, the
gearbox will not change to a higher gear for
safety reasons.
Never select position N while the
vehicle is moving.
Never select positions P or R unless the
vehicle is completely stationary.
Sport and snow programmes
these two special programmes supplement the
automatic operation in very specific conditions of use.
Sport "S"
F Press the "S" switch, after starting the engine.th
e gearbox automatically favours a dynamic
style of driving.
S appears in the instrument panel.
Snow "T"
F Press the " T" switch, after starting the
engine.
th

e gearbox adapts to driving on slippery roads.
th

is programme improves starting and drive
when traction is poor.
T appears in the instrument panel.
Return to automatic operation
F At any time, press the button selected (S or " T") again at any time to quit the
programme engaged and return to auto-
adaptive mode.
Creep function (moving
without using the
accelerator)
this function provides great flexibility in
manoeuvring the vehicle at low speed (when
parking, in traffic jams, …).
With the engine at idle, parking brake released
and position D , M or R selected, the vehicle
moves


as soon as you take your foot off
the brake pedal (even without pressing the
accelerator).
For your safety, this function will be activated
only if you press the brake pedal when
changing from forward drive to reverse.
It is deactivated on opening the driver's door.
Closing the door then pressing the brake or
accelerator pedal, reactivates the function.
Never leave children inside the vehicle
without supervision when the engine is
running.
If you vehicle is equipped with the "Dynamic
function", refer to the section covering this,
which is part of sport mode.
4
Driving

134

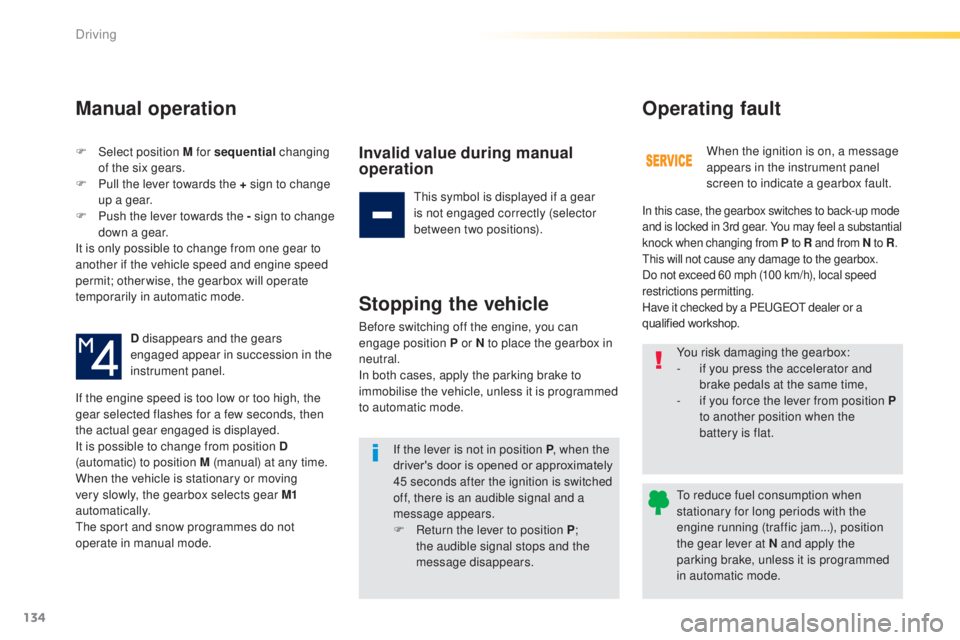

F Select position M for sequential changing
of the six gears.
F

P
ull the lever towards the + sign to change
up a gear.
F

P
ush the lever towards the - sign to change
down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; otherwise, the gearbox will operate
temporarily in automatic mode.
D disappears and the gears
engaged appear in succession in the
instrument panel.
If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M (manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1
automatically.
th

e sport and snow programmes do not
operate in manual mode.
Manual operation
Invalid value during manual
operation
this symbol is displayed if a gear
is not engaged correctly (selector
between two positions).
Stopping the vehicle
Before switching off the engine, you can
engage position P or N to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle, unless it is programmed
to automatic mode.
If the lever is not in position P , when the
driver's door is opened or approximately
45 seconds after the ignition is switched
off, there is an audible signal and a
message appears.
F

R
eturn the lever to position P ;
the audible signal stops and the
message disappears. When the ignition is on, a message
appears in the instrument panel
screen to indicate a gearbox fault.
Operating fault
In this case, the gearbox switches to back-up mode
and is locked in 3rd gear. You may feel a substantial
knock when changing from P
to R and from N to R.
th

is will not cause any damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Have it checked by a P
e

uge
Ot
dealer or a
qualified workshop.
You risk damaging the gearbox:
- i f you press the accelerator and
brake pedals at the same time,
-

i
f you force the lever from position P
to another position when the
battery is flat.
to r

educe fuel consumption when
stationary for long periods with the
engine running (traffic jam...), position
the gear lever at N and apply the
parking brake, unless it is programmed
in automatic mode.
Driving
