2014.5 Peugeot 308 Owner's Manual - RHD (UK, Australia)

05
335
t

hese functions are only available if Risk Areas have been
downloaded and installed on the system.
Select "Settings".
Select "Alert config.".

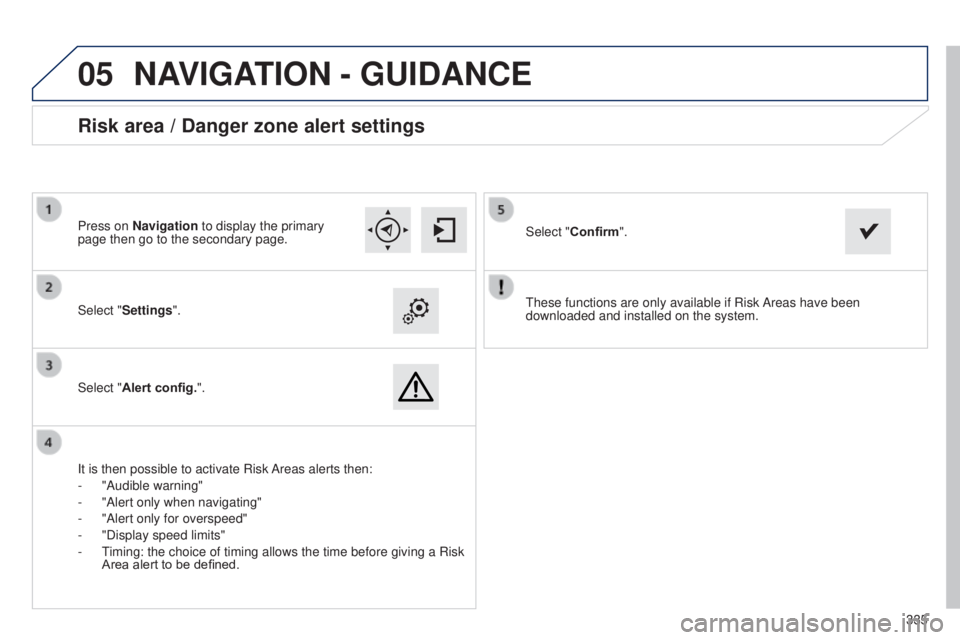

Risk area / Danger zone alert settings
It is then possible to activate Risk Areas alerts then:
-

"Audible warning"
-


"Alert only when navigating"
-


"Alert only for overspeed"
-


"Display speed limits"
-

t
iming: the choice of timing allows the time before giving a Risk
Area alert to be defined. Select "

Confirm".
Press on Navigation to display the primary
page then go to the secondary page.
NAVIGATION - GUIDANCE

05
336
Adding a waypointOrganising waypoints
Select "Enter destination".
Select "Itinerary".
Select "Add waypoint" then "Address".
t

he address of the waypoint is entered in
the same way as a destination, so enter
the "City:" or post code, the "Road:" and
the "N°:". Confirm each time.
t

hen select "Add waypoint ". Select the waypoint that you want to move in
the order.
to organise waypoints, carry out the previous
operations
1 to 3 again (Adding a waypoint).
Select "Up".
Select "Down".
Select "Delete".
Select "Road map" to view the changes made
to the route.
Select "Navigate to".
Select the criteria then "Confirm" to start
guidance and give the general direction of the
navigation route. Press on Navigation to display the primary
page then go to the secondary page.
NAVIGATION - GUIDANCE

05
337

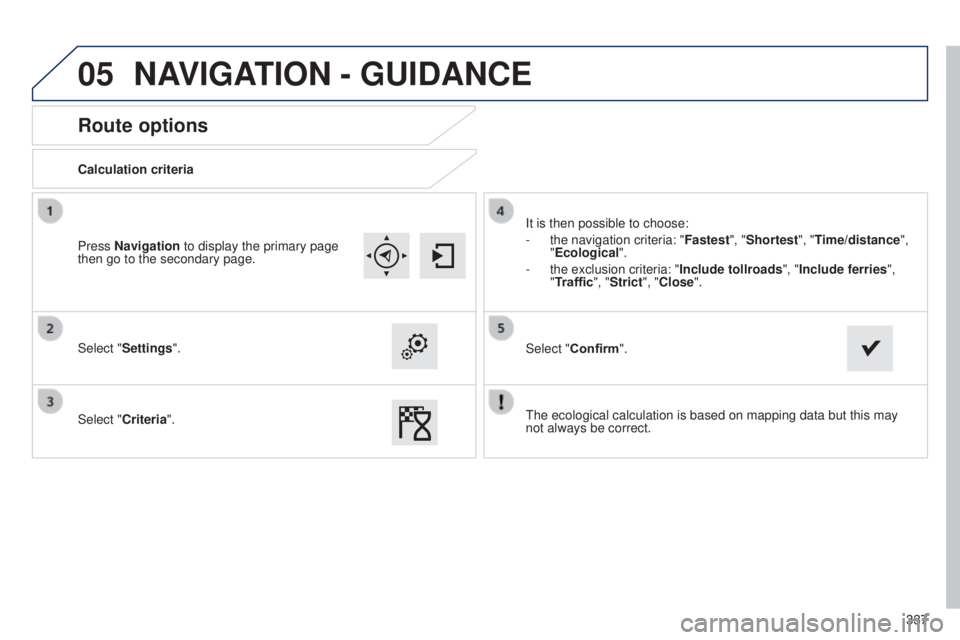

Route options
Calculation criteria
Select "Settings".
Select "Criteria".It is then possible to choose:
-

the navigation criteria: "Fastest

", "Shortest", "Time/distance",
"Ecological ".
-

the exclusion criteria: "Include tollroads", "

Include ferries",
"Traffic", "Strict", "Close".
Select "Confirm".
Press Navigation to display the primary page
then go to the secondary page.
NAVIGATION - GUIDANCE
the ecological calculation is based on mapping data but this may
not always be correct.

05
338

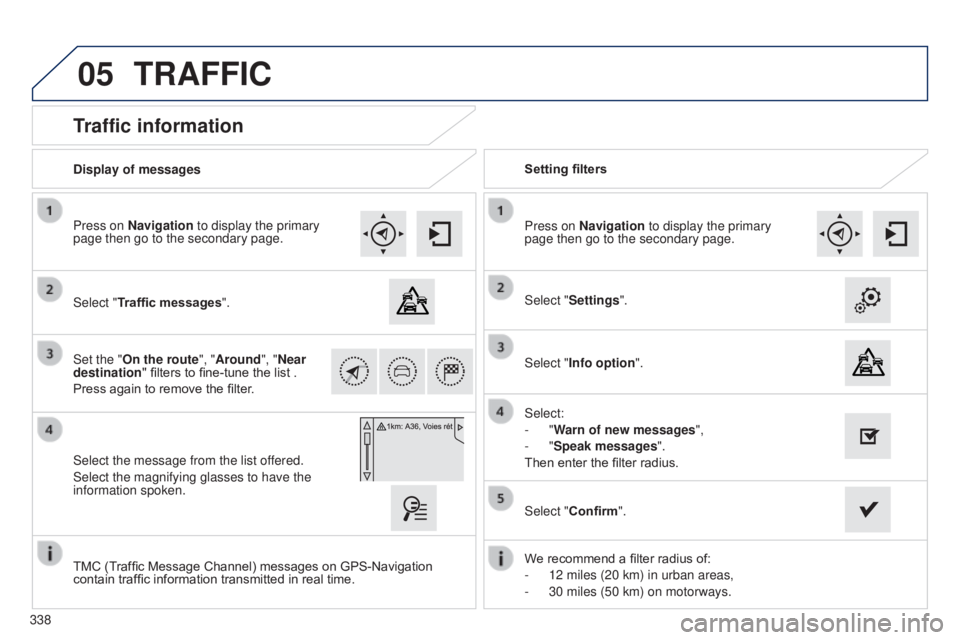

Traffic information
Select "Traffic messages".
Press on Navigation to display the primary
page then go to the secondary page.
Select the message from the list offered.
Select the magnifying glasses to have the
information spoken. Set the "On the route
", "Around", "Near
destination " filters to fine-tune the list .
Press again to remove the filter. Select "Settings".
Select:
-
"Warn of new messages",
-
"Speak messages".
Then enter the filter radius. Press on Navigation to display the primary
page then go to the secondary page.
Display of messages
Setting filters
We recommend a filter radius of:
-

12 miles (20 km) in urban areas,
-


30 miles (50 km) on motorways.
TMC (T

raffic Message Channel) messages on GPS-Navigation
contain traffic information transmitted in real time. Select "Confirm".
TRAFFIC
Select "Info option
".

05
339

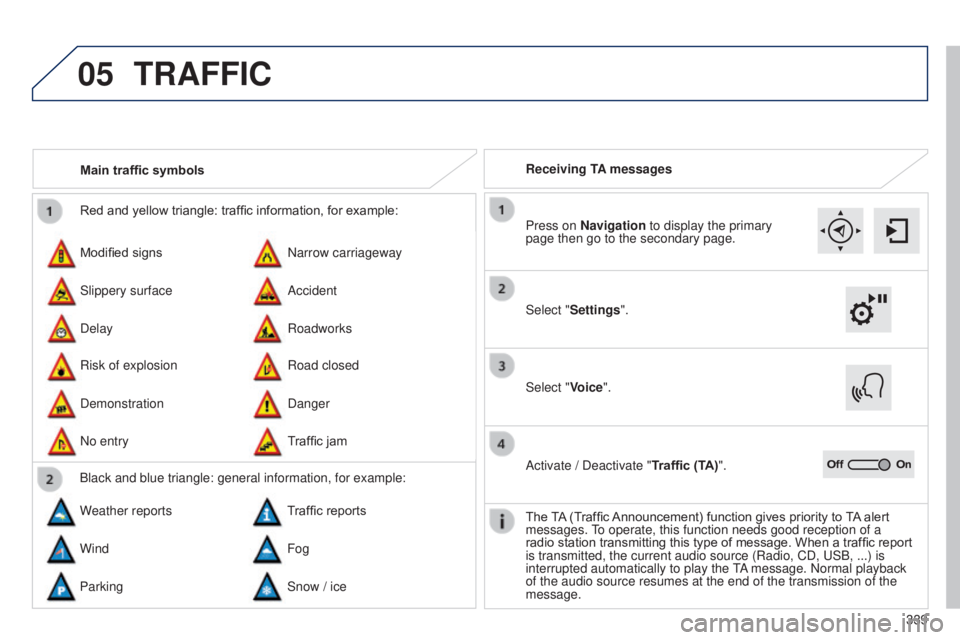

Red and yellow triangle: traffic information, for example:
Modified signs
Risk of explosion Narrow carriageway
Road closed
Slippery surface
Demonstration Accident
Danger
Delay
No entry Roadworks
Traffic jam
Main traffic symbols
Black and blue triangle: general information, for example:
Weather reports Traffic reports
Wind Fog
Parking Snow / ice Receiving TA messages
TRAFFIC
Select "Settings". Press on Navigation to display the primary
page then go to the secondary page.
Select "Voice".
Activate / Deactivate "Traffic (TA)".
The TA (Traffic Announcement) function gives priority to TA alert
messages.
to operate, this function needs good reception of a
radio station transmitting this type of message. When a traffic report
is transmitted, the current audio source (Radio, CD,

u SB, ...) is
interrupted automatically to play the
tA

message. Normal playback
of the audio source resumes at the end of the transmission of the
message.

05

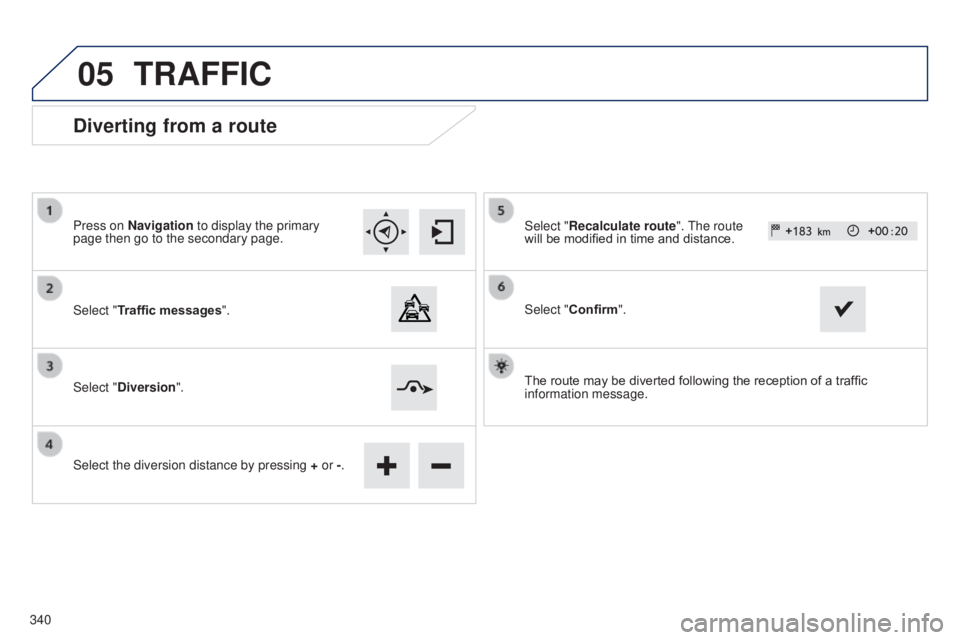

Diverting from a route
Press on Navigation to display the primary
page then go to the secondary page.
Select "Traffic messages".
Select "Diversion".
Select the diversion distance by pressing + or -.Select "Recalculate route".
t he route
will be modified in time and distance.
Select "Confirm".
The route may be diverted following the reception of a traffic
information message.
TRAFFIC
340

05
341

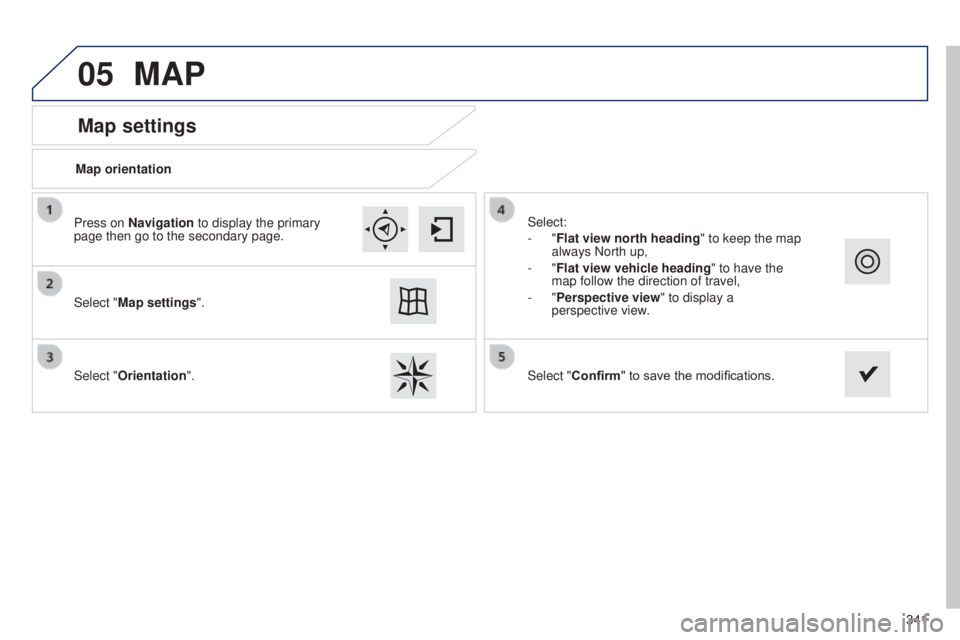

Map settings
MAP
Map orientation
Select "Map settings".
Select "Orientation". Select:
-
"Flat view north heading" to keep the map
always North up,
-
"Flat view vehicle heading" to have the
map follow the direction of travel,
-
"Perspective view" to display a
perspective view.
Press on Navigation to display the primary
page then go to the secondary page.
Select "Confirm" to save the modifications.

05
Street names are visible on the map from the 100 m scale.

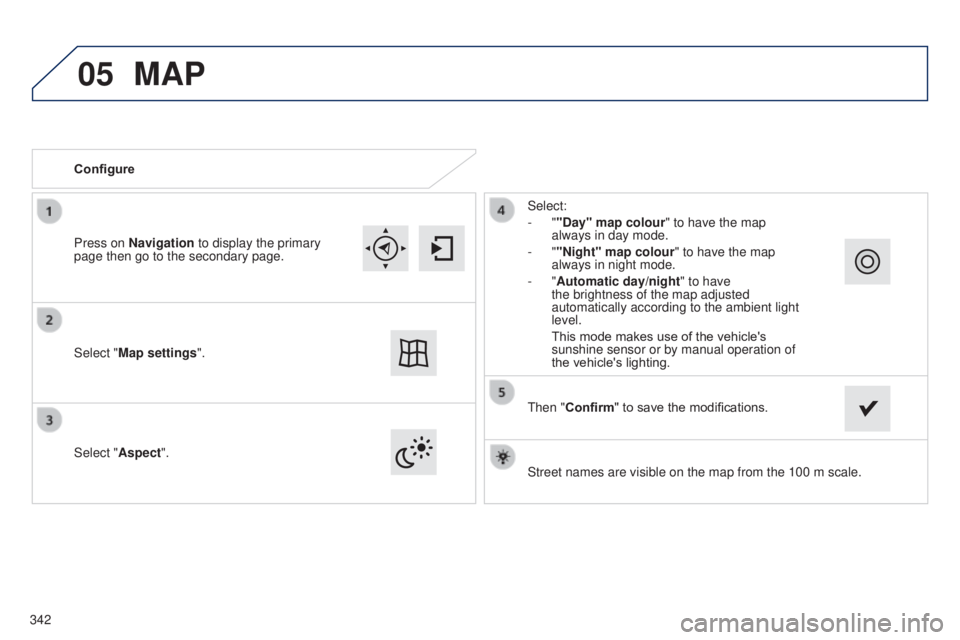

Configure
Select "
Aspect". Select:
- ""Day" map colour" to have the map
always in day mode.
- ""Night" map colour
" to have the map
always in night mode.
- "Automatic day/night
" to have
the brightness of the map adjusted
automatically according to the ambient light
level.
This mode makes use of the vehicle's
sunshine sensor or by manual operation of
the vehicle's lighting.
Select "

Map settings".
Press on Navigation to display the primary
page then go to the secondary page.
MAP
then "Confirm" to save the modifications.
342
