2014.5 Peugeot 308 Owner's Manual - RHD (UK, Australia)

223

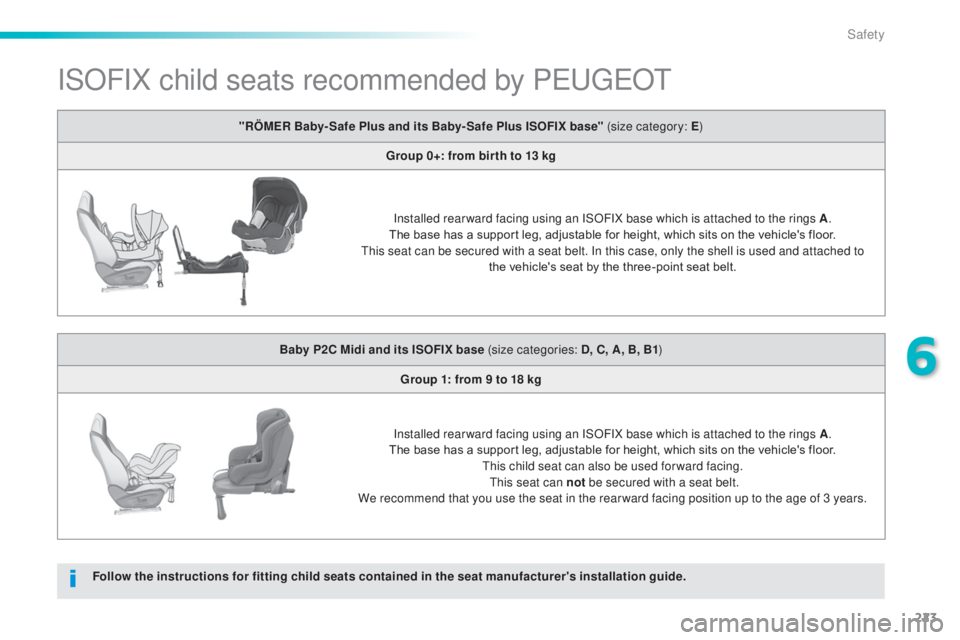

ISOFIX child seats recommended by PeugeOt
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide."RÖMER Baby- Safe Plus and its Baby- Safe Plus ISOFIX base" (size category: E
)
Group 0+: from bir th to 13 kg
Installed rear ward facing using an ISOFIX base which is attached to the rings A .
The base has a support leg, adjustable for height, which sits on the vehicle's floor.
th
is seat can be secured with a seat belt. In this case, only the shell is used and attached to
the vehicle's seat by the three-point seat belt.
Baby P2C Midi and its ISOFIX base (size categories: D, C, A, B, B1 )
Group 1: from 9 to 18 kg
Installed rear ward facing using an ISOFIX base which is attached to the rings A .
The base has a support leg, adjustable for height, which sits on the vehicle's floor.
th
is child seat can also be used for ward facing.
t
h
is seat can not
be secured with a seat belt.
We recommend that you use the seat in the rear ward facing position up to the age of 3 years.
6
Safety

224
this seat can be used on seats not fitted with ISOFIX mountings.
In this case, it must be attached to the vehicle's seat using the three-point seat belt.
Adjust the front seat of the vehicle so that the child's feet do not touch the backrest.RÖMER Duo Plus ISOFIX (size category B1
)
Group 1: from 9 to 18 kg
Is installed in the forward facing position.
Is attached to the rings A and the upper ring B , referred to as the t
o
p t
e
ther, using an upper strap.
t
h
ree seat body angles: sitting, reclining, lying down.
FAIR G 0/1 S and its base RWF B ISOFIX (size category C )
Group 0+ and 1: from bir th to 18 kg
Is installed rearward facing.
Is installed using an ISOFIX base attached to the rings A .
6 seat body angles.
us

e the type B ISOFIX base rearward facing (RWF).
th

is child seat can also be used in the for ward facing position on seating positions not fitted with ISOFIX mountings.
In this case, the child seat body must be attached to the seat of the vehicle by the three point seat belt.
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.
Safety

225

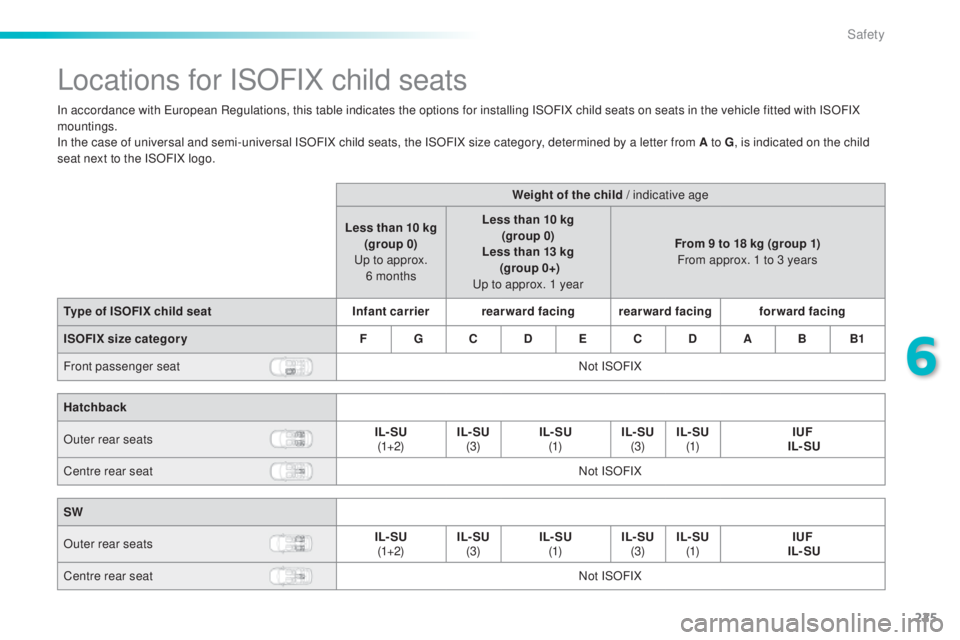

Locations for ISOFIX child seats
In accordance with european Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G , is indicated on the child
seat next to the ISOFIX logo.
Weight of the child
/ indicative age
Less than 10 kg (group 0)
u

p to approx. 6
monthsLess than 10 kg
(group 0)
Less than 13 kg (group 0+)
up t

o approx. 1 yearFrom 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Infant carrierrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Front passenger seat Not ISOFIX
Hatchback
Outer rear seats IL- SU

(1+2) IL- SU

(3) IL- SU

(1) IL- SU

(3) IL- SU

(1) IUF

IL- SU
Centre rear seat Not ISOFIX
SW
Outer rear seats IL- SU

(1+2) IL- SU

(3) IL- SU

(1) IL- SU

(3) IL- SU

(1) IUF

IL- SU
Centre rear seat Not ISOFIX
6
Safety

226

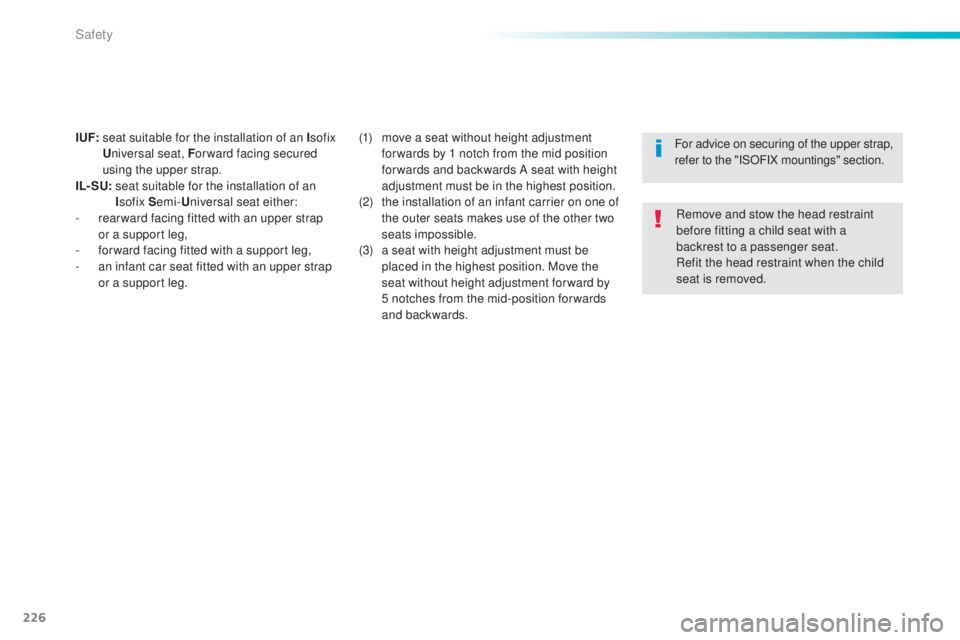

I UF: seat suitable for the installation of an I sofix
U niversal seat, F or ward facing secured
using the upper strap.
IL- SU:

s
eat suitable for the installation of an
I sofix S emi-Universal seat either:
-

r
ear ward facing fitted with an upper strap
or a support leg,
-

f
or ward facing fitted with a support leg,
-

a
n infant car seat fitted with an upper strap
or a support leg. For advice on securing of the upper strap,
refer to the "ISOFIX mountings" section.
(1)
m ove a seat without height adjustment
for wards by 1 notch from the mid position
for wards and backwards A seat with height
adjustment must be in the highest position.
(2)

t
he installation of an infant carrier on one of
the outer seats makes use of the other two
seats impossible.
(3)

a s
eat with height adjustment must be
placed in the highest position. Move the
seat without height adjustment for ward by
5 notches from the mid-position for wards
and backwards. Remove and stow the head restraint
before fitting a child seat with a
backrest to a passenger seat.
Refit the head restraint when the child
seat is removed.
Safety

227
Child seatsInstalling a booster
cushion

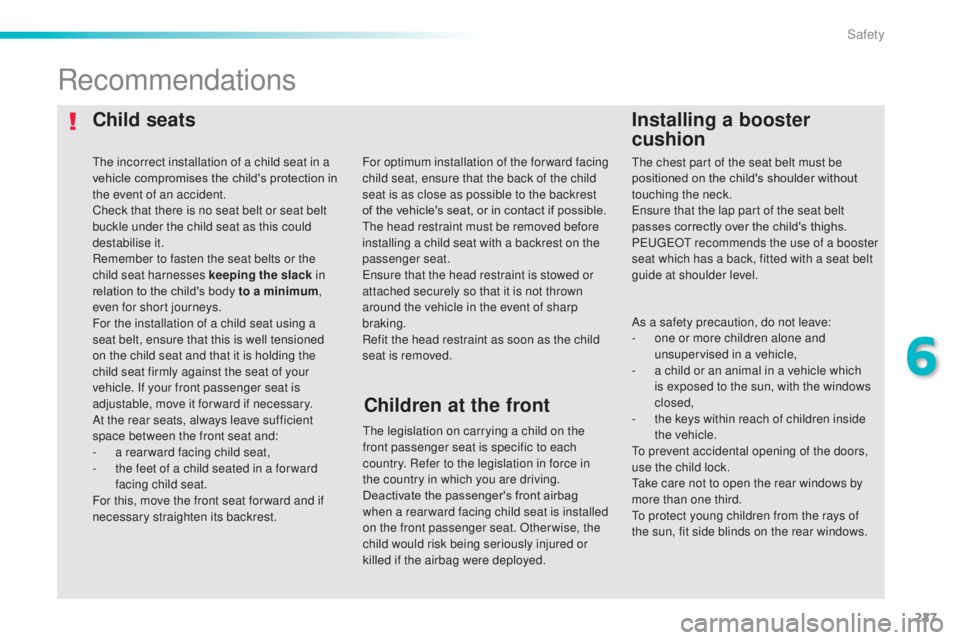

Recommendations
the legislation on carrying a child on the
front passenger seat is specific to each
country. Refer to the legislation in force in
the country in which you are driving.
Deactivate the passenger's front airbag
when a rear ward facing child seat is installed
on the front passenger seat. Otherwise, the
child would risk being seriously injured or
killed if the airbag were deployed.
For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, or in contact if possible.
th

e head restraint must be removed before
installing a child seat with a backrest on the
passenger seat.
en
sure that the head restraint is stowed or
attached securely so that it is not thrown
around the vehicle in the event of sharp
braking.
Refit the head restraint as soon as the child
seat is removed.
th

e incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Check that there is no seat belt or seat belt
buckle under the child seat as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.
For the installation of a child seat using a
seat belt, ensure that this is well tensioned
on the child seat and that it is holding the
child seat firmly against the seat of your
vehicle. If your front passenger seat is
adjustable, move it forward if necessary.
At the rear seats, always leave sufficient
space between the front seat and:
-

a r

ear ward facing child seat,
-

t

he feet of a child seated in a for ward
facing child seat.
For this, move the front seat for ward and if
necessary straighten its backrest.
Children at the front
the chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
en

sure that the lap part of the seat belt
passes correctly over the child's thighs.
P
e

uge
Ot
recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-

o
ne or more children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
to p

revent accidental opening of the doors,
use the child lock.
ta

ke care not to open the rear windows by
more than one third.
to p

rotect young children from the rays of
the sun, fit side blinds on the rear windows.
6
Safety

228

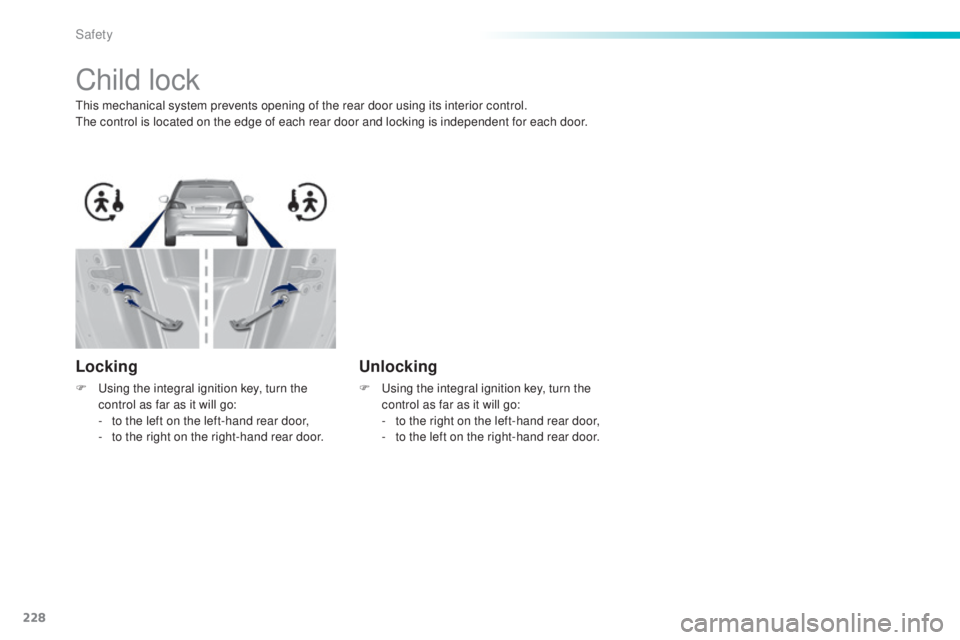

Child lock
this mechanical system prevents opening of the rear door using its interior control.the control is located on the edge of each rear door and locking is independent for each door.
Locking
F using the integral ignition key, turn the control as far as it will go:
-

t
o the left on the left-hand rear door,
-

t
o the right on the right-hand rear door.
Unlocking
F using the integral ignition key, turn the control as far as it will go:
-

t
o the right on the left-hand rear door,
-

t
o the left on the right-hand rear door.
Safety

229

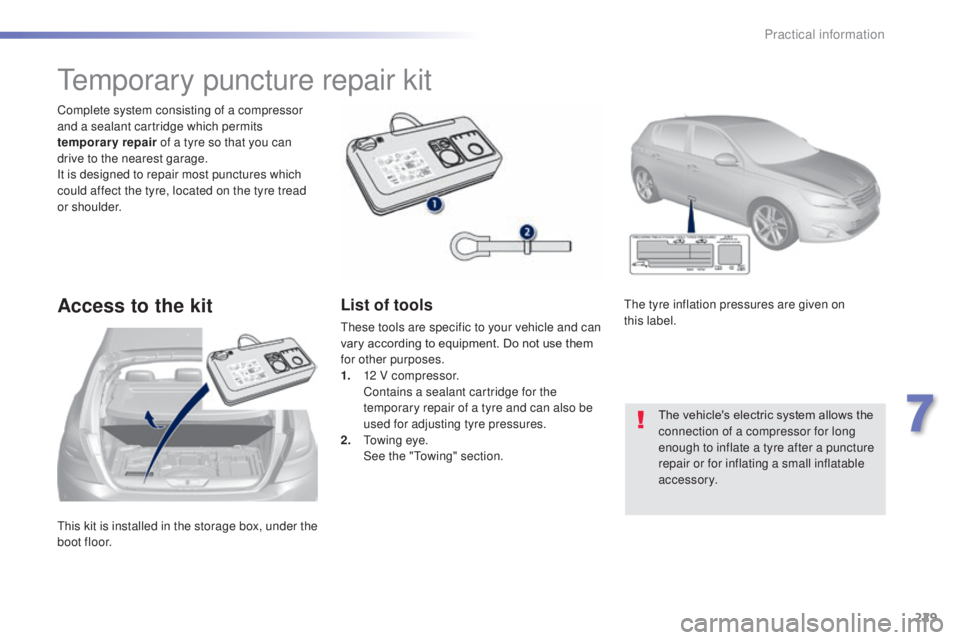

this kit is installed in the storage box, under the
boot floor. Complete system consisting of a compressor
and a sealant cartridge which permits
temporary repair of a tyre so that you can
drive to the nearest garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
temporary puncture repair kit
Access to the kitList of tools
these tools are specific to your vehicle and can
vary according to equipment. Do not use them
for other purposes.
1.
1

2 V compressor.
C

ontains a sealant cartridge for the
temporary repair of a tyre and can also be
used for adjusting tyre pressures.
2.


t
o
wing eye.
S

ee the "
to
wing" section.
th
e tyre inflation pressures are given on
this label.
The vehicle's electric system allows the
connection of a compressor for long
enough to inflate a tyre after a puncture
repair or for inflating a small inflatable
accessory.
7
Practical information

230

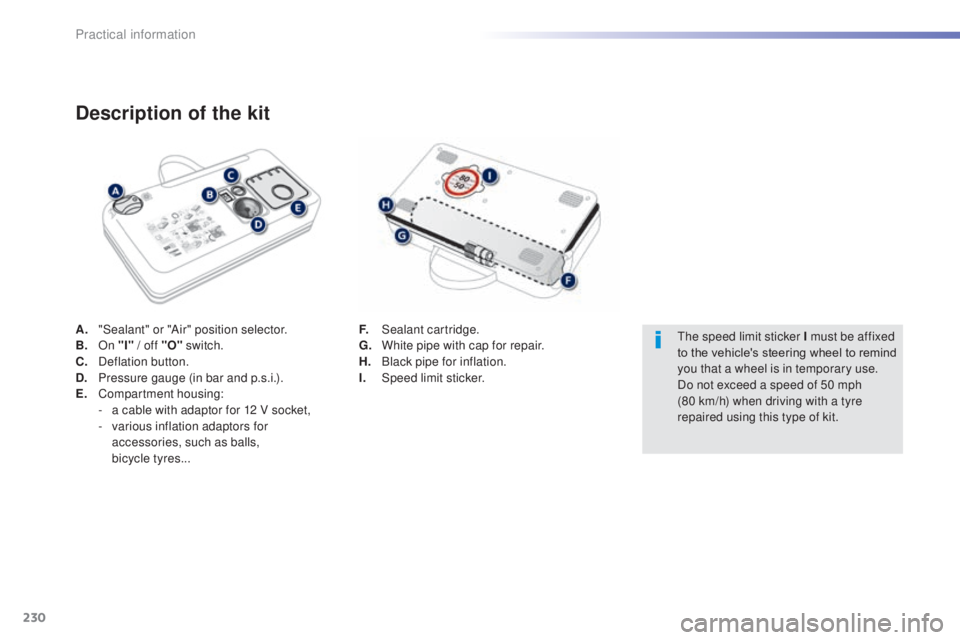

A. "Sealant" or "Air" position selector.
B. On "I" / off "O" switch.
C.
D

eflation button.
D.
P

ressure gauge (in bar and p.s.i.).
E.
C

ompartment housing:
-

a c
able with adaptor for 12 V socket,
-
v

arious inflation adaptors for
accessories, such as balls,
bicycle


tyres...
Description of the kit
F. Sealant cartridge.
G. White pipe with cap for repair.
H.
B

lack pipe for inflation.
I.
Spe

ed limit sticker.th e speed limit sticker I must be affixed
to the vehicle's steering wheel to remind
you that a wheel is in temporary use.
Do not exceed a speed of 50 mph
(80
km/h) when driving with a tyre
repaired using this type of kit.
Practical information
