2014.5 Peugeot 308 technical data

9

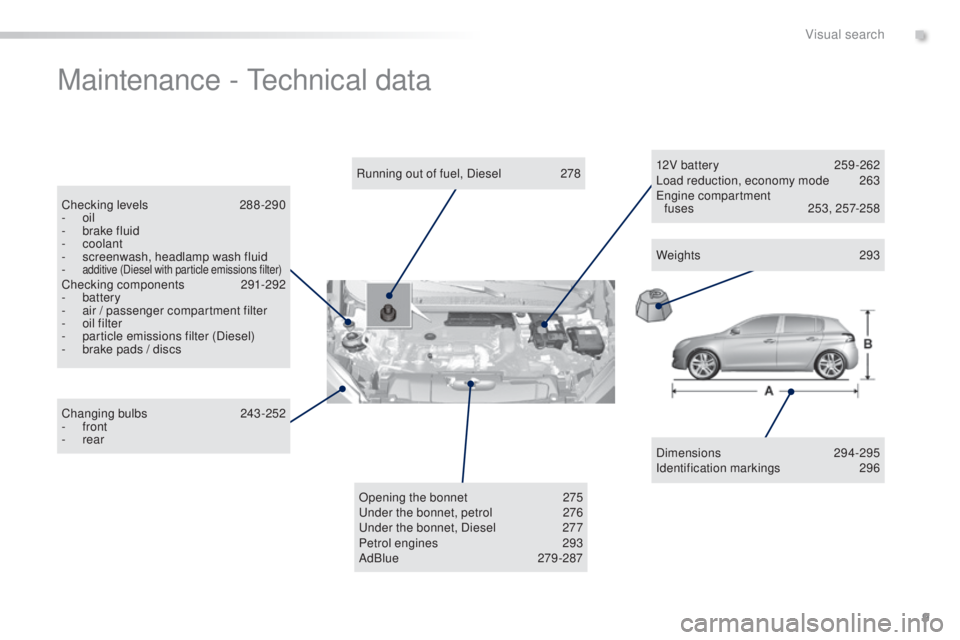

Maintenance - technical data
Dimensions 294-295
Identification markings 2 96
Running out of fuel, Diesel

2

78
Checking levels

2

88 -290
-

oil
-

b

rake fluid
-


coolant
-
s

creenwash, headlamp wash fluid
-

additive (Diesel with particle emissions filter)Checking components 2
91-292
- battery
-
a

ir / passenger compartment filter
-

o
il filter
-

p
article emissions filter (Diesel)
-

b
rake pads / discs
Changing bulbs
2

43-252
-
front
-
rear 12V battery

2
59 -262
Load reduction, economy mode
26
3
en

gine compartment
fuses
25
3, 257-258
Opening the bonnet
2
75
un

der the bonnet, petrol
2
76
un

der the bonnet, Diesel
2
77
Petrol engines

2
93
AdBlue
279 -287Weights


293
.
Visual search

293

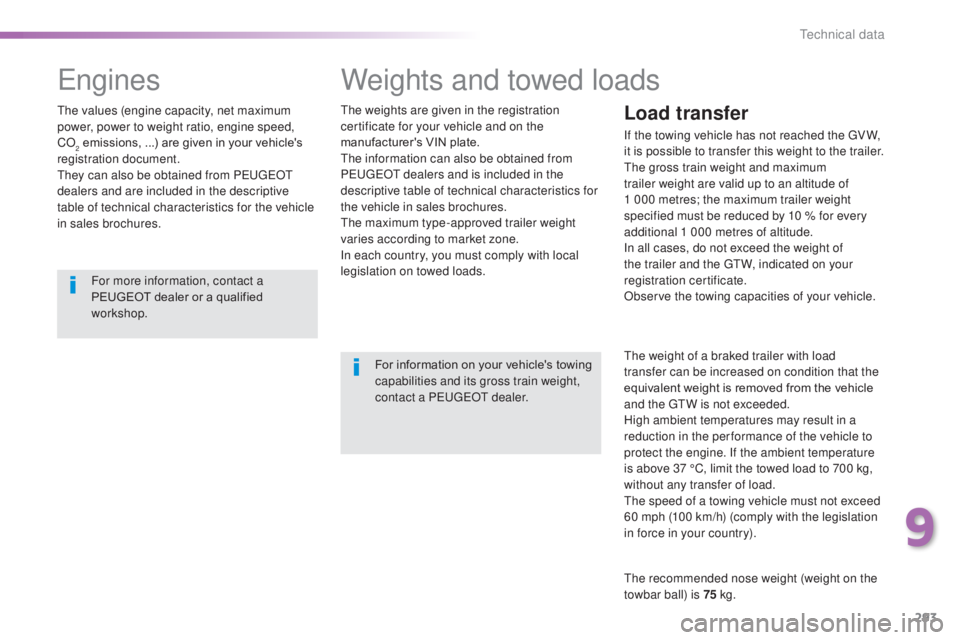

Weights and towed loads
the weights are given in the registration
certificate for your vehicle and on the
manufacturer's VIN plate.
th
e information can also be obtained from
P
e

uge
Ot
dealers and is included in the
descriptive table of technical characteristics for
the vehicle in sales brochures.
th

e maximum type-approved trailer weight
varies according to market zone.
In each country, you must comply with local
legislation on towed loads.
For information on your vehicle's towing
capabilities and its gross train weight,
contact a P
e

uge
Ot
dealer.Load transfer
If the towing vehicle has not reached the gV W,
it is possible to transfer this weight to the trailer.
th

e gross train weight and maximum
trailer weight are valid up to an altitude of
1
000 metres; the maximum trailer weight
specified must be reduced by 10 % for every
additional 1
000 metres of altitude.
In all cases, do not exceed the weight of
the trailer and the
gt
W
, indicated on your
registration certificate.
Observe the towing capacities of your vehicle.
th

e weight of a braked trailer with load
transfer can be increased on condition that the
equivalent weight is removed from the vehicle
and the
gt
W i
s not exceeded.
High ambient temperatures may result in a
reduction in the per formance of the vehicle to
protect the engine. If the ambient temperature
is above 37 °C, limit the towed load to 700 kg,
without any transfer of load.
th

e speed of a towing vehicle must not exceed
60 mph (100 km/h) (comply with the legislation
in force in your country).
th

e recommended nose weight (weight on the
towbar ball) is 75 kg.
engines
the values (engine capacity, net maximum
power, power to weight ratio, engine speed,
CO
2 emissions, ...) are given in your vehicle's
registration document.
th

ey can also be obtained from P
e
uge
Ot

dealers and are included in the descriptive
table of technical characteristics for the vehicle
in sales brochures.
For more information, contact a
PEUGEOT dealer or a qualified
workshop.
9
technical data

294

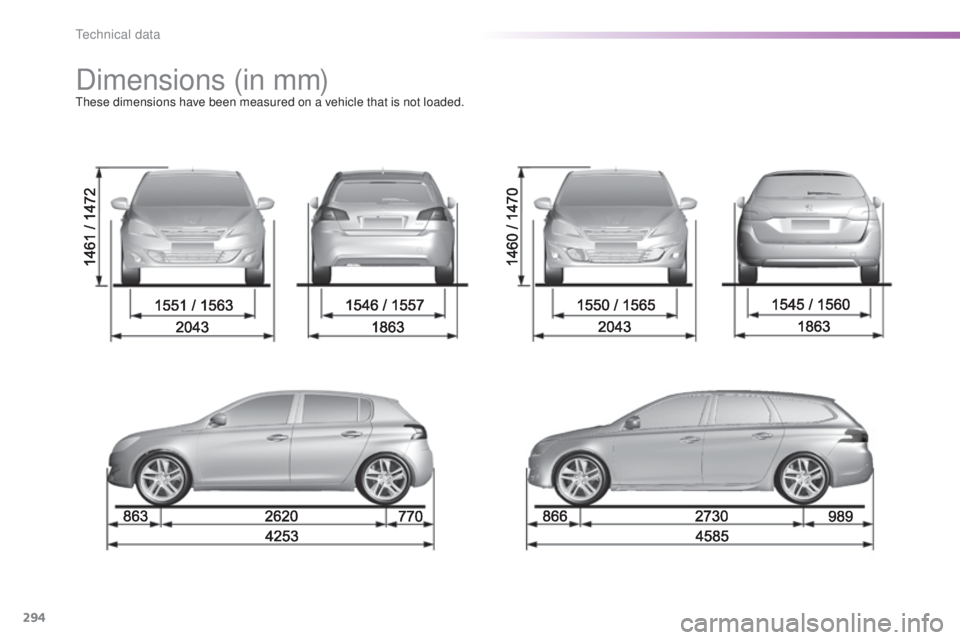

Dimensions (in mm)these dimensions have been measured on a vehicle that is not loaded.
technical data

295
Affaire version
Number of seats: 2 persons.useable boot volume: 1.31 m3
In metres ( m)
Load floor length 1.4 5 8
Load width at the wheel arches 1.03 6
Load width at the centre 1.07 7
Load height
-

a

t the centre 0.916
-

a

t the load aperture 0.831
-

b

elow the luggage cover 0.5
9
Technical data

296

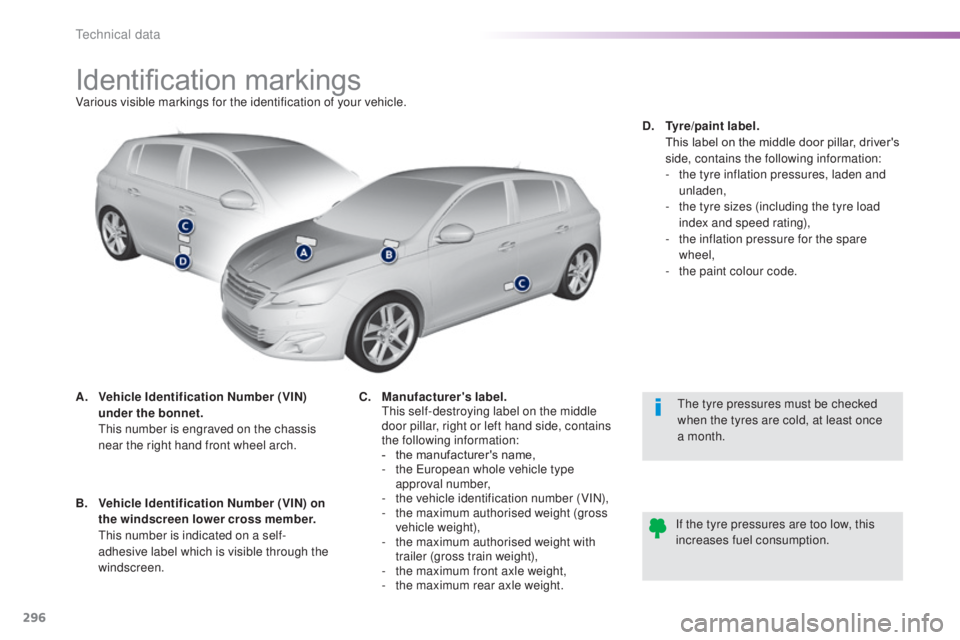

Identification markingsVarious visible markings for the identification of your vehicle.
A.
V
ehicle Identification Number (VIN)
under the bonnet.


t
h
is number is engraved on the chassis
near the right hand front wheel arch.
th

e tyre pressures must be checked
when the tyres are cold, at least once
a month.
If the tyre pressures are too low, this
increases fuel consumption.
B.
V

ehicle Identification Number (VIN) on
the windscreen lower cross member.


t
h
is number is indicated on a self-
adhesive label which is visible through the
windscreen. C.
M

anufacturer's label.


t
h
is self-destroying label on the middle
door pillar, right or left hand side, contains
the following information:
-

t
he manufacturer's name,
-

t
he e
u
ropean whole vehicle type
approval number,
-

t
he vehicle identification number (VIN),
-

t
he maximum authorised weight (gross
vehicle weight),
-

t
he maximum authorised weight with
trailer (gross train weight),
-

t
he maximum front axle weight,
-

t
he maximum rear axle weight.D.
T

yre/paint label.
T

his label on the middle door pillar, driver's
side, contains the following information:
-

t
he tyre inflation pressures, laden and
unladen,
-

t
he tyre sizes (including the tyre load
index and speed rating),
-

t
he inflation pressure for the spare
wheel,
-

t
he paint colour code.
technical data

6
Technical data
308GTi_ gb_Chap09_caracteristiques-techniques_ed01-2015

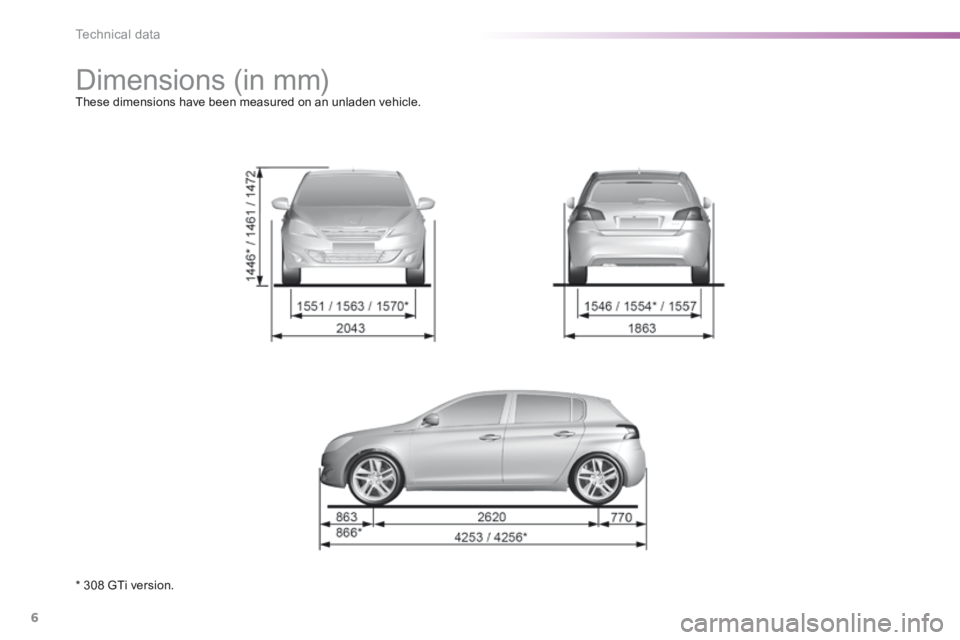

Dimensions (in mm) These dimensions have been measured on an unladen vehicle.
* 308 GTi version.

7
9
Technical data
308GTi_ gb_Chap09_caracteristiques-techniques_ed01-2015

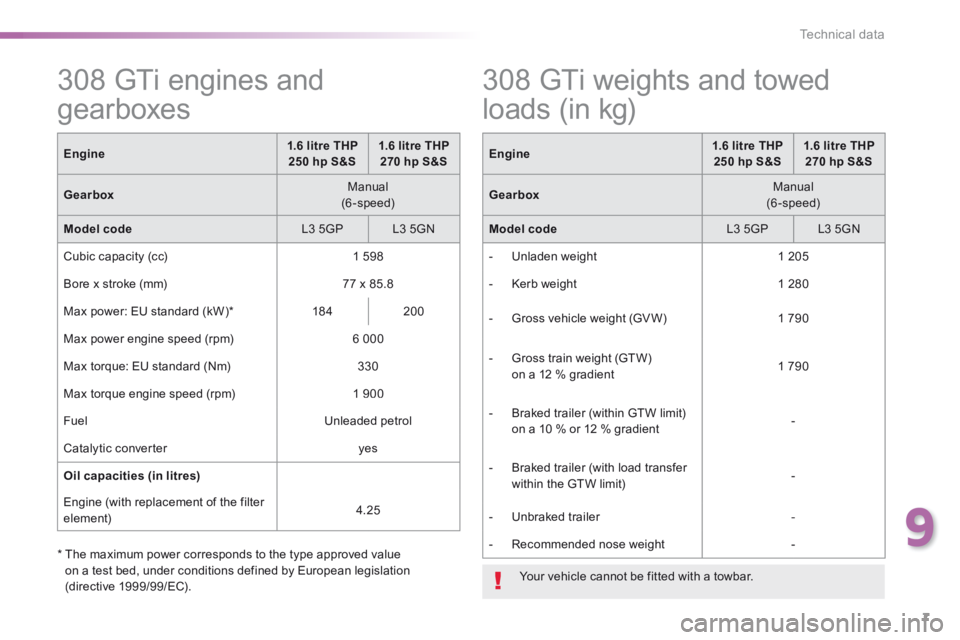

308 GTi engines and
gearboxes
Engine1.6 litre THP 250 hp S&S1.6 litre THP 270 hp S&S
Gearbox Manual (6-speed)
Model code L3 5GP L3 5GN
Cubic capacity (cc) 1 598
Bore x stroke (mm) 77 x 85.8
Max power: EU standard (kW) * 18 4 200
Max power engine speed (rpm) 6 000
Max torque: EU standard (Nm) 330
Max torque engine speed (rpm) 1 900
Fuel Unleaded petrol
Catalytic converter yes
Oil capacities (in litres)
Engine (with replacement of the filter element) 4.25
* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation
(directive 1999/99/EC).
308 GTi weights and towed
loads (in kg)
Engine1.6 litre THP 250 hp S&S1.6 litre THP 270 hp S&S
Gearbox Manual (6-speed)
Model code L3 5GP L3 5GN
- Unladen weight 1 205
- Kerb weight 1 280
- Gross vehicle weight (GV W) 1 790
- Gross train weight (GTW) on a 12 % gradient 1 790
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient -
- Braked trailer (with load transfer within the GTW limit) -
- Unbraked trailer -
- Recommended nose weight -
Your vehicle cannot be fitted with a towbar.
