2014.5 Peugeot 308 Owner's Manual - RHD (UK, Australia)

295
Affaire version
Number of seats: 2 persons.useable boot volume: 1.31 m3
In metres ( m)
Load floor length 1.4 5 8
Load width at the wheel arches 1.03 6
Load width at the centre 1.07 7
Load height
-

a

t the centre 0.916
-

a

t the load aperture 0.831
-

b

elow the luggage cover 0.5
9
Technical data

296
Identification markingsVarious visible markings for the identification of your vehicle.
A.
V
ehicle Identification Number (VIN)
under the bonnet.


t
h
is number is engraved on the chassis
near the right hand front wheel arch.
th

e tyre pressures must be checked
when the tyres are cold, at least once
a month.
If the tyre pressures are too low, this
increases fuel consumption.
B.
V

ehicle Identification Number (VIN) on
the windscreen lower cross member.


t
h
is number is indicated on a self-
adhesive label which is visible through the
windscreen. C.
M

anufacturer's label.


t
h
is self-destroying label on the middle
door pillar, right or left hand side, contains
the following information:
-

t
he manufacturer's name,
-

t
he e
u
ropean whole vehicle type
approval number,
-

t
he vehicle identification number (VIN),
-

t
he maximum authorised weight (gross
vehicle weight),
-

t
he maximum authorised weight with
trailer (gross train weight),
-

t
he maximum front axle weight,
-

t
he maximum rear axle weight.D.
T

yre/paint label.
T

his label on the middle door pillar, driver's
side, contains the following information:
-

t
he tyre inflation pressures, laden and
unladen,
-

t
he tyre sizes (including the tyre load
index and speed rating),
-

t
he inflation pressure for the spare
wheel,
-

t
he paint colour code.
technical data

297
EMERGENCY OR ASSIST ANCE CALL

298

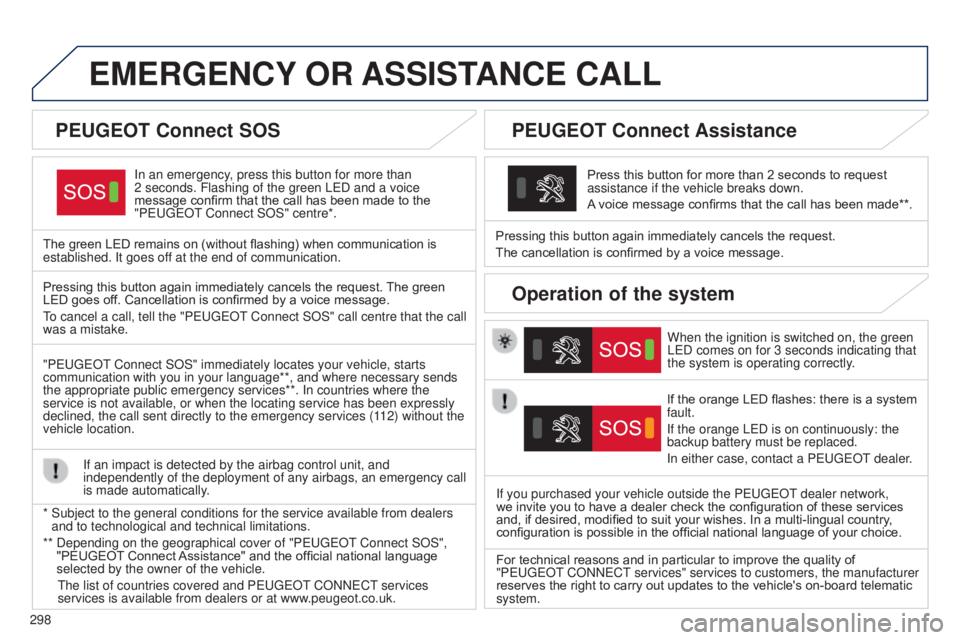

EMERGENCY OR ASSIST ANCE CALL
In an emergency, press this button for more than
2
seconds. Flashing of the green L e D and a voice
message confirm that the call has been made to the
"P
euge O t
Connect SOS" centre*.
The green LED remains on (without flashing) when communication is
established. It goes of

f at the end of communication. When the ignition is switched on, the green
L
e D comes on for 3 seconds indicating that
the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confirmed by a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confirms that the call has been made**.
Pressing this button again immediately cancels the request. The green
LED goes off. Cancellation is confirmed by a voice message.
to cancel a call, tell the "P

euge O t
Connect SOS" call centre that the call
was a mistake.
"P

euge
O
t
Connect SOS" immediately locates your vehicle, starts
communication with you in your language**, and where necessary sends
the appropriate public emergency services**. In countries where the
service is not available, or when the locating service has been expressl\
y
declined, the call sent directly to the emergency services (1

12) without the
vehicle location.
If an impact is detected by the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
*

Subject to the general conditions for the service available from dealers\

and to technological and technical limitations. If the orange LED flashes: there is a system
fault.
If the orange L

e D is on continuously: the
backup battery must be replaced.
In either case, contact a P
euge O t
dealer
.
If you purchased your vehicle outside the P
euge O t
dealer network,
we invite you to have a dealer check the configuration of these services
and, if desired, modified to suit your wishes. In a multi-lingual country ,
configuration is possible in the official national language of your choice.
For technical reasons and in particular to improve the quality of
"P

euge O t
CONN
e C t
services" services to customers, the manufacturer
reserves the right to carry out updates to the vehicle's on-board telematic
system.
**


Depending on the geographical cover of "P
euge O t
Connect SOS",
"PEUGEOT

Connect Assistance" and the official national language
selected by the owner of the vehicle.


t
he list of countries covered and P euge O t
CONN
e C t
services
services is available from dealers or at www

.peugeot.co.uk.
PEUGEOT Connect SOS PEUGEOT Connect Assistance
Operation of the system

299

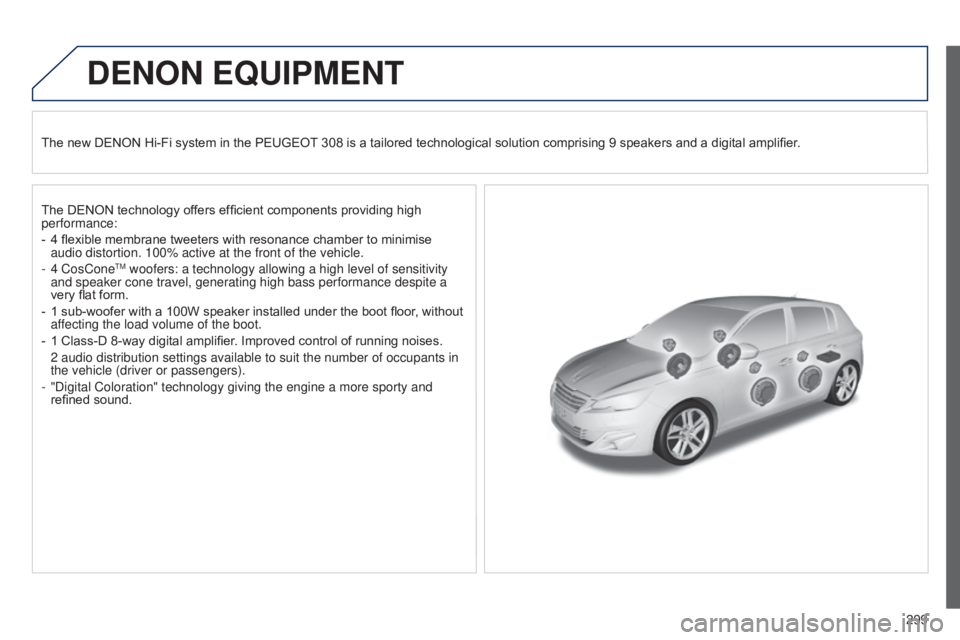

DENON EqUIPMENT
The new DENON Hi-Fi system in the PEUGEOT 308 is a tailored technological solution comprising 9 speakers and a digital amplifier.
The DENON technology offers efficient components providing high
performance:
-
4 flexibl
e membrane tweeters with resonance chamber to minimise
audio distortion. 100% active at the front of the vehicle.
-

4 CosConetM woofers: a technology allowing a high level of sensitivity
and speaker cone travel, generating high bass performance despite a
very flat form.
-

1 sub-woofer with a 100W speaker
installed under the boot floor, without
affecting the load volume of the boot.
-

1 Class-D 8-way digital amplifier
. Improved control of running noises.
2 audio distributio

n settings available to suit the number of occupants in
the vehicle (driver or passengers).
-

"Digital Coloratio
n" technology giving the engine a more sporty and
refined sound.

300

301
t

he system is protected in such a way that it will only
operate in your vehicle.
7-inch touch screen
01 General operation
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02

First steps - Control
panel
04
Media
05
Navigation
06
Configuration
07

Connected service
s
08
Telephone p.
p.
p.
p.
p.
p.
p.
Frequently asked questions p.
GPS satellite navigation system
Multimedia audio system
Bluetooth
® telephone
302
304
324 306
344
354
356
366
03

Steering mounted
controls p. 305

01GENERAL OPERATION
* Depending on equipment.
"Air conditioning "
allows control of the
settings for temperature
and air flow.
"Driving assistance"
allows access to the trip
computer and certain
vehicle functions to be
activated, deactivated
and adjusted.
"Media"
allows selection of a
radio station, the various
music sources and the
display of photographs. "Navigation"*
allows settings for
navigation and the choice
of a destination. "Configuration
"
allows sound settings,
the color schemes
and the brightness
of instruments and
controls to be adjusted
and gives access to the
interactive help for the
main vehicle systems
and warning lamps.
"Connected services "*
allows connection to
an applications portal
to facilitate, make
safe and personalise
journeys by means
of a connection
key available on
subscription from a
P
euge O t
dealer
.
"Telephone"
allows the connection
of a mobile telephone
via Bluetooth.
302
