2014.5 Peugeot 308 Owner's Manual - RHD (UK, Australia)

167

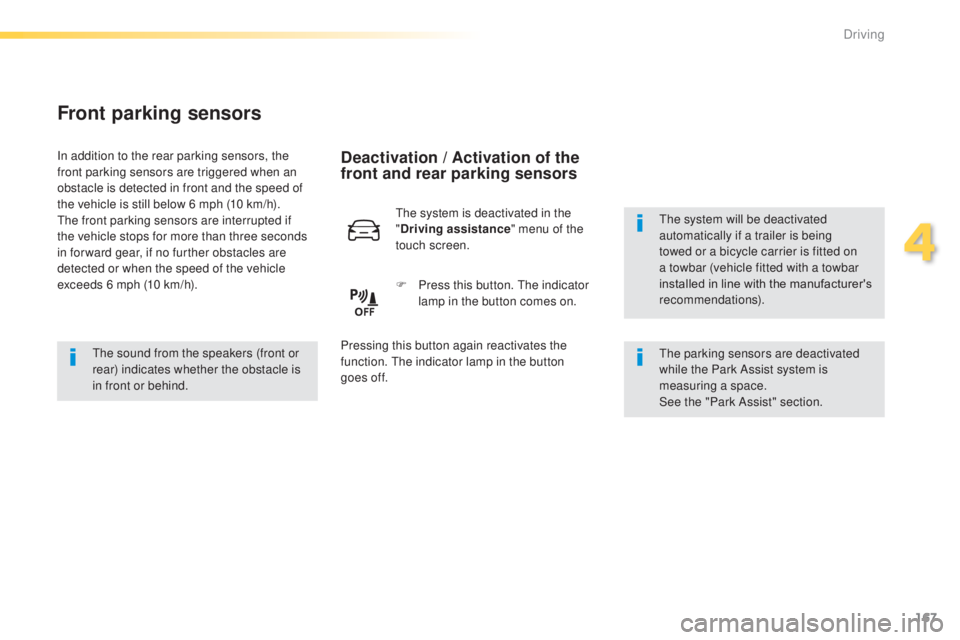

Front parking sensors
the sound from the speakers (front or
rear) indicates whether the obstacle is
in front or behind.
th
e system will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fitted on
a towbar (vehicle fitted with a towbar
installed in line with the manufacturer's
recommendations).
In addition to the rear parking sensors, the
front parking sensors are triggered when an
obstacle is detected in front and the speed of
the vehicle is still below 6 mph (10 km/h).
th

e front parking sensors are interrupted if
the vehicle stops for more than three seconds
in for ward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
Deactivation / Activation of the
front and rear parking sensors
the system is deactivated in the
" Driving assistance " menu of the
touch screen.
F

P
ress this button. t
h
e indicator
lamp in the button comes on.
Pressing this button again reactivates the
function.
t
h
e indicator lamp in the button
goes


off.
the
parking sensors are deactivated
while the Park Assist system is
measuring a space.
See the "Park Assist" section.
4
Driving

168
High pressure jet wash
When washing your vehicle, do not
direct the lance within 30 cm of the
sensors.

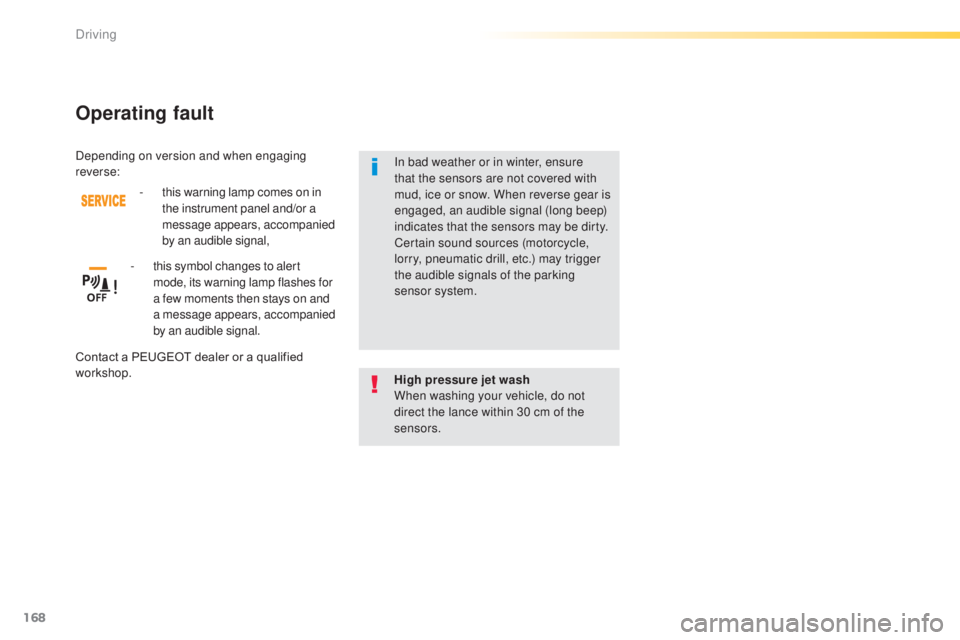

Operating fault
- this warning lamp comes on in the instrument panel and/or a
message appears, accompanied
by an audible signal,
-
t

his symbol changes to alert
mode, its warning lamp flashes for
a few moments then stays on and
a message appears, accompanied
by an audible signal.
Contact a PEUGEOT dealer or a qualified
workshop. In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.
Depending on version and when engaging
reverse:
Driving

169

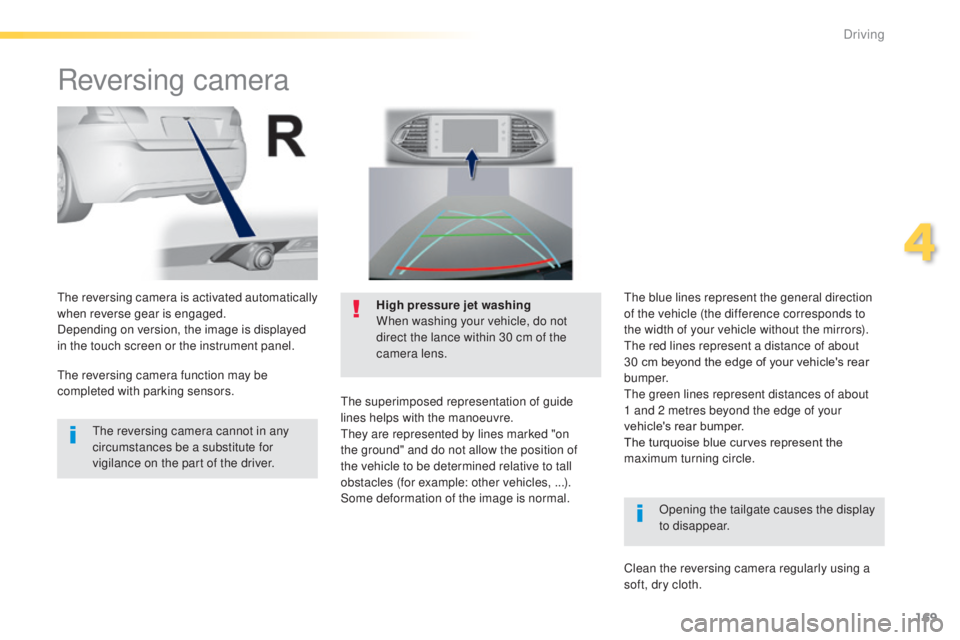

Reversing camera
Opening the tailgate causes the display
to disappear.
the

reversing camera is activated automatically
when reverse gear is engaged.
Depending on version, the image is displayed
in the touch screen or the instrument panel. High pressure jet washing
When washing your vehicle, do not
direct the lance within 30 cm of the
camera lens.
the

superimposed representation of guide
lines helps with the manoeuvre.
th

ey are represented by lines marked "on
the ground" and do not allow the position of
the vehicle to be determined relative to tall
obstacles (for example: other vehicles, ...).
Some deformation of the image is normal.
th

e reversing camera cannot in any
circumstances be a substitute for
vigilance on the part of the driver.
th

e reversing camera function may be
completed with parking sensors.
th

e blue lines represent the general direction
of the vehicle (the difference corresponds to
the width of your vehicle without the mirrors).
th

e red lines represent a distance of about
30 cm beyond the edge of your vehicle's rear
b u m p e r.
th

e green lines represent distances of about
1

and 2 metres beyond the edge of your
vehicle's rear bumper.
The turquoise blue curves represent the
maximum turning circle.
Clean the reversing camera regularly using a
soft, dry cloth.
4
Driving

170
Park Assist
this system provides active assistance with
parking, detecting a parking space then
controlling the steering to park in the space.
It controls the steering while the driver
manages the accelerator, brakes, gears and
clutch (manual gearbox). During phases of
entry into and exit from a parking space, the
system provides visual and audible information
to the driver in order to make the manoeuvres
safe. It may be necessary to move for wards
and backwards more than once.During a manoeuvre the steering wheel
turns quickly: do not hold the steering
wheel, do not place your hand between
the spokes of the steering wheel and
take care with loose and bulky clothing,
scarves, handbags...
t
h
ere is a risk of
injury.
When Park Assist is activated, it
prevents a change to S
tO

P mode of
Stop & Start. In S
tO

P mode, activation
of Park Assist restarts the engine.
th

e Park Assist system cannot in any
circumstances replace the need for
vigilance on the part of the driver.
th

e driver must remain in control
of their vehicle ensuring that the
space remains clear throughout the
manoeuvre.
In some circumstances, the sensors
may not detect small obstacles located
in their blind spots.
th

e driver can take control at any time by
gripping the steering wheel.th e Park Assist system provides
assistance for the following
manoeuvres:
-
e

ntry into a parallel parking space
-
e

xit from a parallel parking space
-
b

ay parking
th
e Park Assist system takes control
of the power steering for a maximum
of 4 manoeuvre cycles.
t
h
e function
is deactivated after these 4 cycles.
If you think that your vehicle is not
positioned correctly, you should then
take control of the steering to carry out
the manoeuvre.
th

e Park Assist system cannot work
with the engine off.
Driving

171

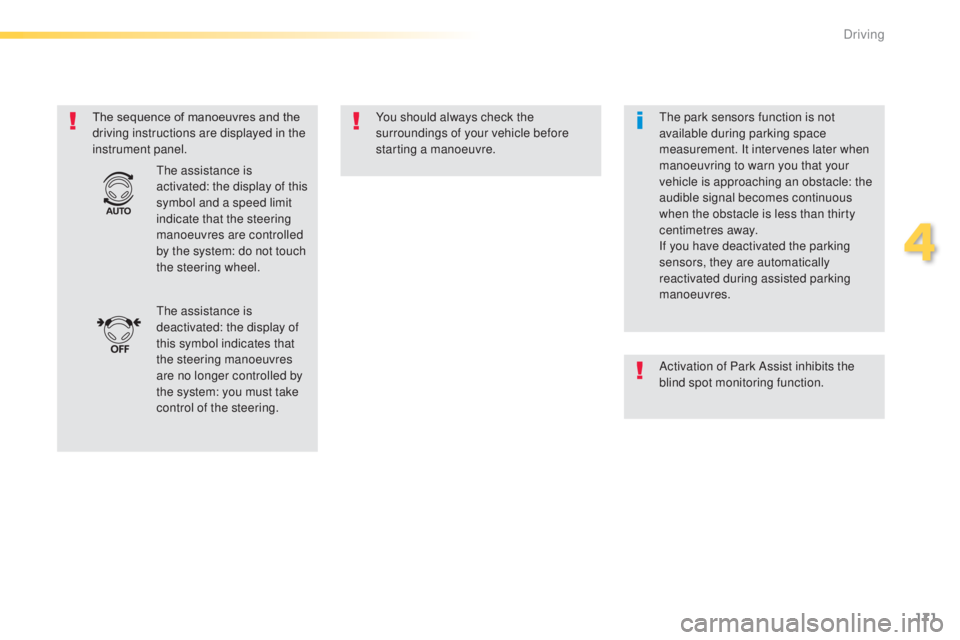

The sequence of manoeuvres and the
driving instructions are displayed in the
instrument panel.You should always check the
surroundings of your vehicle before
starting a manoeuvre.
th

e assistance is
deactivated: the display of
this symbol indicates that
the steering manoeuvres
are no longer controlled by
the system: you must take
control of the steering.
th

e assistance is
activated: the display of this
symbol and a speed limit
indicate that the steering
manoeuvres are controlled
by the system: do not touch
the steering wheel.th e park sensors function is not
available during parking space
measurement. It intervenes later when
manoeuvring to warn you that your
vehicle is approaching an obstacle: the
audible signal becomes continuous
when the obstacle is less than thirty
centimetres away.
If you have deactivated the parking
sensors, they are automatically
reactivated during assisted parking
manoeuvres.
Activation of Park Assist inhibits the
blind spot monitoring function.
4
Driving

172

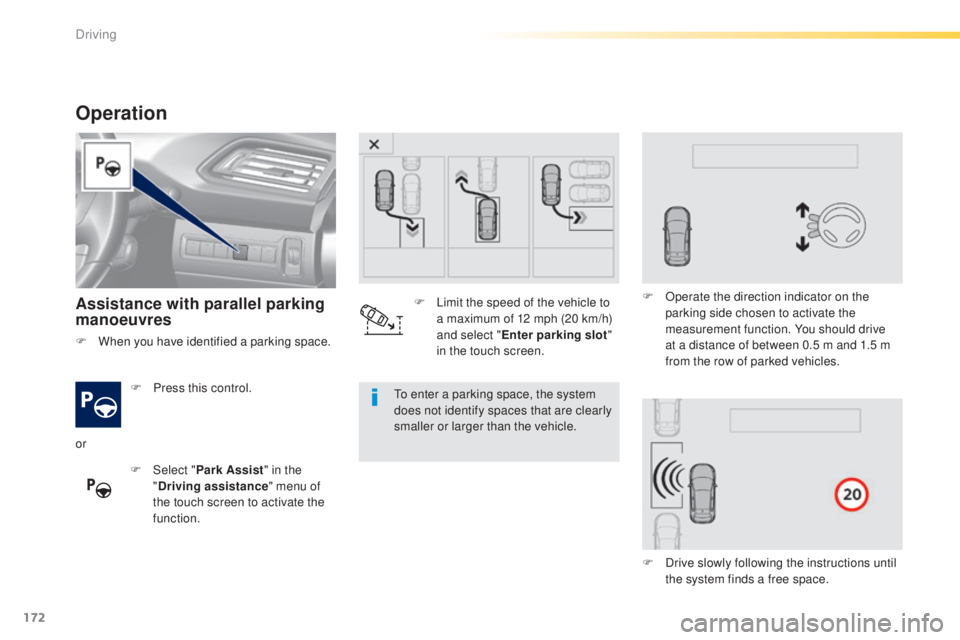

Operation
Assistance with parallel parking
manoeuvres
F Press this control.
F
Sel
ect "Park Assist " in the
" Driving assistance " menu of
the touch screen to activate the
function.to e nter a parking space, the system
does not identify spaces that are clearly
smaller or larger than the vehicle.
or F

L
imit the speed of the vehicle to
a maximum of 12 mph (20 km/h)
and select " Enter parking slot "
in the touch screen. F
O
perate the direction indicator on the
parking side chosen to activate the
measurement function. You should drive
at a distance of between 0.5 m and 1.5 m
from the row of parked vehicles.
F
D
rive slowly following the instructions until
the system finds a free space.
F

W

hen you have identified a parking space.
Driving

173

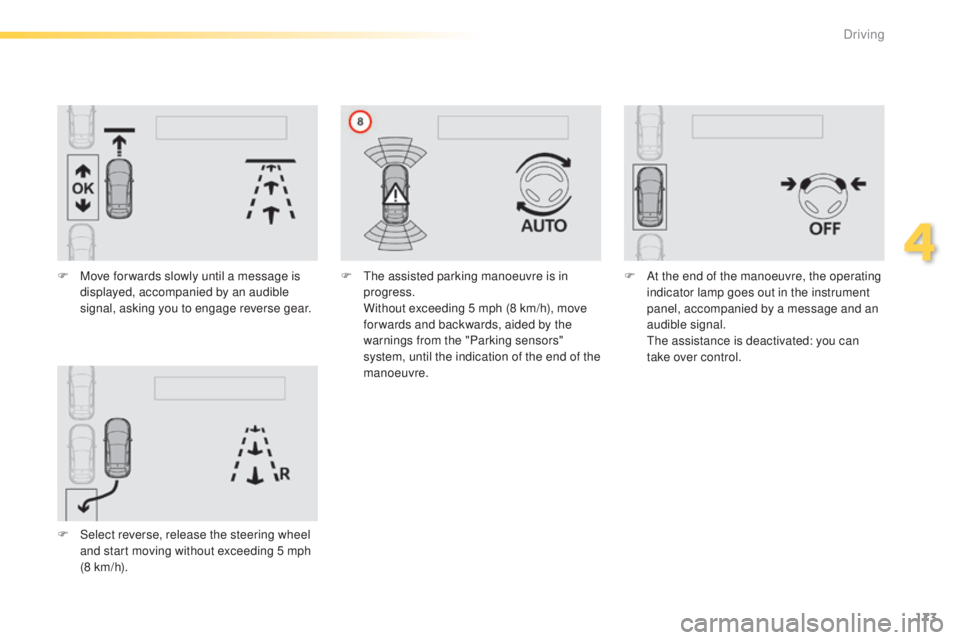

F Move for wards slowly until a message is displayed, accompanied by an audible
signal, asking you to engage reverse gear.
F

S
elect reverse, release the steering wheel
and start moving without exceeding 5 mph
(8 km/h). F
th e assisted parking manoeuvre is in
progress.
W

ithout exceeding 5 mph (8 km/h), move
for wards and backwards, aided by the
warnings from the "Parking sensors"
system, until the indication of the end of the
manoeuvre. F
A t the end of the manoeuvre, the operating
indicator lamp goes out in the instrument
panel, accompanied by a message and an
audible signal.


t
h
e assistance is deactivated: you can
take over control.
4
Driving

174
Assistance in exiting from
a parallel parking space
F With the vehicle stationary, press
this control.
F

P
ress on " Exit parking slot " in
the touch screen. F

O
perate the direction indicator for the exit
side chosen.
F e
n
gage reverse or for ward gear and
release the steering wheel.
F t
h
e assisted parking manoeuvre is in
progress. Without exceeding 3 mph
(5
km/h), move for wards and backwards,
aided by the warnings from the "Parking
sensors" system, until the indication of the
end of the manoeuvre. The manoeuvre is complete when the vehicle's
front wheels are clear of the parking space.
At the end of the manoeuvre, the indicator lamp
in the instrument panel goes off, accompanied
by a message and an audible signal.th
e assistance is deactivated: you can take
over control.
F

W

hen you want to leave a parallel parking
space, start the engine.
or F

Sel
ect "Park Assist " in the
" Driving assistance " menu of
the touch screen to activate the
function.
Driving
