2013 VOLVO V60 Owners Manual

05 Comfort and driving pleasure
Menu source MY CAR
05

207

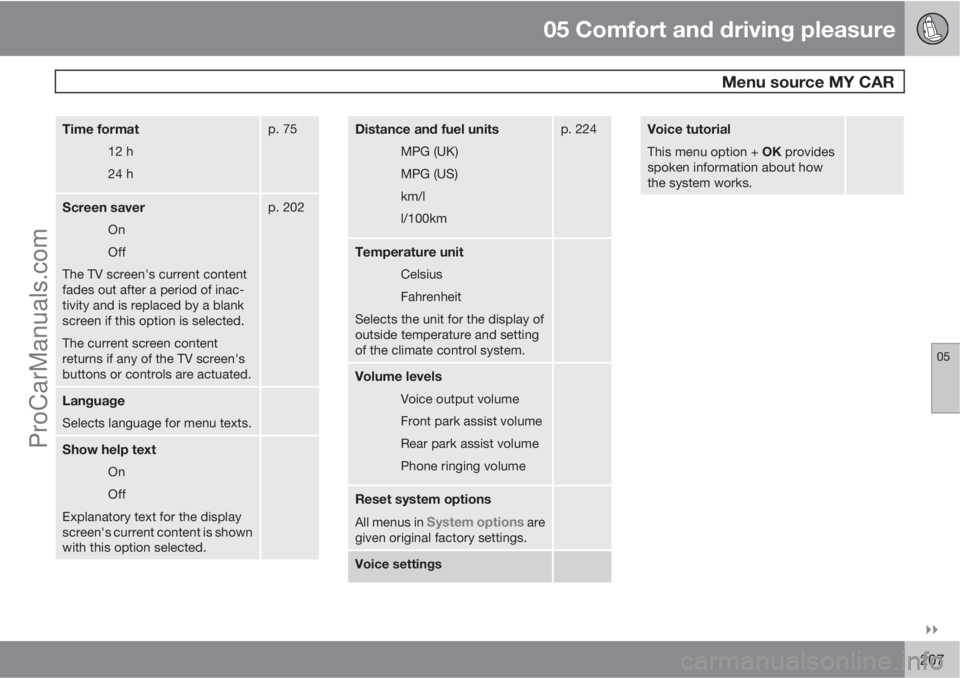

Time format
12 h
24 h
p. 75
Screen saver
On
Off
The TV screen's current content
fades out after a period of inac-
tivity and is replaced by a blank
screen if this option is selected.
The current screen content
returns if any of the TV screen's
buttons or controls are actuated.
p. 202
Language
Selects language for menu texts.
Show help text
On
Off
Explanatory text for the display
screen's current content is shown
with this option selected.
Distance and fuel units
MPG (UK)
MPG (US)
km/l
l/100km
p. 224
Temperature unit
Celsius
Fahrenheit
Selects the unit for the display of
outside temperature and setting
of the climate control system.
Volume levels
Voice output volume
Front park assist volume
Rear park assist volume
Phone ringing volume
Reset system options
All menus in System options are
given original factory settings.
Voice settings
Voice tutorial
This menu option + OK provides
spoken information about how
the system works.
ProCarManuals.com

05 Comfort and driving pleasure
Menu source MY CAR
05
208* Option/accessory, for more information, see Introduction.
Voice command list
Phone commands
Phone
Phone call con-
tact
Phone dial num-
ber
Navigation commands
Navigation
Navigation
repeat instruc-
tion
Navigation go to
address
General commands
Help
Cancel
Voice tutorial
The menu options under
Phone
commands show several exam-
ples of available voice commands
- only with a Bluetooth
Ÿ-enabled
mobile phone installed. For more
and detailed information - see
page 262.
The menu options under
Naviga-
tion commands show several
examples of available voice com-
mands - only with Volvo's navi-
gation system RTI* installed.
Voice user setting
Default setting
User 1
User 2
Here there is the option to create
a second user profile - an advant-
age if more than one person shall
use the car/system regularly.
Default setting gives factory set-
tings.
Voice training
User 1
User 2
With
Voice training the voice
recognition system is taught to
recognise the driver's voice and
pronunciation. A number of phra-
ses are presented on the screen
for the driver to read aloud. When
the system has learnt how the
driver talks, the presentation of
the phrases stops. Following
which e.g.
User 1 can be
selected in Voice user setting in
order that the system shall listen
to the right user.
Voice output volume
A volume control appears on the
screen - at which point, proceed
as follows:
1. Adjust the volume with the
thumbwheel.
2.
Test-listen using OK.
3.
Use EXIT to store the setting
and the menu is switched off.
ProCarManuals.com

05 Comfort and driving pleasure
Menu source MY CAR
05
* Option/accessory, for more information, see Introduction.209
Voice POI list
Edit list
The number of facilities is exten-
sive and varies depending on
market. Maximum 30 favourite
facilities can be stored in this list.
Menu option
Voice POI list is
only shown if Volvo's navigation
system RTI* is installed. For more
information on Facilities and
Voice recognition - see the Navi-
gation system's owner's manual.
Audio settingsp. 235
Climate settings
Automatic blower adjustment
Normal
High
Low
Recirculation timer
On
Off
Automatic rear defroster
On
Off
Interior air quality system
On
Off
Reset climate settings
All menus in
Climate settingsare given original factory settings.
p. 210
Favourites (FAV)p. 239
Volvo On Call
Described in a separate manual.
Information
Number of keysp. 44
VIN numberp. 370
DivX® VOD codep. 255
Bluetooth software version in
carp. 261
Map and software version*
Only in cars with Volvo GPS nav-
igator - see separate manual.
ProCarManuals.com

05 Comfort and driving pleasure
Climate control
05
210* Option/accessory, for more information, see Introduction.
General
Climate controlThe car is equipped with electronic climate
control. The climate control system cools or
heats as well as dehumidifies the air in the pas-
senger compartment.
NOTE
The air conditioning system (AC) can be
switched off, but to ensure the best possible
climate comfort in the passenger compart-
ment and to prevent the windows from mist-
ing, it should always be on.
Actual temperatureThe temperature you select corresponds to the
physical experience with reference to factors
such as air speed, humidity and solar radiation
etc. in and around the car.
The system includes a sun sensor which
detects on which side the sun is shining into
the passenger compartment. This means
1 that
the temperature can differ between the right
and left-hand air vents despite the controls
being set for the same temperature on both
sides.
Sensor location
•The sun sensor is located on the top side
of the dashboard.
•The temperature sensor for the passenger
compartment is located below the climate
control panel.
•The outside temperature sensor is located
on the door mirror.
•The humidity sensor* is located by the inte-
rior rearview mirror.
NOTE
Do not cover or block the sensors with
clothing or other objects.
Side windows and sunroof*To ensure that the air conditioning works opti-
mally, the side windows, and sunroof* if speci-
fied, should be closed.
Misting windowsRemove misting on the insides of the windows
by primarily using the defroster function.
To reduce the risk of misting, keep the win-
dows clean and use window cleaner.
Temporary shut-off of the air
conditioning
When the engine requires full power, e.g. for full
acceleration or driving uphill with a trailer, the
air conditioning can be temporarily switched
off. There may then be a temporary increase in
temperature in the passenger compartment.
CondensationIn warm weather, condensation from the air
conditioning may drip under the car. This is
normal.
Ice and snowRemove ice and snow from the climate control
system air intake (the grille between the bonnet
and the windscreen).
Total airing functionThe function opens/closes all side windows
simultaneously and can be used for example to
quickly air the car during hot weather, see
page 58.
Passenger compartment filterAll air entering the car's passenger compart-
ment is cleaned with a filter. This must be
replaced at regular intervals. Follow the Volvo
Service Programme for the recommended
replacement intervals. If the car is used in a
1Only applies to ECC.
ProCarManuals.com

05 Comfort and driving pleasure
Climate control
05
* Option/accessory, for more information, see Introduction.211

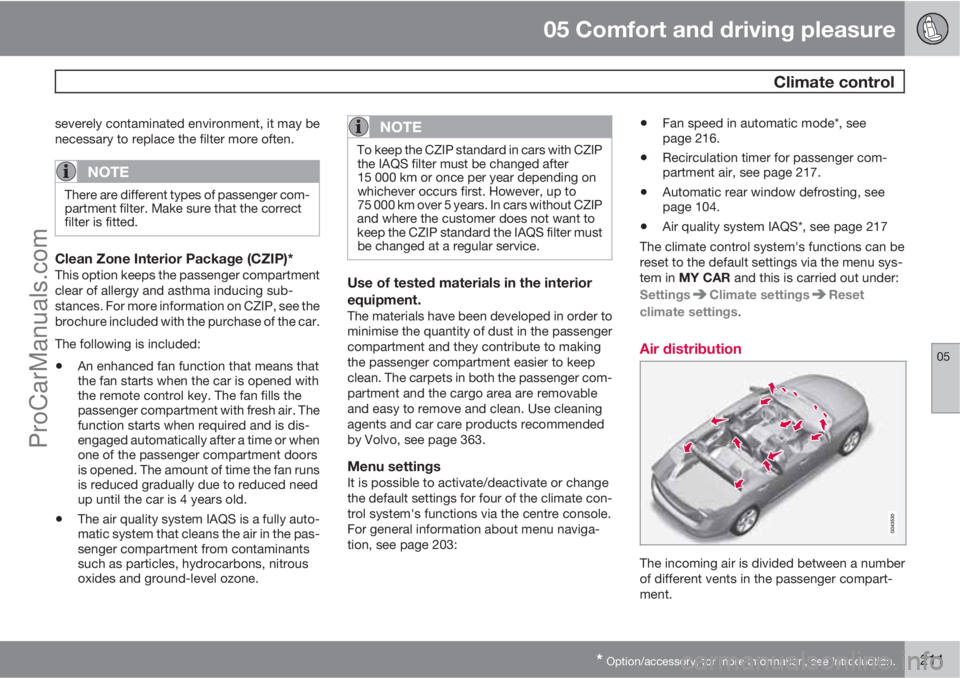

severely contaminated environment, it may be
necessary to replace the filter more often.
NOTE
There are different types of passenger com-
partment filter. Make sure that the correct
filter is fitted.
Clean Zone Interior Package (CZIP)*This option keeps the passenger compartment
clear of allergy and asthma inducing sub-
stances. For more information on CZIP, see the
brochure included with the purchase of the car.
The following is included:
•An enhanced fan function that means that
the fan starts when the car is opened with
the remote control key. The fan fills the
passenger compartment with fresh air. The
function starts when required and is dis-
engaged automatically after a time or when
one of the passenger compartment doors
is opened. The amount of time the fan runs
is reduced gradually due to reduced need
up until the car is 4 years old.
•The air quality system IAQS is a fully auto-
matic system that cleans the air in the pas-
senger compartment from contaminants
such as particles, hydrocarbons, nitrous
oxides and ground-level ozone.
NOTE
To keep the CZIP standard in cars with CZIP
the IAQS filter must be changed after
15 000 km or once per year depending on
whichever occurs first. However, up to
75 000 km over 5 years. In cars without CZIP
and where the customer does not want to
keep the CZIP standard the IAQS filter must
be changed at a regular service.
Use of tested materials in the interior
equipment.
The materials have been developed in order to
minimise the quantity of dust in the passenger
compartment and they contribute to making
the passenger compartment easier to keep
clean. The carpets in both the passenger com-
partment and the cargo area are removable
and easy to remove and clean. Use cleaning
agents and car care products recommended
by Volvo, see page 363.
Menu settingsIt is possible to activate/deactivate or change
the default settings for four of the climate con-
trol system's functions via the centre console.
For general information about menu naviga-
tion, see page 203:
•Fan speed in automatic mode*, see
page 216.
•Recirculation timer for passenger com-
partment air, see page 217.
•Automatic rear window defrosting, see
page 104.
•Air quality system IAQS*, see page 217
The climate control system's functions can be
reset to the default settings via the menu sys-
tem in MY CAR and this is carried out under:
Settings
Climate settingsReset
climate settings.
Air distribution
The incoming air is divided between a number
of different vents in the passenger compart-
ment.
ProCarManuals.com

05 Comfort and driving pleasure
Climate control
05
212* Option/accessory, for more information, see Introduction.

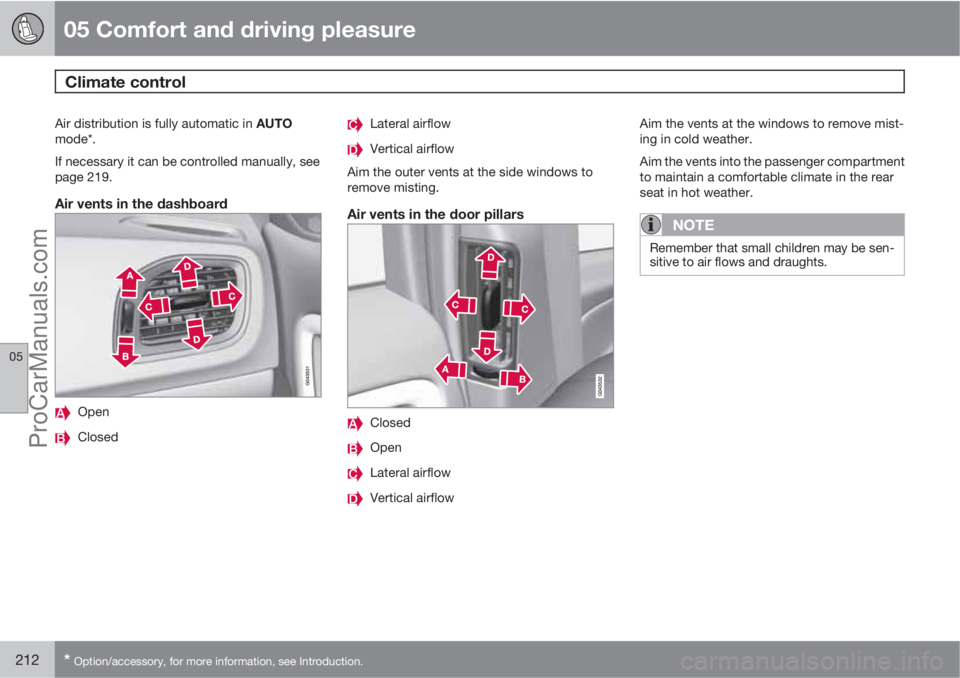

Air distribution is fully automatic in AUTO
mode*.
If necessary it can be controlled manually, see
page 219.
Air vents in the dashboard
Open
Closed
Lateral airflow
Vertical airflow
Aim the outer vents at the side windows to
remove misting.
Air vents in the door pillars
Closed
Open
Lateral airflow
Vertical airflowAim the vents at the windows to remove mist-
ing in cold weather.
Aim the vents into the passenger compartment
to maintain a comfortable climate in the rear
seat in hot weather.
NOTE
Remember that small children may be sen-
sitive to air flows and draughts.
ProCarManuals.com

05 Comfort and driving pleasure
Climate control
05

* Option/accessory, for more information, see Introduction.213 Electronic climate control, ECC*
Temperature control, left-hand side
Electrically heated front seat, left-hand
side
Max. defroster
Fan
Air distribution - ventilation floor
Air distribution - air vent instrument panel
Air distribution - defroster windscreen
Rear window and door mirror defrosters,
see page 104
Electrically heated front seat, right-hand
side
Temperature control, right-hand side
Recirculation
AUTO
AC – – Air conditioning on/off
ProCarManuals.com

05 Comfort and driving pleasure
Climate control
05
214
Electronic Temperature Control, ETC
Fan
Electrically heated front seat, left-hand
side
AC – – Air conditioning on/off
Max. defroster
Air distribution - ventilation floor
Air distribution - air vent instrument panel
Air distribution - defroster windscreen
Rear window and door mirror defrosters,
see page 104
Recirculation
Electrically heated front seat, right-hand
side
Temperature control
ProCarManuals.com
