2013 VOLVO V60 Owners Manual

06 Infotainment system
Voice recognition* mobile phone
06
* Option/accessory, for more information, see Introduction.271 General
The infotainment system's voice recognition1
allows the driver to voice-activate certain func-
tions in a BluetoothŸ-connected mobile phone
or in Volvo's navigation system - RTI (Road and
Traffic Information System).
NOTE
•The information in this section
describes the use of voice commands
to control a mobile phone connected
using Bluetooth
Ÿ. For detailed infor-
mation on using a mobile phone con-
nected using Bluetooth
Ÿ with the car's
Infotainment system see page 262.
•The Volvo navigation system RTI (Road
and Traffic Information System) has a
separate user manual which contains
more information on voice control and
voice commands to control that sys-
tem.
Voice commands offer convenience and help
the driver to avoid being distracted, and
instead concentrate on driving and focus
attention on the road and traffic conditions.
WARNING
The driver always holds overall responsibil-
ity for driving the vehicle in a safe manner
and complying with all applicable rules of
the road.
The voice recognition system allows the driver
to voice-activate certain functions of a
Bluetooth
Ÿ-connected mobile phone and in
Volvo's navigation system - RTI (Road and
Traffic Information System), while the driver
can keep his/her hands on the wheel at the
same time. The input data are in dialogue form
with spoken commands from the user and ver-
bal replies from the system. The voice recog-
nition system uses the same microphone as
the Bluetooth
Ÿ handsfree system (see illustra-
tion on page 262) and the voice recognition
system's replies come via the car's speakers.
Language
Language list.
Voice recognition is not possible for all lan-
guages. Languages available for voice recog-
nition are marked with an icon in the language
list -
. Changing the language is performed
in the menu system MY CAR, see page 204.
1Only applies to vehicles equipped with Volvo's navigation system - RTI (Road and Traffic Information System).
ProCarManuals.com

06 Infotainment system
Voice recognition* mobile phone
06
272* Option/accessory, for more information, see Introduction.

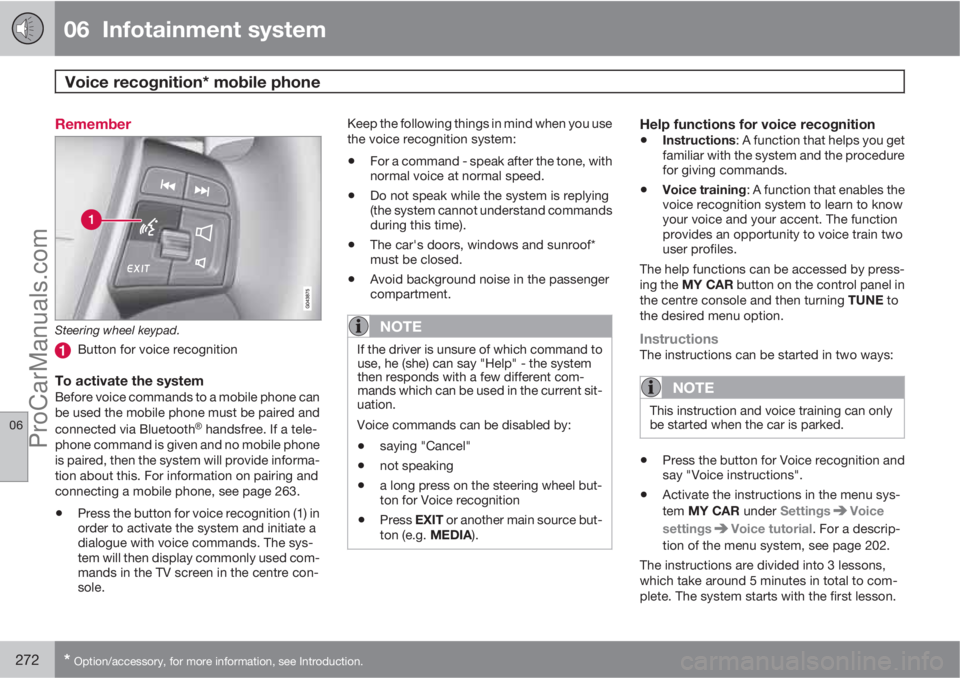

Remember
Steering wheel keypad.
Button for voice recognition
To activate the systemBefore voice commands to a mobile phone can
be used the mobile phone must be paired and
connected via Bluetooth
Ÿ handsfree. If a tele-
phone command is given and no mobile phone
is paired, then the system will provide informa-
tion about this. For information on pairing and
connecting a mobile phone, see page 263.
•Press the button for voice recognition (1) in
order to activate the system and initiate a
dialogue with voice commands. The sys-
tem will then display commonly used com-
mands in the TV screen in the centre con-
sole.Keep the following things in mind when you use
the voice recognition system:
•For a command - speak after the tone, with
normal voice at normal speed.
•Do not speak while the system is replying
(the system cannot understand commands
during this time).
•The car's doors, windows and sunroof*
must be closed.
•Avoid background noise in the passenger
compartment.
NOTE
If the driver is unsure of which command to
use, he (she) can say "Help" - the system
then responds with a few different com-
mands which can be used in the current sit-
uation.
Voice commands can be disabled by:
•saying "Cancel"
•not speaking
•a long press on the steering wheel but-
ton for Voice recognition
•Press EXIT or another main source but-
ton (e.g. MEDIA).
Help functions for voice recognition
•Instructions: A function that helps you get
familiar with the system and the procedure
for giving commands.
•Voice training: A function that enables the
voice recognition system to learn to know
your voice and your accent. The function
provides an opportunity to voice train two
user profiles.
The help functions can be accessed by press-
ing the MY CAR button on the control panel in
the centre console and then turning TUNE to
the desired menu option.
InstructionsThe instructions can be started in two ways:
NOTE
This instruction and voice training can only
be started when the car is parked.
•Press the button for Voice recognition and
say "Voice instructions".
•Activate the instructions in the menu sys-
tem MY CAR under Settings
Voice
settings
Voice tutorial. For a descrip-
tion of the menu system, see page 202.
The instructions are divided into 3 lessons,
which take around 5 minutes in total to com-
plete. The system starts with the first lesson.
ProCarManuals.com

06 Infotainment system
Voice recognition* mobile phone
06

* Option/accessory, for more information, see Introduction.273

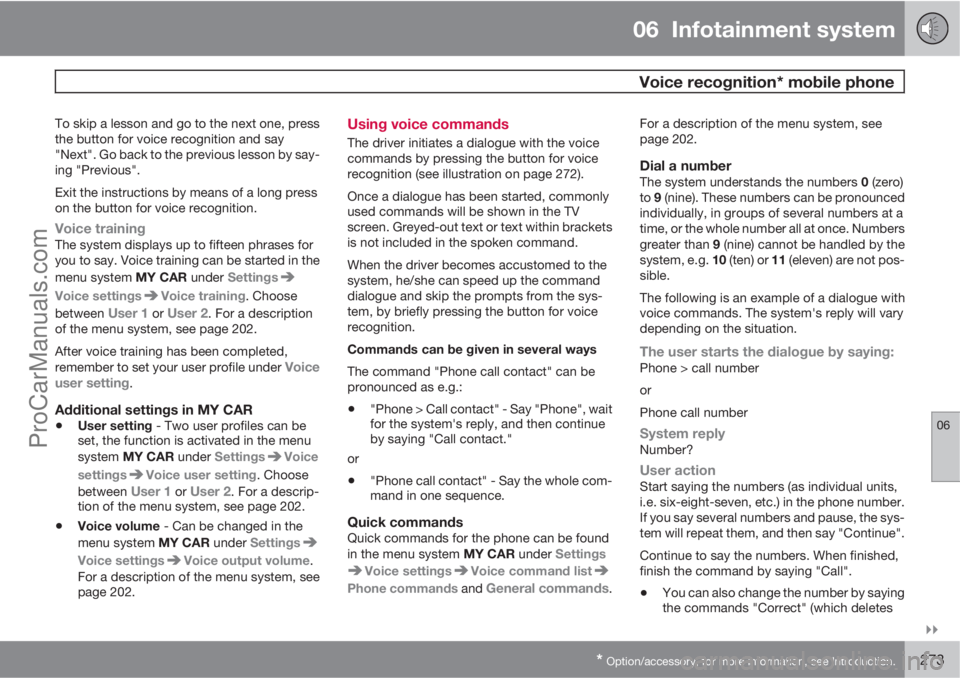

To skip a lesson and go to the next one, press
the button for voice recognition and say
"Next". Go back to the previous lesson by say-
ing "Previous".
Exit the instructions by means of a long press
on the button for voice recognition.
Voice trainingThe system displays up to fifteen phrases for
you to say. Voice training can be started in the
menu system MY CAR under Settings
Voice settingsVoice training. Choose
between
User 1 or User 2. For a description
of the menu system, see page 202.
After voice training has been completed,
remember to set your user profile under
Voice
user setting.
Additional settings in MY CAR
•User setting - Two user profiles can be
set, the function is activated in the menu
system MY CAR under Settings
Voice
settings
Voice user setting. Choose
between
User 1 or User 2. For a descrip-
tion of the menu system, see page 202.
•Voice volume - Can be changed in the
menu system MY CAR under Settings
Voice settingsVoice output volume.
For a description of the menu system, see
page 202.
Using voice commands
The driver initiates a dialogue with the voice
commands by pressing the button for voice
recognition (see illustration on page 272).
Once a dialogue has been started, commonly
used commands will be shown in the TV
screen. Greyed-out text or text within brackets
is not included in the spoken command.
When the driver becomes accustomed to the
system, he/she can speed up the command
dialogue and skip the prompts from the sys-
tem, by briefly pressing the button for voice
recognition.
Commands can be given in several ways
The command "Phone call contact" can be
pronounced as e.g.:
•"Phone > Call contact" - Say "Phone", wait
for the system's reply, and then continue
by saying "Call contact."
or
•"Phone call contact" - Say the whole com-
mand in one sequence.
Quick commandsQuick commands for the phone can be found
in the menu system MY CAR under Settings
Voice settingsVoice command list
Phone commands and General commands.For a description of the menu system, see
page 202.
Dial a numberThe system understands the numbers 0 (zero)
to 9 (nine). These numbers can be pronounced
individually, in groups of several numbers at a
time, or the whole number all at once. Numbers
greater than 9 (nine) cannot be handled by the
system, e.g. 10 (ten) or 11 (eleven) are not pos-
sible.
The following is an example of a dialogue with
voice commands. The system's reply will vary
depending on the situation.
The user starts the dialogue by saying:Phone > call number
or
Phone call number
System replyNumber?
User actionStart saying the numbers (as individual units,
i.e. six-eight-seven, etc.) in the phone number.
If you say several numbers and pause, the sys-
tem will repeat them, and then say "Continue".
Continue to say the numbers. When finished,
finish the command by saying "Call".
•You can also change the number by saying
the commands "Correct" (which deletes
ProCarManuals.com

06 Infotainment system
Voice recognition* mobile phone
06
274* Option/accessory, for more information, see Introduction.

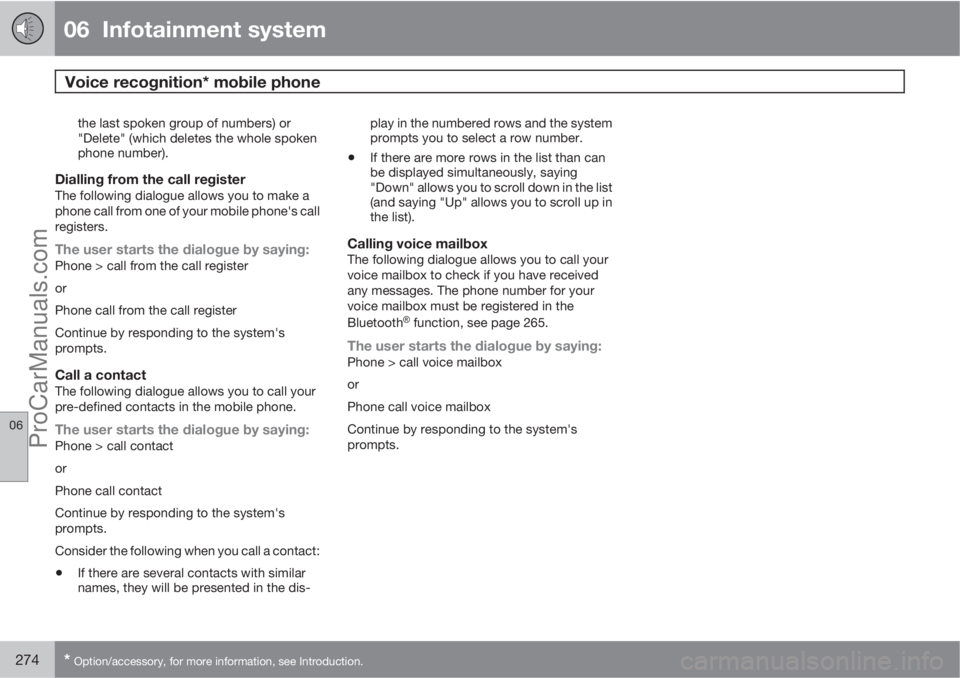

the last spoken group of numbers) or
"Delete" (which deletes the whole spoken
phone number).
Dialling from the call registerThe following dialogue allows you to make a
phone call from one of your mobile phone's call
registers.
The user starts the dialogue by saying:Phone > call from the call register
or
Phone call from the call register
Continue by responding to the system's
prompts.
Call a contactThe following dialogue allows you to call your
pre-defined contacts in the mobile phone.
The user starts the dialogue by saying:Phone > call contact
or
Phone call contact
Continue by responding to the system's
prompts.
Consider the following when you call a contact:
•If there are several contacts with similar
names, they will be presented in the dis-play in the numbered rows and the system
prompts you to select a row number.
•If there are more rows in the list than can
be displayed simultaneously, saying
"Down" allows you to scroll down in the list
(and saying "Up" allows you to scroll up in
the list).
Calling voice mailboxThe following dialogue allows you to call your
voice mailbox to check if you have received
any messages. The phone number for your
voice mailbox must be registered in the
Bluetooth
Ÿ function, see page 265.
The user starts the dialogue by saying:Phone > call voice mailbox
or
Phone call voice mailbox
Continue by responding to the system's
prompts.
ProCarManuals.com

06 Infotainment system
TV*
06
* Option/accessory, for more information, see Introduction.275 General
NOTE
This system only supports TV transmissions
in countries which transmit signals in
mpeg-2 format and follow the DVB-T stand-
ard. The system does not support TV trans-
missions in mpeg-4 format or analogue
transmissions.
NOTE
The TV picture is only shown when the car
is stationary. When the car is moving at a
speed over about 6 km/h the picture disap-
pears,
No visual media available while
driving appears on the display screen,
although the audio is heard during this time.
The picture reappears when the car has
stopped.
Cars with RSE do not shut off the rear
screens.
NOTE
The reception is dependent both on how
good the signal strength and signal quality
are. The transmission may be disturbed by
various factors such as tall buildings or the
TV transmitter being far away. Coverage
level can also vary depending on where in
the country you are located.
IMPORTANT
A TV licence is required for this product in
some countries.
MenusThe menus in MEDIA are controlled from the
centre console and the steering wheel key-
pad*. For general information on menu naviga-
tion, see page 238 and menu overview, see
page 241.
Overview
Centre console control panel.
MEDIA button. Last active source (e.g.
iPodŸ or TV) is activated. If a source is acti-
vated and you press MEDIA then a short-cut menu is shown with commonly used
menu options.
Station presets, numeric input.
Navigate in channel lists or menus by turn-
ing TUNE.
Confirm your selection or go to the menu
by pressing OK/MENU.
EXIT - leads up in the menu system, stops
the function in progress.
The next available channel is shown by
pressing
/ .
NOTE
If the car is equipped with a steering wheel
keypad* and/or remote control* then in
many cases these can be used instead of
the buttons in the centre console. For a
description of the steering wheel keypad,
see page 236. For a description of the
remote control, see page 279.
ProCarManuals.com

06 Infotainment system
TV*
06
276* Option/accessory, for more information, see Introduction.
Watch TV
–
Press MEDIA, turn TUNE until TV is shown
in the TV screen, press OK/MENU.
> A search starts and after a short while
the most recently used channel is
shown.
Changing channelIt is possible to change channel as follows:
•Turn TUNE, a list of all available channels
in the area is shown. If any of these chan-
nels is already saved as a preset then its
preset number is shown to the right of the
channel name. Continue turning TUNE to
reach the desired channel and press OK/
MENU.
•By pressing the preset buttons (0-9).
•Via a short press on the / buttons
the next available channel in the area is
shown.
NOTE
If the car has been moved within the coun-
try, for example, from one city to another, it
is not certain that the presets are available
at the new location as the frequency range
may have changed. In which case, carry out
a new search and save a new preset list, see
the function "Save the available TV channels
as presets", page 277.
NOTE
If no reception is available on the preset
buttons, it may be because the car is at a
location other than where the scan of TV
channels was run, for example, if the car
was driven from Germany to France. A new
selection of country and a new search may
then need to be carried out.
Searching TV channels/Preset list
1.
Press TV mode on OK/MENU.
2.
Turn TUNE to
TV menu and press OK/
MENU.
3.
Turn TUNE to
Select country and press
OK/MENU.
> If one or more countries have previously
been selected then they are shown in a
list.
4.
Turn TUNE to either
Other countries or
one of the previously selected countries.
Press OK/MENU.
> A list of all available countries is shown.
5.
Turn TUNE to the desired country (e.g.
Sweden) and press OK/MENU.
> An automatic scan for available TV
channels starts, this scan takes a little
while. During this time the figure for
each channel found and added as a pre-set is shown. When the scan is com-
plete a message is shown and the pic-
ture is shown. A preset list (max. 30 pre-
sets) has now been created and is avail-
able. To change channel, see
page 276.
The scan and preset storage can be cancelled
with EXIT.
Channel management
The preset list can be edited. You can change
the order of the channels that are shown in the
preset list. A TV channel can have more than
one place in the preset list. The TV channel
positions can also vary in the preset list.
To change the order in the preset list, go in TV
mode to TV menu
Reorganise presets.
1.
Turn TUNE to the channel you want to
move in the list and confirm with OK/
MENU.
> The selected channel is highlighted.
2.
Turn TUNE to the new location in the list
and confirm with OK/MENU.
> The channels change places with each
other.
After the preset channels (max. 30) come all the
other channels available in the area. It is pos-
ProCarManuals.com

06 Infotainment system
TV*
06

* Option/accessory, for more information, see Introduction.277

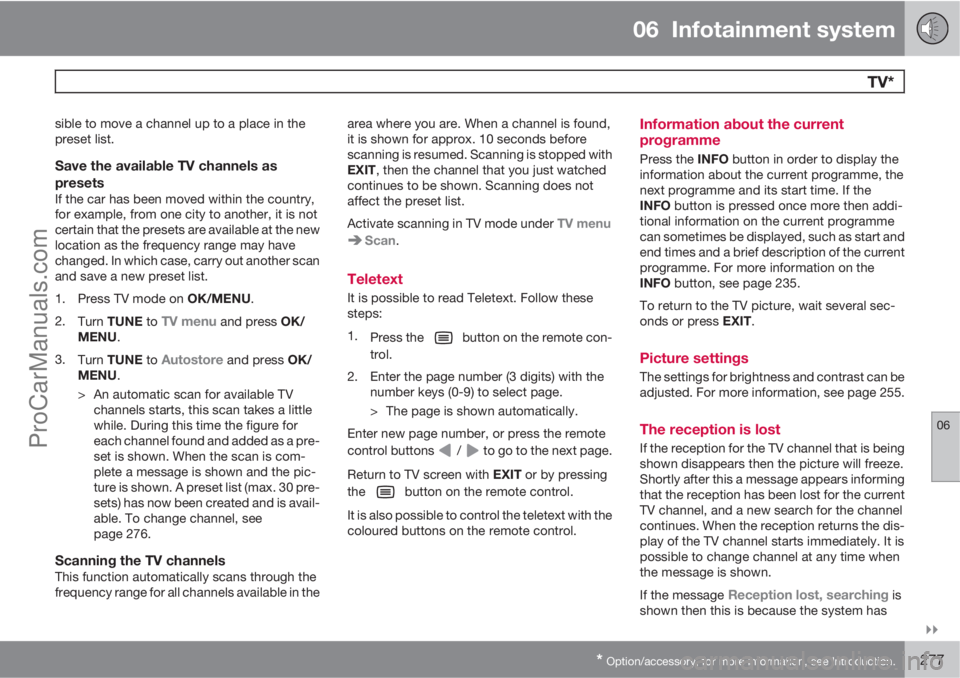

sible to move a channel up to a place in the
preset list.
Save the available TV channels as
presets
If the car has been moved within the country,
for example, from one city to another, it is not
certain that the presets are available at the new
location as the frequency range may have
changed. In which case, carry out another scan
and save a new preset list.
1.
Press TV mode on OK/MENU.
2.
Turn TUNE to
TV menu and press OK/
MENU.
3.
Turn TUNE to
Autostore and press OK/
MENU.
> An automatic scan for available TV
channels starts, this scan takes a little
while. During this time the figure for
each channel found and added as a pre-
set is shown. When the scan is com-
plete a message is shown and the pic-
ture is shown. A preset list (max. 30 pre-
sets) has now been created and is avail-
able. To change channel, see
page 276.
Scanning the TV channelsThis function automatically scans through the
frequency range for all channels available in thearea where you are. When a channel is found,
it is shown for approx. 10 seconds before
scanning is resumed. Scanning is stopped with
EXIT, then the channel that you just watched
continues to be shown. Scanning does not
affect the preset list.
Activate scanning in TV mode under TV menu
Scan.
Teletext
It is possible to read Teletext. Follow these
steps:
1.
Press the
button on the remote con-
trol.
2. Enter the page number (3 digits) with the
number keys (0-9) to select page.
> The page is shown automatically.
Enter new page number, or press the remote
control buttons
/ to go to the next page.
Return to TV screen with EXIT or by pressing
the
button on the remote control.
It is also possible to control the teletext with the
coloured buttons on the remote control.
Information about the current
programme
Press the INFO button in order to display the
information about the current programme, the
next programme and its start time. If the
INFO button is pressed once more then addi-
tional information on the current programme
can sometimes be displayed, such as start and
end times and a brief description of the current
programme. For more information on the
INFO button, see page 235.
To return to the TV picture, wait several sec-
onds or press EXIT.
Picture settings
The settings for brightness and contrast can be
adjusted. For more information, see page 255.
The reception is lost
If the reception for the TV channel that is being
shown disappears then the picture will freeze.
Shortly after this a message appears informing
that the reception has been lost for the current
TV channel, and a new search for the channel
continues. When the reception returns the dis-
play of the TV channel starts immediately. It is
possible to change channel at any time when
the message is shown.
If the message
Reception lost, searching is
shown then this is because the system has
ProCarManuals.com

06 Infotainment system
TV*
06
278* Option/accessory, for more information, see Introduction.

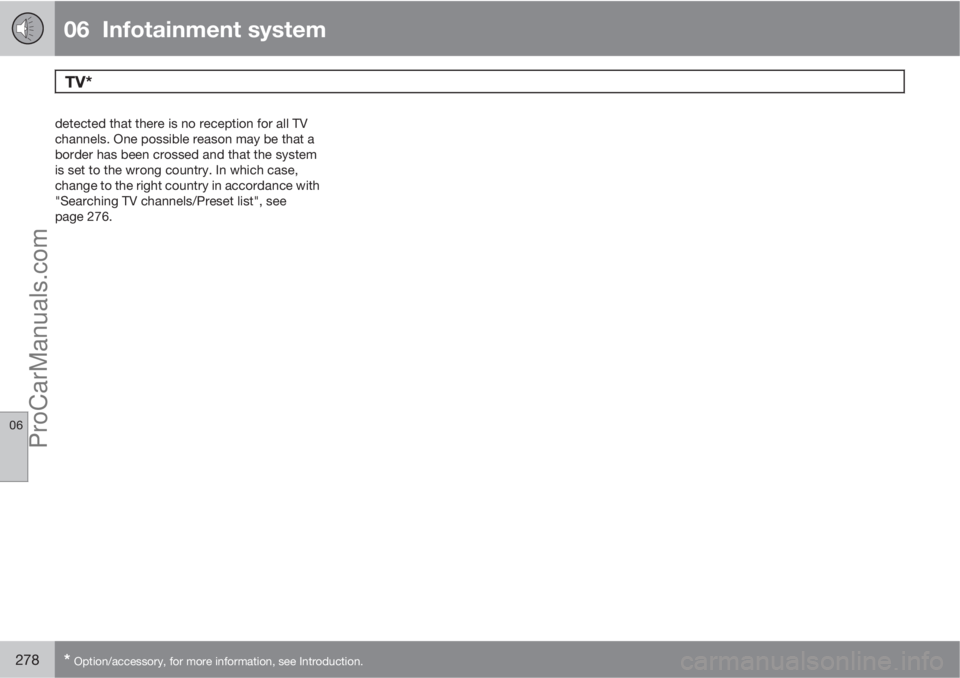

detected that there is no reception for all TV
channels. One possible reason may be that a
border has been crossed and that the system
is set to the wrong country. In which case,
change to the right country in accordance with
"Searching TV channels/Preset list", see
page 276.
ProCarManuals.com
