2013 VOLVO V60 Owners Manual

06 Infotainment system
Media player
06
* Option/accessory, for more information, see Introduction.255
Changing chapter or titleTurn TUNE to access the list of chapters and
navigate through them (if the film is being
played back then it is paused). Press OK/
MENU to select the chapter, this also leads
back to the original position (if the film was
being played back then it is restarted). Press
EXIT to access the title list.
Titles are selected in the title list by turning
TUNE and the selection is confirmed with OK/
MENU, this also leads back to the chapter list.
Press OK/MENU to activate the selection and
return to the start position. Use EXIT to cancel
the selection and this leads back to the original
position (without any selection being made).
The chapter can also be changed by pressing
on
/ on the centre console or the
steering wheel keypad*.
Advanced settings7
AngleIf the DVD video disc supports it, the function
can be used to choose from which camera
position a particular scene should be shown.
Go in disc mode to Disc menu
Advanced
settings
Angle.
DivXŸ Video On DemandThe media player can be registered in order to
play DivX VOD type files from burned discs or
USB. The code for registration can be found in
the menu system MY CAR Settings
InformationDivX® VOD code. For general
information on menus, see under MY CAR, see
page 202.
For more information visit www.divx.com/vod.
Picture settings7
You can adjust the settings (when the car is
stationary) for brightness and contrast.
1.
Press OK/MENU and select
settings, confirm with OK/MENU.
2.
Turn TUNE to the adjustment option and
confirm with OK/MENU.
3.
Adjust the setting by turning TUNE and
confirm with OK/MENU.
To return to the settings list, press the OK/
MENU or EXIT.
The picture settings can be reset to factory
settings with the
Reset option.
Compatible file formats
The media player can play back a variety of file
types and is compatible with the formats in the
following table.
NOTE
Dual format, double-sided discs (DVD Plus,
CD-DVD format) are thicker than regular CD
discs and therefore playback cannot be
guaranteed and malfunction may arise.
If a CD contains a mixture of MP3 and CDDA
tracks, all MP3s will be ignored.
Audio formatACD audio, mp3,
wma
Audio formatBCD audio, mp3,
wma, aac, m4a
Video formatCCD video,
DVD video, divx, avi,
asf
AApplies to Performance.BDoes not apply to Performance.COnly applies to High Performance Multimedia and Premium
Sound Multimedia.
7Applies to High Performance Multimedia and Premium Sound Multimedia.
ProCarManuals.com

06 Infotainment system

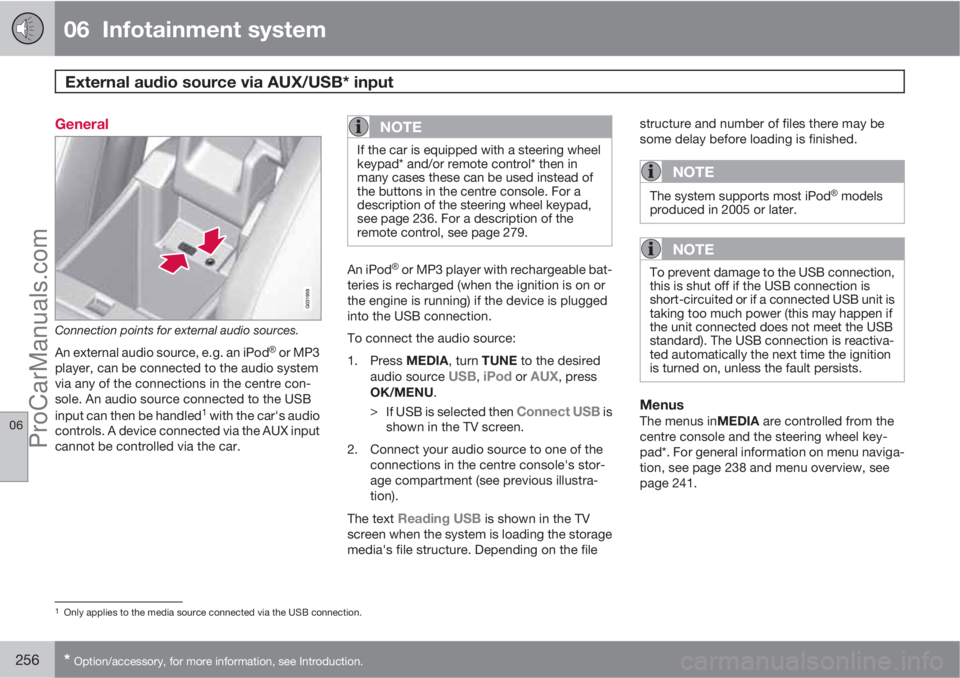

External audio source via AUX/USB* input
06
256* Option/accessory, for more information, see Introduction.
General
Connection points for external audio sources.
An external audio source, e.g. an iPodŸ or MP3
player, can be connected to the audio system
via any of the connections in the centre con-
sole. An audio source connected to the USB
input can then be handled
1 with the car's audio
controls. A device connected via the AUX input
cannot be controlled via the car.
NOTE
If the car is equipped with a steering wheel
keypad* and/or remote control* then in
many cases these can be used instead of
the buttons in the centre console. For a
description of the steering wheel keypad,
see page 236. For a description of the
remote control, see page 279.
An iPodŸ or MP3 player with rechargeable bat-
teries is recharged (when the ignition is on or
the engine is running) if the device is plugged
into the USB connection.
To connect the audio source:
1.
Press MEDIA, turn TUNE to the desired
audio source
USB, iPod or AUX, press
OK/MENU.
>
If USB is selected then
Connect USB is
shown in the TV screen.
2. Connect your audio source to one of the
connections in the centre console's stor-
age compartment (see previous illustra-
tion).
The text
Reading USB is shown in the TV
screen when the system is loading the storage
media's file structure. Depending on the filestructure and number of files there may be
some delay before loading is finished.
NOTE
The system supports most iPodŸ models
produced in 2005 or later.
NOTE
To prevent damage to the USB connection,
this is shut off if the USB connection is
short-circuited or if a connected USB unit is
taking too much power (this may happen if
the unit connected does not meet the USB
standard). The USB connection is reactiva-
ted automatically the next time the ignition
is turned on, unless the fault persists.
MenusThe menus inMEDIA are controlled from the
centre console and the steering wheel key-
pad*. For general information on menu naviga-
tion, see page 238 and menu overview, see
page 241.
1Only applies to the media source connected via the USB connection.
ProCarManuals.com

06 Infotainment system
External audio source via AUX/USB* input
06

* Option/accessory, for more information, see Introduction.257 Playback and navigation
2
Turn TUNE to access the playlist/folder struc-
ture and navigate in the list/structure. Use OK/
MENU to either confirm selection of subfolder
or start of playback of the selected audio/video
file. Press EXIT to either stop and exit the play-
list or go up (back) in the folder structure. A long
press on EXIT leads to the playlist's root level.
Audio/video files can also be changed by
pressing
/ on the centre console or the
steering wheel keypad*.
Audio files have the symbol
, video files3
have the symbol and folders have the
symbol
.
When playback of a file is complete the play-
back of the other files (of the same type) in that
particular folder continues. Change
4 of folder
takes place automatically when all the files in
the current folder have been played back. The
system automatically detects and changes
setting when a device containing only audio
files or only video files is connected to the USB
port and then it plays back these files. How-
ever, the system does not change setting if adevice containing a mixture of audio and video
files is connected to the USB port, but instead
the player continues to play back the previous
file type.
Fast forward/reverse2
See page 253.
Scan2
See page 254.
Random2
See page 254.
Search function2
The keypad on the control panel in the centre
console can be used to find a filename in the
current folder.
The search function is accessed either by turn-
ing TUNE (to access the folder structure) or by
pressing one of the letter keys. As a letter or
character in a search string is entered you get
closer to your search target.
Start playback of a file by pressing OK/
MENU.
Repeat folder5
See page 254.
PauseWhen the volume is reduced entirely or MUTE
is pressed, the media player is paused. When
the volume is increased or MUTE is pressed
again, the media player starts. It is also possi-
ble to pause via the menu system
6, press OK/
MENU, select Play/Pause.
Audio sources
USB memoryTo facilitate the use of a USB memory stick,
only store music files on it. It takes a lot longer
for the system to load storage media that con-
tains anything other than compatible music
files.
2Only applies to USB and iPodŸ.3Applies to High Performance Multimedia and Premium Sound Multimedia.4If Repeat folder is activated then this does not take place.5Only applies to USB.6Does not apply to iPodŸ
ProCarManuals.com

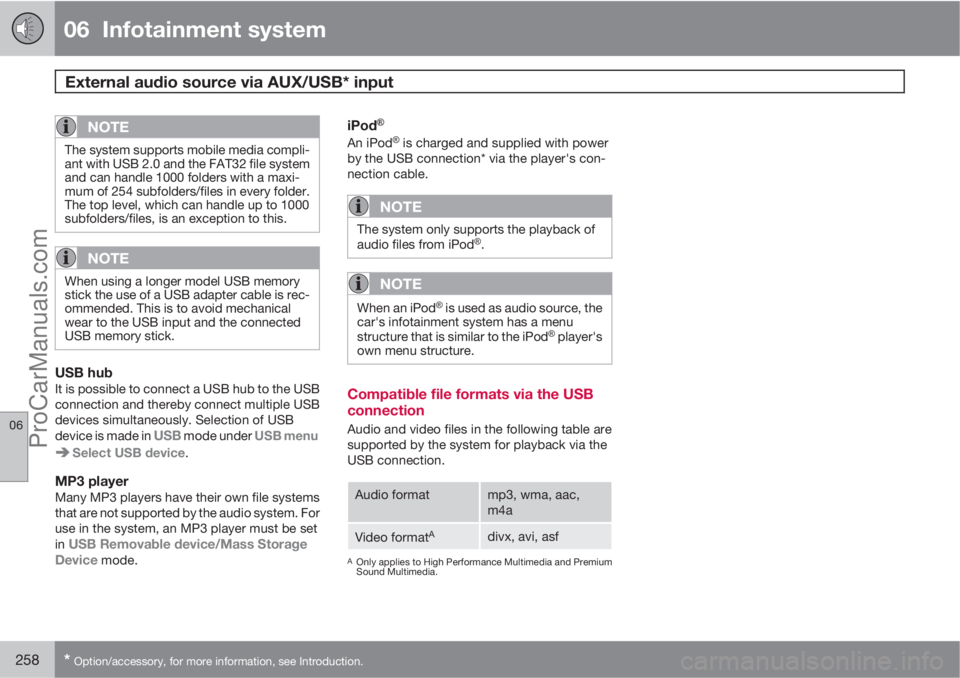

06 Infotainment system
External audio source via AUX/USB* input
06
258* Option/accessory, for more information, see Introduction.
NOTE
The system supports mobile media compli-
ant with USB 2.0 and the FAT32 file system
and can handle 1000 folders with a maxi-
mum of 254 subfolders/files in every folder.
The top level, which can handle up to 1000
subfolders/files, is an exception to this.
NOTE
When using a longer model USB memory
stick the use of a USB adapter cable is rec-
ommended. This is to avoid mechanical
wear to the USB input and the connected
USB memory stick.
USB hubIt is possible to connect a USB hub to the USB
connection and thereby connect multiple USB
devices simultaneously. Selection of USB
device is made in
USB mode under USB menu
Select USB device.
MP3 playerMany MP3 players have their own file systems
that are not supported by the audio system. For
use in the system, an MP3 player must be set
in
USB Removable device/Mass Storage
Device mode.
iPodŸ
An iPodŸ is charged and supplied with power
by the USB connection* via the player's con-
nection cable.
NOTE
The system only supports the playback of
audio files from iPodŸ.
NOTE
When an iPodŸ is used as audio source, the
car's infotainment system has a menu
structure that is similar to the iPod
Ÿ player's
own menu structure.
Compatible file formats via the USB
connection
Audio and video files in the following table are
supported by the system for playback via the
USB connection.
Audio formatmp3, wma, aac,
m4a
Video formatAdivx, avi, asf
AOnly applies to High Performance Multimedia and Premium
Sound Multimedia.
ProCarManuals.com

06 Infotainment system
Media BluetoothŸŸ*
06
* Option/accessory, for more information, see Introduction.259 General
The car's media player is equipped with
BluetoothŸ1 and can wirelessly play streaming
audio files from external devices with
Bluetooth
Ÿ, such as mobile phones and PDAs.
Navigation and control of the sound can be
carried out via the centre console buttons or via
the steering wheel keypad*. In some external
devices it is also possible to change tracks
from the device.
To play back the audio the car's media player
must first be set in
Bluetooth mode.
NOTE
The BluetoothŸ media player must support
the Audio/Video Remote Control Profile
(AVRCP) and Advanced Audio Distribution
Profile (A2DP). The player should use
AVRCP version 1.3, A2DP 1.2. Otherwise
some functions may not work.
Not all mobile phones and external media
players available in the market are fully com-
patible with the Bluetooth
Ÿ function in the
car's media player. Volvo recommends that
you contact an authorised Volvo dealer or
visit www.volvocars.com for information on
compatible phones and external media
players.
NOTE
The car's media player can only play the
audio files via the BluetoothŸ function.
MenusThe menus in MEDIA are controlled from the
centre console and the steering wheel key-
pad*. For general information on menu naviga-
tion, see page 238 and menu overview, see
page 241.
Overview
Centre console control panel.
VOL – volume
MEDIA button. Last active source (e.g.
iPodŸ) is activated automatically. If asource is activated and you press MEDIA
then a shortcut menu is shown with com-
monly used menu options.
Navigate in the menu by turning TUNE.
Confirm your selection or go to the menu
by pressing OK/MENU.
EXIT - leads up in the menu system, stops
the function in progress.
Short presses are used to scroll between
audio files. Long presses are used to fast
forward and rewind audio files.
NOTE
If the car is equipped with a steering wheel
keypad* and/or remote control* then in
many cases these can be used instead of
the buttons in the centre console. For a
description of the steering wheel keypad,
see page 236. For a description of the
remote control, see page 279.
1Applies to High Performance, High Performance Multimedia and Premium Sound Multimedia.
ProCarManuals.com

06 Infotainment system
Media BluetoothŸŸ*
06
260* Option/accessory, for more information, see Introduction.

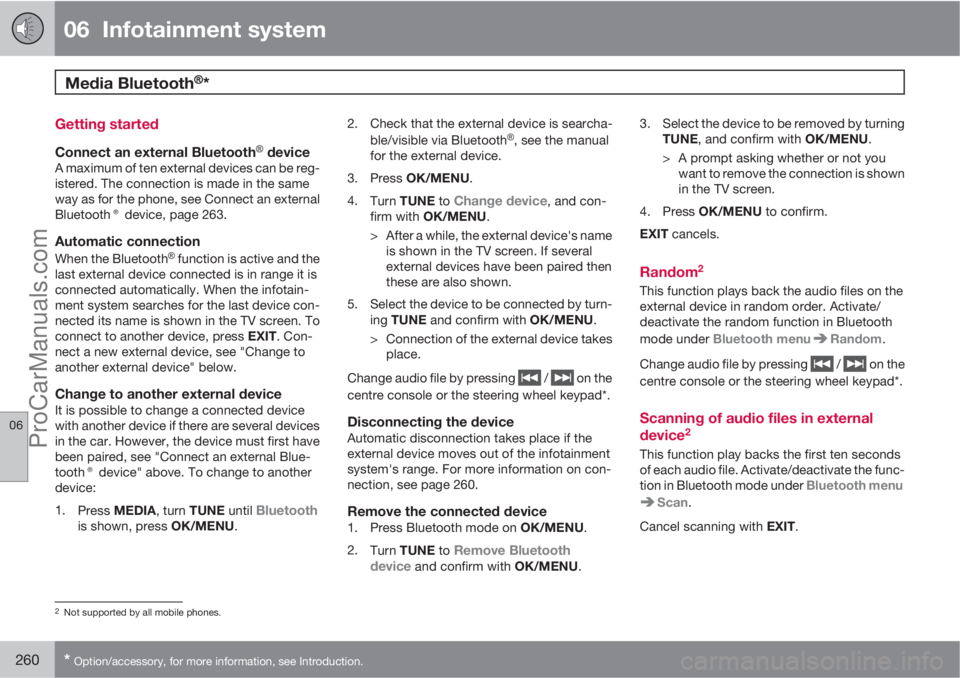

Getting started
Connect an external BluetoothŸ deviceA maximum of ten external devices can be reg-
istered. The connection is made in the same
way as for the phone, see Connect an external
Bluetooth® device, page 263.
Automatic connection
When the BluetoothŸ function is active and the
last external device connected is in range it is
connected automatically. When the infotain-
ment system searches for the last device con-
nected its name is shown in the TV screen. To
connect to another device, press EXIT. Con-
nect a new external device, see "Change to
another external device" below.
Change to another external deviceIt is possible to change a connected device
with another device if there are several devices
in the car. However, the device must first have
been paired, see "Connect an external Blue-
tooth® device" above. To change to another
device:
1.
Press MEDIA, turn TUNE until
Bluetoothis shown, press OK/MENU.2. Check that the external device is searcha-
ble/visible via Bluetooth
Ÿ, see the manual
for the external device.
3.
Press OK/MENU.
4.
Turn TUNE to
Change device, and con-
firm with OK/MENU.
> After a while, the external device's name
is shown in the TV screen. If several
external devices have been paired then
these are also shown.
5. Select the device to be connected by turn-
ing TUNE and confirm with OK/MENU.
> Connection of the external device takes
place.
Change audio file by pressing
/ on the
centre console or the steering wheel keypad*.
Disconnecting the deviceAutomatic disconnection takes place if the
external device moves out of the infotainment
system's range. For more information on con-
nection, see page 260.
Remove the connected device1.
Press Bluetooth mode on OK/MENU.
2.
Turn TUNE to
Remove Bluetooth
device and confirm with OK/MENU.3. Select the device to be removed by turning
TUNE, and confirm with OK/MENU.
> A prompt asking whether or not you
want to remove the connection is shown
in the TV screen.
4.
Press OK/MENU to confirm.
EXIT cancels.
Random2
This function plays back the audio files on the
external device in random order. Activate/
deactivate the random function in Bluetooth
mode under Bluetooth menu
Random.
Change audio file by pressing
/ on the
centre console or the steering wheel keypad*.
Scanning of audio files in external
device2
This function play backs the first ten seconds
of each audio file. Activate/deactivate the func-
tion in Bluetooth mode under Bluetooth menu
Scan.
Cancel scanning with EXIT.
2Not supported by all mobile phones.
ProCarManuals.com

06 Infotainment system
Media BluetoothŸŸ*
06

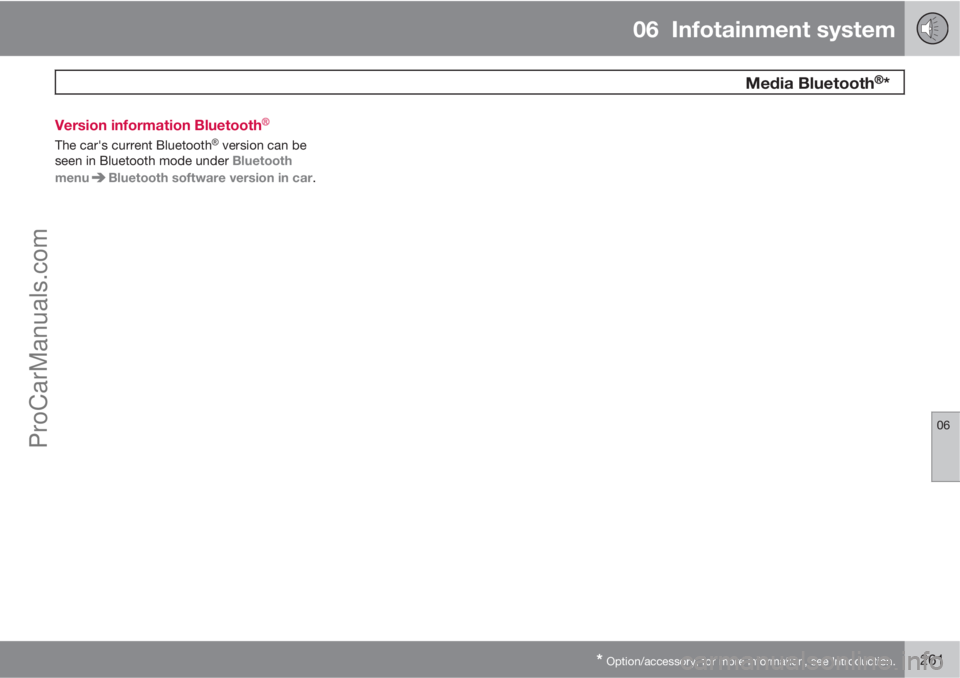

* Option/accessory, for more information, see Introduction.261 Version information Bluetooth
Ÿ
The car's current BluetoothŸ version can be
seen in Bluetooth mode under Bluetooth
menu
Bluetooth software version in car.
ProCarManuals.com

06 Infotainment system
BluetoothŸŸ handsfree*
06
262* Option/accessory, for more information, see Introduction.
General
A mobile phone equipped with BluetoothŸ can
be connected wirelessly to the Infotainment
system
1. The infotainment system then works
handsfree, with the option to control a range of
the mobile phone's functions remotely. The
microphone used is located by the driver's sun
visor (2). The mobile phone can be operated by
its own keys irrespective of whether or not it is
connected.
NOTE
Only a selection of mobile phones are fully
compatible with the handsfree function.
Volvo recommends that you seek assis-
tance from an authorised Volvo dealer or
visit www.volvocars.com for information on
compatible phones.
MenusThe menus in TEL are controlled from the cen-
tre console and the steering wheel keypad*.
For general information on menu navigation,
see page 238 and menu overview, see
page 241.
Overview
System overview
Mobile phone
Microphone
Steering wheel keypad
Centre console control panel
Phone functions, controls overview
Centre console control panel.
Number and letter buttons
TEL button activates/searches last con-
nected phone. If a phone is already con-
nected, and TEL is pressed, a shortcut
menu is shown with commonly used menu
options for the phone.
TUNE - Turn in normal view to the right to
access the phone book, and to the left for
the call register for all calls; also used for
navigation among the options on the TV
screen.
1Applies to High Performance, High Performance Multimedia and Premium Sound Multimedia.
ProCarManuals.com
