2013 VOLVO V60 Owners Manual

10 Specifications
Fluids and lubricants
10
383
NOTE
Under normal driving conditions, the gear-
box oil does not need to be changed during
its service life. However, this may be nec-
essary under adverse driving conditions,
see page 381.
ProCarManuals.com

10 Specifications
Fuel
10
384
CO2 emissions and fuel consumption
T31747.51195.11396.0
T32309.91375.91717.4
T4A2028.71255.41536.6
T4A2309.91375.91717.4
T4FB219 (212C)9.5 (12.9C)129 (124C)5.6 (7.5C)162 (156C)7.0 (9.5C)
T4FB238 (223C)10.2 (13.6C)135 (135C)5.8 (8.2C)173 (167C)7.5 (10.2C)
T526111.21436.11868.0
T526911.51486.31928.2
T6 AWD34614.81757.523710.2
D21375.21094.11194.5
ProCarManuals.com

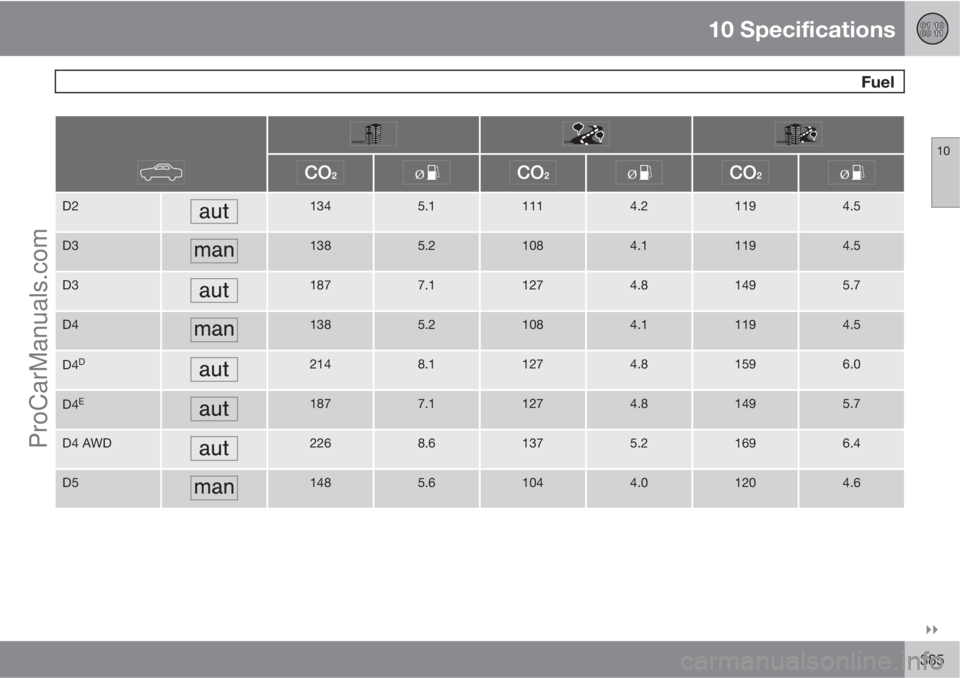

10 Specifications
Fuel
10

385
D21345.11114.21194.5
D31385.21084.11194.5
D31877.11274.81495.7
D41385.21084.11194.5
D4D2148.11274.81596.0
D4E1877.11274.81495.7
D4 AWD2268.61375.21696.4
D51485.61044.01204.6
ProCarManuals.com

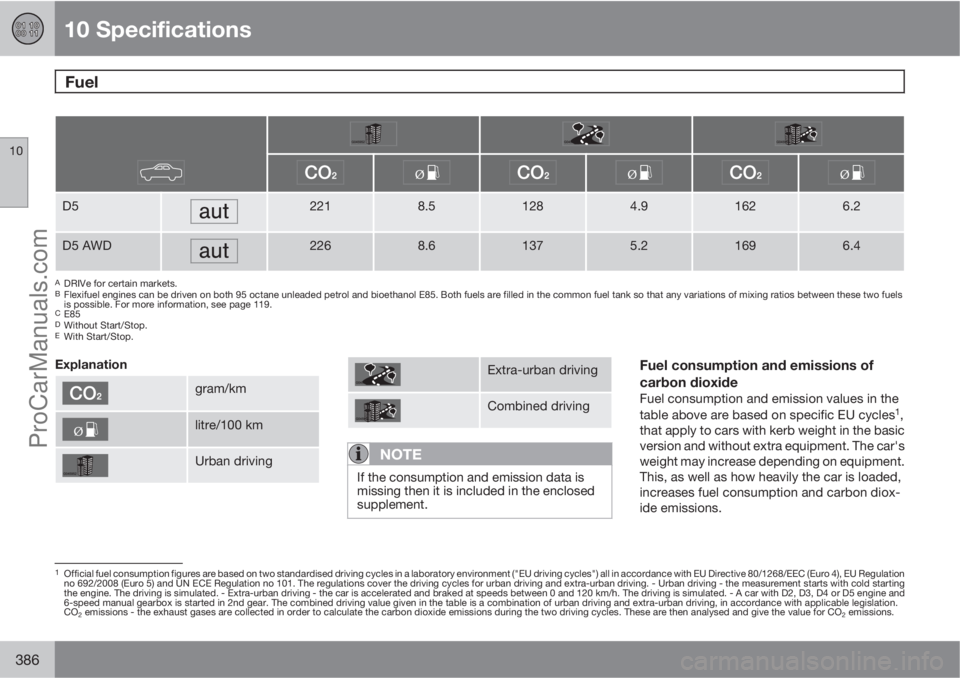

10 Specifications
Fuel
10
386
D52218.51284.91626.2
D5 AWD2268.61375.21696.4
ADRIVe for certain markets.BFlexifuel engines can be driven on both 95 octane unleaded petrol and bioethanol E85. Both fuels are filled in the common fuel tank so that any variations of mixing ratios between these two fuels
is possible. For more information, see page 119.
CE85DWithout Start/Stop.EWith Start/Stop.
Explanation
gram/km
litre/100 km
Urban driving
Extra-urban driving
Combined driving
NOTE
If the consumption and emission data is
missing then it is included in the enclosed
supplement.
Fuel consumption and emissions of
carbon dioxide
Fuel consumption and emission values in the
table above are based on specific EU cycles1,
that apply to cars with kerb weight in the basic
version and without extra equipment. The car's
weight may increase depending on equipment.
This, as well as how heavily the car is loaded,
increases fuel consumption and carbon diox-
ide emissions.
1Official fuel consumption figures are based on two standardised driving cycles in a laboratory environment ("EU driving cycles") all in accordance with EU Directive 80/1268/EEC (Euro 4), EU Regulation
no 692/2008 (Euro 5) and UN ECE Regulation no 101. The regulations cover the driving cycles for urban driving and extra-urban driving. - Urban driving - the measurement starts with cold starting
the engine. The driving is simulated. - Extra-urban driving - the car is accelerated and braked at speeds between 0 and 120 km/h. The driving is simulated. - A car with D2, D3, D4 or D5 engine and
6-speed manual gearbox is started in 2nd gear. The combined driving value given in the table is a combination of urban driving and extra-urban driving, in accordance with applicable legislation.
CO
2 emissions - the exhaust gases are collected in order to calculate the carbon dioxide emissions during the two driving cycles. These are then analysed and give the value for CO2 emissions.
ProCarManuals.com

10 Specifications
Fuel
10
387
There are several reasons for increased fuel
consumption compared with the table's val-
ues. Examples of this are:
•The driver's driving style.
•If the customer has specified wheels larger
than those fitted as standard on the mod-
el's basic version, then resistance increa-
ses.
•High speed results in increased wind resis-
tance.
•Fuel quality, road and traffic conditions,
weather and the condition of the car.
Even a combination of the above-mentioned
examples can result in significantly improved
consumption. For further information, please
refer to the regulations referred to
1.
Large deviations in fuel consumption may arise
in a comparison with the EU driving cycles
1
which are used in the certification of the car
and on which the consumption figures in the
table are based.
To bear in mindTips that the driver can use in order to reduce
consumption:
•Drive gently and avoid unnecessary accel-
eration as well as braking too hard.
•Drive with the correct air pressure in the
tyres and check this regularly - select ECO
tyre pressure for best results, see the tyre
pressure table on page 388.
•Choice of tyres can affect fuel consump-
tion - seek advice on suitable tyres from a
dealer.
See further information and more advice on
pages 12 and 284.
See page 288 for general information on fuel.
1Official fuel consumption figures are based on two standardised driving cycles in a laboratory environment ("EU driving cycles") all in accordance with EU Directive 80/1268/EEC (Euro 4), EU Regulation
no 692/2008 (Euro 5) and UN ECE Regulation no 101. The regulations cover the driving cycles for urban driving and extra-urban driving. - Urban driving - the measurement starts with cold starting
the engine. The driving is simulated. - Extra-urban driving - the car is accelerated and braked at speeds between 0 and 120 km/h. The driving is simulated. - A car with D2, D3, D4 or D5 engine and
6-speed manual gearbox is started in 2nd gear. The combined driving value given in the table is a combination of urban driving and extra-urban driving, in accordance with applicable legislation.
CO
2 emissions - the exhaust gases are collected in order to calculate the carbon dioxide emissions during the two driving cycles. These are then analysed and give the value for CO2 emissions.
ProCarManuals.com

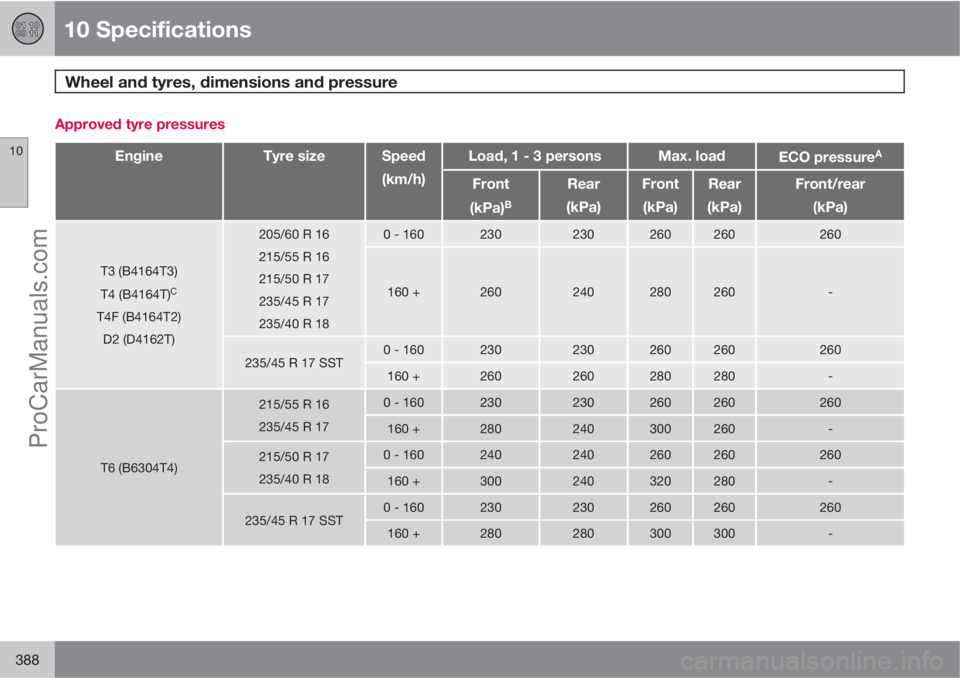

10 Specifications
Wheel and tyres, dimensions and pressure
10
388
Approved tyre pressures
EngineTyre sizeSpeed
(km/h)Load, 1 - 3 personsMax. loadECO pressureA
Front
(kPa)
B
Rear
(kPa)Front
(kPa)Rear
(kPa)Front/rear
(kPa)
T3 (B4164T3)
T4 (B4164T)
C
T4F (B4164T2)
D2 (D4162T)
205/60 R 16
215/55 R 16
215/50 R 17
235/45 R 17
235/40 R 180 - 160230230260260260
160 +260240280260-
235/45 R 17 SST0 - 160230230260260260
160 +260260280280-
T6 (B6304T4)
215/55 R 16
235/45 R 170 - 160230230260260260
160 +280240300260-
215/50 R 17
235/40 R 180 - 160240240260260260
160 +300240320280-
235/45 R 17 SST0 - 160230230260260260
160 +280280300300-
ProCarManuals.com

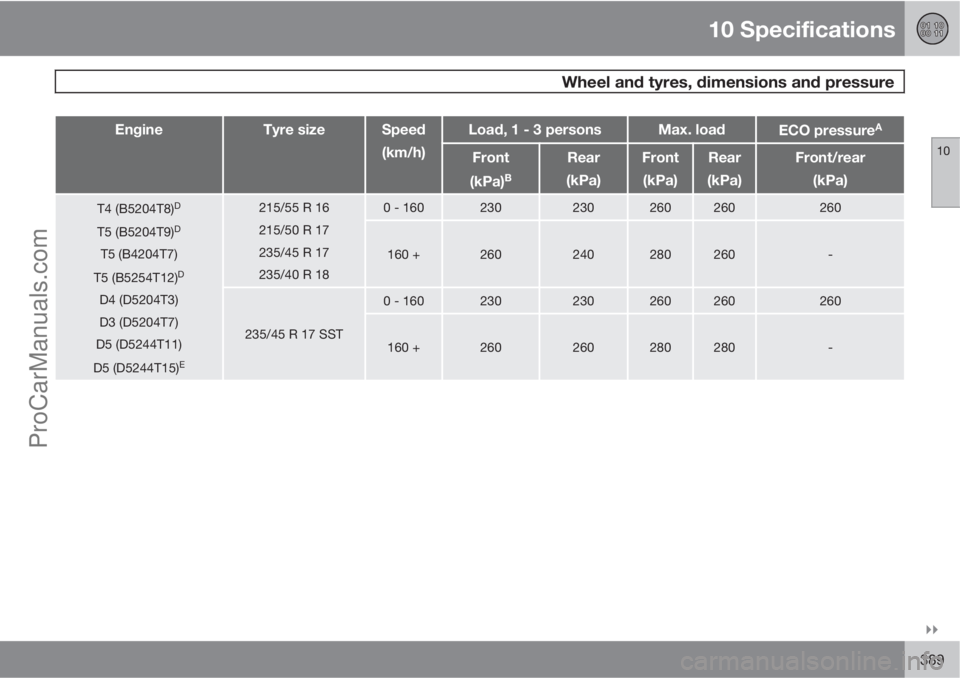

10 Specifications
Wheel and tyres, dimensions and pressure
10

389
EngineTyre sizeSpeed
(km/h)Load, 1 - 3 personsMax. loadECO pressureA
Front
(kPa)
B
Rear
(kPa)Front
(kPa)Rear
(kPa)Front/rear
(kPa)
T4 (B5204T8)D
T5 (B5204T9)D
T5 (B4204T7)
T5 (B5254T12)
D
D4 (D5204T3)
D3 (D5204T7)
D5 (D5244T11)
D5 (D5244T15)
E
215/55 R 16
215/50 R 17
235/45 R 17
235/40 R 180 - 160230230260260260
160 +260240280260-
235/45 R 17 SST
0 - 160230230260260260
160 +260260280280-
ProCarManuals.com

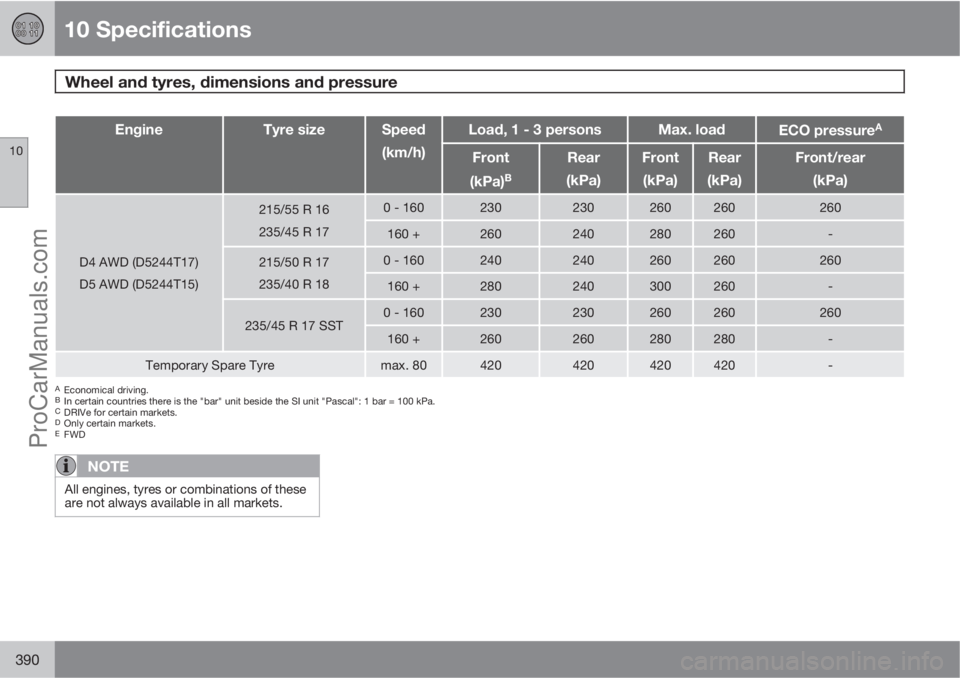

10 Specifications
Wheel and tyres, dimensions and pressure
10
390
EngineTyre sizeSpeed
(km/h)Load, 1 - 3 personsMax. loadECO pressureA
Front
(kPa)
B
Rear
(kPa)Front
(kPa)Rear
(kPa)Front/rear
(kPa)
D4 AWD (D5244T17)
D5 AWD (D5244T15)
215/55 R 16
235/45 R 170 - 160230230260260260
160 +260240280260-
215/50 R 17
235/40 R 180 - 160240240260260260
160 +280240300260-
235/45 R 17 SST0 - 160230230260260260
160 +260260280280-
Temporary Spare Tyremax. 80420420420420-
AEconomical driving.BIn certain countries there is the "bar" unit beside the SI unit "Pascal": 1 bar = 100 kPa.CDRIVe for certain markets.DOnly certain markets.EFWD
NOTE
All engines, tyres or combinations of these
are not always available in all markets.
