2013 VOLVO V60 Owners Manual

Introduction
Important information
7
warning is ignored, may result in serious per-
sonal injury or fatality.
Risk of property damage
G031592
White ISO symbols and white text/image on
black or blue warning field and message field.
Used to indicate the presence of danger which,
if the warning is ignored, may result in damage
to property.
Information
G031593
White ISO symbols and white text/image on
black message field.
NOTE
The labels shown in the owner's manual are
not provided as exact reproductions of
those in the car. The purpose is to show
their approximate appearance and location
in the car. The information that applies to
your car in particular is available on the label
in question in your car.
Procedure listsProcedures where action must be taken in a
certain sequence are numbered in the owner's
manual.
When there is a series of illustrations for
step-by-step instructions each step is
numbered in the same way as the corres-
ponding illustration.
There are numbered lists with letters adja-
cent to the series of illustrations where the
order of the instructions is not significant.
Arrows appear numbered and unnum-
bered and are used to illustrate a move-
ment.
Arrows with letters are used to clarify a
movement when the reciprocal order is of
no relevance.
If there is no series of illustrations for step-by-
step instructions then the different steps are
numbered with normal numbers.
Position listsRed circles containing a number are used
in overview images where different com-
ponents are pointed out. The number
recurs in the position list featured in con-
nection with the illustration that describes
the item.
ProCarManuals.com

Introduction
Important information
8* Option/accessory, for more information, see Introduction.
Bulleted listsA bulleted list is used when there is a list of
points in the owner's manual.
Example:
•Coolant
•Engine oil
To be continued
 This symbol is located furthest down to the
right when a section continues on the following
page.
Recording data
Your vehicle contains a number of computers
whose function is to continuously check and
monitor the vehicle's operation and function-
ality. Some of the computers can record infor-
mation during normal driving if they detect an
error. In addition, information is recorded in the
event of a collision or incident. Parts of the
recorded information are required so that tech-
nicians can diagnose and rectify faults in the
vehicle during servicing and maintenance and
so that Volvo can fulfil legal requirements and
other regulations. In addition to this, the infor-
mation is used for research purposes by Volvo
in order to continually develop quality and
safety, as the information can contribute to a
better understanding of the factors that cause
accidents and injuries. The informationincludes details of the status and functionality
of various systems and modules in the vehicle
with regard to engine, throttle, steering and
brake systems, amongst other things. This
information may include details regarding the
way the driver drives the vehicle, such as vehi-
cle speed, brake and accelerator pedal use,
steering wheel movement and whether or not
the driver and passengers have used their
seatbelts. For the reasons given this informa-
tion may be stored in the vehicle's computers
for a certain length of time, but also as a result
of a collision or incident. This information may
be stored by Volvo as long as it can help to
further develop and further enhance safety and
quality and as long as there are legal require-
ments and other regulations that Volvo needs
to consider.
Volvo will not contribute to the above-descri-
bed information being disclosed to third parties
without the vehicle owner's consent. However,
due to national legislation and regulations
Volvo may be required to disclose such infor-
mation to authorities such as police authorities,
or others who may assert a legal right to have
access to it.
To be able to read and interpret the information
recorded by the computers in the vehicle
requires special technical equipment that
Volvo, and workshops that have entered into
agreements with Volvo, have access to. Volvois responsible that the information, which is
transferred to Volvo during servicing and main-
tenance, is stored and handled in a secure
manner and that the handling complies with
applicable legal requirements. For further infor-
mation - contact a Volvo dealer.
Accessories and extra equipment
The incorrect connection and installation of
accessories can negatively affect the car's
electrical system. Certain accessories only
function when their associated software is
installed in the car's computer system. Volvo
therefore recommends that you always con-
tact an authorised Volvo workshop before
installing accessories which are connected to
or affect the electrical system.
Change of ownership for cars with
Volvo On Call*
Volvo On Call is a supplemental service that
consists of safety, security and comfort serv-
ices. If the car has Volvo On Call and there is a
change of owner, it is very important that these
services are discontinued so that the former
owner cannot access the services in the car.
Contact the call centre by pressing the ON
CALL button in the car or contact an author-
ised Volvo workshop. See also "Changing the
security code" in the owner's manual for Volvo
On Call.
ProCarManuals.com

Introduction
Important information
9 Laser sensor
This vehicle is equipped with a sensor which
transmits laser light. It is absolutely essential to
follow the prescribed instructions when han-
dling the laser sensor.
The following two labels in English are fitted
directly on the laser sensor unit:
The upper label in the figure describes the laser
beam's classification:
•Laser radiation - Do not look into the laser
beam with optical instruments - Class 1M
laser product.
The lower label in the figure describes the laser
beam's physical data:
•IEC 60825-1:1993 + A2:2001. Complies
with FDA (U.S. Food Administration) stand-
ards for laser product design with theexception of deviations in accordance with
"Laser Notice No. 50" from 26 July 2001.
Radiation data for the laser sensorThe following table specifies the laser sensor's
physical data.
Maximum pulse energy2.64 ¦J
Maximum average output45 mW
Pulse duration33 ns
Divergence (horizontal x verti-
cal)28° × 12°
WARNING
If any of these instructions are not followed
then there is a risk of eye injury!
•Never look into the laser sensor (which
emits spreading invisible laser radiation)
at a distance of 100 mm or closer with
magnifying optics such as a magnifying
glass, microscope, lens or similar opti-
cal instruments.
•Testing, repair, removal, adjustment
and/or replacement of the laser sen-
sor's spare parts must only be carried
out by a qualified workshop - we rec-
ommend an authorised Volvo work-
shop.
•To avoid exposure to harmful radiation,
do not carry out any readjustments or
maintenance other than those specified
here.
•The repairer must follow specially
drawn up workshop information for the
laser sensor.
•Do not remove the laser sensor (this
includes removing the lenses). A
removed laser sensor does not fulfil
laser class 3B as per standard IEC
60825-1. Laser class 3B is not eye-safe
and therefore entails a risk of injury.
ProCarManuals.com

Introduction
Important information
10
•The laser sensor's connector must be
unplugged before removal from the
windscreen.
•The laser sensor must be fitted onto the
windscreen before the sensor's con-
nector is plugged in.
•The laser sensor transmits laser light
when the remote control key is in posi-
tion II and also with the engine switched
off (see page 78 on key positions).
For more information on the laser sensor, see
page 168.
Information on the Internet
At www.volvocars.com there is further infor-
mation concerning your car.
To be able to read the QR code, you need a QR
code reader, which is available as an add-on
for a number of mobile phones. A QR code
reader can be downloaded from the App Store
or Android Market.
QR code
ProCarManuals.com

Introduction
Volvo and the environment
* Option/accessory, for more information, see Introduction.11 Volvo Cars' environmental philosophy
G000000
Environmental care is one of Volvo Car Corpo-
ration's core values which influence all opera-
tions. We also believe that our customers share
our consideration for the environment.
Your Volvo complies with strict international
environmental standards and is also manufac-
tured in one of the cleanest and most resource-
efficient plants in the world. Volvo Car Corpo-
ration has global ISO certification, which
includes the environmental standard ISO
14001 covering all factories and several of our
other units. We also set requirements for our
partners so that they work systematically with
environmental issues.Fuel consumptionVolvo cars have competitive fuel consumption
in each of their respective classes. Lower fuel
consumption generally results in lower emis-
sion of the greenhouse gas, carbon dioxide.
It is possible for the driver to influence fuel con-
sumption. For more information read under the
heading, Reducing environmental impact.
Efficient emission controlYour Volvo is manufactured following the con-
cept "Clean inside and out" – a concept that
encompasses a clean interior environment as
well as highly efficient emission control. Inmany cases the exhaust emissions are well
below the applicable standards.
Clean air in the passenger compartmentA passenger compartment filter prevents dust
and pollen from entering the passenger com-
partment via the air intake.
A sophisticated air quality system, IAQS* (Inte-
rior Air Quality System) ensures that the incom-
ing air is cleaner than the air in the traffic out-
side.
The system consists of an electronic sensor
and a carbon filter. The incoming air is moni-
tored continuously and if there is an increase in
ProCarManuals.com

Introduction
Volvo and the environment
12* Option/accessory, for more information, see Introduction.
the level of certain unhealthy gases such as
carbon monoxide then the air intake is closed.
Such a situation may arise in heavy traffic,
queues and tunnels for example.
The entry of nitrous oxides, ground-level ozone
and hydrocarbons is prevented by the carbon
filter.
InteriorThe interior of a Volvo is designed to be plea-
sant and comfortable, even for people with
contact allergies and for asthma sufferers.
Extreme attention has been given to choosing
environmentally-compatible materials.
Volvo workshops and the environmentRegular maintenance creates the conditions
for a long service life and low fuel consumption
for your car. In this way you contribute to a
cleaner environment. When Volvo's workshops
are entrusted with the service and mainte-
nance of your car it becomes part of our sys-
tem. Volvo makes clear demands regarding the
way in which our workshops are designed in
order to prevent spills and discharges into the
environment. Our workshop staff have the
knowledge and the tools required to guarantee
good environmental care.
Reducing environmental impactYou can easily help reduce environmental
impact - here are a few tips:
•Avoid letting the engine idle - switch off the
engine when stationary for longer periods.
Pay attention to local regulations.
•Drive economically - think ahead.
•Perform service and maintenance in
accordance with the owner's manual's
instructions - follow the Service and War-
ranty Booklet's recommended intervals.
•If the car is equipped with an engine block
heater*, use it before starting from cold - it
improves starting capacity and reduces
wear in cold weather and the engine rea-
ches normal operating temperature more
quickly, which lowers consumption and
reduces emissions.
•High speed increases consumption con-
siderably due to increased wind resistance
- a doubling of speed increases wind resis-
tance 4 times.
•Always dispose of environmentally hazar-
dous waste, such as batteries and oils, in
an environmentally safe manner. Consult a
workshop in the event of uncertainty about
how this type of waste should be discarded
- an authorised Volvo workshop is recom-
mended.
Following this advice can save money, the
planet's resources are saved, and the car's
durability is extended. For more information
and further advice, see the pages 284 and
384.
RecyclingAs a part of Volvo's environmental work, it is
important that the car is recycled in an envi-
ronmentally sound manner. Almost all of the
car can be recycled. The last owner of the car
is therefore requested to contact a dealer for
referral to a certified/approved recycling
facility.
The owner's manual and the
environment
The Forest Stewardship CouncilŸ symbol
shows that the paper pulp in this publication
comes from FSC
Ÿ certified forests or other
controlled sources.
ProCarManuals.com

Introduction

13ProCarManuals.com

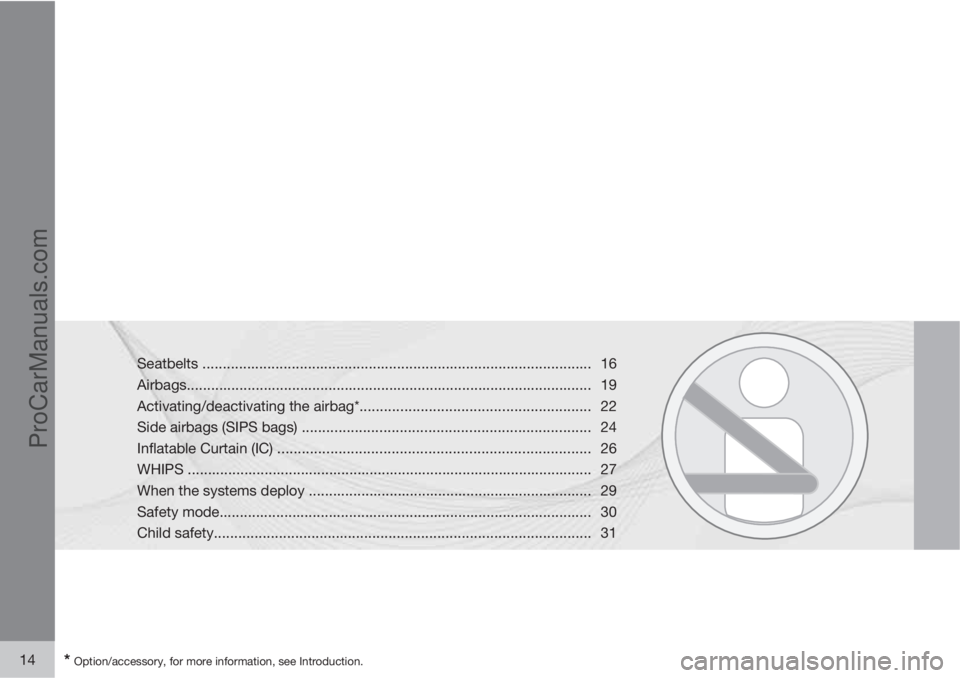

14* Option/accessory, for more information, see Introduction.
Seatbelts ................................................................................................ 16
Airbags.................................................................................................... 19
Activating/deactivating the airbag*......................................................... 22
Side airbags (SIPS bags) ....................................................................... 24
Inflatable Curtain (IC) ............................................................................. 26
WHIPS .................................................................................................... 27
When the systems deploy ...................................................................... 29
Safety mode............................................................................................ 30
Child safety............................................................................................. 31
ProCarManuals.com
