General fuses, engine compartmentOn the inside of the cover there are tweezers
that facilitate the procedure for the removal
and fitting of fuses.

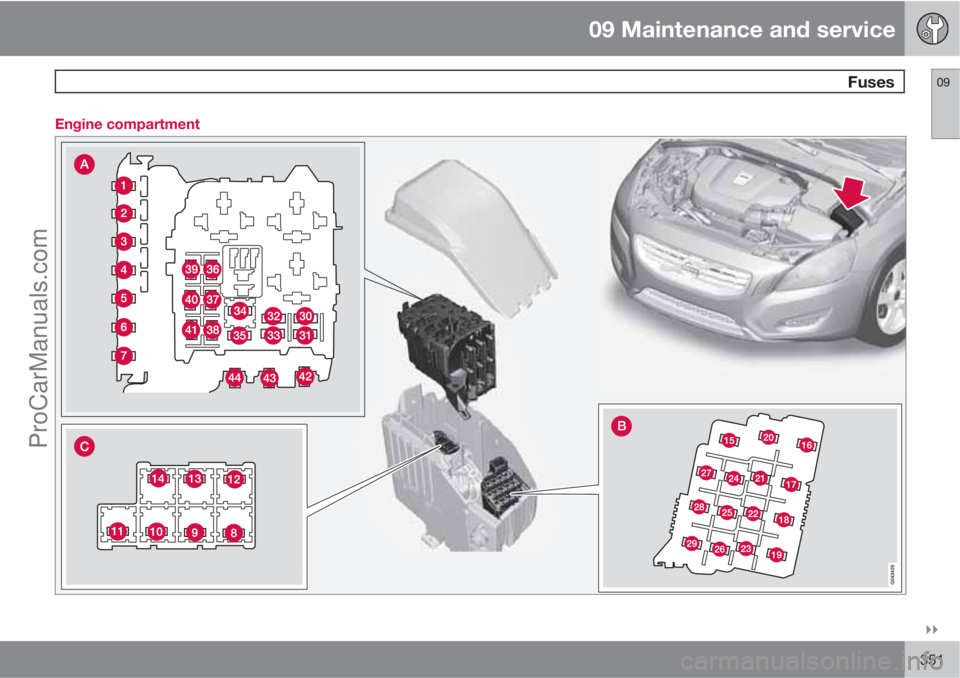

Positions (see preceding illustration)Engine compartment, upper
Engine compartment, front
Engine compartment, lower
These fuses are all located in the engine com-
partment box. The fuses in (C) are located
under (A).
On the inside of the cover is a label that shows
the location of the fuses.
•Fuses 1-7 and 42-44 are of the "Midi Fuse"
type and must only be replaced by a work-
shop
1.
•Fuses 8-15 and 34 are of the "JCASE" type
and should be replaced by a workshop1.
•Fuses 16-33 and 35-41 are of the "Mini
Fuse" type.
FunctionA
Primary fuse for the central elec-
tronic module (CEM) with fuse
box B under the glovebox
A
50
Primary fuse for the central elec-
tronic module (CEM) with fuse
box B under the glovebox50
Primary fuse for central electri-
cal unit in cargo areaA60
Primary fuse for central electri-
cal unit in passenger compart-
ment with fuse box A under the
glovebox
A
60
Primary fuse for central electri-
cal unit in passenger compart-
ment with fuse box A under the
glovebox
A
60
--
PTC element, air preheater*A100
Headlamp washers*20
Windscreen wipers30
FunctionA
Parking heater*25
Ventilation fanA40
--
ABS pump40
ABS valves20
--
Headlamp levelling*; Active
Xenon headlamps - ABL*10
Primary fuse for the central elec-
tronic module (CEM) with fuse
box B under the glovebox20
ABS5
Speed related power steering*5
Engine control module; Trans-
mission control module; Air-
bags10
Heated washer nozzles*10
1An authorised Volvo workshop is recommended.
ProCarManuals.com

09 Maintenance and service
Fuses09

* Option/accessory, for more information, see Introduction.353
FunctionA
--
Headlamp control5
--
--
--
Internal relay coils5
Auxiliary lamps*20
Horn15
Relay coil in main relay for
engine management system;
Engine control module (5, 6-cyl.
petrol)10
Transmission control module15
Solenoid clutch A/C (not 5-cyl.
diesel); Coolant pump (5-cyl.
diesel Start/Stop)15
FunctionA
Relay coil in relay for solenoid
clutch A/C (not 5-cyl. diesel);
Relay coil in relay for coolant
pump (5-cyl. diesel Start/Stop);
Relay coils in central electrical
unit in engine compartment cold
zone (Start/Stop)5
Start relayA30
Ignition coils (4-cyl. petrol);
Glow control module (5-cyl. die-
sel)10
Ignition coils (5, 6-cyl. petrol);
Capacitor (6-cyl.)20
Engine control module (petrol)10
Engine control module (diesel)15
FunctionA
Valves (1.6 l petrol); Mass air
flow sensor (1.6 l petrol)
Mass air flow sensor (D4162T);
Control valve, fuel flow
(D4162T)10
Mass air flow sensor (5-cyl. die-
sel, 6-cyl.); Control valves (5-
cyl. diesel); Injectors (5, 6-cyl.
petrol); Engine control module
(5-cyl. petrol, 6-cyl.)15
Solenoid clutch A/C (5, 6-cyl.);
Valves, Engine control module
(6-cyl.) Solenoids (6-cyl. without
turbo); Actuator motors, intake
manifold (6-cyl. without turbo);
Mass air flow sensor (4-cyl. 2.0
l petrol, 5-cyl. petrol); Oil level
sensor (5-cyl. diesel)
Coolant pump (D4162T)10
Lambda-sonds (4-cyl. petrol);
Lambda-sond (diesel); Control
module, radiator roller cover
(manual 5-cyl. 2.0 l diesel)10
EVAP valve (5, 6-cyl. petrol);
Lambda-sonds (5, 6-cyl. petrol)15
ProCarManuals.com

09 Maintenance and service
Fuses 09
354

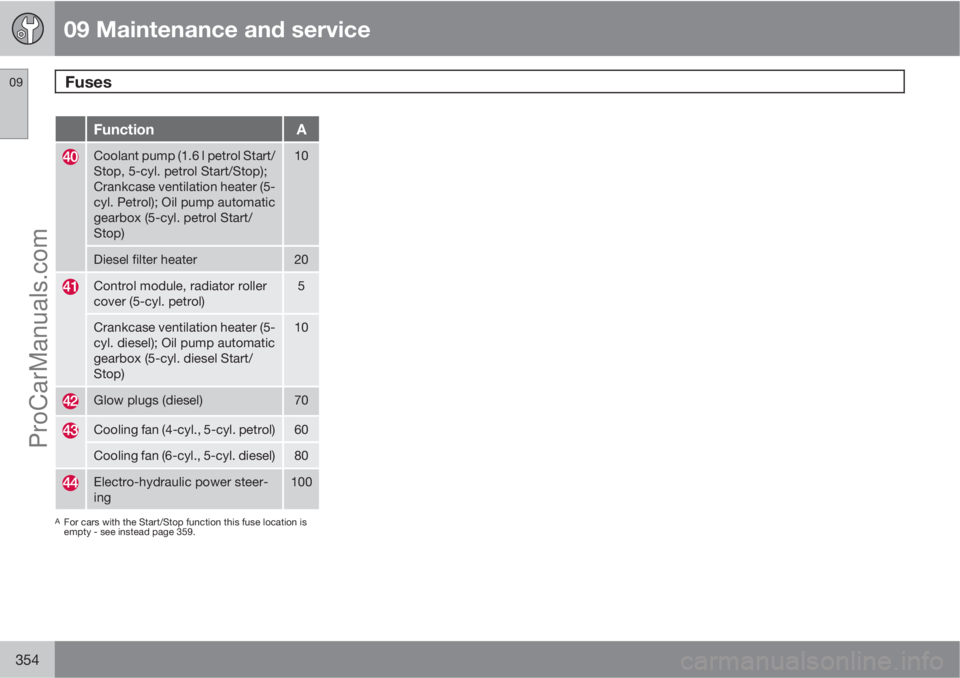

FunctionA
Coolant pump (1.6 l petrol Start/
Stop, 5-cyl. petrol Start/Stop);
Crankcase ventilation heater (5-
cyl. Petrol); Oil pump automatic
gearbox (5-cyl. petrol Start/
Stop)10
Diesel filter heater20
Control module, radiator roller
cover (5-cyl. petrol)5
Crankcase ventilation heater (5-
cyl. diesel); Oil pump automatic
gearbox (5-cyl. diesel Start/
Stop)10
Glow plugs (diesel)70
Cooling fan (4-cyl., 5-cyl. petrol)60
Cooling fan (6-cyl., 5-cyl. diesel)80
Electro-hydraulic power steer-
ing100
AFor cars with the Start/Stop function this fuse location is
empty - see instead page 359.
ProCarManuals.com

09 Maintenance and service
Fuses09

* Option/accessory, for more information, see Introduction.355 Under the glovebox

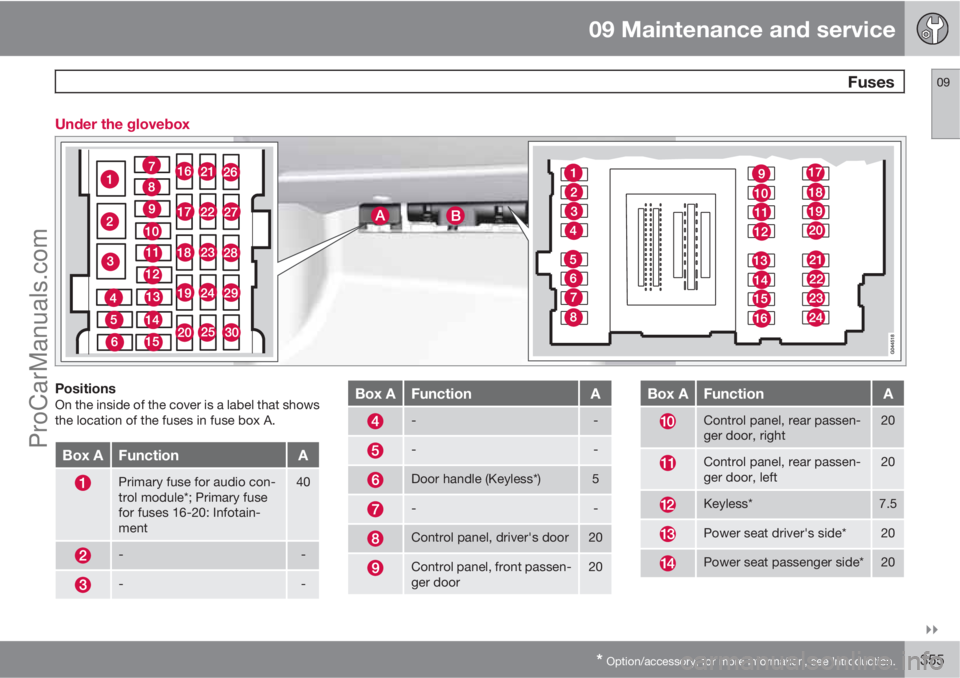

PositionsOn the inside of the cover is a label that shows
the location of the fuses in fuse box A.
Box AFunctionA
Primary fuse for audio con-
trol module*; Primary fuse
for fuses 16-20: Infotain-
ment40
--
--
Box AFunctionA
--
--
Door handle (Keyless*)5
--
Control panel, driver's door20
Control panel, front passen-
ger door20
Box AFunctionA
Control panel, rear passen-
ger door, right20
Control panel, rear passen-
ger door, left20
Keyless*7.5
Power seat driver's side*20
Power seat passenger side*20
ProCarManuals.com

09 Maintenance and service
Fuses 09
356* Option/accessory, for more information, see Introduction.
Box AFunctionA
--
Infotainment control module5
Audio control unit (ampli-
fier)*
Digital radio*; TV*10
Audio15
Telematics*; Bluetooth*5
--
Sunroof*; Interior lighting
roof; Climate sensor*;
Damper motors, air intake5
12 V socket, tunnel console15
Seat heating, rear right*15
Seat heating, rear left*15
--
Seat heating (passenger
side)15
Seat heating (driver's side)15
Box AFunctionA
Parking assistance*; Park-
ing camera*; Towbar control
module *
BLIS*5
AWD control module*15
Active chassis Four-C*10
Box BFunctionA
Rear window wiper15
--
Interior lighting; Driver's
door control panel, power
windows; Power seats,
front*; Remote controlled
garage door opener*7.5
Information display (DIM)5
Adaptive cruise control,
ACC*; collision warning sys-
tem*10
Interior lighting; Rain sensor7.5
Steering wheel module7.5
Box BFunctionA
Central locking system, fuel
filler flap10
Rear window washer15
Windscreen washers15
Unlocking, tailgate10
Folding head restraint*10
Fuel pump20
Movement detector alarm*;
Climate panel5
Steering lock15
Siren alarm*; Data link con-
nector OBDII5
--
Airbags10
Collision warning system*5
Accelerator pedal sensor,
PTC element air preheater*;
Dimming, interior rearview
mirror*; Seat heating, rear*7.5
ProCarManuals.com

09 Maintenance and service
Fuses09

* Option/accessory, for more information, see Introduction.357
Box BFunctionA
--
Brake light5
Sunroof*20
Immobiliser5
ProCarManuals.com

09 Maintenance and service
Fuses 09
358* Option/accessory, for more information, see Introduction.

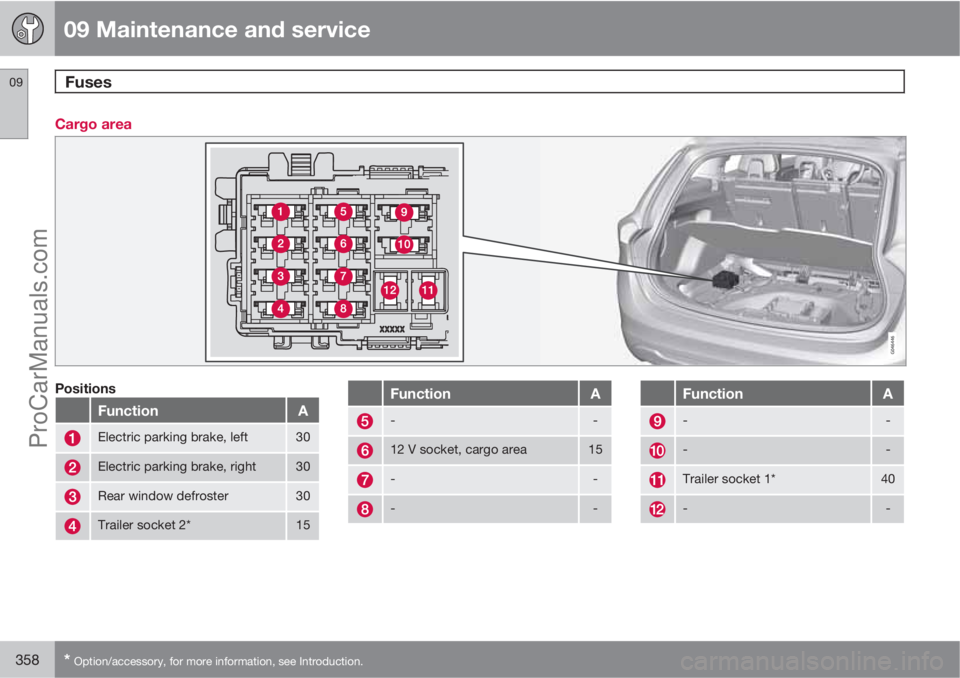

Cargo area
Positions
FunctionA
Electric parking brake, left30
Electric parking brake, right30
Rear window defroster30
Trailer socket 2*15
FunctionA
--
12 V socket, cargo area15
--
--
FunctionA
--
--
Trailer socket 1*40
--
ProCarManuals.com
