2013 VOLVO V60 Owners Manual

10 Specifications
Dimensions and weights
10
375
EngineEngine codeAGearboxMax. weight braked trailer (kg)Max. towball load (kg)
D4D5204T3Manual, M66160075
D4D5204T3Automatic, TF-80SCD160075
D4D5204T3Automatic, TF-80SDE160075
D4 AWDD5244T17Automatic, TF-80SC180090
D5D5244T11Manual, M66160075
D5D5244T15Automatic, TF-80SC180090
D5 AWDD5244T15Automatic, TF-80SC180090
AEngine code, component and serial number can be read on the engine, see page 370.BDRIVe for certain markets.COnly certain markets.DWithout Start/Stop.EWith Start/Stop.
Max. weight unbraked trailer (kg)Max. towball load (kg)
75050
ProCarManuals.com

10 Specifications
Engine specifications
10
376
Engine specifications
NOTE
Not all engines are available in all markets.
EngineEngine
codeAOutput
(kW/rpm)Output
(hp/rpm)Torque (Nm/
rpm)No. of
cylin-
dersBore
(mm)Stroke
(mm)Swept
volume
(litres)Com-
pression
ratio
T3B4164T3110/5700150/5700240/1600–400047981.41.59610.0:1
T4BB4164T132/5700180/5700240/1600-500047981.41.59610.0:1
T4CB5204T8132/5000180/5000300/2700–4200581.0771.98410.5:1
T4FB4164T2132/5700180/5700240/1600–500047981.41.59610.0:1
T5B4204T7177/5500240/5500320/1800-5000487.583.11.99910.0:1
T5CB5204T9157/6000213/6000300/2700–5000581.0771.98410.5:1
T5CB5254T12187/5400254/5400360/1800–4200583.092,32,4979.5:1
T6B6304T4224/5600304/5600440/2100–4200682.093.22.9539.3:1
D2D4162T84/3600115/3600270/1750-250047588.31.56016.0:1
D3D5204T7100/3500136/3500350/1500-2250581.0771.98416.5:1
D4D5204T3120/3500163/3500400/1500-2750581.0771.98416.5:1
D4 AWDD5244T17120/4000163/4000420/1500–2500581.093.22.40016.5:1
ProCarManuals.com

10 Specifications

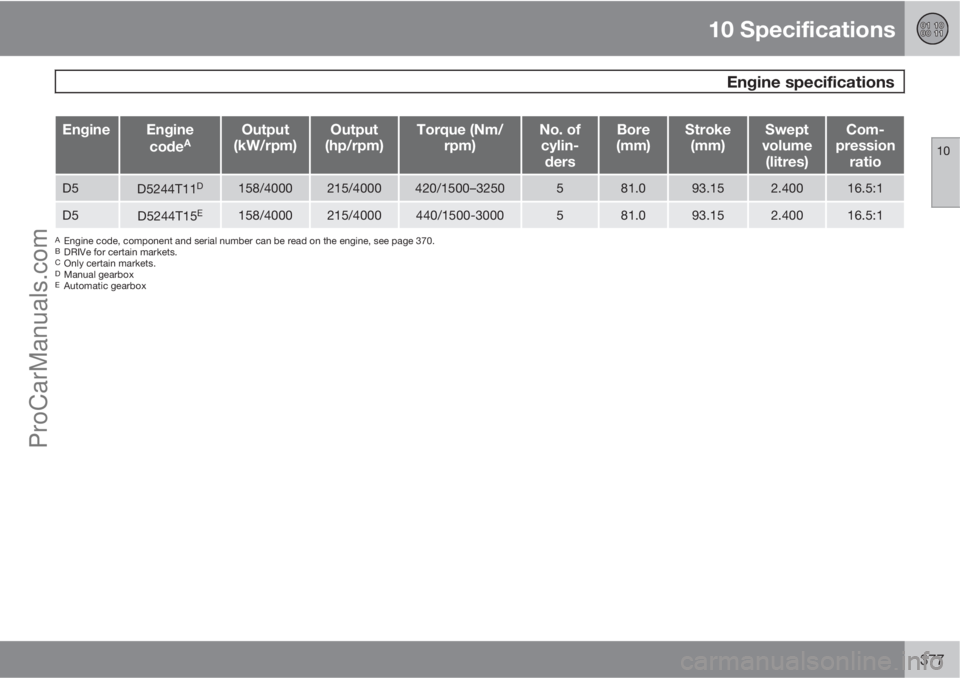

Engine specifications
10
377
EngineEngine
codeAOutput
(kW/rpm)Output
(hp/rpm)Torque (Nm/
rpm)No. of
cylin-
dersBore
(mm)Stroke
(mm)Swept
volume
(litres)Com-
pression
ratio
D5D5244T11D158/4000215/4000420/1500–3250581.093.152.40016.5:1
D5D5244T15E158/4000215/4000440/1500-3000581.093.152.40016.5:1
AEngine code, component and serial number can be read on the engine, see page 370.BDRIVe for certain markets.COnly certain markets.DManual gearboxEAutomatic gearbox
ProCarManuals.com

10 Specifications
Engine oil
10
378
Adverse driving conditions
Adverse driving conditions can lead to abnor-
mally high oil temperature or oil consumption.
Below are some examples of adverse driving
conditions.
Check the oil level more frequently for long
journeys:
•towing a caravan or trailer
•in mountainous regions
•at high speeds
•in temperatures colder than -30 °C or hot-
ter than +40 °C
The above also apply to shorter driving dis-
tances at low temperatures.Choose a fully synthetic engine oil for adverse
driving conditions. It provides extra protection
for the engine.
Volvo recommends Castrol oil products.
IMPORTANT
In order to fulfil the requirements for the
engine's service intervals all engines are
filled with a specially adapted synthetic
engine oil at the factory. The choice of oil
has been made very carefully with regard to
service life, starting characteristics, fuel
consumption and environmental impact.
An approved engine oil must be used in
order that the recommended service inter-
vals can be applied. Only use a prescribed
grade of oil for both filling and oil change,
otherwise you will risk affecting service life,
starting characteristics, fuel consumption
and environmental impact.
Volvo Car Corporation disclaims all war-
ranty liability if engine oil of the prescribed
grade and viscosity is not used.
Volvo recommends that oil changes are car-
ried out at an authorised Volvo workshop.
ProCarManuals.com

10 Specifications
Engine oil
10

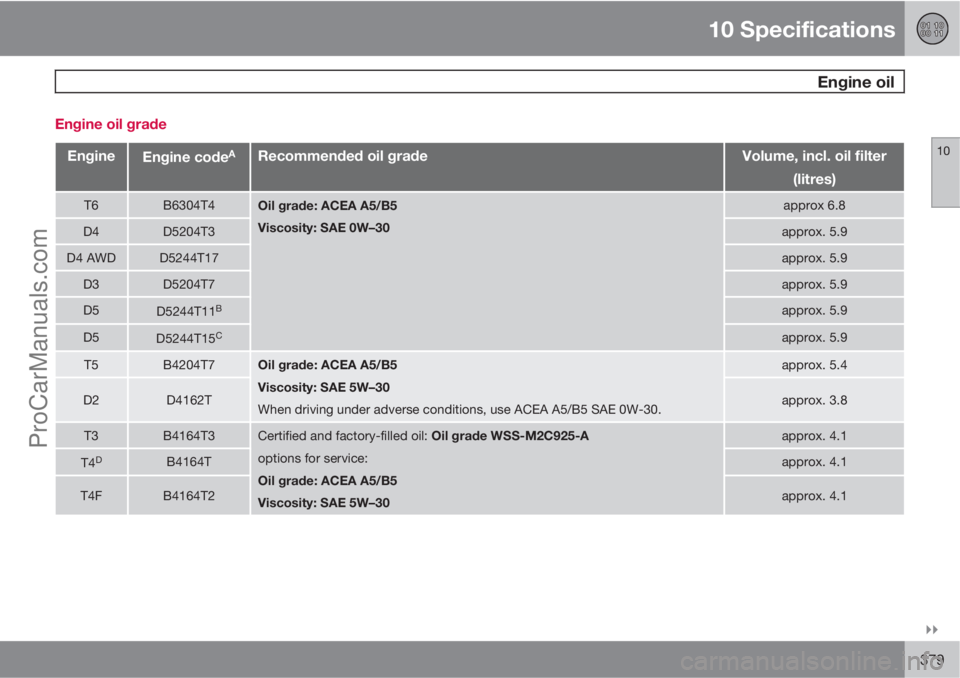

379 Engine oil grade
EngineEngine codeARecommended oil gradeVolume, incl. oil filter
(litres)
T6B6304T4Oil grade: ACEA A5/B5
Viscosity: SAE 0W–30approx 6.8
D4D5204T3approx. 5.9
D4 AWDD5244T17approx. 5.9
D3D5204T7approx. 5.9
D5D5244T11Bapprox. 5.9
D5D5244T15Capprox. 5.9
T5B4204T7Oil grade: ACEA A5/B5
Viscosity: SAE 5W–30
When driving under adverse conditions, use ACEA A5/B5 SAE 0W-30.approx. 5.4
D2D4162Tapprox. 3.8
T3B4164T3Certified and factory-filled oil: Oil grade WSS-M2C925-A
options for service:
Oil grade: ACEA A5/B5
Viscosity: SAE 5W–30approx. 4.1
T4DB4164Tapprox. 4.1
T4FB4164T2approx. 4.1
ProCarManuals.com

10 Specifications

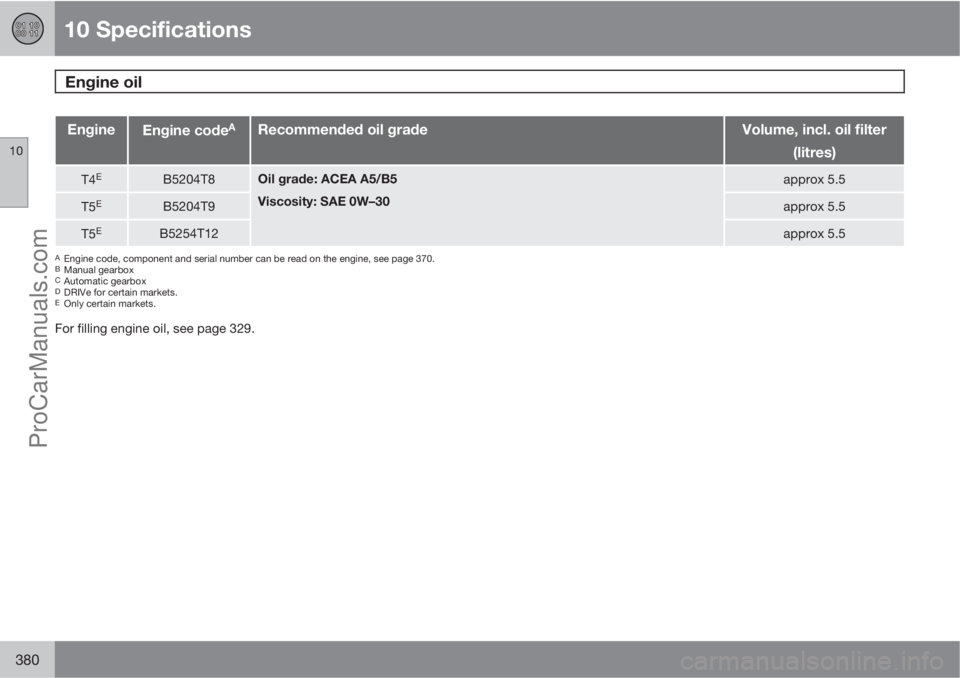

Engine oil
10
380
EngineEngine codeARecommended oil gradeVolume, incl. oil filter
(litres)
T4EB5204T8Oil grade: ACEA A5/B5
Viscosity: SAE 0W–30approx 5.5
T5EB5204T9approx 5.5
T5EB5254T12approx 5.5
AEngine code, component and serial number can be read on the engine, see page 370.BManual gearboxCAutomatic gearboxDDRIVe for certain markets.EOnly certain markets.
For filling engine oil, see page 329.
ProCarManuals.com

10 Specifications
Fluids and lubricants
10

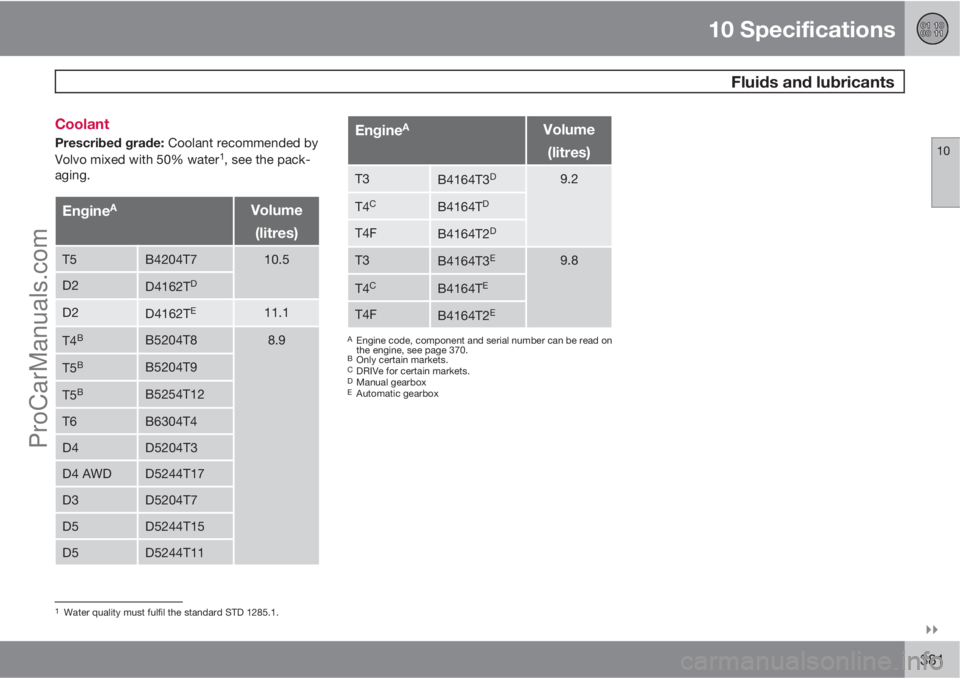

381 Coolant
Prescribed grade: Coolant recommended by
Volvo mixed with 50% water1, see the pack-
aging.
EngineAVolume
(litres)
T5B4204T710.5
D2D4162TD
D2D4162TE11.1
T4BB5204T88.9
T5BB5204T9
T5BB5254T12
T6B6304T4
D4D5204T3
D4 AWDD5244T17
D3D5204T7
D5D5244T15
D5D5244T11
EngineAVolume
(litres)
T3B4164T3D9.2
T4CB4164TD
T4FB4164T2D
T3B4164T3E9.8
T4CB4164TE
T4FB4164T2E
AEngine code, component and serial number can be read on
the engine, see page 370.
BOnly certain markets.CDRIVe for certain markets.DManual gearboxEAutomatic gearbox
1Water quality must fulfil the standard STD 1285.1.
ProCarManuals.com

10 Specifications
Fluids and lubricants
10
382
Other fluids and lubricants
Manual gearboxVolume (litres)Prescribed transmission fluid
MMT61.7BOT 350M3M661.9
Automatic gearboxVolume (litres)Prescribed transmission fluid
MPS67.3BOT 341
TF-80SC7.0AW1
TF-80SD7.0AW1
FluidSystemVolume (litres)Prescribed grade
Brake fluidBrake system0.6DOT 4+
Power steering fluidPower steering-WSS M2C204-A2 or equivalent product.
Washer fluidCars with headlamp washing5.4Washer fluid recommended by Volvo - with frost protection during
cold weather and below freezing point.
Cars without headlamp washing4.0
FuelPetrol engineapprox. 67Petrol: see page 288
Diesel engineapprox. 67Diesel: see page 289
