2013 VOLVO V60 navigation system

03 Your driving environment
Volvo Sensus
03
* Option/accessory, for more information, see Introduction.77 General
Control panel in centre console
Navigation* - NAV, see separate owner's
manual (Road and Traffic Information Sys-
tem - RTI).
Infotainment (RADIO, MEDIA, TEL*), see
page 234.
Car settings - MY CAR, see page 202.
Park assist camera - CAM*, see
page 191.
Climate control, see page 210.
Volvo Sensus is the car's operating system, the
heart of your personal Volvo experience. Volvo
Sensus combines and presents many func-
tions in several of the car's systems on the
centre console TV screen. With Volvo Sensusthe car can be personalised by means of an
intuitive user interface. Settings can be made
in Car settings, Infotainment, Climate, etc.
With the centre console buttons and controls
or the steering wheel's right-hand keypad*
functions can be activated or deactivated and
many different settings can be made.
With a press on MY CAR all settings related to
the driving and control of the car are presented,
such as City Safety, Locks and alarm, setting
the clock, etc.
With a press on the respective function:
RADIO, MEDIA, TEL*, NAV* and CAM* other
sources, systems and functions can be acti-
vated, e.g. AM, FM1, CD, DVD*, TV*, Blue-
tooth*, navigation* and park assist camera*.
For more information on all functions/systems,
see the respective section in the owner's man-
ual.
ProCarManuals.com

05 Comfort and driving pleasure
Menu source MY CAR
05
202
General information on MY CAR
Many of the car's functions are handled
in this menu source, such as setting the
clock, door mirrors and locks.
Navigation in the menus is carried out using
buttons on the centre console or with the steer-
ing wheel's right-hand keypad.
Certain functions are standard, others are
optional - the range also varies depending on
the market.
Operation
Centre console controls
Centre console controls for menu navigation.
Press MY CAR to open the menus underMY CAR.
Press OK MENU to select/tick in the high-
lighted menu option or to store the
selected function in the memory.
Turn the TUNE knob to scroll up/down
among the menu options.
EXIT
EXIT functionsDepending on the function the cursor is on
when EXIT is pressed, and on the menu level,
one of the following occurs:
•phone call is rejected
•current function is interrupted
•input characters are deleted
•most recent selections are undone
•leads up in the menu system
Short and long presses can also produce vary-
ing results.
A long press leads to the highest menu level
(Main source view), from where all of the car's
functions/menu sources can be accessed -
see also page 236.
ProCarManuals.com

05 Comfort and driving pleasure
Menu source MY CAR
05
208* Option/accessory, for more information, see Introduction.
Voice command list
Phone commands
Phone
Phone call con-
tact
Phone dial num-
ber
Navigation commands
Navigation
Navigation
repeat instruc-
tion
Navigation go to
address
General commands
Help
Cancel
Voice tutorial
The menu options under
Phone
commands show several exam-
ples of available voice commands
- only with a Bluetooth
Ÿ-enabled
mobile phone installed. For more
and detailed information - see
page 262.
The menu options under
Naviga-
tion commands show several
examples of available voice com-
mands - only with Volvo's navi-
gation system RTI* installed.
Voice user setting
Default setting
User 1
User 2
Here there is the option to create
a second user profile - an advant-
age if more than one person shall
use the car/system regularly.
Default setting gives factory set-
tings.
Voice training
User 1
User 2
With
Voice training the voice
recognition system is taught to
recognise the driver's voice and
pronunciation. A number of phra-
ses are presented on the screen
for the driver to read aloud. When
the system has learnt how the
driver talks, the presentation of
the phrases stops. Following
which e.g.
User 1 can be
selected in Voice user setting in
order that the system shall listen
to the right user.
Voice output volume
A volume control appears on the
screen - at which point, proceed
as follows:
1. Adjust the volume with the
thumbwheel.
2.
Test-listen using OK.
3.
Use EXIT to store the setting
and the menu is switched off.
ProCarManuals.com

05 Comfort and driving pleasure
Menu source MY CAR
05
* Option/accessory, for more information, see Introduction.209
Voice POI list
Edit list
The number of facilities is exten-
sive and varies depending on
market. Maximum 30 favourite
facilities can be stored in this list.
Menu option
Voice POI list is
only shown if Volvo's navigation
system RTI* is installed. For more
information on Facilities and
Voice recognition - see the Navi-
gation system's owner's manual.
Audio settingsp. 235
Climate settings
Automatic blower adjustment
Normal
High
Low
Recirculation timer
On
Off
Automatic rear defroster
On
Off
Interior air quality system
On
Off
Reset climate settings
All menus in
Climate settingsare given original factory settings.
p. 210
Favourites (FAV)p. 239
Volvo On Call
Described in a separate manual.
Information
Number of keysp. 44
VIN numberp. 370
DivX® VOD codep. 255
Bluetooth software version in
carp. 261
Map and software version*
Only in cars with Volvo GPS nav-
igator - see separate manual.
ProCarManuals.com

06 Infotainment system
General information on infotainment
06

* Option/accessory, for more information, see Introduction.235 Overview
AUX2 and USB3 inputs for external audio
sources (e.g. iPodŸ)
Steering wheel keypad (with*/without
thumbwheel).
TV screen. The TV screen is available in
two sizes: 5 and 7-inch. The manual shows
a 7-inch TV screen.
Centre console control panel
Operating the system
Steering wheel keypad as alternative to controls in
the centre console.
SOUND - press for access to audio settings
(bass, treble, etc.). For more information, see
page 240.
VOL – turn to raise or lower the volume.
ON/OFF/MUTE - short press starts the
system and long press (until the screen is off)
switches off. Note that the whole of the Sensus
system (including navigation * and phone func-
tions*) starts/switches off at the same time.
Briefly press to mute the sound (MUTE) or
restore the sound if it had been switched off.
Main sources - press to select the main
source (e.g. RADIO, MEDIA). Last active
source is shown (e.g. FM1). If you are in
MEDIA or TEL and press the main source but-
ton then a shortcut menu is shown with com-
monly used menu options.
OK/MENU - Press to accept options in
menus. Leads to menu view in selected source
(e.g. RADIO or MEDIA). Arrow to the right of
the screen is shown when there are underlying
menus.
TUNE - turn to scroll among disc tracks/
folders, radio and TV* stations, phone con-
tacts* or navigate through options on the TV
screen.
2Only applies to Performance3Does not apply to Performance
ProCarManuals.com

06 Infotainment system
General information on infotainment
06
236* Option/accessory, for more information, see Introduction.
EXIT - short press leads upwards in the
menu system, interrupts current function, inter-
rupts/rejects phone calls or erases entered
characters. Long press leads to normal view,
or if you are in normal view to the highest menu
level, see Main source view page 236.
INFO - If more information than can be
shown on the screen is available, press the
INFO button to see the remaining information.
Preset buttons, input of numbers and let-
ters.
FAV – shortcut to a favourite setting. The
button can be programmed for a commonly
used function in AM, FM, etc. For more infor-
mation, see page 239.
Steering wheel keypad
The steering wheel keypad can be used as an
alternative to the buttons in the centre console.
The keypad is available in three different ver-
sions depending on the options and the equip-
ment level of the car.
Keypad with thumbwheel*
Short presses scroll between disc tracks
or preset radio stations4. A long press
fast-winds disc tracks or searches for the
next available radio station.
Volume - press to raise or lower the audio
volume.
EXIT - short press leads upwards in the
menu system, interrupts current function,
interrupts/rejects phone calls or erases
entered characters. Long press leads to
normal view, or if you are in normal view to
the highest menu level, see Main source
view page 236.
OK/MENU/TUNE - Press to accept
options in menus. Leads to the menu view
in the selected source (e.g. RADIO or
MEDIA). Arrow to the right of the screen is
shown when there are underlying menus.
Turn to scroll among disc tracks/folders,
radio and TV* stations, phone contacts* or
navigate through options on the TV screen.
Without voice recognition5 - press to
switch off the radio/media audio (MUTE) or
restore the audio if it has been switched off.
With voice recognition
6 - Voice recogni-
tion (for BluetoothŸ-connected mobile
phone and navigation system*).
Main source viewA long press on EXIT on the steering wheel
keypad* leads to normal view. If you are in nor-
mal view and give a long press on EXIT then it
is possible to access the same main source
buttons that are in the centre console:
NAV - Volvo's navigation system
(RTI)*, is described in a separate
owner's manual.
RADIO - AM, FM, DAB*
4Does not apply to DAB.5Applies to cars without navigation.6Only cars with navigation.
ProCarManuals.com

06 Infotainment system
General information on infotainment
06
238

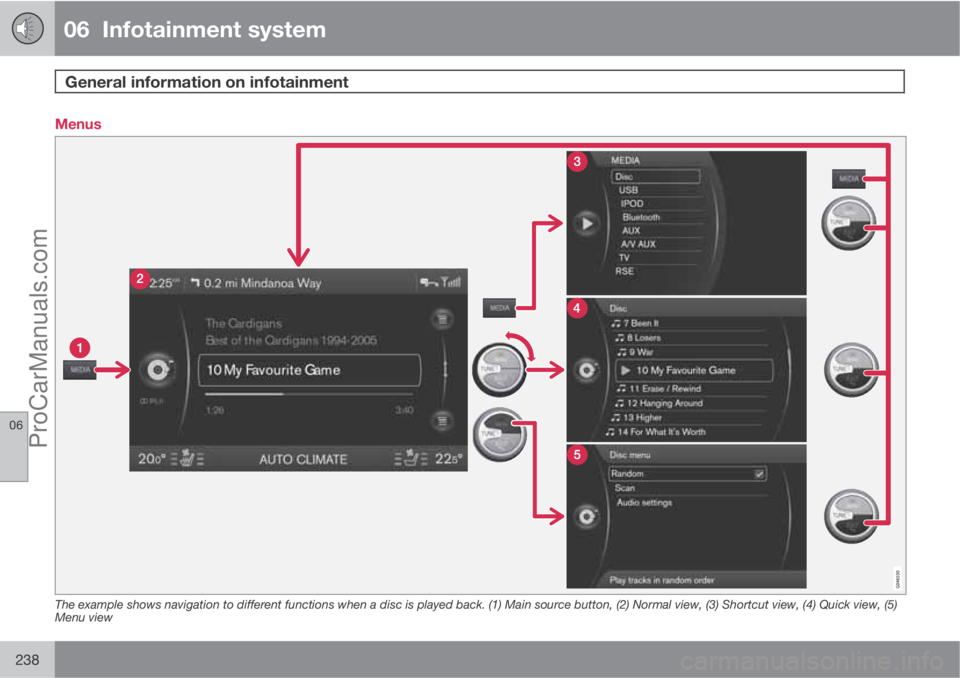

Menus
The example shows navigation to different functions when a disc is played back. (1) Main source button, (2) Normal view, (3) Shortcut view, (4) Quick view, (5)
Menu view
ProCarManuals.com

06 Infotainment system
General information on infotainment
06
* Option/accessory, for more information, see Introduction.239
Select main source by pressing a main source
button (1) (RADIO, MEDIA, TEL). To navigate
in the source's menus, use the controls for
TUNE, OK/MENU or EXIT.
Use TUNE to scroll in the menu, select the
highlighted menu bar with OK/MENU or go
back with EXIT. In some cases it is possible to
access a shortcut menu by pressing the active
source's main source button (1).
For Menu overview, see page 241.
NOTE
If the car is equipped with a steering wheel
keypad with a thumbwheel*, these can be
used instead of the controls in the centre
console (TUNE, OK/MENU, EXIT), see
page 236.
Views in the TV screenFor each main source there are four basic
types of views:
•Normal view (2) - normal mode for the
source
•Shortcut menu (3) - shows commonly
used menu options in the main sources
TEL and MEDIA (accessed by pressing the
active source's main source button (1)).
•Quick view (4) - fast mode when TUNE is
turned, e.g. for changing disc tracks, radio
station, etc.
•Menu view (5) - for menu navigation
(accessed by pressing OK/MENU).
The views have different appearances depend-
ing on the source, in-car equipment, settings,
etc.
Pop-up menu8 video and TV*Press OK/MENU when a video file is being
played back or TV* is being shown in order to
access the pop-up menu.
FAV - store a preset
The FAV button can be used to store functions
that are used frequently so that the functioncan be started simply by pressing FAV. You
can select a favourite (e.g.
Equalizer) for each
function as follows:
In RADIO mode:
•AM
•FM1/FM2
•DAB1*/DAB2*
In MEDIA mode:
•DISC
•USB*
•iPod*
•Bluetooth*
•AUX
•TV*
It is also possible to select and store a favourite
for MY CAR, CAM* and NAV*. Favourites can
also be selected and stored under MY CAR.
For more information on the menu system MY
CAR, see page 202.
To store a function in the FAV button:
1.
Select a main source (e.g. RADIO,
MEDIA).
2.
Select a wavelength or source (
AM, Disc,
etc.).
8Only applies when playing back videos or displaying TV*.
ProCarManuals.com
