Fuses

Fuses in the vehicle

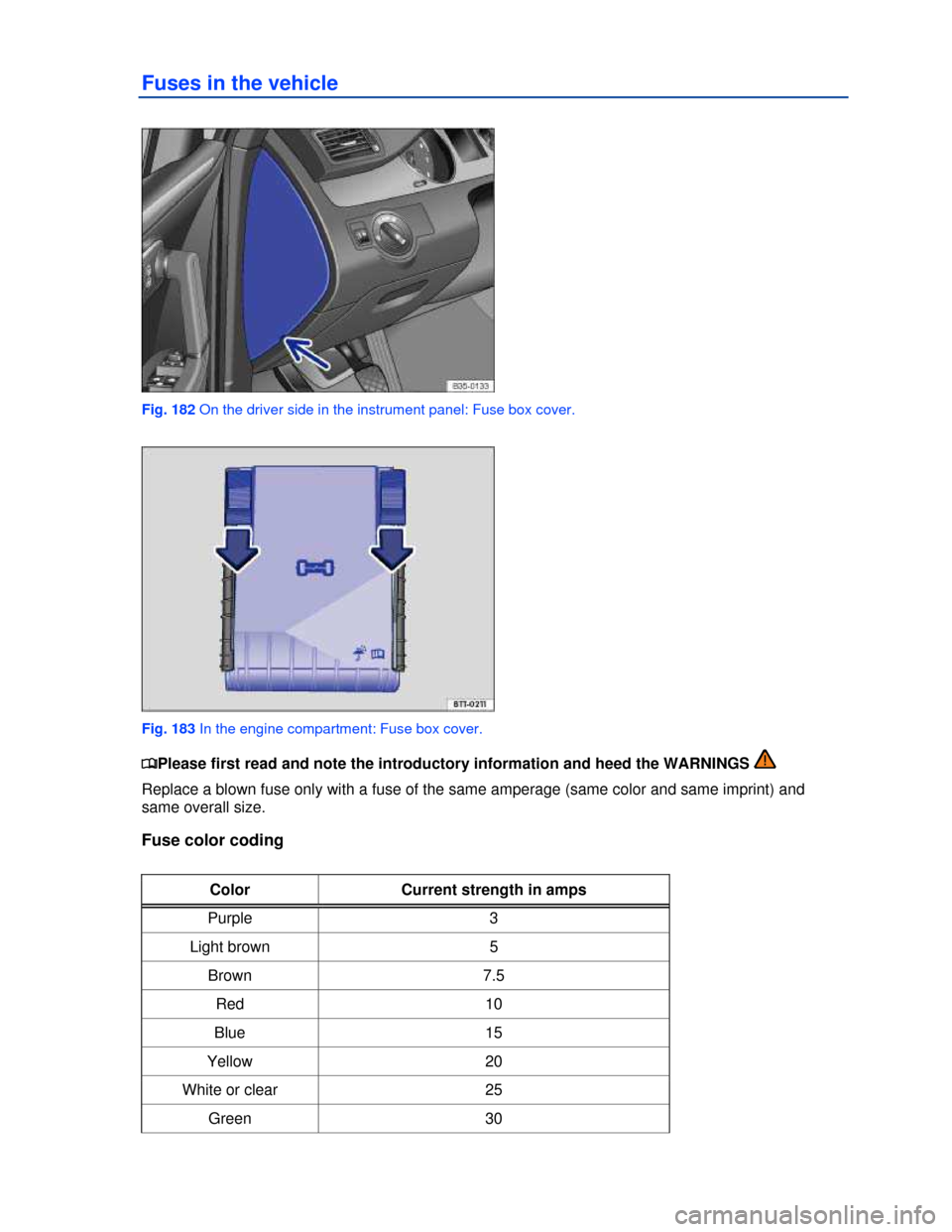

Fig. 182 On the driver side in the instrument panel: Fuse box cover.

Fig. 183 In the engine compartment: Fuse box cover.

Color Current strength in amps
Orange 40

Opening the fuse box in the instrument panel
x Insert a flat object, such as a screwdriver from the vehicle tool kit, into the opening ⇒ fig. 182
(arrow) and carefully lift off the cover.
x On the inside of the cover there are plastic tweezers for removing and inserting fuses.
x To install, guide the cover from the bottom into the instrument panel and push until you can hear it
latch into place.
Opening the fuse box in the engine compartment
x Open the engine hood

Changing light bulbs

WARNING
Improper replacement of burned out headlights and other light bulbs can cause serious
personal injury.
x Stop! Always read and heed the WARNINGS before doing any work in the engine
compartment, Preparations for working in the engine compartment. The engine compartment
of any motor vehicle is a potentially dangerous area, and work in this area can lead to serious
personal injury.
x HID – High Intensity Discharge (Xenon) headlights get power from a high voltage source
that can cause severe personal injury and even death if handled improperly.
x H7 bulbs and HID – High Intensity Discharge (Xenon) headlights are under high pressure
and can explode if handled improperly.
x Always let a burned out light bulb cool down before replacing it.
x Never replace a light bulb unless you are familiar with all of the necessary procedures. In
particular, never remove a headlight unless you know exactly how to carry out the job and
have the correct tools and light bulbs.
x If you are uncertain about what to do, have the work performed by an authorized
Volkswagen dealer, an authorized Volkswagen Service Facility, or another qualified
workshop. Serious personal injury may result from improperly performed work.
x We strongly recommend that you always have HID – High Intensity Discharge (Xenon)
headlights and H7 bulbs replaced by a qualified technician.
x Do not touch the glass of light bulbs with your bare hands. Fingerprints left on the bulb
evaporate due to the heat when the bulb is switched on and cause the reflector to “cloud.”
x There are sharp edges on and around the headlight housing in the engine compartment
and the rear light housing. Wear hand protection if you replace bulbs.
NOTICE
After replacing a headlight bulb or other light bulb, always make sure that the rubber covers or
plastic caps have been properly and securely reinstalled to help prevent water from getting
into the electrical connections and headlight housing and damaging the electrical system.
Indicator light

WARNING
Failure to heed warning lights and instrument cluster text messages can cause the vehicle to
break down in traffic and result in a collision and serious personal injury.
x Never ignore warning lights or text WARNINGS.
x Always stop the vehicle as soon as it is safe to do so.
NOTICE
Failure to heed warning lights or text WARNINGS can result in vehicle damage.
Failure of a single LED within a taillight is not indicated. However, the indicator light will come
on if all LEDs fail.
Information on light bulb replacement

WARNING
Disregarding the safety-related checklist may lead to accidents and serious personal injuries.
x Always review and follow the checklist. Follow accepted safety practices and use common
sense.
NOTICE
Always insert and remove lamps carefully to help prevent damage to the vehicle paint or to
other parts of the vehicle.
Changing headlight bulbs

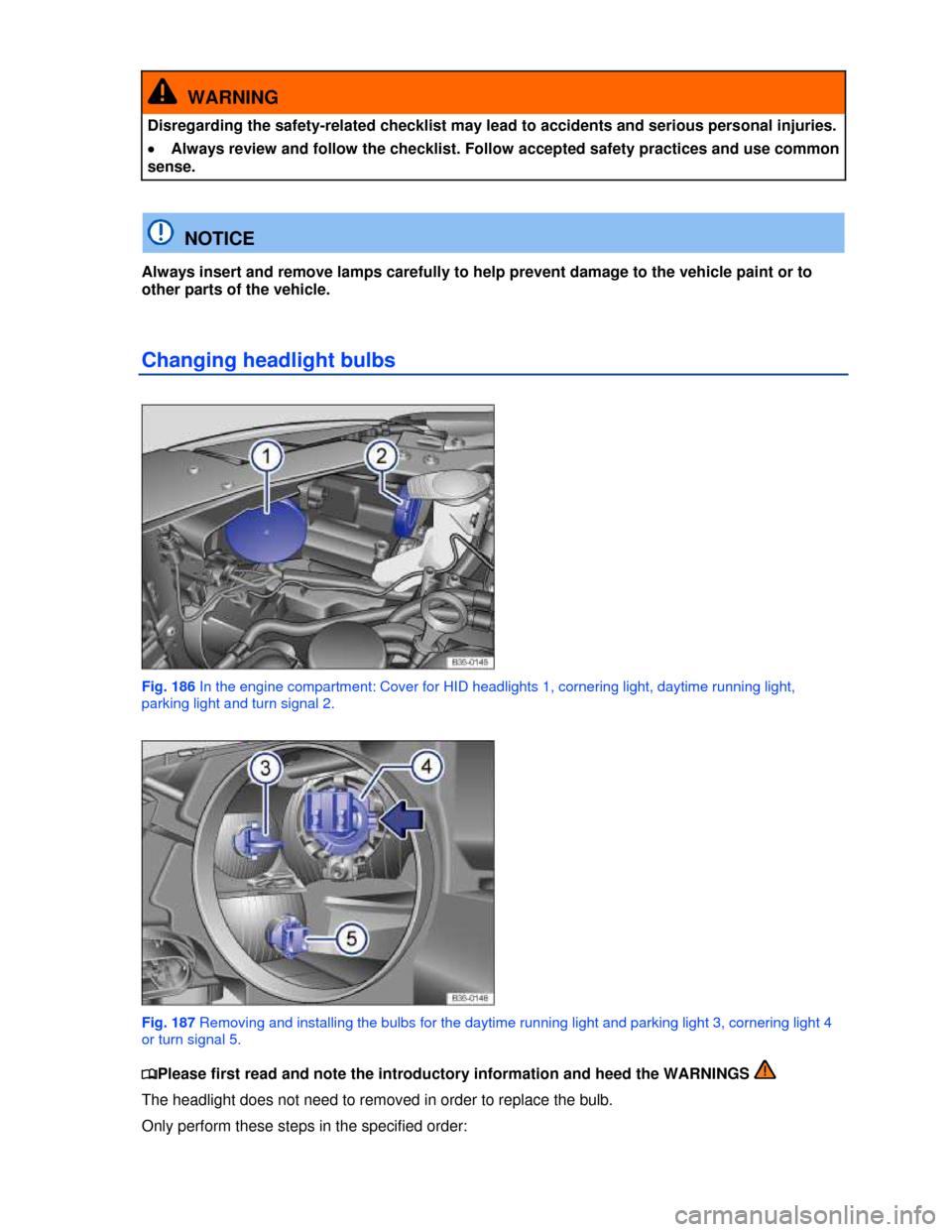

Fig. 186 In the engine compartment: Cover for HID headlights 1, cornering light, daytime running light,
parking light and turn signal 2.

Fig. 187 Removing and installing the bulbs for the daytime running light and parking light 3, cornering light 4
or turn signal 5.

Replacing the daytime running light bulb and parking light bulb
In some models, the daytime running lights and parking lights use LEDs. The LEDs are a component
of the headlight and cannot be replaced. See your authorized Volkswagen dealer or authorized
service facility for assistance.

1. Follow the checklist and perform the steps
2. Open the hood
