Features and controls3-175
3
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page for each
system.
Screen type 1
Screen type 2
System operation status
Reference
When “2WD” drive mode is selected
with the drive mode selector. Refer to “Electronically controlled 4WD
system” on page 3-84.
When “4WD AUTO” mode is selected
with the drive mode selector.
When “4WD LOCK” mode is selected
with the drive mode selector.
When the Active stability control
(ASC) is operating. Refer to “Active stability control (ASC) ” on
page 3-102.
BK0150700US.book 175 ページ
２０１２年３月２２日 木曜日 午後６時４６分
Page 273 of 602
3-176 Features and controls
3

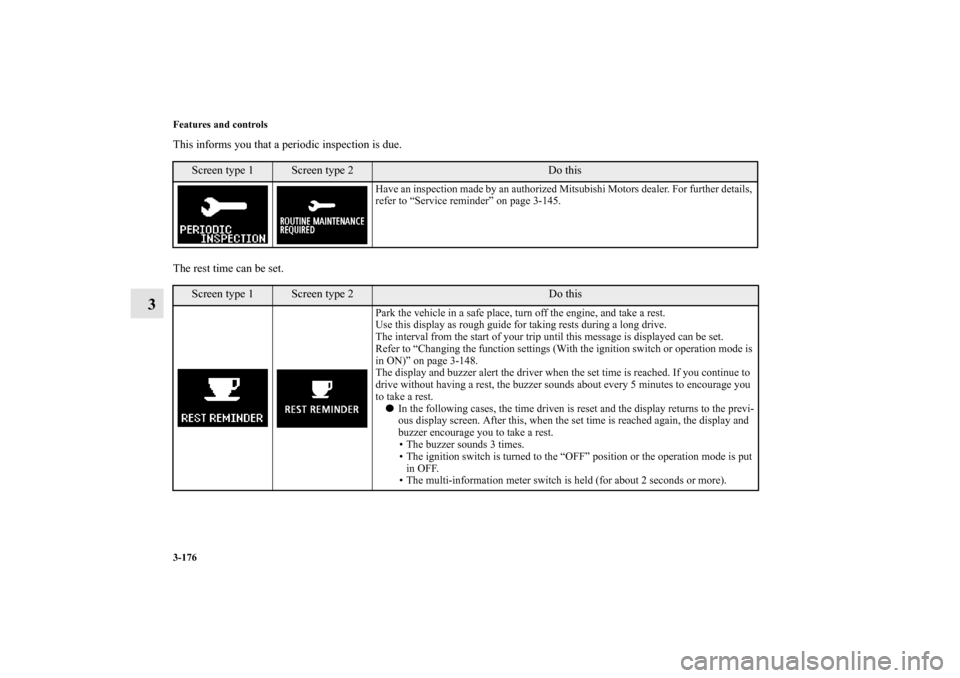

This informs you that a periodic inspection is due.
The rest time can be set.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further details,
refer to “Service reminder” on page 3-145.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the function settings (With the ignition switch or operation mode is
in ON)” on page 3-148.
The display and buzzer alert the driver when the set time is reached. If you continue to
drive without having a rest, the buzzer sounds about every 5 minutes to encourage you
to take a rest. In the following cases, the time driven is reset and the display returns to the previ-
ous display screen. After this, when the set time is reached again, the display and
buzzer encourage you to take a rest.
• The buzzer sounds 3 times.
• The ignition switch is turned to the “OFF” position or the operation mode is put in OFF.
• The multi-information meter switch is held (for about 2 seconds or more).
BK0150700US.book 176 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 274 of 602
Features and controls3-177
3

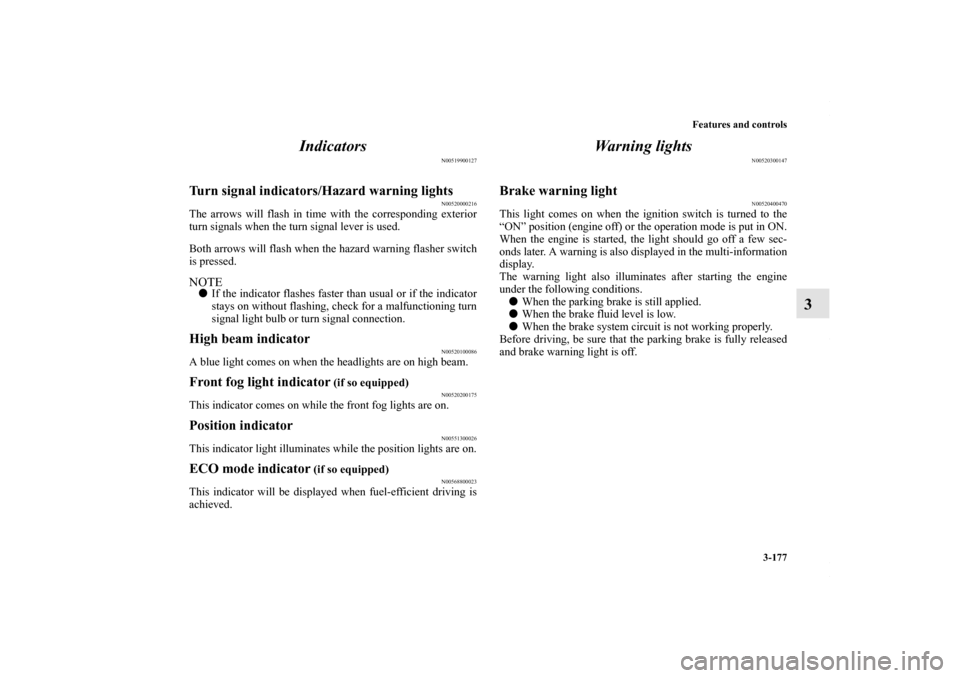

Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000216
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200175
This indicator comes on while the front fog lights are on.Position indicator
N00551300026
This indicator light illuminates while the position lights are on.ECO mode indicator
(if so equipped)
N00568800023
This indicator will be displayed when fuel-efficient driving is
achieved.
Wa r n i n g l i g h t s
N00520300147
Brake warning light
N00520400470
This light comes on when the ignition switch is turned to the
“ON” position (engine off) or the operation mode is put in ON.
When the engine is started, the light should go off a few sec-
onds later. A warning is also displayed in the multi-information
display.
The warning light also illuminates after starting the engine
under the following conditions.
When the parking brake is still applied.
When the brake fluid level is low.
When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released
and brake warning light is off.
BK0150700US.book 177 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 276 of 602
Features and controls3-179
3
NOTEDo not disconnect the battery cable when the engine mal-
function indicator (“SERVICE ENGINE SOON” or
“Check engine light”) is on.
The engine electronic control module stores critical OBD
information (especially exhaust emission data), which
may be lost if the battery cable is disconnected while the
engine malfunction indicator is on. This will make it diffi-
cult to diagnose the cause of future problems.

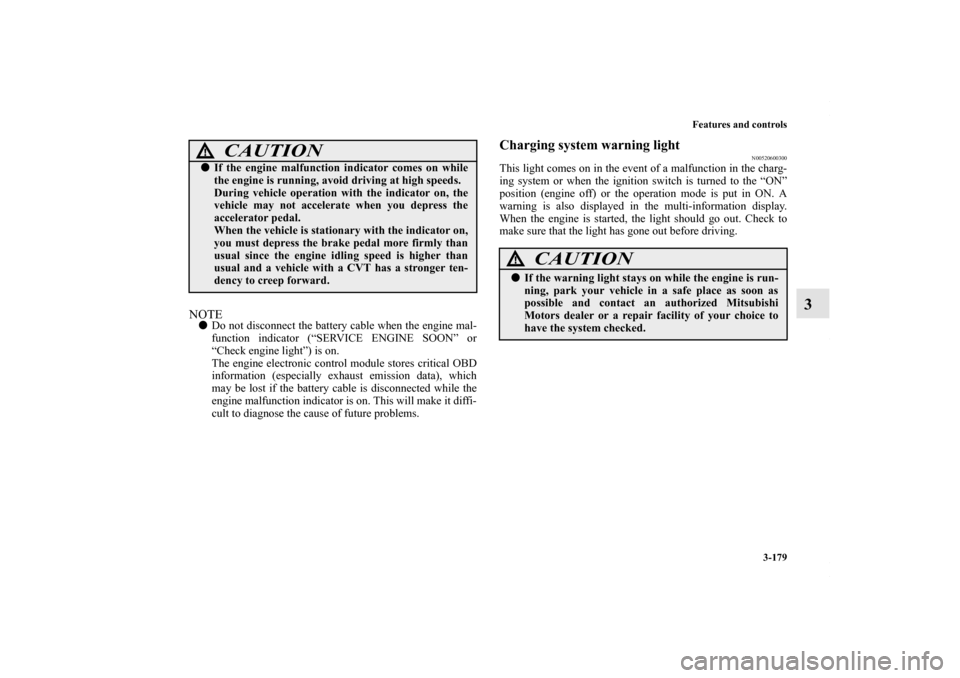

Charging system warning light
N00520600300
This light comes on in the event of a malfunction in the charg-
ing system or when the ignition switch is turned to the “ON”
position (engine off) or the operation mode is put in ON. A
warning is also displayed in the multi-information display.
When the engine is started, the light should go out. Check to
make sure that the light has gone out before driving.
If the engine malfunction indicator comes on while
the engine is running, avoid driving at high speeds.
During vehicle operation with the indicator on, the
vehicle may not accelerate when you depress the
accelerator pedal.
When the vehicle is stationary with the indicator on,
you must depress the brake pedal more firmly than
usual since the engine idling speed is higher than
usual and a vehicle with a CVT has a stronger ten-
dency to creep forward.
CAUTION
!
CAUTION
! If the warning light stays on while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice to
have the system checked.
BK0150700US.book 179 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 277 of 602
3-180 Features and controls
3Information screen display
N00558300038

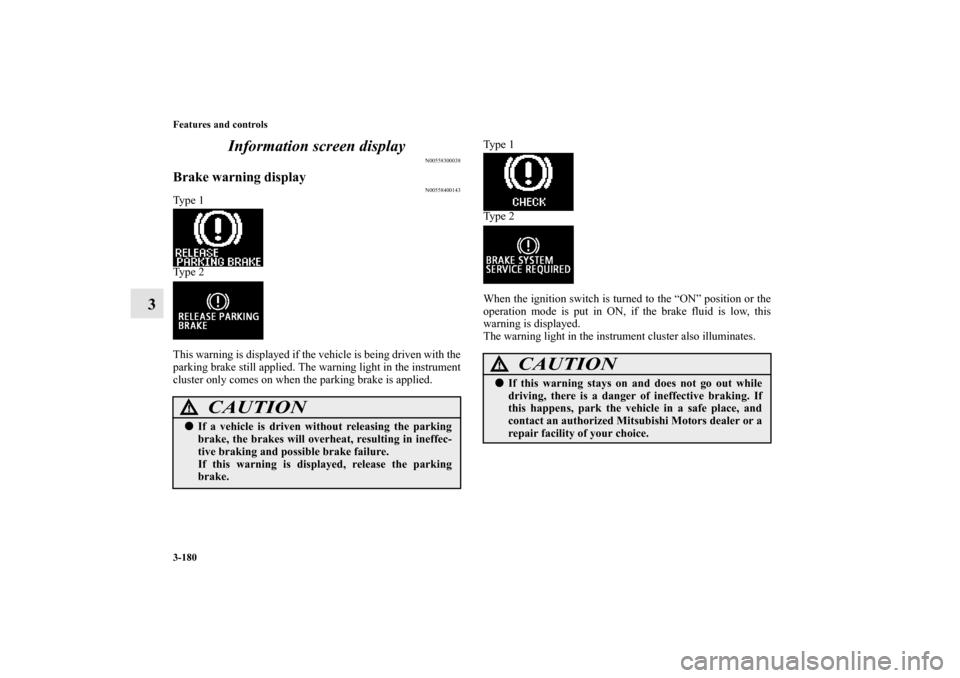

Brake warning display
N00558400143
Type 1
Type 2
This warning is displayed if the vehicle is being driven with the
parking brake still applied. The warning light in the instrument
cluster only comes on when the parking brake is applied. Ty p e 1
Ty p e 2
When the ignition switch is turned to the “ON” position or the
operation mode is put in ON, if the brake fluid is low, this
warning is displayed.
The warning light in the instrument cluster also illuminates.
CAUTION
!
If a vehicle is driven without releasing the parking
brake, the brakes will overheat, resulting in ineffec-
tive braking and possible brake failure.
If this warning is displayed, release the parking
brake.
CAUTION
! If this warning stays on and does not go out while
driving, there is a danger of ineffective braking. If
this happens, park the vehicle in a safe place, and
contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice.
BK0150700US.book 180 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 278 of 602
Features and controls3-181
3

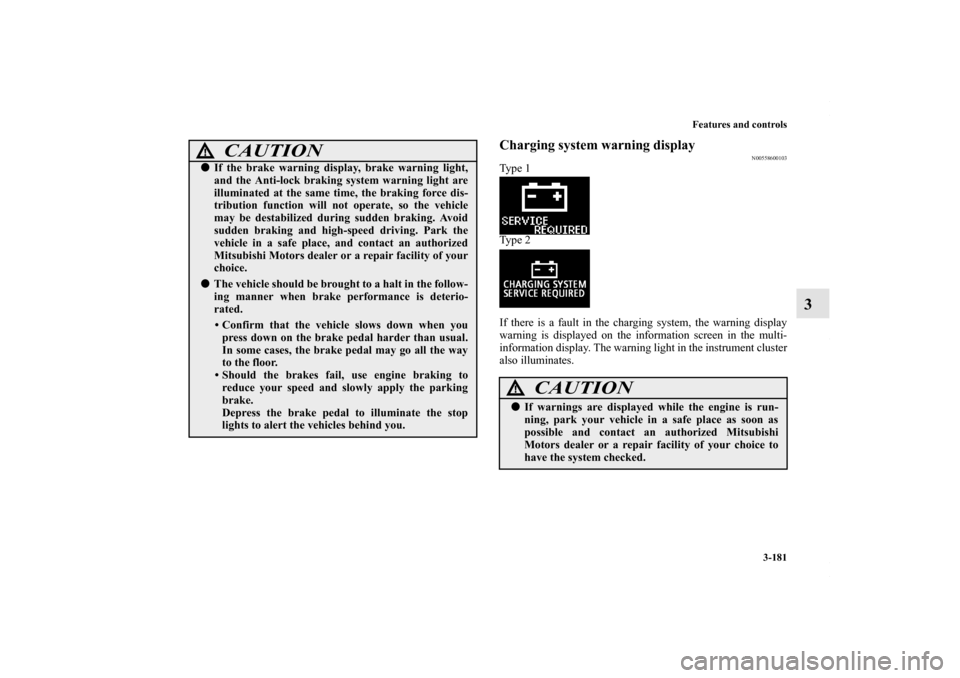

Charging system warning display
N00558600103
Ty p e 1
Ty p e 2
If there is a fault in the charging system, the warning display
warning is displayed on the information screen in the multi-
information display. The warning light in the instrument cluster
also illuminates.
If the brake warning display, brake warning light,
and the Anti-lock braking system warning light are
illuminated at the same time, the braking force dis-
tribution function will not operate, so the vehicle
may be destabilized during sudden braking. Avoid
sudden braking and high-speed driving. Park the
vehicle in a safe place, and contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated.
• Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
• Should the brakes fail, use engine braking to reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.CAUTION
!
CAUTION
! If warnings are displayed while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice to
have the system checked.
BK0150700US.book 181 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 279 of 602
3-182 Features and controls
3

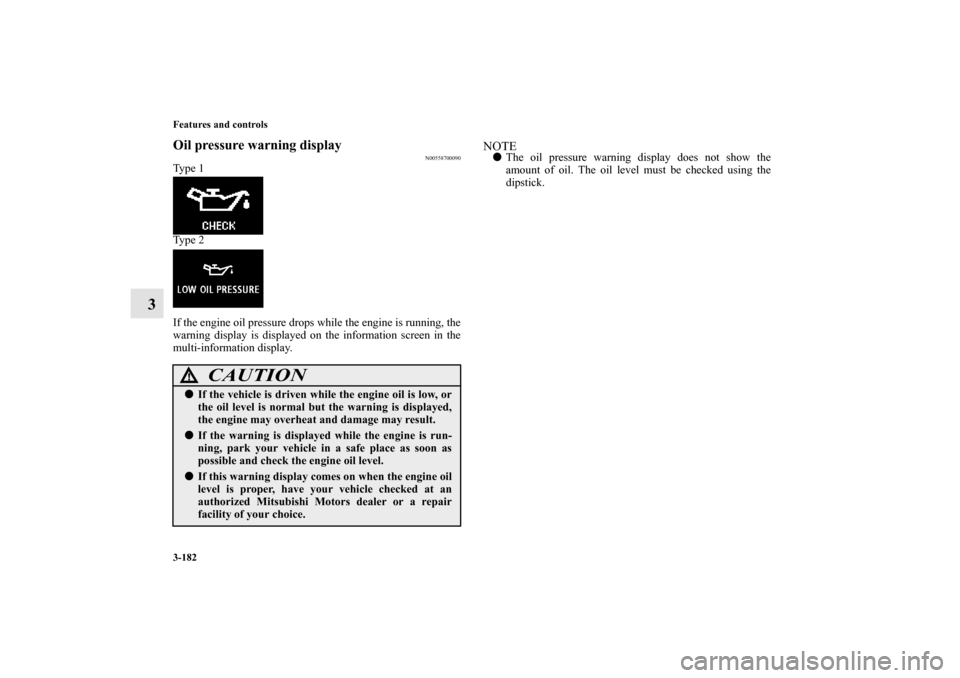

Oil pressure warning display
N00558700090
Type 1
Type 2
If the engine oil pressure drops while the engine is running, the
warning display is displayed on the information screen in the
multi-information display.
NOTEThe oil pressure warning display does not show the
amount of oil. The oil level must be checked using the
dipstick.
CAUTION
!If the vehicle is driven while the engine oil is low, or
the oil level is normal but the warning is displayed,
the engine may overheat and damage may result.If the warning is displayed while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and check the engine oil level.If this warning display comes on when the engine oil
level is proper, have your vehicle checked at an
authorized Mitsubishi Motors dealer or a repair
facility of your choice.
BK0150700US.book 182 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 284 of 602
Features and controls3-187
3
NOTEWhen the engine is started using the key, if the driver’s
door is opened and the key is removed, the headlight
reminder buzzer intermittently emits a high-pitched
sound. If the key is still in the ignition switch the key
reminder buzzer intermittently emits a low-pitched sound.
The buzzer stops when the driver’s door is closed. (A
warning is also displayed in the multi-information dis-
play.)
When the engine is started using the F.A.S.T.-key, if the
driver’s door is opened and the operation mode is put in
OFF, the headlight reminder buzzer intermittently emits a
high-pitched sound. If the operation mode is in any mode
other than OFF, the operation mode on reminder buzzer
intermittently emits a low-pitched sound.
The buzzer stops when the driver’s door is closed. (A
warning is also displayed in the multi-information dis-
play.)

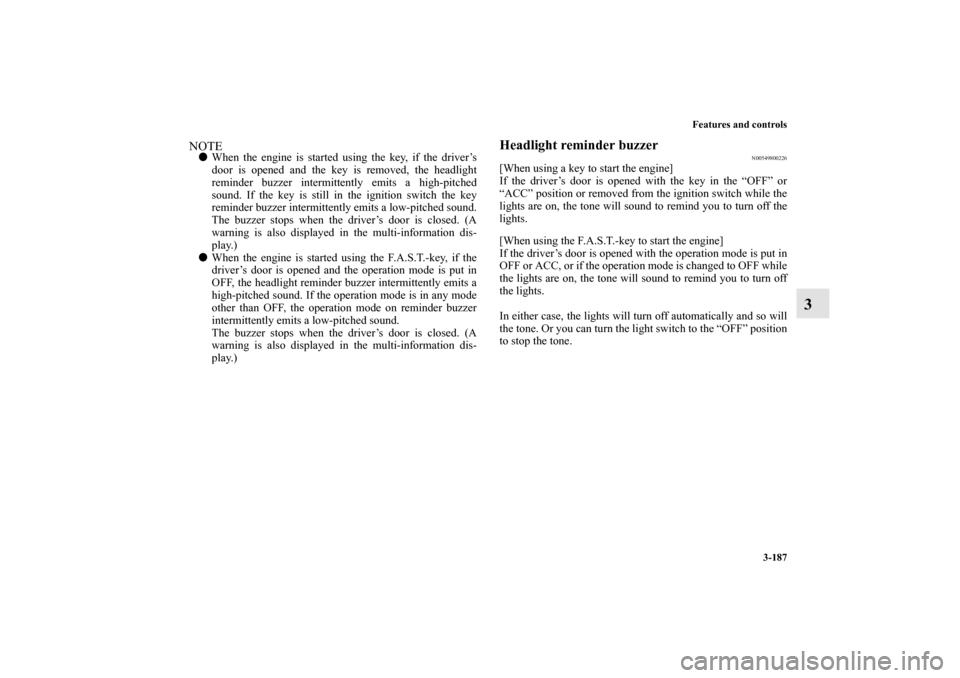

Headlight reminder buzzer
N00549800226
[When using a key to start the engine]
If the driver’s door is opened with the key in the “OFF” or
“ACC” position or removed from the ignition switch while the
lights are on, the tone will sound to remind you to turn off the
lights.
[When using the F.A.S.T.-key to start the engine]
If the driver’s door is opened with the operation mode is put in
OFF or ACC, or if the operation mode is changed to OFF while
the lights are on, the tone will sound to remind you to turn off
the lights.
In either case, the lights will turn off automatically and so will
the tone. Or you can turn the light switch to the “OFF” position
to stop the tone.
BK0150700US.book 187 ページ ２０１２年３月２２日 木曜日 午後６時４６分
