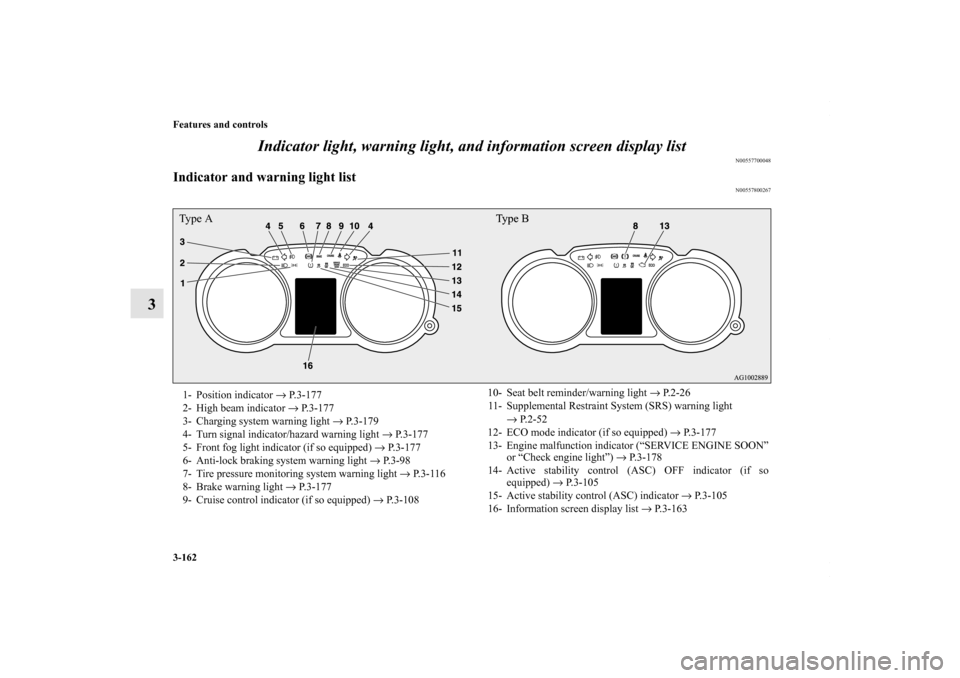

3-162 Features and controls
3Indicator light, warning light, and information screen display list
N00557700048
Indicator and warning light list
N00557800267
Type A
Type B
Type B1- Position indicator → P.3-177
2- High beam indicator → P.3-177
3- Charging system warning light → P.3-179
4- Turn signal indicator/hazard warning light → P.3-177
5- Front fog light indicator (if so equipped) → P.3-177
6- Anti-lock braking system warning light → P. 3 - 9 8
7- Tire pressure monitoring system warning light → P.3-116
8- Brake warning light → P.3-177
9- Cruise control indicator (if so equipped) → P.3-10810- Seat belt reminder/warning light
→ P.2-26
11- Supplemental Restraint System (SRS) warning light
→ P.2-52
12- ECO mode indicator (if so equipped) → P.3-177
13- Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”) → P.3-178
14- Active stability control (ASC) OFF indicator (if so equipped) → P.3-105
15- Active stability control (ASC) indicator → P.3-105
16- Information screen display list → P.3-163
BK0150700US.book 162 ページ ２０１２年３月２２日　木曜日　午後６時４６分

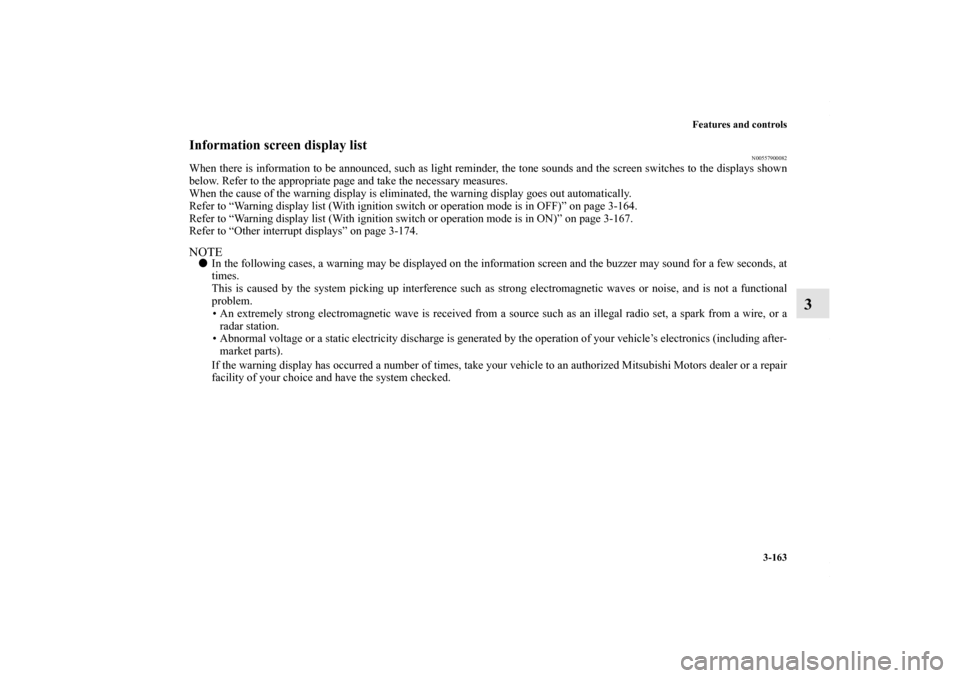

Features and controls3-163
3
Information screen display list
N00557900082
When there is information to be announced, such as light reminder, the tone sounds and the screen switches to the displays show n
below. Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to “Warning display list (With ignition switch or operation mode is in OFF)” on page 3-164.
Refer to “Warning display list (With ignition switch or operation mode is in ON)” on page 3-167.
Refer to “Other interrupt displays” on page 3-174.NOTE
In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at
times.
This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional
problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a
radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of your vehicle’s electronics (including afte r-
market parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
BK0150700US.book 163 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-164 Features and controls
3
Warning display list (With ignition switch or operation mode is in OFF)
N00558000224
Screen type 1
Screen type 2
Cause
Do this (Reference)

You have forgotten to remove the key
from the ignition switch.

Remove the key.
Refer to “Key reminder system” on
page 3-40.

You have forgotten to turn off the
lights. Refer to “Light auto-cutout function (head-
lights and other lights)” on page 3-186.

The theft-alarm system is operating. Refer to “Theft-alarm system” on page 3-48.

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-6.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-32.
BK0150700US.book 164 ページ ２０１２年３月２２日　木曜日　午後６時４６分

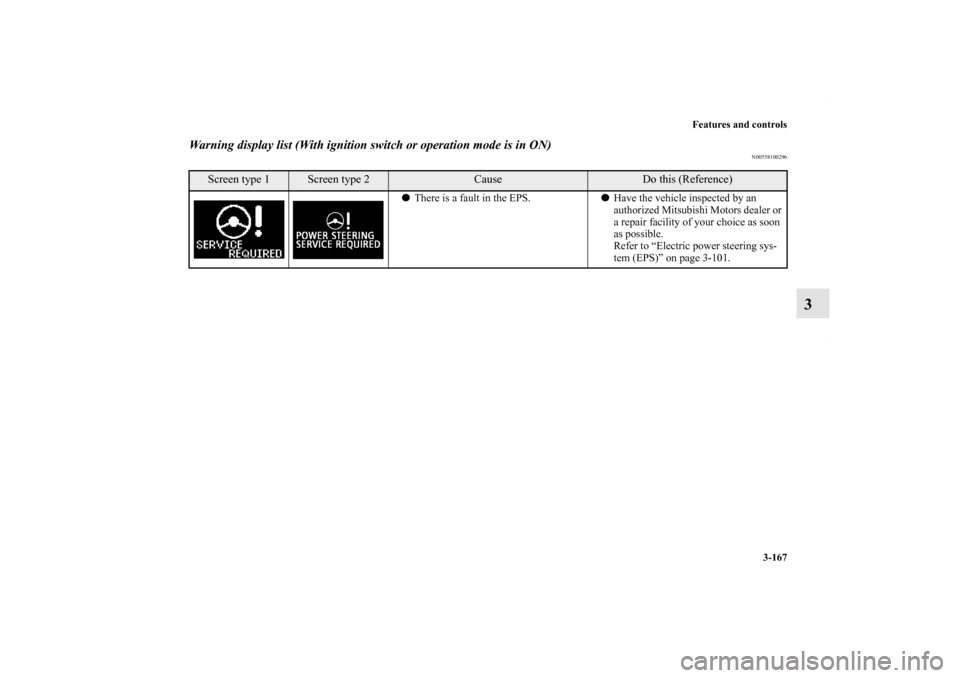

Features and controls3-167
3
Warning display list (With ignition switch or operation mode is in ON)
N00558100296
Screen type 1
Screen type 2
Cause
Do this (Reference)

There is a fault in the EPS.
Have the vehicle inspected by an
authorized Mitsubishi Motors dealer or
a repair facility of your choice as soon
as possible.
Refer to “Electric power steering sys-
tem (EPS)” on page 3-101.
BK0150700US.book 167 ページ ２０１２年３月２２日　木曜日　午後６時４６分

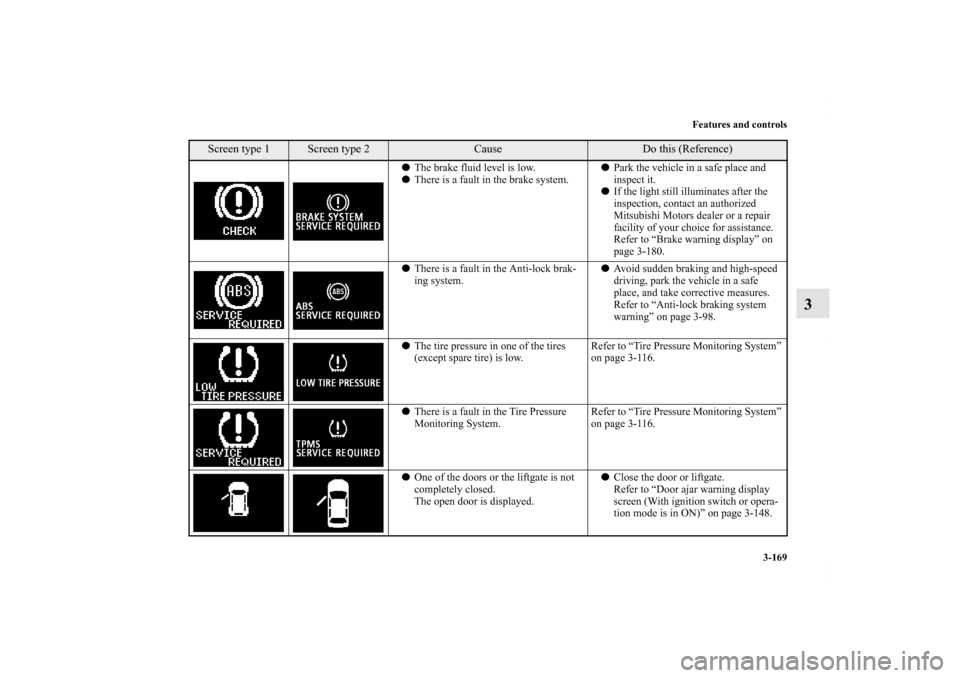

Features and controls3-169
3

The brake fluid level is low.

There is a fault in the brake system.

Park the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized
Mitsubishi Motors dealer or a repair
facility of your choice for assistance.
Refer to “Brake warning display” on
page 3-180.

There is a fault in the Anti-lock brak-
ing system.

Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning” on page 3-98.

The tire pressure in one of the tires
(except spare tire) is low. Refer to “Tire Pressure Monitoring System”
on page 3-116.

There is a fault in the Tire Pressure
Monitoring System. Refer to “Tire Pressure Monitoring System”
on page 3-116.

One of the doors or the liftgate is not
completely closed.
The open door is displayed.

Close the door or liftgate.
Refer to “Door ajar warning display
screen (With ignition switch or opera-
tion mode is in ON)” on page 3-148.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0150700US.book 169 ページ ２０１２年３月２２日　木曜日　午後６時４６分

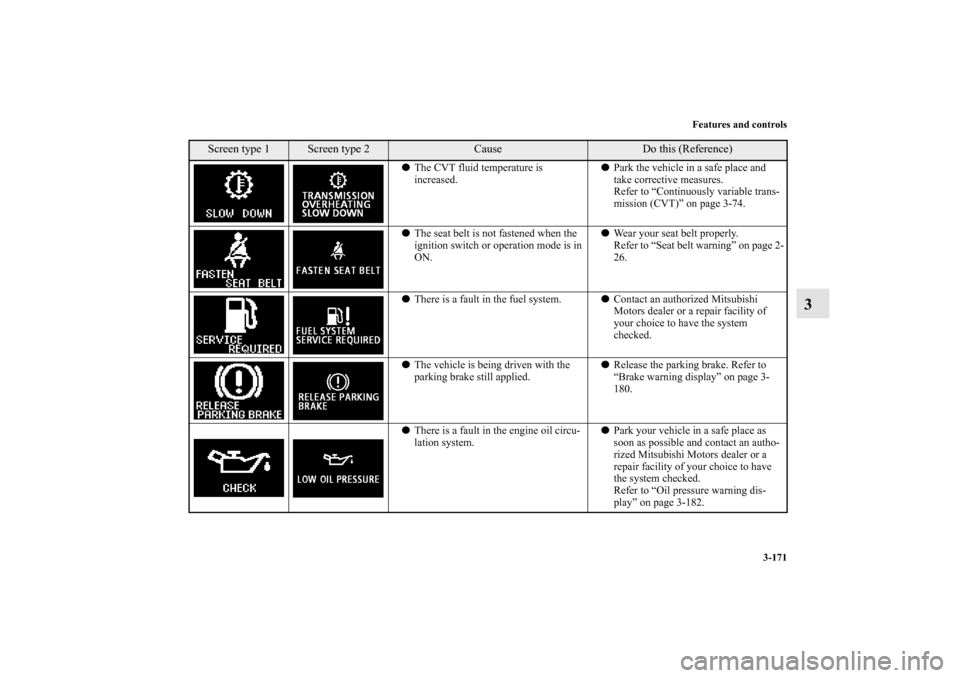

Features and controls3-171
3

The CVT fluid temperature is
increased.

Park the vehicle in a safe place and
take corrective measures.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-74.

The seat belt is not fastened when the
ignition switch or operation mode is in
ON.

Wear your seat belt properly.
Refer to “Seat belt warning” on page 2-
26.

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.

The vehicle is being driven with the
parking brake still applied.

Release the parking brake. Refer to
“Brake warning display” on page 3-
180.

There is a fault in the engine oil circu-
lation system.

Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Refer to “Oil pressure warning dis-
play” on page 3-182.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0150700US.book 171 ページ ２０１２年３月２２日　木曜日　午後６時４６分

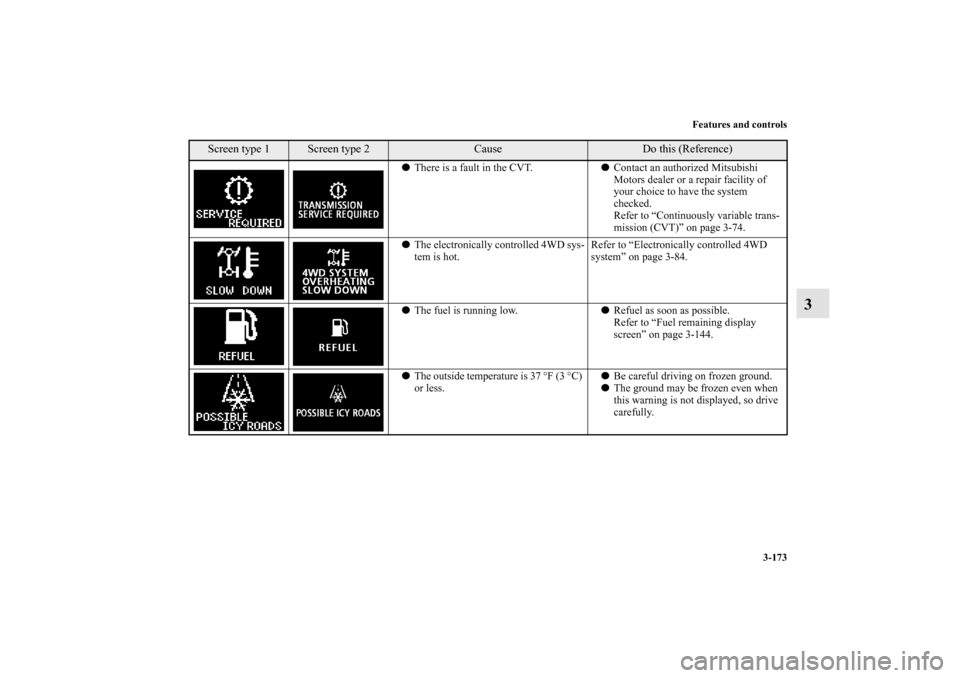

Features and controls3-173
3

There is a fault in the CVT.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-74.

The electronically controlled 4WD sys-
tem is hot. Refer to “Electronically controlled 4WD
system” on page 3-84.

The fuel is running low.
Refuel as soon as possible.
Refer to “Fuel remaining display
screen” on page 3-144.

The outside temperature is 37 °F (3 ° C)
or less.

Be careful driving on frozen ground.

The ground may be frozen even when
this warning is not displayed, so drive
carefully.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0150700US.book 173 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-174 Features and controls
3
Other interrupt displays
N00558200242
Screen type 1
Screen type 2
System operation status
Reference
—

When starting the engine, you pressed
the engine switch without depressing
the clutch pedal (manual transaxle).

On vehicles with manual transaxle,
place the gearshift lever in the “N”
(Neutral) position, fully depress the
clutch pedal, depress and hold the
brake pedal with the right foot, and
then press the engine switch to start the
engine.
Refer to “Starting and stopping the
engine” on page 3-26.
—

When starting the engine, the selector
lever is in a position other than the “P”
(PARK) or the “N” (NEUTRAL) posi-
tion, or you pressed the engine switch
without depressing the brake pedal
(CVT).

On vehicles with CVT, place the selec-
tor lever in the “P” (PARK) position,
depress and hold the brake pedal with
the right foot, and then press the engine
switch to start the engine.
Refer to “Starting and stopping the
engine” on page 3-26.
