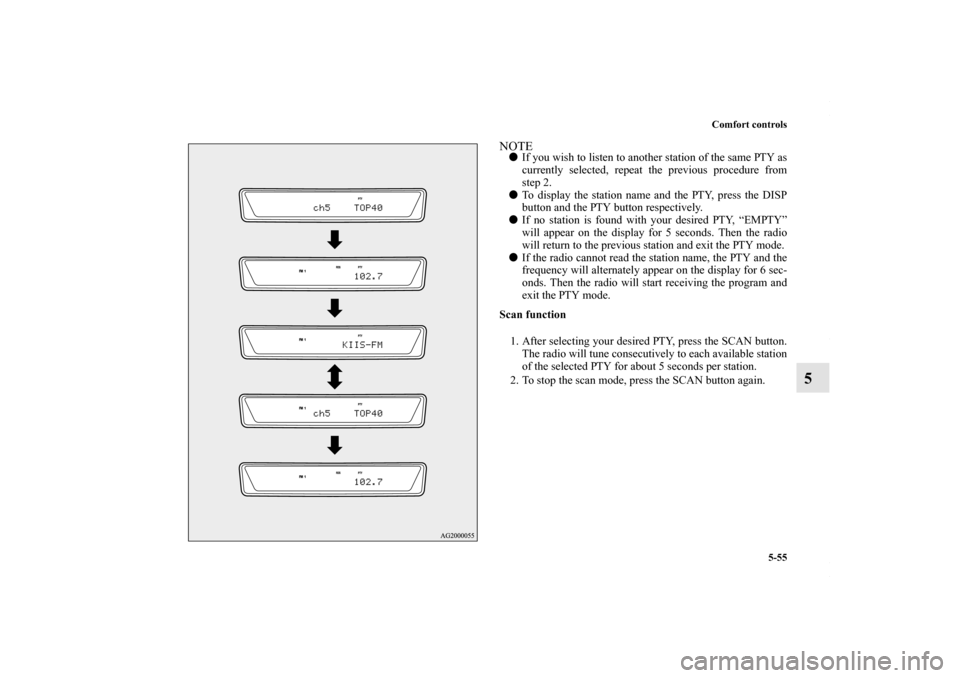

Comfort controls5-55
5
NOTE
If you wish to listen to another station of the same PTY as
currently selected, repeat the previous procedure from
step 2.

To display the station name and the PTY, press the DISP
button and the PTY button respectively.

If no station is found with your desired PTY, “EMPTY”
will appear on the display for 5 seconds. Then the radio
will return to the previous station and exit the PTY mode.

If the radio cannot read the station name, the PTY and the
frequency will alternately appear on the display for 6 sec-
onds. Then the radio will start receiving the program and
exit the PTY mode.
Scan function
1. After selecting your desired PTY, press the SCAN button. The radio will tune consecutively to each available station
of the selected PTY for about 5 seconds per station.
2. To stop the scan mode, press the SCAN button again.
BK0150700US.book 55 ページ ２０１２年３月２２日　木曜日　午後６時４６分

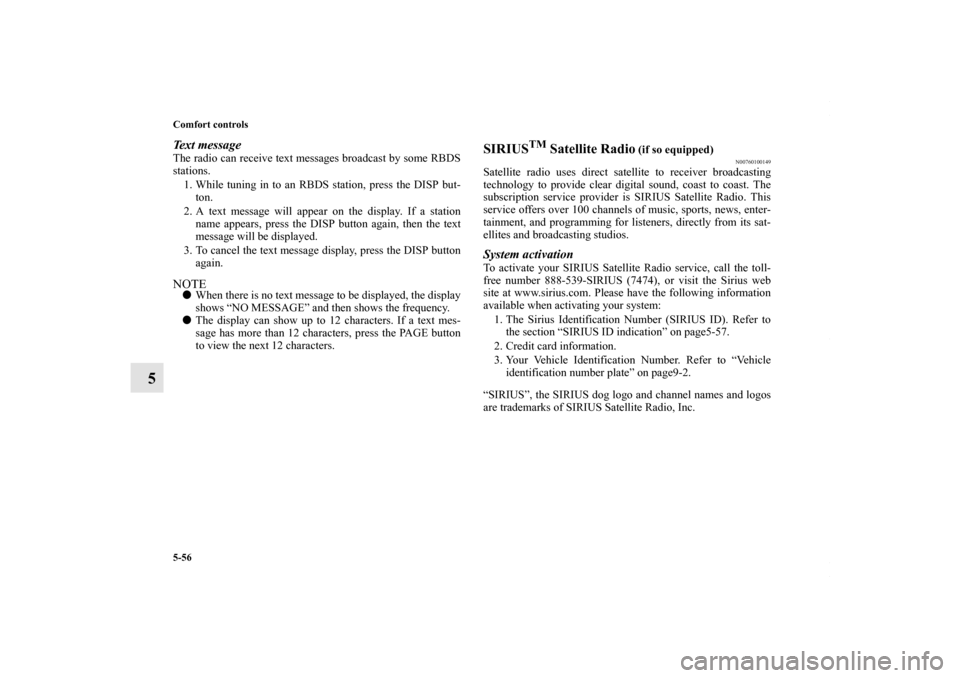

5-56 Comfort controls
5
Text messageThe radio can receive text messages broadcast by some RBDS
stations.1. While tuning in to an RBDS station, press the DISP but- ton.
2. A text message will appear on the display. If a station name appears, press the DISP button again, then the text
message will be displayed.
3. To cancel the text message display, press the DISP button again.NOTE
When there is no text message to be displayed, the display
shows “NO MESSAGE” and then shows the frequency.

The display can show up to 12 characters. If a text mes-
sage has more than 12 characters, press the PAGE button
to view the next 12 characters.
SIRIUS
TM
Satellite Radio
(if so equipped)
N00760100149
Satellite radio uses direct satellite to receiver broadcasting
technology to provide clear digital sound, coast to coast. The
subscription service provider is SIRIUS Satellite Radio. This
service offers over 100 channels of music, sports, news, enter-
tainment, and programming for listeners, directly from its sat-
ellites and broadcasting studios.System activationTo activate your SIRIUS Satellite Radio service, call the toll-
free number 888-539-SIRIUS (7474), or visit the Sirius web
site at www.sirius.com. Please have the following information
available when activating your system:
1. The Sirius Identification Number (SIRIUS ID). Refer to the section “SIRIUS ID indication” on page5-57.
2. Credit card information.
3. Your Vehicle Identification Number. Refer to “Vehicle identification number plate” on page9-2.
“SIRIUS”, the SIRIUS dog logo and channel names and logos
are trademarks of SIRIUS Satellite Radio, Inc.
BK0150700US.book 56 ページ ２０１２年３月２２日　木曜日　午後６時４６分

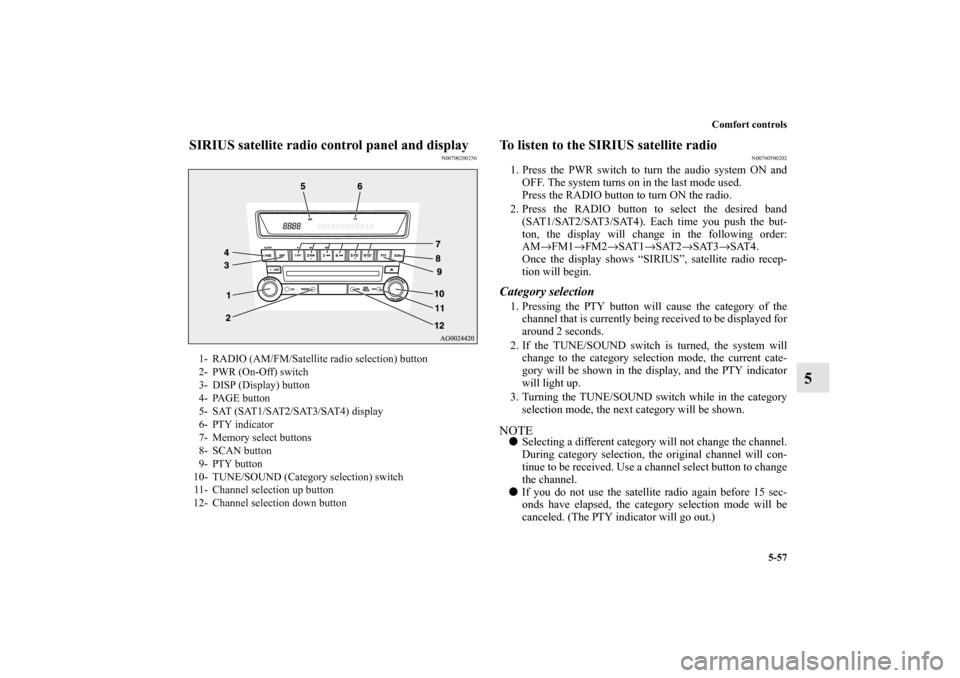

Comfort controls5-57
5
SIRIUS satellite radio control panel and display
N00700200256
To listen to the SIRIUS satellite radio
N00760500202
1. Press the PWR switch to turn the audio system ON andOFF. The system turns on in the last mode used.
Press the RADIO button to turn ON the radio.
2. Press the RADIO button to select the desired band (SAT1/SAT2/SAT3/SAT4). Each time you push the but-
ton, the display will change in the following order:
AM →FM1 →FM2 →SAT1 →SAT2 →SAT3 →SAT4.
Once the display shows “SIRIUS”, satellite radio recep-
tion will begin.Category selection1. Pressing the PTY button will cause the category of the channel that is currently being received to be displayed for
around 2 seconds.
2. If the TUNE/SOUND switch is turned, the system will change to the category selection mode, the current cate-
gory will be shown in the display, and the PTY indicator
will light up.
3. Turning the TUNE/SOUND switch while in the category selection mode, the next category will be shown.NOTE
Selecting a different category will not change the channel.
During category selection, the original channel will con-
tinue to be received. Use a channel select button to change
the channel.

If you do not use the satellite radio again before 15 sec-
onds have elapsed, the category selection mode will be
canceled. (The PTY indicator will go out.)
1- RADIO (AM/FM/Satellite radio selection) button
2- PWR (On-Off) switch
3- DISP (Display) button
4- PAGE button
5- SAT (SAT1/SAT2/SAT3/SAT4) display
6- PTY indicator
7- Memory select buttons
8- SCAN button
9- PTY button
10- TUNE/SOUND (Category selection) switch 11- Channel selection up button
12- Channel selection down button
BK0150700US.book 57 ページ ２０１２年３月２２日　木曜日　午後６時４６分

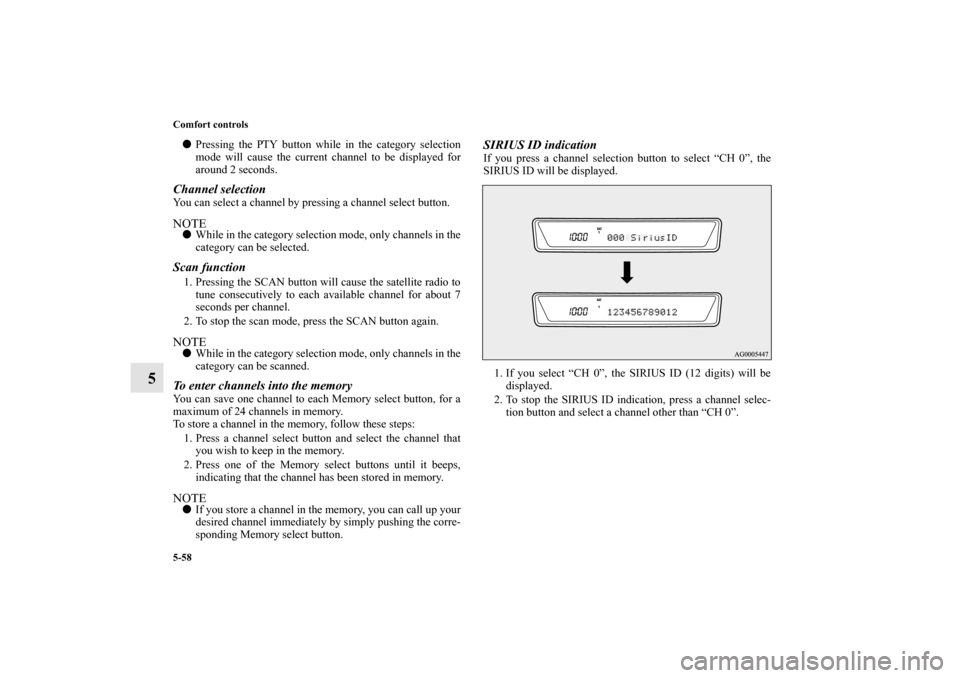

5-58 Comfort controls
5

Pressing the PTY button while in the category selection
mode will cause the current channel to be displayed for
around 2 seconds.Channel selectionYou can select a channel by pressing a channel select button. NOTE
While in the category selection mode, only channels in the
category can be selected.Scan function1. Pressing the SCAN button will cause the satellite radio to
tune consecutively to each available channel for about 7
seconds per channel.
2. To stop the scan mode, press the SCAN button again.NOTE
While in the category selection mode, only channels in the
category can be scanned.To enter channels into the memoryYou can save one channel to each Memory select button, for a
maximum of 24 channels in memory.
To store a channel in the memory, follow these steps:
1. Press a channel select button and select the channel that you wish to keep in the memory.
2. Press one of the Memory select buttons until it beeps, indicating that the channel has been stored in memory.NOTE
If you store a channel in the memory, you can call up your
desired channel immediately by simply pushing the corre-
sponding Memory select button.
SIRIUS ID indication If you press a channel selection button to select “CH 0”, the
SIRIUS ID will be displayed.
1. If you select “CH 0”, the SIRIUS ID (12 digits) will be displayed.
2. To stop the SIRIUS ID indication, press a channel selec- tion button and select a channel other than “CH 0”.
BK0150700US.book 58 ページ ２０１２年３月２２日　木曜日　午後６時４６分

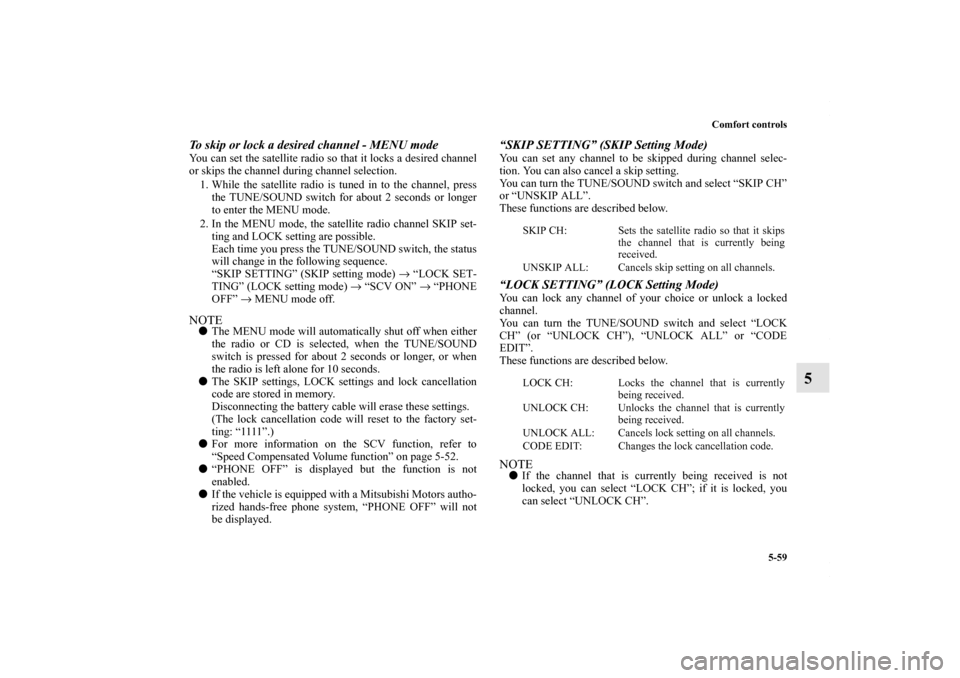

Comfort controls5-59
5
To skip or lock a desired channel - MENU modeYou can set the satellite radio so that it locks a desired channel
or skips the channel during channel selection. 1. While the satellite radio is tuned in to the channel, press the TUNE/SOUND switch for about 2 seconds or longer
to enter the MENU mode.
2. In the MENU mode, the satellite radio channel SKIP set- ting and LOCK setting are possible.
Each time you press the TUNE/SOUND switch, the status
will change in the following sequence.
“SKIP SETTING” (SKIP setting mode) → “LOCK SET-
TING” (LOCK setting mode) → “SCV ON” → “PHONE
OFF” → MENU mode off.NOTE
The MENU mode will automatically shut off when either
the radio or CD is selected, when the TUNE/SOUND
switch is pressed for about 2 seconds or longer, or when
the radio is left alone for 10 seconds.

The SKIP settings, LOCK settings and lock cancellation
code are stored in memory.
Disconnecting the battery cable will erase these settings.
(The lock cancellation code will reset to the factory set-
ting: “1111”.)

For more information on the SCV function, refer to
“Speed Compensated Volume function” on page 5-52.

“PHONE OFF” is displayed but the function is not
enabled.

If the vehicle is equipped with a Mitsubishi Motors autho-
rized hands-free phone system, “PHONE OFF” will not
be displayed.
“SKIP SETTING” (SKIP Setting Mode)You can set any channel to be skipped during channel selec-
tion. You can also cancel a skip setting.
You can turn the TUNE/SOUND switch and select “SKIP CH”
or “UNSKIP ALL”.
These functions are described below.“LOCK SETTING” (LOCK Setting Mode)You can lock any channel of your choice or unlock a locked
channel.
You can turn the TUNE/SOUND switch and select “LOCK
CH” (or “UNLOCK CH”), “UNLOCK ALL” or “CODE
EDIT”.
These functions are described below.NOTE
If the channel that is currently being received is not
locked, you can select “LOCK CH”; if it is locked, you
can select “UNLOCK CH”.
SKIP CH: Sets the satellite radio so that it skips
the channel that is currently being
received.
UNSKIP ALL: Cancels skip setting on all channels.
LOCK CH: Locks the channel that is currently being received.
UNLOCK CH: Unlocks the channel that is currently being received.
UNLOCK ALL: Cancels lock setting on all channels.
CODE EDIT: Changes the lock cancellation code.
BK0150700US.book 59 ページ ２０１２年３月２２日　木曜日　午後６時４６分

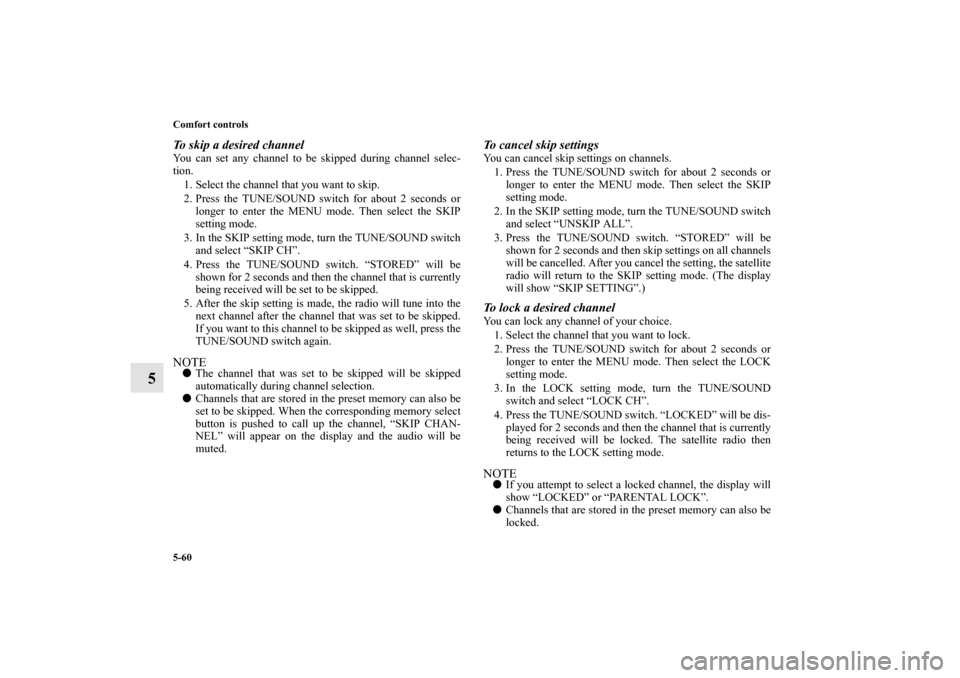

5-60 Comfort controls
5
To skip a desired channelYou can set any channel to be skipped during channel selec-
tion.1. Select the channel that you want to skip.
2. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the SKIP
setting mode.
3. In the SKIP setting mode, turn the TUNE/SOUND switch and select “SKIP CH”.
4. Press the TUNE/SOUND switch. “STORED” will be shown for 2 seconds and then the channel that is currently
being received will be set to be skipped.
5. After the skip setting is made, the radio will tune into the next channel after the channel that was set to be skipped.
If you want to this channel to be skipped as well, press the
TUNE/SOUND switch again. NOTE
The channel that was set to be skipped will be skipped
automatically during channel selection.

Channels that are stored in the preset memory can also be
set to be skipped. When the corresponding memory select
button is pushed to call up the channel, “SKIP CHAN-
NEL” will appear on the display and the audio will be
muted.
To cancel skip settingsYou can cancel skip settings on channels.
1. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the SKIP
setting mode.
2. In the SKIP setting mode, turn the TUNE/SOUND switch and select “UNSKIP ALL”.
3. Press the TUNE/SOUND switch. “STORED” will be shown for 2 seconds and then skip settings on all channels
will be cancelled. After you cancel the setting, the satellite
radio will return to the SKIP setting mode. (The display
will show “SKIP SETTING”.)To lock a desired channelYou can lock any channel of your choice.
1. Select the channel that you want to lock.
2. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the LOCK
setting mode.
3. In the LOCK setting mode, turn the TUNE/SOUND switch and select “LOCK CH”.
4. Press the TUNE/SOUND switch. “LOCKED” will be dis- played for 2 seconds and then the channel that is currently
being received will be locked. The satellite radio then
returns to the LOCK setting mode.NOTE
If you attempt to select a locked channel, the display will
show “LOCKED” or “PARENTAL LOCK”.

Channels that are stored in the preset memory can also be
locked.
BK0150700US.book 60 ページ ２０１２年３月２２日　木曜日　午後６時４６分

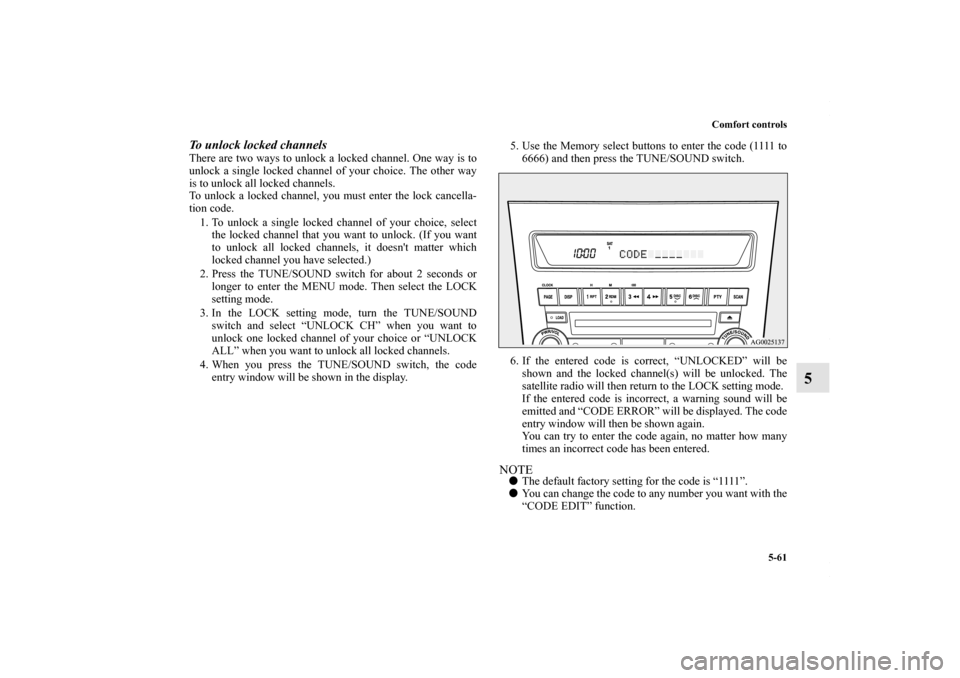

Comfort controls5-61
5
To unlock locked channelsThere are two ways to unlock a locked channel. One way is to
unlock a single locked channel of your choice. The other way
is to unlock all locked channels.
To unlock a locked channel, you must enter the lock cancella-
tion code.1. To unlock a single locked channel of your choice, select the locked channel that you want to unlock. (If you want
to unlock all locked channels, it doesn't matter which
locked channel you have selected.)
2. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the LOCK
setting mode.
3. In the LOCK setting mode, turn the TUNE/SOUND switch and select “UNLOCK CH” when you want to
unlock one locked channel of your choice or “UNLOCK
ALL” when you want to unlock all locked channels.
4. When you press the TUNE/SOUND switch, the code entry window will be shown in the display. 5. Use the Memory select buttons to enter the code (1111 to
6666) and then press the TUNE/SOUND switch.
6. If the entered code is correct, “UNLOCKED” will be shown and the locked channel(s) will be unlocked. The
satellite radio will then return to the LOCK setting mode.
If the entered code is incorrect, a warning sound will be
emitted and “CODE ERROR” will be displayed. The code
entry window will then be shown again.
You can try to enter the code again, no matter how many
times an incorrect code has been entered.
NOTE
The default factory setting for the code is “1111”.

You can change the code to any number you want with the
“CODE EDIT” function.
BK0150700US.book 61 ページ ２０１２年３月２２日　木曜日　午後６時４６分

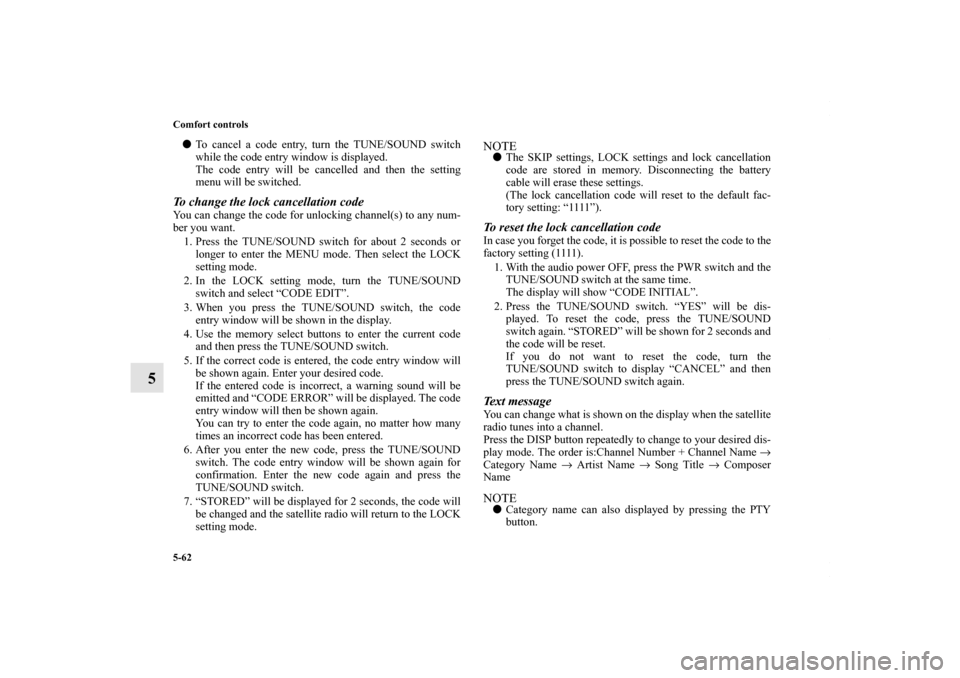

5-62 Comfort controls
5

To cancel a code entry, turn the TUNE/SOUND switch
while the code entry window is displayed.
The code entry will be cancelled and then the setting
menu will be switched. To change the lock cancellation codeYou can change the code for unlocking channel(s) to any num-
ber you want.
1. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the LOCK
setting mode.
2. In the LOCK setting mode, turn the TUNE/SOUND switch and select “CODE EDIT”.
3. When you press the TUNE/SOUND switch, the code entry window will be shown in the display.
4. Use the memory select buttons to enter the current code and then press the TUNE/SOUND switch.
5. If the correct code is entered, the code entry window will be shown again. Enter your desired code.
If the entered code is incorrect, a warning sound will be
emitted and “CODE ERROR” will be displayed. The code
entry window will then be shown again.
You can try to enter the code again, no matter how many
times an incorrect code has been entered.
6. After you enter the new code, press the TUNE/SOUND switch. The code entry window will be shown again for
confirmation. Enter the new code again and press the
TUNE/SOUND switch.
7. “STORED” will be displayed for 2 seconds, the code will be changed and the satellite radio will return to the LOCK
setting mode.
NOTE
The SKIP settings, LOCK settings and lock cancellation
code are stored in memory. Disconnecting the battery
cable will erase these settings.
(The lock cancellation code will reset to the default fac-
tory setting: “1111”).To reset the lock cancellation codeIn case you forget the code, it is possible to reset the code to the
factory setting (1111).
1. With the audio power OFF, press the PWR switch and the TUNE/SOUND switch at the same time.
The display will show “CODE INITIAL”.
2. Press the TUNE/SOUND switch. “YES” will be dis- played. To reset the code, press the TUNE/SOUND
switch again. “STORED” will be shown for 2 seconds and
the code will be reset.
If you do not want to reset the code, turn the
TUNE/SOUND switch to display “CANCEL” and then
press the TUNE/SOUND switch again. Text messageYou can change what is shown on the display when the satellite
radio tunes into a channel.
Press the DISP button repeatedly to change to your desired dis-
play mode. The order is:Channel Number + Channel Name →
Category Name → Artist Name → Song Title → Composer
NameNOTE
Category name can also displayed by pressing the PTY
button.
BK0150700US.book 62 ページ ２０１２年３月２２日　木曜日　午後６時４６分
