2013 MITSUBISHI OUTLANDER SPORT display

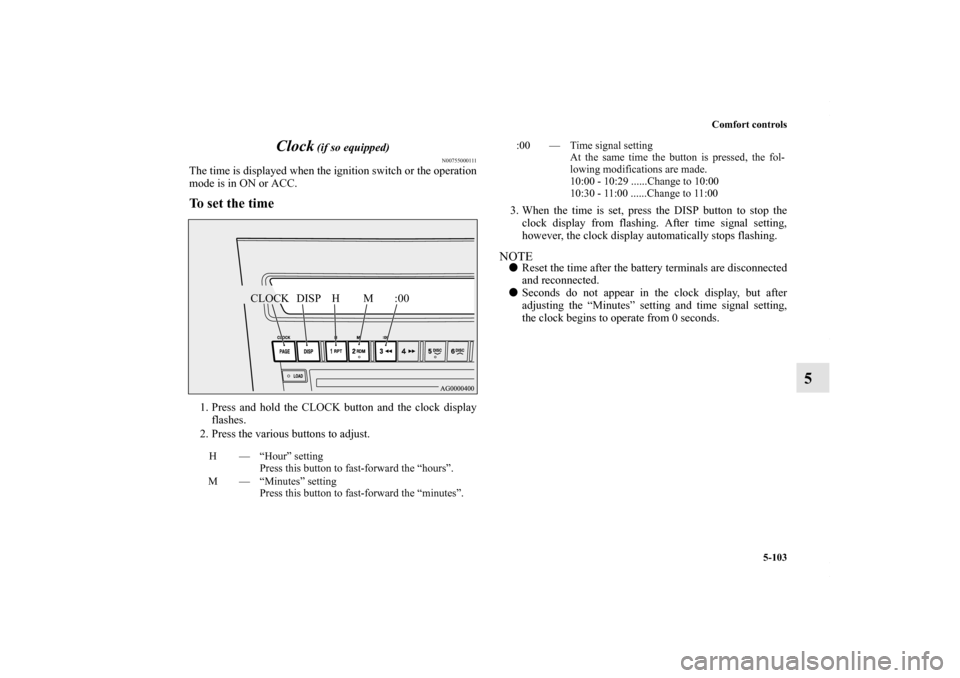

Comfort controls5-103
5
Clock
(if so equipped)
N00755000111
The time is displayed when the ignition switch or the operation
mode is in ON or ACC.To set the time1. Press and hold the CLOCK button and the clock display
flashes.
2. Press the various buttons to adjust. 3. When the time is set, press the DISP button to stop the
clock display from flashing. After time signal setting,
however, the clock display automatically stops flashing.
NOTE
Reset the time after the battery terminals are disconnected
and reconnected.

Seconds do not appear in the clock display, but after
adjusting the “Minutes” setting and time signal setting,
the clock begins to operate from 0 seconds.
H — “Hour” setting
Press this button to fast-forward the “hours”.
M — “Minutes” setting Press this button to fast-forward the “minutes”.
CLOCK DISP H M :00
:00 — Time signal setting At the same time the button is pressed, the fol-
lowing modifications are made.
10:00 - 10:29 ......Change to 10:00
10:30 - 11:00 ......Change to 11:00
BK0150700US.book 103 ページ ２０１２年３月２２日　木曜日　午後６時４６分

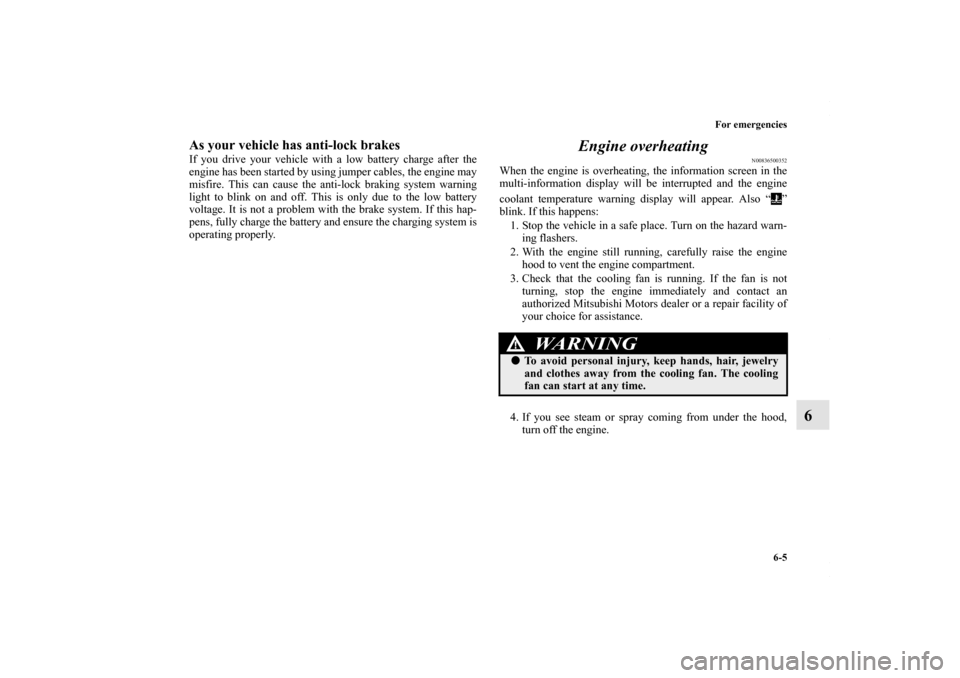

For emergencies6-5
6
As your vehicle has anti-lock brakesIf you drive your vehicle with a low battery charge after the
engine has been started by using jumper cables, the engine may
misfire. This can cause the anti-lock braking system warning
light to blink on and off. This is only due to the low battery
voltage. It is not a problem with the brake system. If this hap-
pens, fully charge the battery and ensure the charging system is
operating properly.
Engine overheating
N00836500352
When the engine is overheating, the information screen in the
multi-information display will be interrupted and the engine
coolant temperature warning display will appear. Also “ ”
blink. If this happens:1. Stop the vehicle in a safe place. Turn on the hazard warn- ing flashers.
2. With the engine still running, carefully raise the engine hood to vent the engine compartment.
3. Check that the cooling fan is running. If the fan is not turning, stop the engine immediately and contact an
authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.
4. If you see steam or spray coming from under the hood, turn off the engine.
WARNING
!
To avoid personal injury, keep hands, hair, jewelry
and clothes away from the cooling fan. The cooling
fan can start at any time.
BK0150700US.book 5 ページ ２０１２年３月２２日　木曜日　午後６時４６分

6-6 For emergencies
6
5. If you do not see steam or spray coming from under thehood, leave the engine on until the bar graph for the
engine coolant temperature warning display on the multi-
information display goes down. When it is in the middle
of the normal zone, you can start driving again. If the bar
graph stays in the red zone, turn off the engine.
6. When you do not see any more steam or spray, open the hood. Look for obvious leaks, such as a split radiator
hose. Be careful as components will be hot. Any leak
source must be repaired.
7. If there is no obvious leak source, check the coolant level in the engine coolant reserve tank. If there is none, or if it
is too low, slowly add coolant. 8. If the engine coolant reserve tank needs coolant, you will
probably also need to add coolant to the radiator. Do not
loosen or remove the radiator cap until the engine has
cooled down.
9. Start the engine, and slowly add coolant, up to the bottom of the filler neck. Use plain water if you have to (and
replace it with the right coolant as soon as possible).
10. Replace the radiator cap and tighten it fully. Check the engine coolant temperature display on the multi-informa-
tion display. You can start driving again when the bar
graph for the engine coolant temperature display returns
to the normal zone.
11. Have the system inspected by your authorized Mitsubishi Motors dealer or a repair facility of your choice.
WARNING
!
Before raising the engine hood, check to see if there
is steam or spray coming from under the hood.
Steam or spray coming from an overheated engine
could seriously scald you.
Do not open the hood until there is no steam or
spray.
WARNING
!
Removing the radiator cap could scald you with
escaping hot water or steam. When checking the
radiator level, cover the cap with a cloth before try-
ing to remove it. Turn it slowly counterclockwise,
without pressing down, to the first notch. The pres-
sure in the system will then be let out. When the
pressure is COMPLETELY LET OUT, press down
and keep turning the cap counterclockwise until it
comes off.
BK0150700US.book 6 ページ ２０１２年３月２２日　木曜日　午後６時４６分

7-6 Vehicle care and maintenance
7
NOTE
If this does not close the engine hood properly, drop it
again from a slightly higher position.

Do not push down strongly on the engine hood. Depend-
ing on how strongly or where you push down, you could
create a dent in the vehicle body.

If you drive with the engine hood left open, warning dis-
play is displayed on the information screen in the multi-
information display.
View of the engine compartment
N00937600625
Type 1 Type 2
1- Engine oil level dipstick
2- Engine oil filler cap
3- Air cleaner filter
4- Brake fluid/Clutch fluid reservoir (if so equipped)
5- Windshield and rear window washer fluid reservoir
6- Engine coolant reserve tank
7- Radiator cap
8- Battery
BK0150700US.book 6 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Specifications9-9
9
Capacity
N01148001058
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles15.8 gal (60 L)
Engine oil
Oil pan 4.2 qt (4.0 L) Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SN or
higher can be used.Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)Mitsubishi Motors Genuine NEW MULTI GEAR OIL API
classification GL-3 SAE 75W-80Continuously variable transmission (CVT)
7.5 qt (7.1 L) Mitsubishi Motors Genuine CVTF - J4Transfer oil.50 qt (0.47 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil API
classification GL-5 SAE 80Differential
Rear axle
.42 qt (0.4 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil API
classification GL-5 SAE 80
Brake/Clutch (if so equipped)
As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt (0.65 L) in reserve tank}7.9 qt (7.5 L)Mitsubishi Motors Genuine Super Long Life Coolant Pre-
mium or equivalent*Washer fluid
4.8 qt (4.5 L)—Refrigerant (air conditioning) Refer to the “Air
conditioning label” on page 9-2. HFC-134a
BK0150700US.book 9
ページ ２０１２年３月２２日　木曜日　午後６時４６分

Alphabetical index3
EngineCompartment 7-6
Coolant 7-10
,9-9
Hood 7-4
Oil and oil filter 7-7
,9-9
Overheating 6-5
Serial number 9-2
Specification 9-7
Engine coolant temperature display 3-139
Engine hood 7-4
Engine switch 3-22
Exhaust system 7-37
F
Floor console box 3-248
Floor mat 4-3
Fluid Automatic transaxle fluid 9-9
Brake fluid 9-9
Continuously variable transmission (CVT) fluid 7-18
,9-9
Engine coolant 7-10
,9-9
Power steering fluid 9-9
Washer fluid 7-19
,9-9
Fluid capacities and lubricants 9-9
Free-hand advanced security transmitter (F.A.S.T.-key) 3-14 Front fog lights
Bulb capacity 7-48
Indicators 3-177
Replacement 7-57
Switch 3-193
Front seat adjustment 2-3
Front side-marker lights Bulb capacity 7-48
Replacement 7-55
Front turn signal light Bulb capacity 7-48
Replacement 7-56
Fuel Filling the fuel tank 1-4
Fuel economy 4-2
Fuel hoses 7-35
Fuel selection 1-2
Tank capacity 9-9
Fuses 7-39
Fusible links 7-39
G
General maintenance Maintenance 7-36
General vehicle data 9-5
Genuine parts 1-9
Glove compartment 3-247
BK0150700US.book 3 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Alphabetical index
4
H
Hazard warning flasher switch 3-193
Hazard warning lights 3-177
Head restraints 2-12
Headlight leveling switch 3-191
HeadlightsBulb capacity 7-48
Dimmer 3-188
Headlight flasher 3-188
Replacement 7-50
,7-52
Switch 3-183
High beam indicator 3-177
High-mount stop light Bulb capacity 7-48
Hill start assist 3-94
Hood lock release mechanism and safety catch 7-38
Horn switch 3-204
I
If the vehicle breaks down 6-2
Ignition switch 3-66
Important facts to know in case of an accident 8-5
Indicators 3-177
Information screen display 3-126
Inside rearview mirror 3-60
Inspection and maintenance following rough road operation 3-90
Instrument cluster 3-129 Interior lights 3-240
J
Jack
Storage 6-7
Jump-starting the engine 6-2
K
Key slot 3-28
Keyless entry system 3-8
,3-33
Keys 3-2
L
Labeling 9-2
License plate light Bulb capacity 7-48
Replacement 7-66
Liftgate 3-44 Inside liftgate release 3-47
Link System 3-205
Loading information 4-9
Lubricants 9-9
Luggage hooks 3-255
BK0150700US.book 4 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Alphabetical index5
M
Malfunction indicator light 3-178
Manual air conditioning 5-6
,5-16
Manual transaxle 3-71 Oil 7-17
Shift points (recommended speed) 3-72
Modification of your vehicle 1-7
Multi-information display 3-126O
Octane rating 1-2
Oil Engine oil 7-7
,9-9
Manual transaxle oil 7-17
Rear axle oil 7-19,9-9
Transfer oil 7-18
,9-9
Operation mode 3-22
Operation under adverse driving conditions 6-23
Outside rearview mirrors 3-64
Overheating 6-5
P
Parking 4-8 Parking brake break-in 7-33
Parking brake lever stroke 7-33
Parking brake 3-58 Parking lights
Bulb capacity 7-48
Replacement 7-55
Polishing 7-74
Power brakes 3-93
Power outlet 3-238
Power steering Fluid 9-9
Power windows 3-52
Puncture (Tire changing) 6-8
R
Radio General information about your radio 5-104
Reading lights Bulb capacity 7-50
Rear axle oil 7-19
,9-9
Rear combination lights Bulb capacity 7-48
Replacement 7-62
Rear Seat Pass Through 2-11
Rear side-marker lights Bulb capacity 7-48
Replacement 7-62
Rear turn signal light Bulb capacity 7-48
Replacement 7-62
Rear-view camera 3-121
BK0150700US.book 5 ページ ２０１２年３月２２日　木曜日　午後６時４６分
