Page 250 of 602
Features and controls3-153
3
NOTEThe display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.
Changing the temperature unit
N00557200115
The temperature display unit can be switched. 1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148.
2. Lightly press the multi-information meter switch to select
“ ” (temperature unit setting).
Fuel
economy
Distance
(driving range)
Speed
(average speed)
mpg (US) mile (s) mph
mpg (UK) mile (s) mph
km / L kmkm / h
L / 100 km kmkm / h
Type 1
Type 2
BK0150700US.book 153 ページ ２０１２年３月２２日 木曜日 午後６時４６分

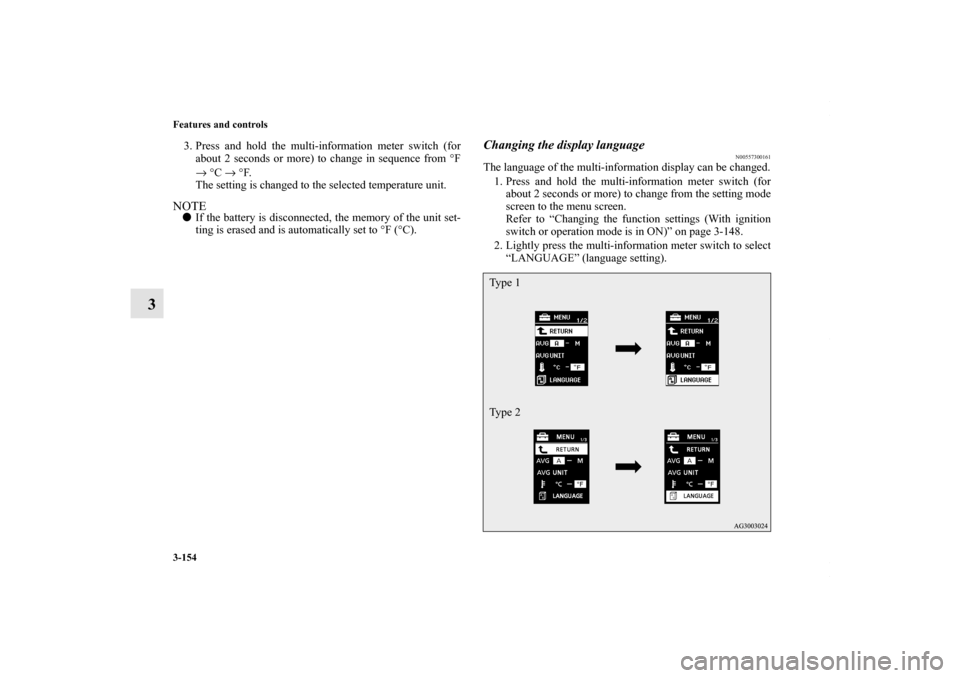

Page 251 of 602
3-154 Features and controls
3
3. Press and hold the multi-information meter switch (forabout 2 seconds or more) to change in sequence from °F
→ ° C → ° F.
The setting is changed to the selected temperature unit.NOTE If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to °F (° C).
Changing the display language
N00557300161
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148.
2. Lightly press the multi-information meter switch to select “LANGUAGE” (language setting).Type 1
Type 2
BK0150700US.book 154 ページ ２０１２年３月２２日 木曜日 午後６時４６分

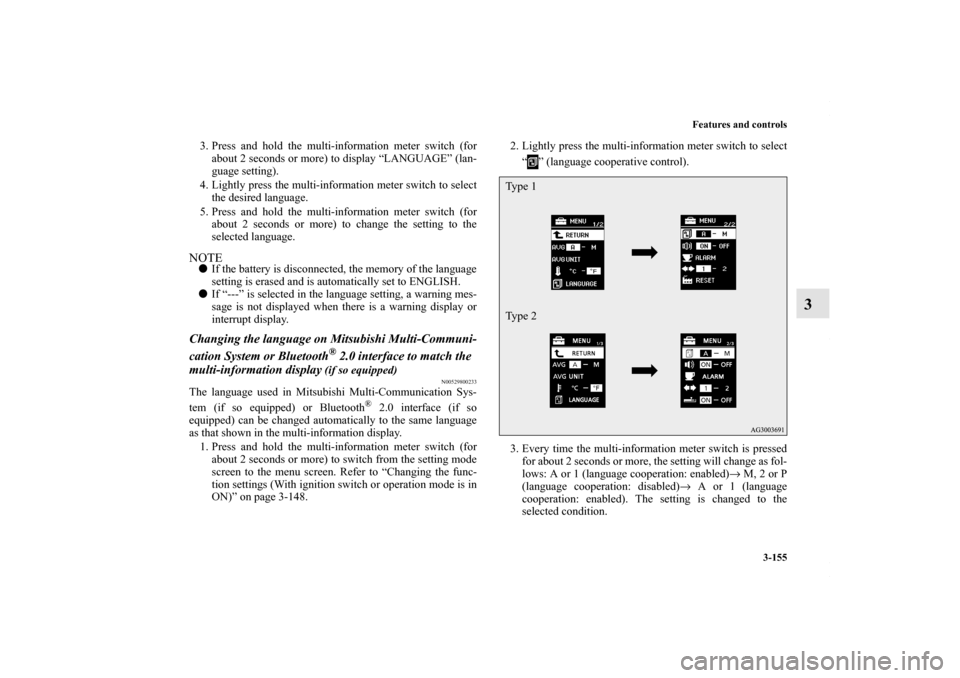

Page 252 of 602
Features and controls3-155
3
3. Press and hold the multi-information meter switch (forabout 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to select the desired language.
5. Press and hold the multi-information meter switch (for about 2 seconds or more) to change the setting to the
selected language.NOTE If the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.
If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800233
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode
screen to the menu screen. Refer to “Changing the func-
tion settings (With ignition switch or operation mode is in
ON)” on page 3-148. 2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed for about 2 seconds or more, the setting will change as fol-
lows: A or 1 (language cooperation: enabled) → M, 2 or P
(language cooperation: disabled) → A or 1 (language
cooperation: enabled). The setting is changed to the
selected condition.
Type 1
Type 2
BK0150700US.book 155 ページ ２０１２年３月２２日 木曜日 午後６時４６分

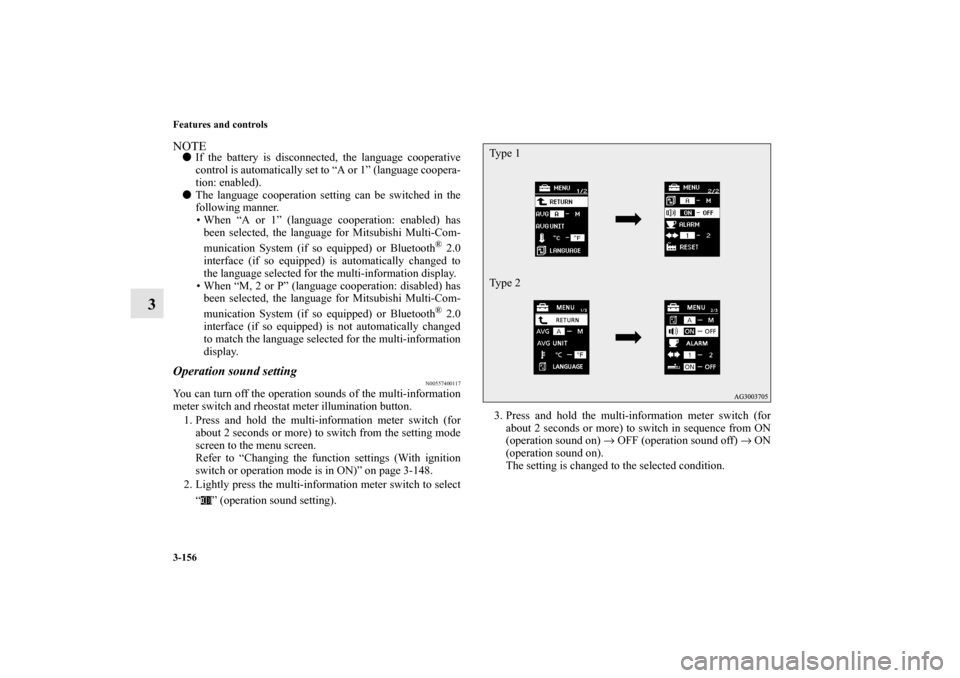

Page 253 of 602
3-156 Features and controls
3
NOTEIf the battery is disconnected, the language cooperative
control is automatically set to “A or 1” (language coopera-
tion: enabled).
The language cooperation setting can be switched in the
following manner.
• When “A or 1” (language cooperation: enabled) has been selected, the language for Mitsubishi Multi-Com-
munication System (if so equipped) or Bluetooth
® 2.0
interface (if so equipped) is automatically changed to
the language selected for the multi-information display.
• When “M, 2 or P” (language cooperation: disabled) has been selected, the language for Mitsubishi Multi-Com-
munication System (if so equipped) or Bluetooth® 2.0
interface (if so equipped) is not automatically changed
to match the language selected for the multi-information
display.
Operation sound setting
N00557400117
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148.
2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting). 3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.
Type 1
Type 2
BK0150700US.book 156 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 254 of 602
Features and controls3-157
3
NOTEIf the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).
The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Changing the time until “REST REMINDER” is dis-
played
N00557500134
The time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148.
2. Lightly press the multi-information meter switch to select “ALARM” (rest time setting).Type 1
Type 2
BK0150700US.book 157 ページ ２０１２年３月２２日 木曜日 午後６時４６分

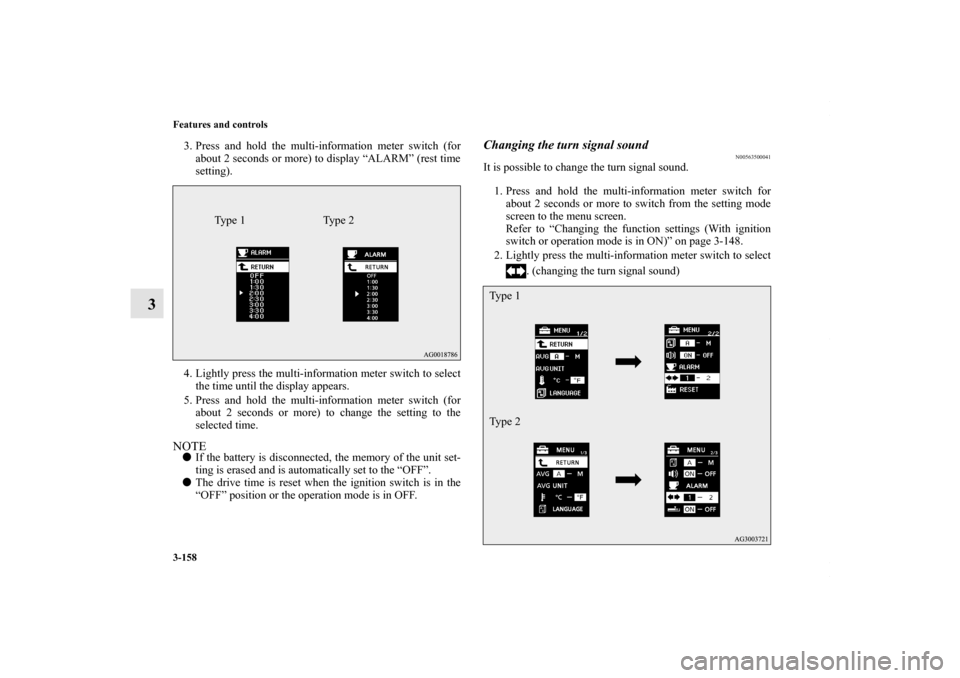

Page 255 of 602
3-158 Features and controls
3
3. Press and hold the multi-information meter switch (forabout 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select the time until the display appears.
5. Press and hold the multi-information meter switch (for about 2 seconds or more) to change the setting to the
selected time.NOTE If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.
The drive time is reset when the ignition switch is in the
“OFF” position or the operation mode is in OFF.
Changing the turn signal sound
N00563500041
It is possible to change the turn signal sound.
1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148.
2. Lightly press the multi-information meter switch to select
. (changing the turn signal sound)
Type 1 Type 2
Type 1
Type 2
BK0150700US.book 158 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 256 of 602
Features and controls3-159
3
3. Press and hold the multi-information meter switch forabout 2 seconds or more to switch in sequence from 1
(turn signal sound 1) → 2 (turn signal sound 2) → 1 (turn
signal sound 1).
The setting changes to the selected turn-signal sound.
Changing the momentary fuel consumption display
(Type 2)
N00563600039
It is possible to change the bar graph setting of the momentary
fuel consumption display.
1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148.
2. Lightly press the multi-information meter switch to select
. (changing the momentary fuel consumption display)
BK0150700US.book 159 ページ ２０１２年３月２２日 木曜日 午後６時４６分

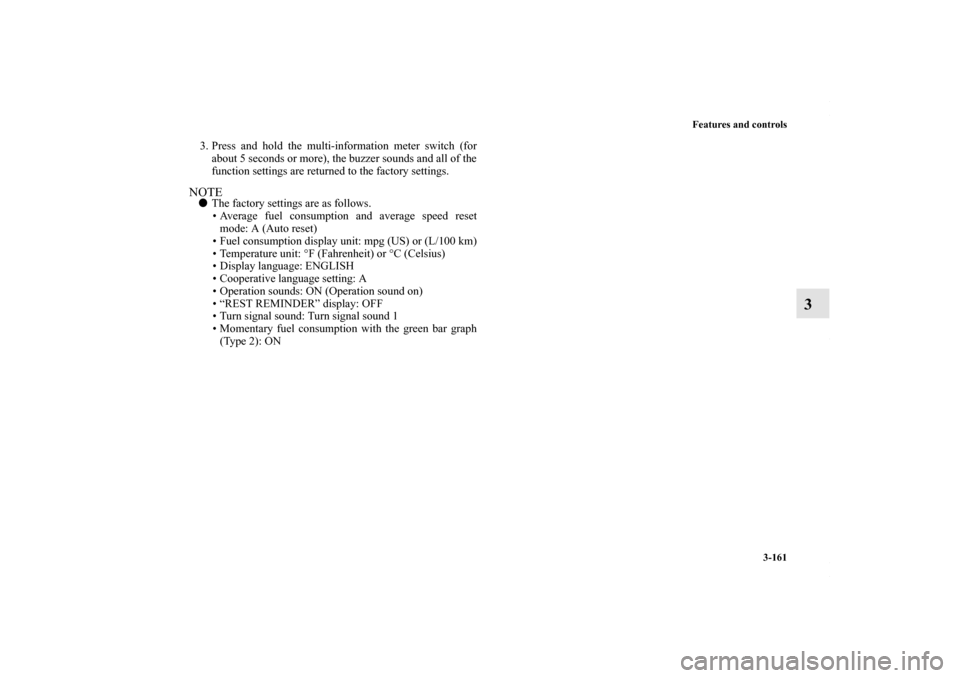

Page 258 of 602
Features and controls3-161
3
3. Press and hold the multi-information meter switch (forabout 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.NOTE The factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or (L/100 km)
• Temperature unit: °F (Fahrenheit) or °C (Celsius)
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph (Type 2): ON
BK0150700US.book 161 ページ ２０１２年３月２２日 木曜日 午後６時４６分
