Page 304 of 602
Features and controls3-207
3
Steering control switch
N00564000014
Volume up buttonPress this button to increase the volume. Volume down buttonPress this button to decrease the volume.SPEECH buttonPress this button to change to voice recognition mode.
While the system is in voice recognition mode, “Listen-
ing” will appear on the audio display.
If you press the button briefly while in voice recognition
mode, it will interrupt prompting and allow voice com-
mand input.
Pressing the button longer will deactivate the voice recog-
nition mode.
Pressing this button briefly during a call will enable voice
recognition and allow voice command input.PICK-UP buttonPress this button when an incoming call is received to
answer the telephone.
When another call is received during a call, press this but-
ton to put the first caller on hold and talk to the new caller.
• In such circumstances, you can press the button briefly
to switch between callers. You will switch to the first
caller and the other caller will be put on hold.
• To establish a three-way call in such situations, press the SPEECH button to enter voice recognition mode and
then say “Join calls.”
1- Volume up button
2- Volume down button
3- SPEECH button
4- PICK-UP button
5- HANG-UP button
BK0150700US.book 207 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 305 of 602
3-208 Features and controls
3

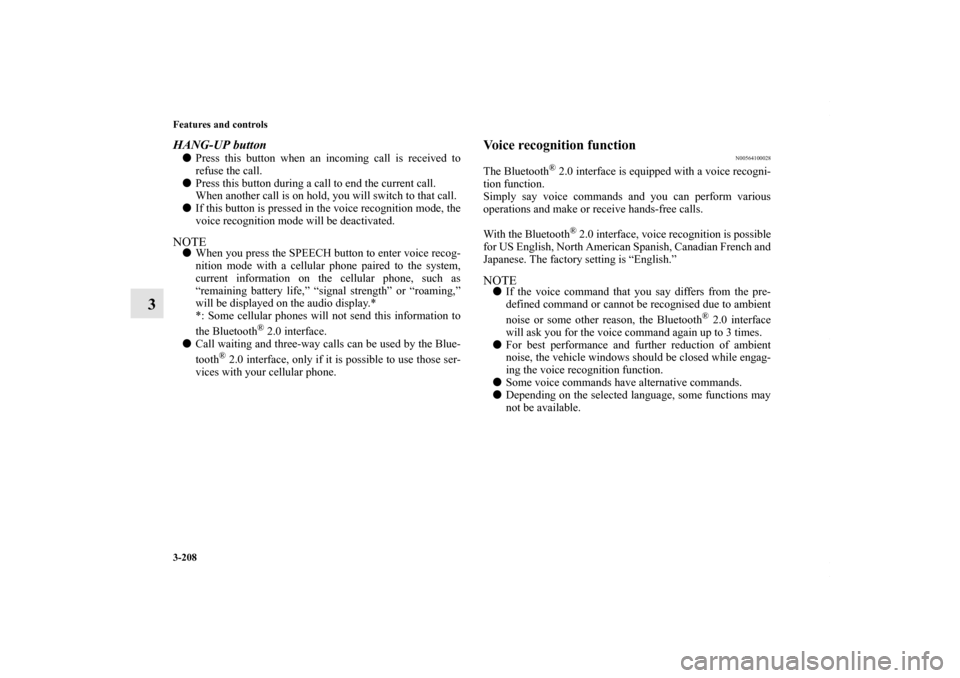

HANG-UP buttonPress this button when an incoming call is received to
refuse the call.
Press this button during a call to end the current call.
When another call is on hold, you will switch to that call.
If this button is pressed in the voice recognition mode, the
voice recognition mode will be deactivated.NOTEWhen you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.*
*: Some cellular phones will not send this information to
the Bluetooth
® 2.0 interface.
Call waiting and three-way calls can be used by the Blue-
tooth
® 2.0 interface, only if it is possible to use those ser-
vices with your cellular phone.
Voice recognition function
N00564100028
The Bluetooth
® 2.0 interface is equipped with a voice recogni-
tion function.
Simply say voice commands and you can perform various
operations and make or receive hands-free calls.
With the Bluetooth
® 2.0 interface, voice recognition is possible
for US English, North American Spanish, Canadian French and
Japanese. The factory setting is “English.”
NOTE If the voice command that you say differs from the pre-
defined command or cannot be recognised due to ambient
noise or some other reason, the Bluetooth
® 2.0 interface
will ask you for the voice command again up to 3 times.
For best performance and further reduction of ambient
noise, the vehicle windows should be closed while engag-
ing the voice recognition function.
Some voice commands have alternative commands.
Depending on the selected language, some functions may
not be available.
BK0150700US.book 208 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 358 of 602
Driving safety4-5
4

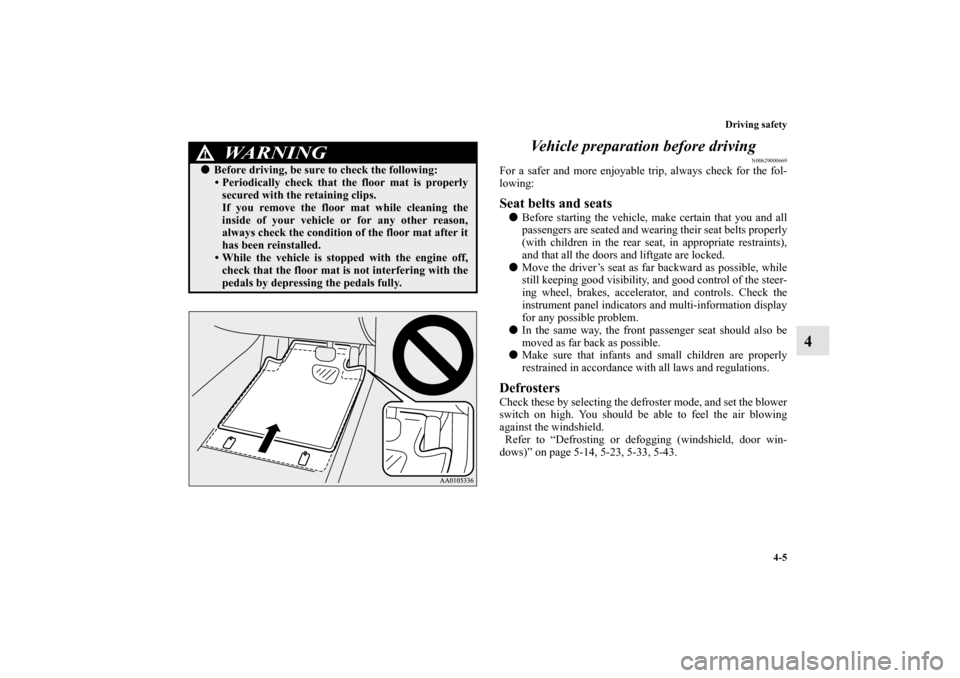

Vehicle preparation before driving
N00629000669
For a safer and more enjoyable trip, always check for the fol-
lowing:Seat belts and seats
Before starting the vehicle, make certain that you and all
passengers are seated and wearing their seat belts properly
(with children in the rear seat, in appropriate restraints),
and that all the doors and liftgate are locked.
Move the driver’s seat as far backward as possible, while
still keeping good visibility, and good control of the steer-
ing wheel, brakes, accelerator, and controls. Check the
instrument panel indicators and multi-information display
for any possible problem.
In the same way, the front passenger seat should also be
moved as far back as possible.
Make sure that infants and small children are properly
restrained in accordance with all laws and regulations.DefrostersCheck these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
Refer to “Defrosting or defogging (windshield, door win-
dows)” on page 5-14, 5-23, 5-33, 5-43.
WARNING
!Before driving, be sure to check the following:
• Periodically check that the floor mat is properly
secured with the retaining clips.
If you remove the floor mat while cleaning the
inside of your vehicle or for any other reason,
always check the condition of the floor mat after it
has been reinstalled.
• While the vehicle is stopped with the engine off, check that the floor mat is not interfering with the
pedals by depressing the pedals fully.
BK0150700US.book 5 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 417 of 602
5-48 Comfort controls
5

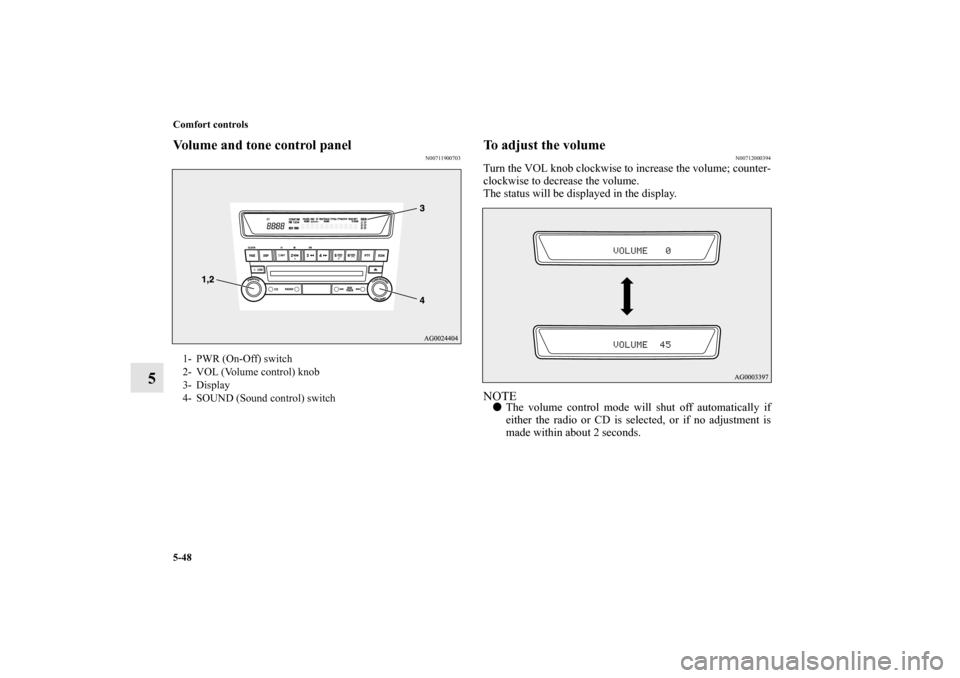

Volume and tone control panel
N00711900703
To adjust the volume
N00712000394
Turn the VOL knob clockwise to increase the volume; counter-
clockwise to decrease the volume.
The status will be displayed in the display.NOTEThe volume control mode will shut off automatically if
either the radio or CD is selected, or if no adjustment is
made within about 2 seconds.
1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- Display
4- SOUND (Sound control) switch
BK0150700US.book 48 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 418 of 602
Comfort controls5-49
5

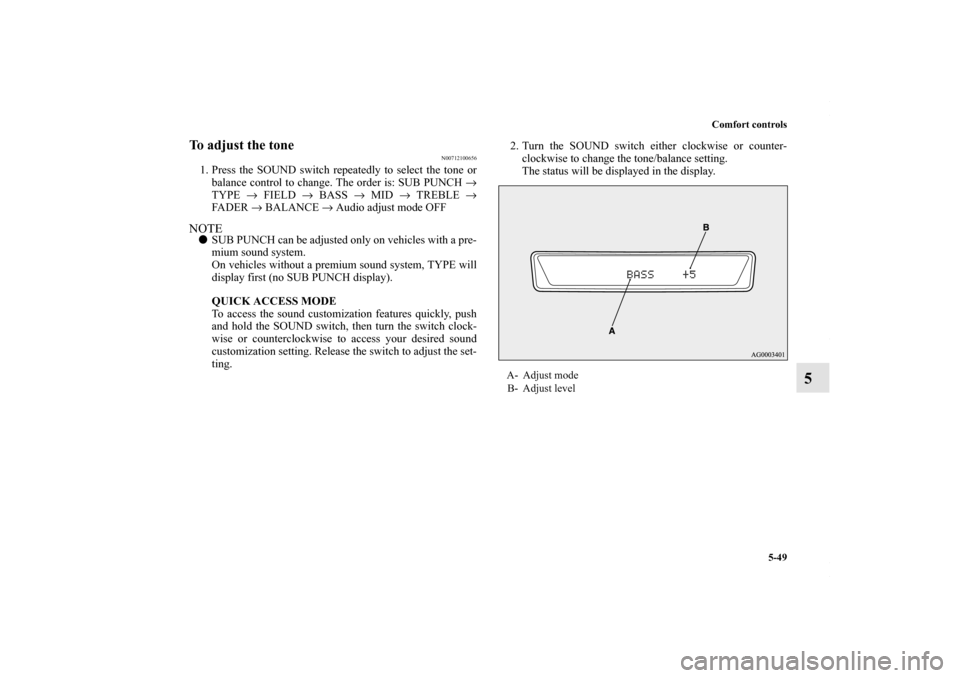

To adjust the tone
N00712100656
1. Press the SOUND switch repeatedly to select the tone orbalance control to change. The order is: SUB PUNCH →
TYPE → FIELD → BASS → MID → TREBLE →
FA D E R → BALANCE → Audio adjust mode OFFNOTE SUB PUNCH can be adjusted only on vehicles with a pre-
mium sound system.
On vehicles without a premium sound system, TYPE will
display first (no SUB PUNCH display).
QUICK ACCESS MODE
To access the sound customization features quickly, push
and hold the SOUND switch, then turn the switch clock-
wise or counterclockwise to access your desired sound
customization setting. Release the switch to adjust the set-
ting. 2. Turn the SOUND switch either clockwise or counter-
clockwise to change the tone/balance setting.
The status will be displayed in the display.
A- Adjust mode
B- Adjust level
BK0150700US.book 49 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 421 of 602
5-52 Comfort controls
5

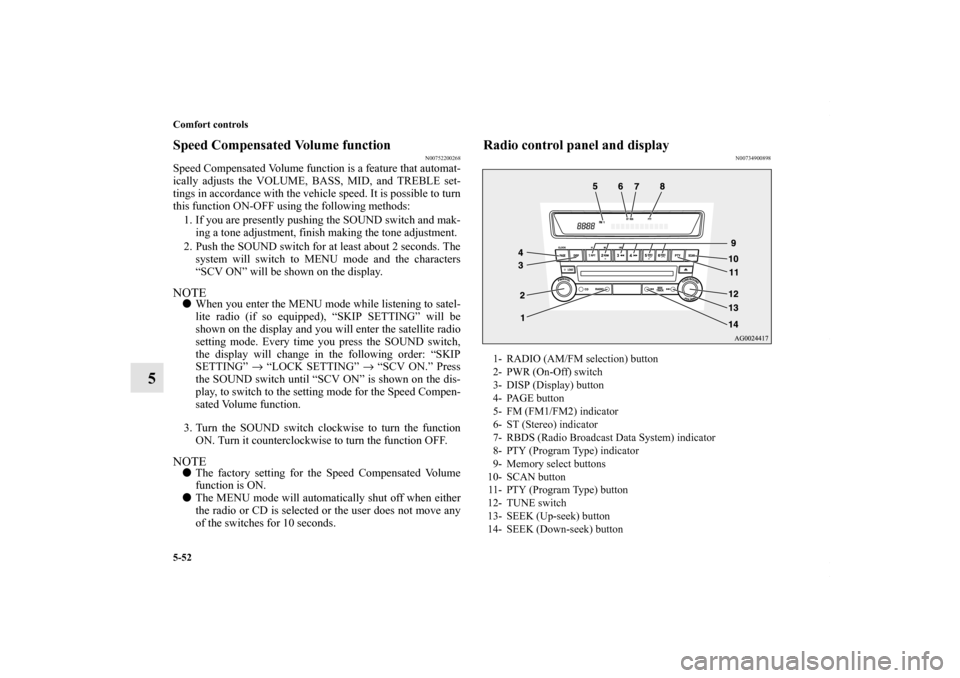

Speed Compensated Volume function
N00752200268
Speed Compensated Volume function is a feature that automat-
ically adjusts the VOLUME, BASS, MID, and TREBLE set-
tings in accordance with the vehicle speed. It is possible to turn
this function ON-OFF using the following methods:1. If you are presently pushing the SOUND switch and mak- ing a tone adjustment, finish making the tone adjustment.
2. Push the SOUND switch for at least about 2 seconds. The system will switch to MENU mode and the characters
“SCV ON” will be shown on the display.NOTE When you enter the MENU mode while listening to satel-
lite radio (if so equipped), “SKIP SETTING” will be
shown on the display and you will enter the satellite radio
setting mode. Every time you press the SOUND switch,
the display will change in the following order: “SKIP
SETTING” → “LOCK SETTING” → “SCV ON.” Press
the SOUND switch until “SCV ON” is shown on the dis-
play, to switch to the setting mode for the Speed Compen-
sated Volume function.
3. Turn the SOUND switch clockwise to turn the function ON. Turn it counterclockwise to turn the function OFF.NOTE The factory setting for the Speed Compensated Volume
function is ON.
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 10 seconds.
Radio control panel and display
N00734900898
1- RADIO (AM/FM selection) button
2- PWR (On-Off) switch
3- DISP (Display) button
4- PAGE button
5- FM (FM1/FM2) indicator
6- ST (Stereo) indicator
7- RBDS (Radio Broadcast Data System) indicator
8- PTY (Program Type) indicator
9- Memory select buttons
10- SCAN button 11- PTY (Program Type) button
12- TUNE switch
13- SEEK (Up-seek) button
14- SEEK (Down-seek) button
BK0150700US.book 52 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 422 of 602
Comfort controls5-53
5

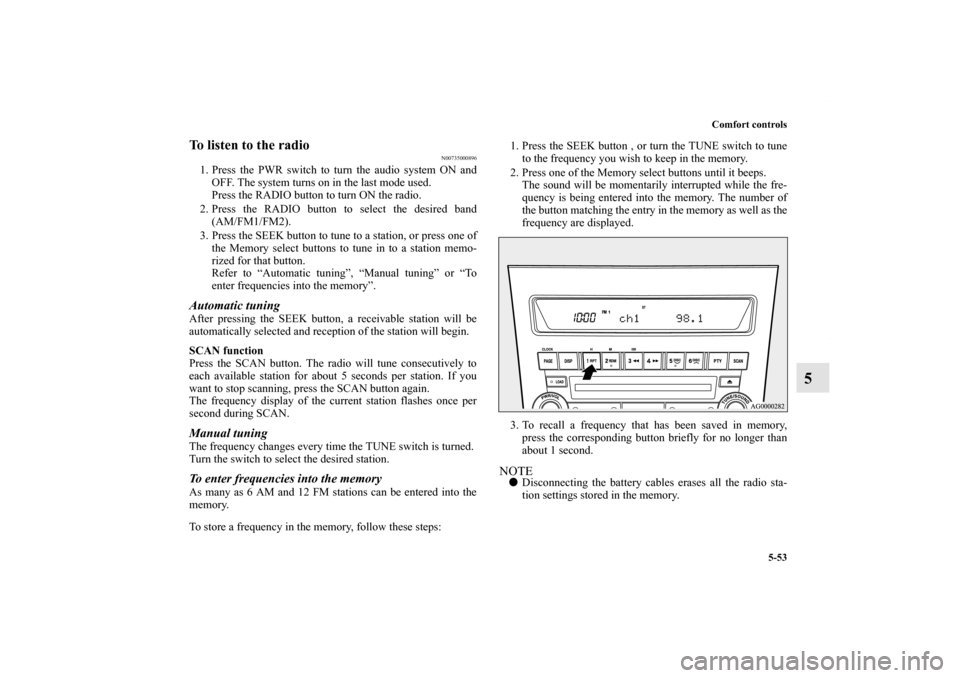

To listen to the radio
N00735000896
1. Press the PWR switch to turn the audio system ON andOFF. The system turns on in the last mode used.
Press the RADIO button to turn ON the radio.
2. Press the RADIO button to select the desired band (AM/FM1/FM2).
3. Press the SEEK button to tune to a station, or press one of the Memory select buttons to tune in to a station memo-
rized for that button.
Refer to “Automatic tuning”, “Manual tuning” or “To
enter frequencies into the memory”.Automatic tuningAfter pressing the SEEK button, a receivable station will be
automatically selected and reception of the station will begin.
SCAN function
Press the SCAN button. The radio will tune consecutively to
each available station for about 5 seconds per station. If you
want to stop scanning, press the SCAN button again.
The frequency display of the current station flashes once per
second during SCAN.Manual tuningThe frequency changes every time the TUNE switch is turned.
Turn the switch to select the desired station.To enter frequencies into the memoryAs many as 6 AM and 12 FM stations can be entered into the
memory.
To store a frequency in the memory, follow these steps: 1. Press the SEEK button , or turn the TUNE switch to tune
to the frequency you wish to keep in the memory.
2. Press one of the Memory select buttons until it beeps. The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. To recall a frequency that has been saved in memory, press the corresponding button briefly for no longer than
about 1 second.
NOTE Disconnecting the battery cables erases all the radio sta-
tion settings stored in the memory.
BK0150700US.book 53 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 423 of 602
5-54 Comfort controls
5

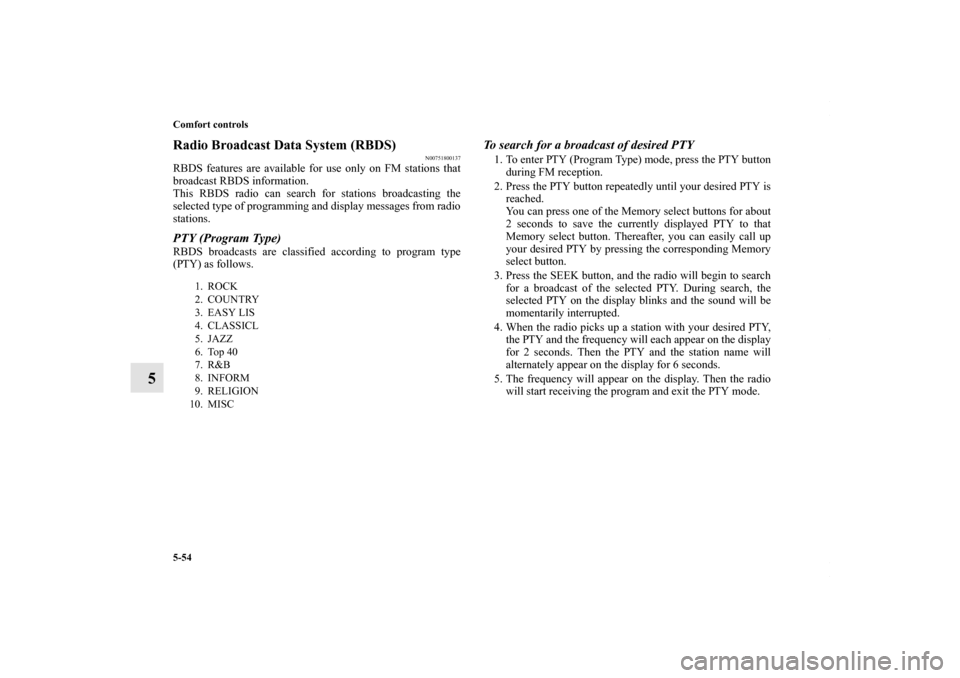

Radio Broadcast Data System (RBDS)
N00751800137
RBDS features are available for use only on FM stations that
broadcast RBDS information.
This RBDS radio can search for stations broadcasting the
selected type of programming and display messages from radio
stations.PTY (Program Type)RBDS broadcasts are classified according to program type
(PTY) as follows.
To search for a broadcast of desired PTY1. To enter PTY (Program Type) mode, press the PTY buttonduring FM reception.
2. Press the PTY button repeatedly until your desired PTY is reached.
You can press one of the Memory select buttons for about
2 seconds to save the currently displayed PTY to that
Memory select button. Thereafter, you can easily call up
your desired PTY by pressing the corresponding Memory
select button.
3. Press the SEEK button, and the radio will begin to search for a broadcast of the selected PTY. During search, the
selected PTY on the display blinks and the sound will be
momentarily interrupted.
4. When the radio picks up a station with your desired PTY, the PTY and the frequency will each appear on the display
for 2 seconds. Then the PTY and the station name will
alternately appear on the display for 6 seconds.
5. The frequency will appear on the display. Then the radio will start receiving the program and exit the PTY mode.
1. ROCK
2. COUNTRY
3. EASY LIS
4. CLASSICL
5. JAZZ
6. Top 40
7. R&B
8. INFORM
9. RELIGION
10. MISC
