2013 MITSUBISHI LANCER Owners Manual

1-10 General information
1California Perchlorate Materials Require-
ments
N00300100017
Certain components of this vehicle, such as airbag modules,
seat belt pretensioners, and button cell batteries, may contain
perchlorate materials.
Special handling may apply. For additional information, see
www.dtsc.ca.gov/hazardouswaste/perchlorate.BK0150800US.book 10 ページ ２０１２年３月２９日　木曜日　午後２時３８分

2
Seat and restraint systems
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2
Seats and restraint systems. . . . . . . . . . . . . . . . . . .2- 3
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 3
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 9
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 10
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 14
Seat belt use during pregnancy . . . . . . . . . . . . . . .2- 22
Seat belt pre-tensioner and
force limiter systems. . . . . . . . . . . . . . . . . . . . . .2- 22
Child restraint systems . . . . . . . . . . . . . . . . . . . . . .2- 24
Maintenance and inspection of seat belts. . . . . . . .2- 35
Supplemental Restraint System (SRS) - airbag . . .2- 35
BK0150800US.book 1 ページ ２０１２年３月２９日　木曜日　午後２時３８分

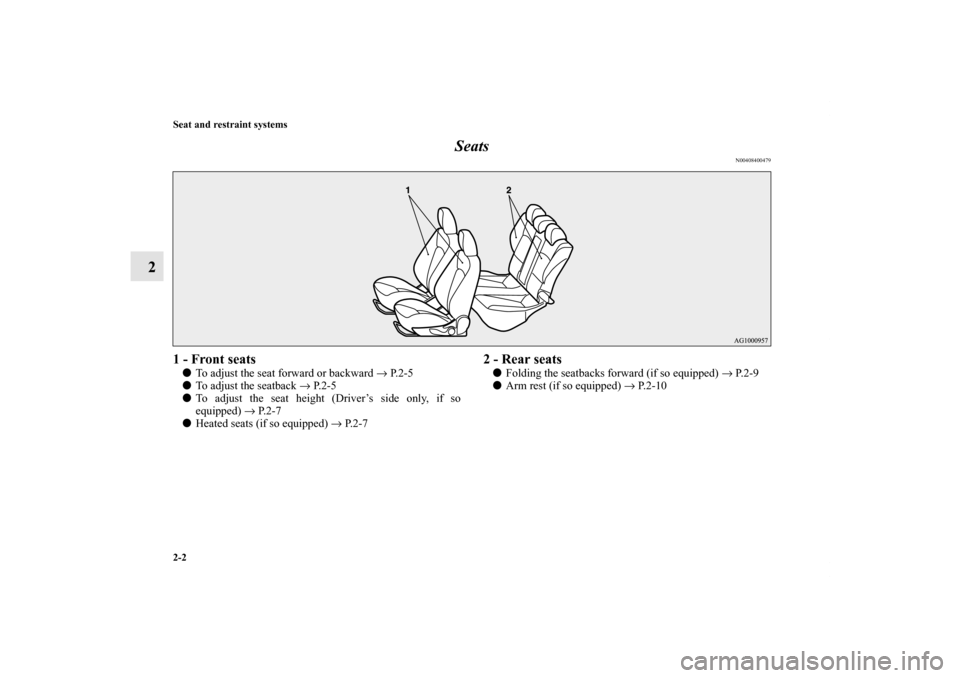

2-2 Seat and restraint systems
2Seats
N00408400479
1 - Front seats
To adjust the seat forward or backward → P. 2 - 5

To adjust the seatback → P. 2 - 5

To adjust the seat height (Driver’s side only, if so
equipped) → P. 2 - 7

Heated seats (if so equipped) → P. 2 - 7
2 - Rear seats
Folding the seatbacks forward (if so equipped) → P. 2 - 9

Arm rest (if so equipped) → P.2-10
BK0150800US.book 2 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Seat and restraint systems
2-3
2 Seats and restraint systems
N00401600182
Your vehicle has seat belts and other features that help protect
you and your passengers in an accident.
Seat belts are the most important safety device. When worn
properly, seat belts can reduce the chance of serious injury or
death in various types of crashes. For added protection during a
severe frontal collision, your vehicle has a Supplemental
Restraint System (SRS) with airbags for the driver and passen-
gers. The seats, head restraints, and door locks also are safety
equipment, which must be used correctly.
Always check the following before you drive:

That everyone in your vehicle is properly wearing their
seat belt.

That infants and small children are properly secured in
appropriate child restraint systems in the rear seat.

That all doors are fully closed and locked.

That seatbacks are upright, with head restraints properly
adjusted.
Safety equipment cannot prevent injury or death in all motor
vehicle accidents. You can help reduce the risk of injury or
death, however, by following the instructions in this manual.
Front seats
N00401800315
Position the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the ped-
als, easily control the steering wheel and safely operate the
vehicle.Except for RECARO seat RECARO seat
BK0150800US.book 3 ページ ２０１２年３月２９日　木曜日　午後２時３８分

2-4 Seat and restraint systems
2
WA R N I N G
!
Do not attempt to adjust the seat while driving. This
can cause loss of vehicle control and result in an
accident.
After adjusting the seat, make sure that the seat is
securely locked into position.
To reduce the risk to the driver of serious injury or
death during deployment of the driver’s airbag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.
To reduce the risk to the front passenger of serious
injury or death during deployment of the passen-
ger’s airbag, always properly wear the seat belt and
adjust the front passenger’s seat as far back as pos-
sible.
Always place children 12 years old and under in the
rear seat and use appropriate child restraint sys-
tems.
CAUTION
!
Make sure that the seat is adjusted by an adult. If it
is adjusted by a child, an unexpected accident might
occur.
Do not place a cushion or the like between your back
and the seatback while driving. The effectiveness of
the head restraints will be reduced in the event of an
accident.
When sliding the seats, be careful not to catch your
hand or leg.
When sliding or reclining the seat rearward, pay
careful attention to the rear seat passengers.
BK0150800US.book 4 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Seat and restraint systems
2-5
2
To adjust the seat forward or backward
N00401900244
Pull the seat adjusting lever up and slide the seat forward or
backward to the desired position. Release the adjusting lever to
lock the seat in place.
To adjust the seatback
N00402000297
Except for RECARO seatTo adjust the seatback, lean forward slightly, gently pull the
seatback lock lever up, then lean backward to a comfortable
position and release the lever. The seatback will lock in place.
WA R N I N G
!
To make sure that the seat is securely locked, try to
move it forward or backward without using the
adjusting lever. Except for RECARO seat
RECARO seat
CAUTION
!
The reclining mechanism used in the seatback is
spring loaded, and will cause the seatback to return
quickly to the vertical position when the lock lever is
operated.
When pulling the lever, sit close to the seatback or
hold the seatback with your hand to control its
return motion.
BK0150800US.book 5 ページ ２０１２年３月２９日　木曜日　午後２時３８分

2-6 Seat and restraint systems
2
RECARO seatAdjust the seatback angle by turning the dial. 1- To move to forward direction
2- To recline backward
WA R N I N G
!
To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
BK0150800US.book 6 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Seat and restraint systems
2-7
2
To adjust the seat height (Driver’s side only, if so
equipped)
N00402100184
Operate the lever repeatedly to raise or lower the seat.
Heated seats
(if so equipped)
N00435600336
The heated seats can be operated when the ignition switch is in
the “ON” position.
The indicator light (A) will illuminate while the heater is on.
1- Raise
2- Lower
1- Heater high (for quick heating)
2- Heater off
3- Heater low (to keep the seat warm)
BK0150800US.book 7 ページ ２０１２年３月２９日　木曜日　午後２時３８分
