2013 MITSUBISHI LANCER Owners Manual

3-290 Features and controls
3

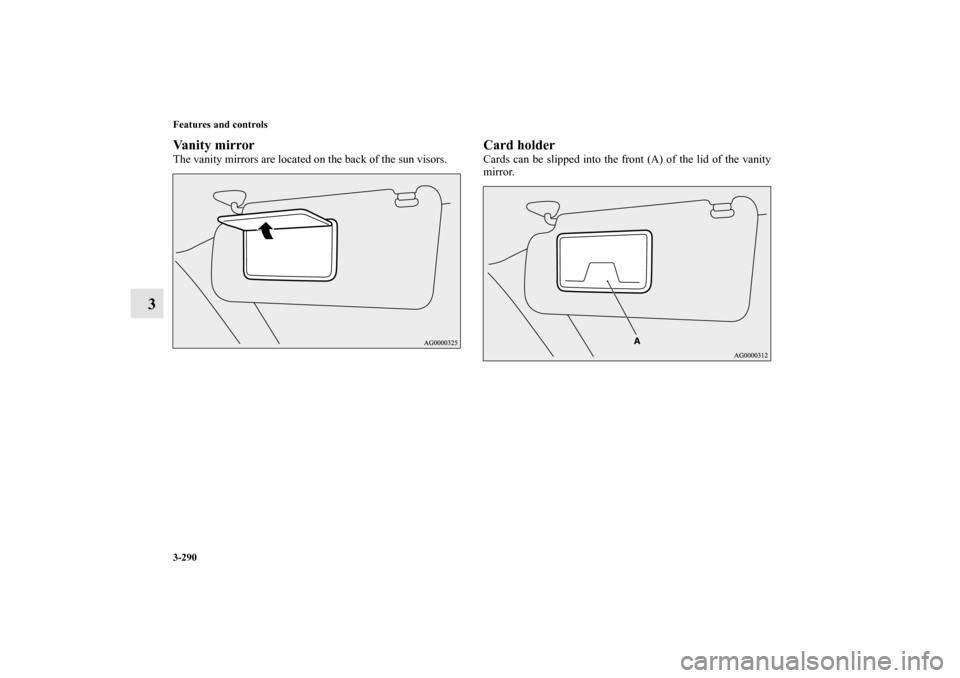

Va n i t y m i r r o rThe vanity mirrors are located on the back of the sun visors.
Card holderCards can be slipped into the front (A) of the lid of the vanity
mirror.
BK0150800US.book 290 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-291
3 12 V power outlet
N00525000556
12 V power outlets are located in front of the floor console
(Type 1, Type 2) and inside of the floor console box (Type 3).NOTE
If your vehicle is equipped with two 12 V power outlets,
both power outlets can be used simultaneously.
Type 1, Type 2The accessory can be operated when the ignition switch is in
the “ON” or “ACC” position.
To use a “plug-in” type accessory, pull out the plug, then insert
the plug in the socket.
CAUTION
!
Be aware that using electronic equipment with the
engine off may run the battery down.
When the 12 V power outlet is not in use, be sure to
put on the plug or close the 12 V power outlet cover.
This will prevent the 12 V power outlet from becom-
ing dirty and possibly short-circuiting.
CAUTION
!
Be sure to use a “plug-in” type accessory operating
at 12 V and 120 W or less.
When using two 12 V power outlets or 12 V power
outlet and cigarette lighter simultaneously, make
sure that the total power consumption of these does
not exceed 120 W at 12 V.
Ty p e 1
BK0150800US.book 291 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-292 Features and controls
3

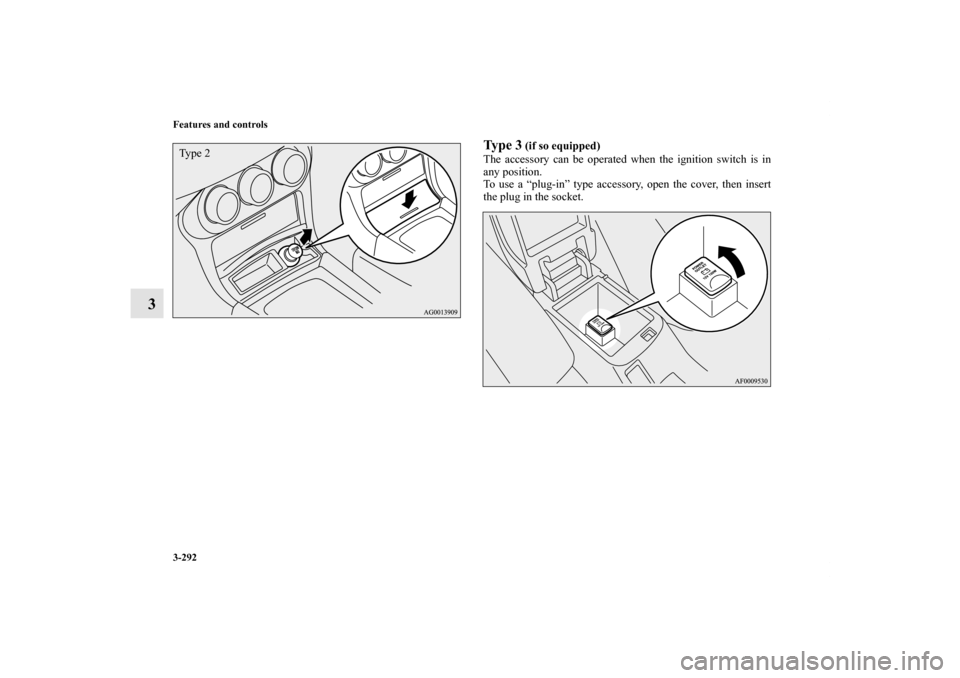

Ty p e 3
(if so equipped)
The accessory can be operated when the ignition switch is in
any position.
To use a “plug-in” type accessory, open the cover, then insert
the plug in the socket.
Ty p e 2BK0150800US.book 292 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-293
3 Interior lights
N00525300461
Dome light (Front)/Reading lights
(if so equipped)
N00525800192
Dome light (Front)The dome light can be turned on by sliding the dome light
switch.
1- Dome light (Rear) (if so equipped) → P.3-295
2- Dome light (Front)/Reading lights (if so equipped) → P. 3 -
293
BK0150800US.book 293 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-294 Features and controls
3
1- (DOOR)
The dome light comes on when any door is opened. When
all the doors are closed, the dome light illuminates for about
30 seconds then goes off. However, the light goes off imme-
diately if:

The door is closed while the ignition switch is in the
“ON” position.

The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.

The door is closed and the power door lock switch is
used to lock the doors.

In vehicles equipped with the keyless entry system, the
keyless entry system remote control transmitter is used
to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.
NOTE
When the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for about 30 seconds before going off.

When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate
for about 30 seconds before going off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light goes off.
BK0150800US.book 294 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-295
3

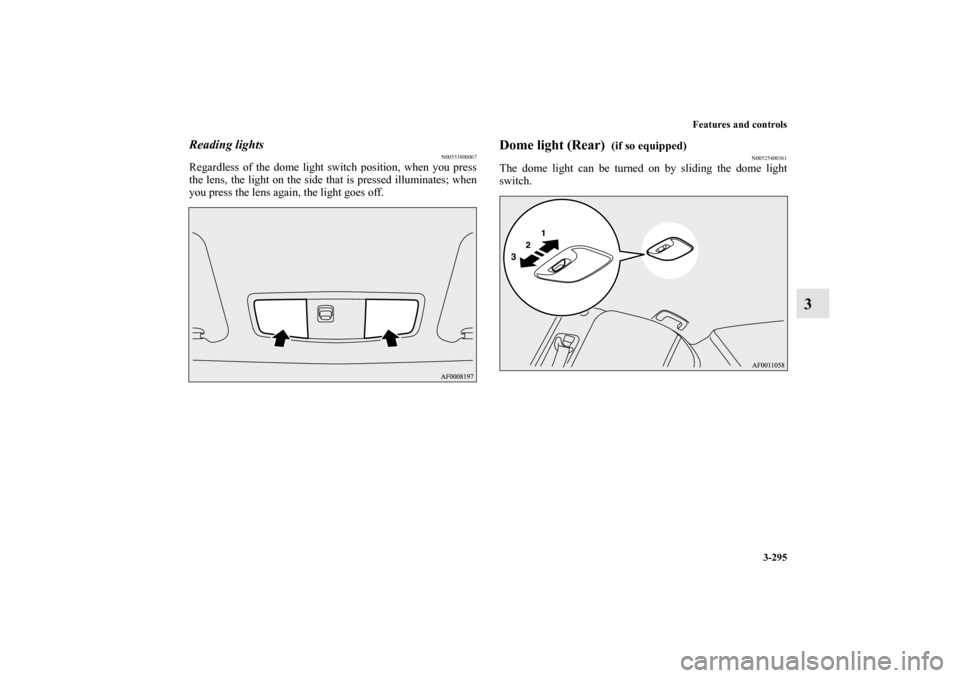

Reading lights
N00553800067
Regardless of the dome light switch position, when you press
the lens, the light on the side that is pressed illuminates; when
you press the lens again, the light goes off.
Dome light (Rear)
(if so equipped)
N00525400361
The dome light can be turned on by sliding the dome light
switch.
BK0150800US.book 295 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-296 Features and controls
3
1- (ON)
The dome light comes on.
2- (
)
The dome light comes on when any door is opened. When all
the doors are closed, the dome light illuminates for about 30
seconds then goes off. However, the light goes off immedi-
ately if:

The door is closed while the ignition switch is in the
“ON” position.

The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.

The door is closed and the power door lock switch is
used to lock the doors.

In vehicles equipped with the keyless entry system, the
keyless entry system remote control transmitter is used
to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.
NOTE
When the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for about 30 seconds before going off.

When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate for
about 30 seconds before going off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
3- (OFF)
The dome light goes off.
BK0150800US.book 296 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-297
3
Interior light auto-cutout function (dome light
and other lights)
N00526300312
If any of the interior lights are left on with the ignition switch
in the “LOCK” position, the lights go off automatically after
about 30 minutes.
The lights come on again if the ignition switch is turned to the
“ON” or “ACC” position, any door or the trunk lid is opened
and closed, or the keyless entry system or F.A.S.T.-key is oper-
ated.NOTE
The interior light auto-cutout function can be deactivated.
The time until the lights automatically go off can be
adjusted. See your authorized Mitsubishi Motors dealer
for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
Storage spaces
N00526400485
NOTE
Do not leave valuables in any storage space when leaving
the vehicle.
CAUTION
!
Never leave lighters, carbonated drink cans, or spec-
tacles in the cabin when parking the vehicle in hot
sunshine. The cabin will become extremely hot, so
lighters and other flammable items may catch fire
and unopened drink cans (including beer cans) may
rupture. The heat may also deform or crack plastic
spectacle parts.
Keep the lids of storage spaces closed while driving
the vehicle. A lid or the contents of a storage space
could otherwise cause injuries during a sudden stop.
BK0150800US.book 297 ページ ２０１２年３月２９日　木曜日　午後２時３８分
