2013 MITSUBISHI LANCER Owners Manual

9-6 Specifications
9Vehicle dimensions
N01147500482
Item
Vehicles with 16 inch tire
Vehicles with 18 inch tire
Overall length 180.0 in (4,570 mm) Overall width 69.4 in (1,760 mm) Overall height 58.3 in (1,480 mm) 58.7 in (1,490 mm)Wheel base 103.7 in (2,635 mm) BK0150800US.book 6 ページ ２０１２年３月２９日　木曜日　午後２時３８分

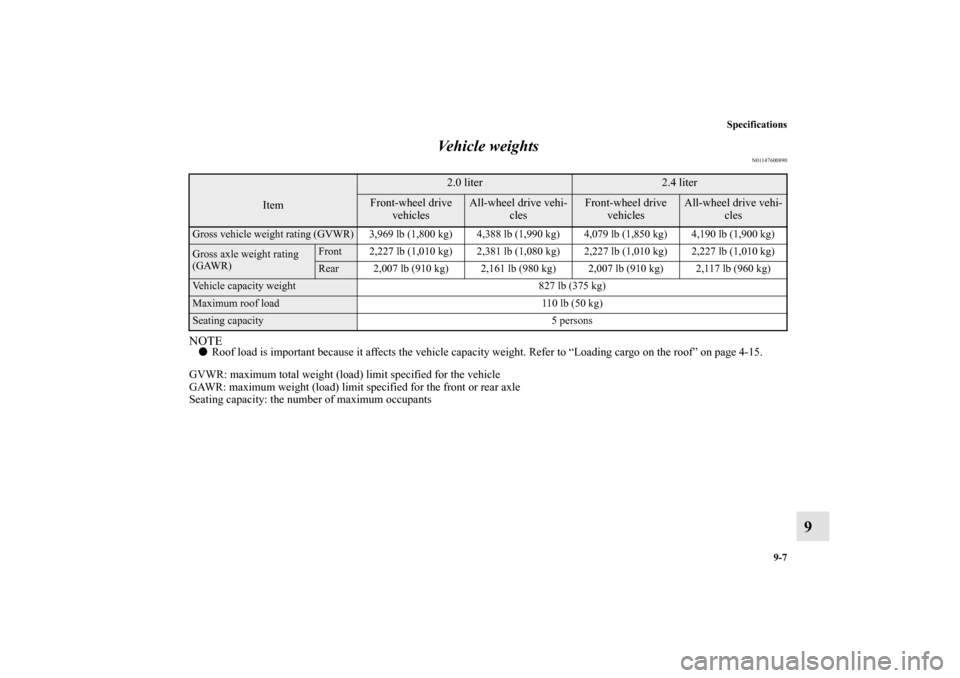

Specifications
9-7
9 Vehicle weights
N01147600890
NOTE
Roof load is important because it affects the vehicle capacity weight. Refer to “Loading cargo on the roof” on page 4-15.
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupants
Item
2.0 liter
2.4 liter
Front-wheel drive
vehicles
All-wheel drive vehi-
cles
Front-wheel drive
vehicles
All-wheel drive vehi-
cles
Gross vehicle weight rating (GVWR) 3,969 lb (1,800 kg) 4,388 lb (1,990 kg) 4,079 lb (1,850 kg) 4,190 lb (1,900 kg)Gross axle weight rating
(GAWR)
Front 2,227 lb (1,010 kg) 2,381 lb (1,080 kg) 2,227 lb (1,010 kg) 2,227 lb (1,010 kg)Rear 2,007 lb (910 kg) 2,161 lb (980 kg) 2,007 lb (910 kg) 2,117 lb (960 kg)
Vehicle capacity weight 827 lb (375 kg)Maximum roof load 110 lb (50 kg)Seating capacity 5 persons
SC00001200-9.fm 7 ページ ２０１２年４月１８日　水曜日　午後２時３分

9-8 Specifications
9Engine specifications
N01147700439
Item
2.0 liter
2.4 liter
Except for vehicles with tur-
bocharger
Vehicles with turbocharger
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrange-
ment4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 9.0 10.5Thermostat valve opening temperature 189 °F (87 °C) 180 °F (82 °C) 189 °F (87 °C)Spark plugs
NGK DIFR6C11 DILKR7B6 DIFR5C11
Spark plug gap.040 to .043 in
(1.0 to 1.1 mm).020 to .023 in
(0.5 to 0.6 mm).040 to .043 in
(1.0 to 1.1 mm)Firing order 1-3-4-2BK0150800US.book 8 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Specifications
9-9
9 Battery
N01147800182
Battery is a 12 volt type.
Tires and wheels
N01147900691
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
75D23L
Tire
Size P205/60R16 91H215/45R18 89W,
P215/45R18 89V
Wheel
Size16 x 6 1/2J,
16x61/2JJ18 x 7J, 18 x 7JJPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0150800US.book 9 ページ ２０１２年３月２９日　木曜日　午後２時３８分

9-10 Specifications
9Refill capacities
N01148001016
Item
Capacity
Lubricants
Fuel (approxi-
mate)
Front-wheel drive vehicles 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 1-2.All-wheel drive vehicles 14.5 gal (55.0 L)
Engine oil
2.0 liter
Except for vehi-
cles with turbo-
charger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark
(“starbust” symbol) on the container.
If these oils are not available, an API classification
SN or higher can be used.Oil filter .32 qt (0.3 L)
Vehicles with
turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Mitsubishi Motors Genuine Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)Mitsubishi Motors Genuine NEW MULTI GEAR
OIL API classification GL-3 SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) Mitsubishi Motors Genuine CVTF-J4Tw i n C l u t c h S S T8.0 qt (7.6 L)
{includes .53 qt
(0.5 L) in oil
cooler}Mitsubishi Motors Genuine SSTF-ITransfer oil
Except for vehicles with ACD .50 qt (0.47 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil
API classification GL-5 SAE 80Vehicles with ACD .85 qt (0.8 L) Mitsubishi Motors Genuine LSD gear oil
AW C c o n t r o l f l u i d.95 qt (0.9 L)
{Includes hydrau-
lic piping}DIAMOND ATF SP IIIBK0150800US.book 10 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Specifications
9-11
9
ACD: Active center differential system
LSD: Limited slip differentialRear differential oil
Except for vehicles with ACD .42 qt (0.4 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil
API classification GL-5 SAE 80Vehicles with ACD .58 qt (0.55 L) Mitsubishi Motors Genuine LSD gear oil
Brake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
{Includes .63 qt (0.65 L) in reserve tank}
Manual tran-
saxle7.4 qt (7.0 L)
Mitsubishi Motors Genuine Super Long Life Coolant
Premium or an equivalent*CVT 7.4 qt (7.0 L)Tw i n C l u t c h
SST7.9 qt (7.5 L)
Washer fluid 4.3 qt (4.0 L) — Refrigerant (air conditioning)Refer to the “Air
conditioning
label” on page
9-2.HFC-134a
* : similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic
acid technology
Item
Capacity
Lubricants
BK0150800US.book 11 ページ ２０１２年３月２９日　木曜日　午後２時３８分

BK0150800US.book 12 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Alphabetical index
1
A
Accessory (installation) 1-8
ACD (Active center differential system) 3-133
ACD control mode display 3-135
ACD control mode switch 3-134
ACD warning display 3-135
Active stability control (ASC) 3-152
ASC OFF display or ASC indicator 3-155
ASC operation display 3-155
Air cleaner filter 7-15
Air conditioning
Automatic air conditioning 5-31
,5-41
Important air conditioning operating tips 5-51
Manual air conditioning 5-12
,5-22
Air purifier 5-52
All-wheel driving operation 3-140
Aluminum wheels 7-93
Antenna
Roof antenna 5-148
Anti-lock braking system 3-148
Warning light / display 3-149,3-150
Arm rest 2-10
Assist grip 3-305Audio
AM/FM electronically tuned radio with CD player 5-52
AM/FM electronically tuned radio with 6 CD autochanger 5-
80
Error codes 5-137
,5-139
Handling of compact discs 5-145
Steering wheel audio remote control switch 5-134
Automatic air conditioning 5-31
,5-41
Auxiliary audio connector (RCA) 5-132
Auxiliary video connector (RCA) 5-132
AWC control fluid 7-20
B
Back-up lights
Bulb capacity 7-54
Replacement 7-81
Ball joint, steering linkage seals and drive shaft boots 7-42
Battery 7-23
Charging system warning light 3-231
Checking battery electrolyte level 7-25
Disconnection and connection 7-26
During cold weather 7-25
Removing and installing the battery upper cover (vehicles
with turbocharger) 7-23
Specification 9-9
Bluetooth 2.0 interface 3-257
Bottle holder 3-304
