2013 MITSUBISHI LANCER Owners Manual

3-194 Features and controls
3
Auto reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.

When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
speed display will automatically reset. NOTE
The average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.

“---” is displayed when the average fuel consumption can-
not be measured.

The initial (default) setting is “Auto reset mode”.

Average fuel consumption may vary depend on the driv-
ing conditions (road conditions, how you drive, etc.) The
actual fuel consumption may differ from the fuel con-
sumption displayed, so treat the fuel consumption dis-
played as just a rough guideline.

The average fuel consumption display memories for auto
reset mode and manual reset mode are erased if the battery
is disconnected.

The display setting can be changed to the preferred units
{mpg (US), mpg (UK), L/100 km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
Momentary fuel consumption displayWhile driving, the momentary fuel consumption is shown with
a bar graph.
When the momentary fuel consumption surpasses the average
fuel consumption, the momentary fuel consumption is dis-
played with a green bar graph. (Type 2)
Be conscious of maintaining the momentary fuel consumption
above the average fuel consumption, it can help you drive with
the better fuel consumption.NOTE
When the momentary fuel consumption cannot be mea-
sured, a bar graph is not shown.

The display setting can be changed to the preferred units
{mpg (US), mpg (UK), L/100 km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.

It is possible to cancel the green bar graph.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.Function setting screenThe “Display language”, “Temperature unit”, “Fuel consump-
tion unit”, and “Average fuel consumption and speed reset
method” settings can be modified as desired.
For further details, refer to “Changing the function settings
(With ignition switch in the “ON” position)” on page 3-202.
BK0150800US.book 194 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-195
3
Interrupt display screen (With ignition switch in
the “ON” position)
N00556300135
Warning displayWhen there is information to be announced, such as a system
fault, a tone sounds and the information screen is switched to
the warning display screen.
Refer to the warning list and take the necessary measures.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-220.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Returning to the display screen from before the warning
display
Even if the cause of the warning display is not eliminated, you
can return to the screen that was displayed before the warning
display.
If you press the multi-information meter switch, the display
screen switches to the screen display from before the warning
and the warning (A) is displayed.
Ty p e 1
Ty p e 2
BK0150800US.book 195 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-196 Features and controls
3
NOTE
Warning display screens with a “ ” or “ ” mark dis-
played in the upper right of the screen can be switched. If
you want to switch the display, press the multi-informa-
tion meter switch as follows.
“ ”: Press lightly.
“ ”: Press for about 2 seconds or more.
Redisplay of a warning display screenWhen the warning is displayed, if you lightly press the
multi-information meter switch a few times, the warning dis-
play screen you switched from is redisplayed.Other interrupt displaysThe operation status of each system is displayed on the infor-
mation screen.
For further details, refer to the appropriate page in the warning
display list.
Refer to “Other interrupt displays (With ignition switch in the
“ON” position)” on page 3-227.Selector lever position display screen {continu-
ously variable transmission (CVT)}
N00556400048
Shows the position of the selector lever.
Refer to “Selector lever operation” on page 3-99.Gearshift lever position display screen (Twin
Clutch SST)
N00545800055
Shows the position of the gearshift lever.
Refer to “Gearshift lever operation” on page 3-113.
BK0150800US.book 196 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-197
3
Outside temperature display screen
N00556500094
Shows the temperature outside the vehicle.NOTE
The display setting can be changed to the preferred units
(°F or °C).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.

Depending on factors such as the driving conditions, the
displayed temperature may vary from the actual outside
temperature.Twin Clutch SST control mode display screen
(Twin Clutch SST)
N00545100029
The operation status of the Twin Clutch SST control mode is
displayed. Refer to “Twin Clutch SST control mode” on page
3-121.ACD control mode display screen
(if so equipped)
N00545900030
The operation status of the ACD control mode is displayed.
Refer to “ACD control mode” on page 3-134.ECO mode indicator
(if so equipped)
N00568700019
This indicator will be displayed when fuel-efficient driving is
achieved.
Fuel remaining display screen
N00556600125
Shows the amount of fuel remaining.NOTE
It may take several seconds to stabilize the display after
refilling the tank.

If fuel is added with the ignition switch in the “ON” posi-
tion, the remaining fuel display may indicate an incorrect
fuel level.
CAUTION
!
Running out of gas could damage the catalytic con-
verter. If the warning display appears, refuel as soon
as possible.Ty p e 1 Ty p e 2
BK0150800US.book 197 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-198 Features and controls
3
Fuel tank filler door markThe arrow (A) indicates that the fuel tank filler door is located
on the left side of the vehicle. (Refer to “Filling the fuel tank”
on page 1-4.)Fuel remaining warning displayWhen the fuel level runs low, the information screen changes
to the interrupt display of the fuel remaining warning display
and the mark (B) on the fuel remaining display flashes slowly.
If this warning display appears, refuel as soon as possible.
NOTE
On hills or curves, the display may be incorrect due to the
movement of fuel in the tank.
Ty p e 1
Ty p e 2BK0150800US.book 198 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-199
3
Service reminder
N00556700168
Displays the approximate time until the next recommended
periodic inspection. “---” is displayed when the inspection time
has arrived.NOTE
Except for vehicles with Twin Clutch SST, shows the time
until the periodic inspection every 6 months (7,500 miles
or 12,000 km).

For vehicles with Twin Clutch SST, the service reminder
time can be modified by an authorized Mitsubishi Motors
dealer, to adjust for severe usage, etc. Refer to “Severe
maintenance schedule” in your vehicle’s Warranty and
Maintenance Manual. For further information, please con-
tact your authorized Mitsubishi Motors dealer.1. Shows the time until the next periodic inspection.
NOTE
Shows the distance in units of 100 miles (100 km) and the
time in units of 1 month.
2. This informs you that a periodic inspection is due. Contact
an authorized Mitsubishi Motors dealer or a repair facility
of your choice to have the system checked.
At that time, when the ignition switch is switched from
the “OFF” position to the “ON” position, the warning dis-
play is displayed for a few seconds on the information
screen.
Type 1
Type 2
3. After your vehicle is inspected at an authorized Mitsubishi
Motors dealer, it displays the time until the next periodic
inspection.
Ty p e 1
Ty p e 2
BK0150800US.book 199 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-200 Features and controls
3
To reset The “---” display can be reset while the ignition switch is in the
“OFF” position. When the display is reset, the time until the
next periodic inspection is displayed and the warning display is
no longer displayed when the ignition switch is switched from
the “OFF” position to the “ON” position.
1. When you lightly press the multi-information meter
switch, the information screen changes to the service
reminder display screen.2. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ ” and make it
flash. (If there is no operation for about 10 seconds with
this indicator flashing, the display returns to the previous
screen.)
3. With this indicator flashing, if you lightly press the multi-
information meter switch, the screen switches from “---”
to “CLEAR”. After that, the time until the next periodic
inspection is shown.Ty p e 1
Ty p e 2
Ty p e 2 Ty p e 1
BK0150800US.book 200 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-201
3

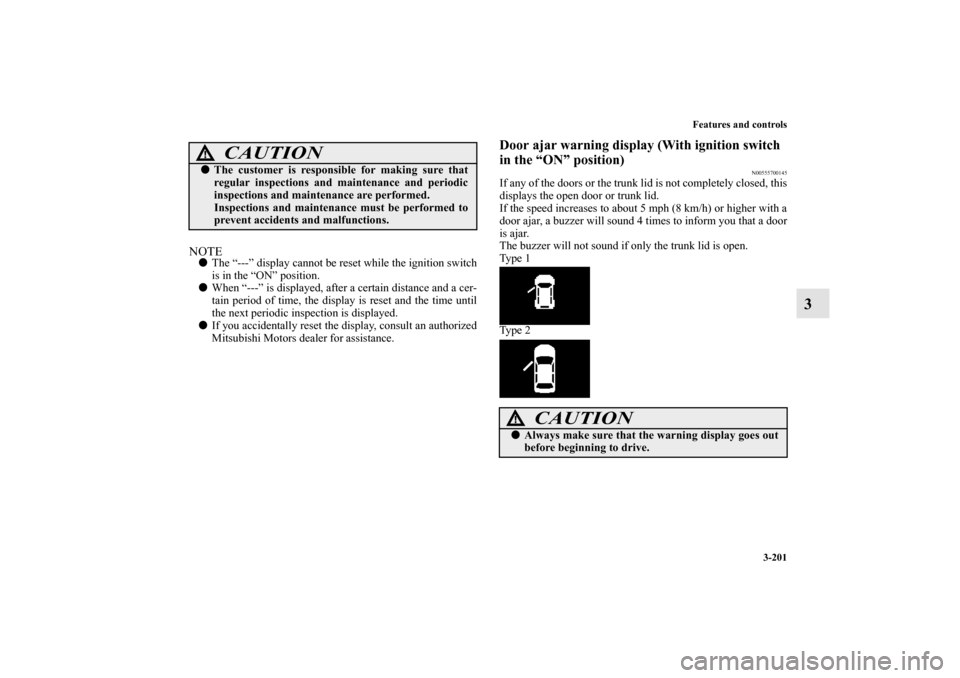

NOTE
The “---” display cannot be reset while the ignition switch
is in the “ON” position.

When “---” is displayed, after a certain distance and a cer-
tain period of time, the display is reset and the time until
the next periodic inspection is displayed.

If you accidentally reset the display, consult an authorized
Mitsubishi Motors dealer for assistance.
Door ajar warning display (With ignition switch
in the “ON” position)
N00555700145
If any of the doors or the trunk lid is not completely closed, this
displays the open door or trunk lid.
If the speed increases to about 5 mph (8 km/h) or higher with a
door ajar, a buzzer will sound 4 times to inform you that a door
is ajar.
The buzzer will not sound if only the trunk lid is open.
Ty p e 1
Ty p e 2
CAUTION
!
The customer is responsible for making sure that
regular inspections and maintenance and periodic
inspections and maintenance are performed.
Inspections and maintenance must be performed to
prevent accidents and malfunctions.
CAUTION
!
Always make sure that the warning display goes out
before beginning to drive.
BK0150800US.book 201 ページ ２０１２年３月２９日　木曜日　午後２時３８分
