2013 MITSUBISHI LANCER Owners Manual

3-210 Features and controls
3
Operation sound setting
N00557400104
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting).
Ty p e 1
Ty p e 2
BK0150800US.book 210 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-211
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.NOTE
If the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).

The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Changing the amount of time until “REST
REMINDER” is displayed
N00557500121
The amount of time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
2. Lightly press the multi-information meter switch to select
“ALARM” (rest time setting).Ty p e 1
Ty p e 2
BK0150800US.book 211 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-212 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select
the amount of time until the display appears.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected time.NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.

The drive time is reset when the ignition switch is in the
“OFF” position.
Changing the turn signal sound
N00563500038
It is possible to change the turn signal sound.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
2. Lightly press the multi-information meter switch to select
. (changing the turn signal sound)
Type 1 Type 2
Ty p e 1
Ty p e 2
BK0150800US.book 212 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-213
3
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from 1
(turn signal sound 1) → 2 (turn signal sound 2) → 1 (turn
signal sound 1).
The setting changes to the selected turn signal sound.
Changing the momentary fuel consumption display
(Type 2)
N00563600013
It is possible to change the bar graph setting of the momentary
fuel consumption display.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
2. Lightly press the multi-information meter switch to select
. (changing the momentary fuel consumption display)
BK0150800US.book 213 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-214 Features and controls
3
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.
Returning to the factory settings
N00557600148
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings). Ty p e 1
Ty p e 2
BK0150800US.book 214 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-215
3
3. Press and hold the multi-information meter switch (for
about 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.NOTE
The factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or (L/100 km)
• Temperature unit: °F (Fahrenheit) or {°C (Centigrade)}
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph
(Type 2): ON
BK0150800US.book 215 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-216 Features and controls
3Indicator light, warning light, and information screen display list
N00557700035
Indicator and warning light list
N00557800238
Ty p e A Ty p e B1- Position indicator → P.3-229
2- High beam indicator → P.3-229
3- Charging system warning light → P.3-231
4- Turn signal indicator/hazard warning light → P.3-229
5- Front fog light indicator (if so equipped) → P.3-229
6- Anti-lock braking system warning light → P.3-149
7- Tire pressure monitoring system warning light → P.3-169
8- Brake warning light → P. 3 - 2 2 9
9- Cruise control indicator (if so equipped) → P.3-160
10- Seat belt reminder/warning light → P.2-19
11- Supplemental Restraint System (SRS) warning light
→ P. 2 - 4 512- ECO mode indicator (if so equipped) → P.3-197
13- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-230
14- Active stability control (ASC) OFF indicator (if so
equipped) → P.3-155
15- Active stability control (ASC) indicator (if so equipped) →
P. 3 - 1 5 5
16- Information screen display list → P. 3 - 2 1 7
BK0150800US.book 216 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-217
3

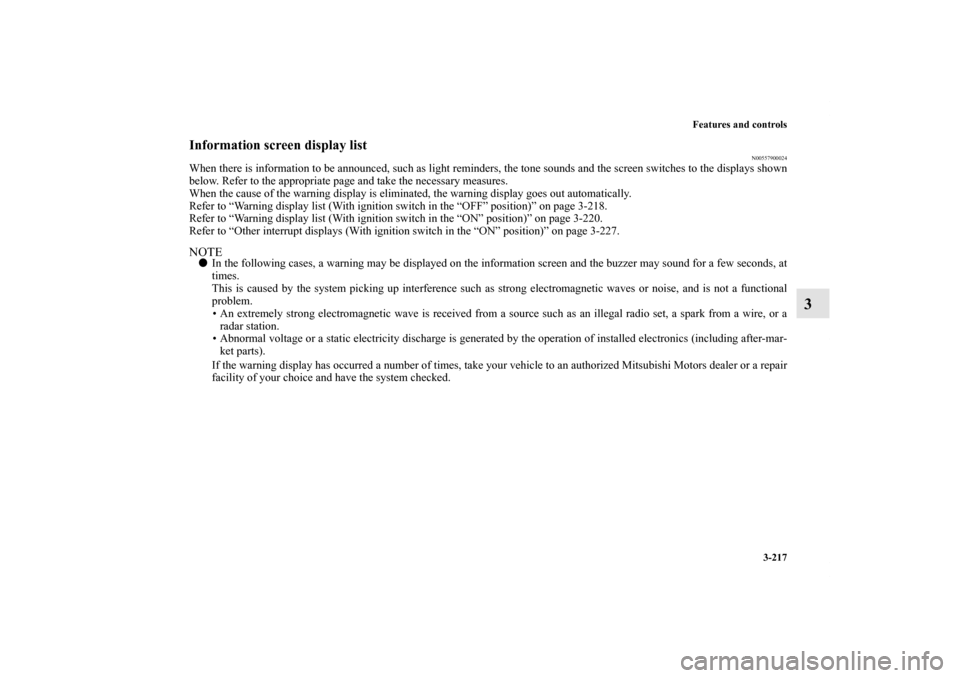

Information screen display list
N00557900024
When there is information to be announced, such as light reminders, the tone sounds and the screen switches to the displays shown
below. Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to “Warning display list (With ignition switch in the “OFF” position)” on page 3-218.
Refer to “Warning display list (With ignition switch in the “ON” position)” on page 3-220.
Refer to “Other interrupt displays (With ignition switch in the “ON” position)” on page 3-227.NOTE
In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at
times.
This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional
problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a
radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of installed electronics (including after-mar-
ket parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
