2013 MITSUBISHI LANCER Owners Manual

4-16 Driving safety
4

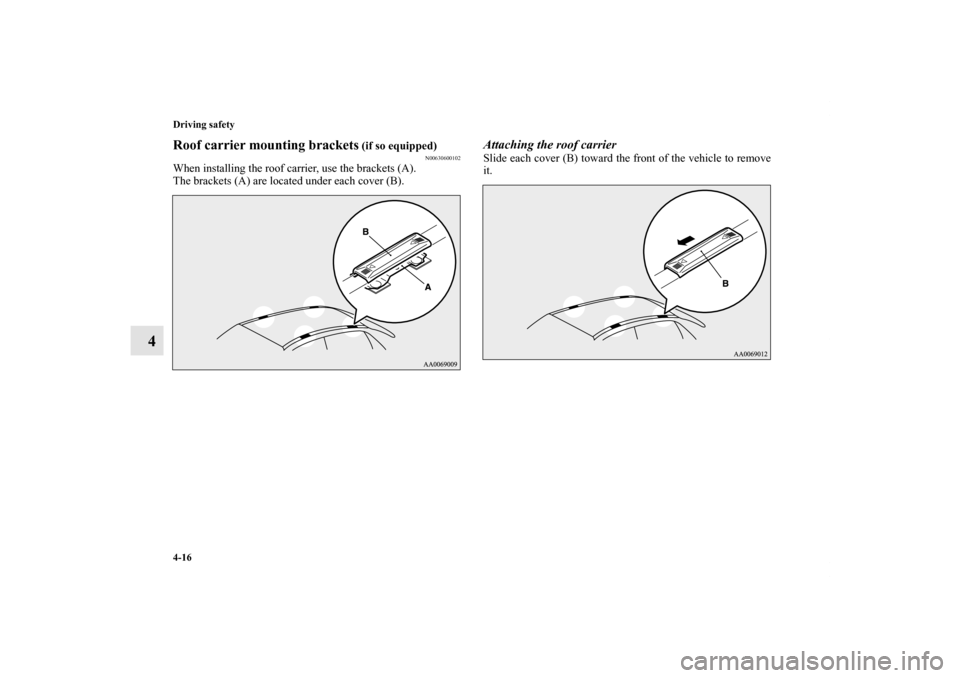

Roof carrier mounting brackets
(if so equipped)
N00630600102
When installing the roof carrier, use the brackets (A).
The brackets (A) are located under each cover (B).
Attaching the roof carrierSlide each cover (B) toward the front of the vehicle to remove
it.
BK0150800US.book 16 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Driving safety
4-17
4

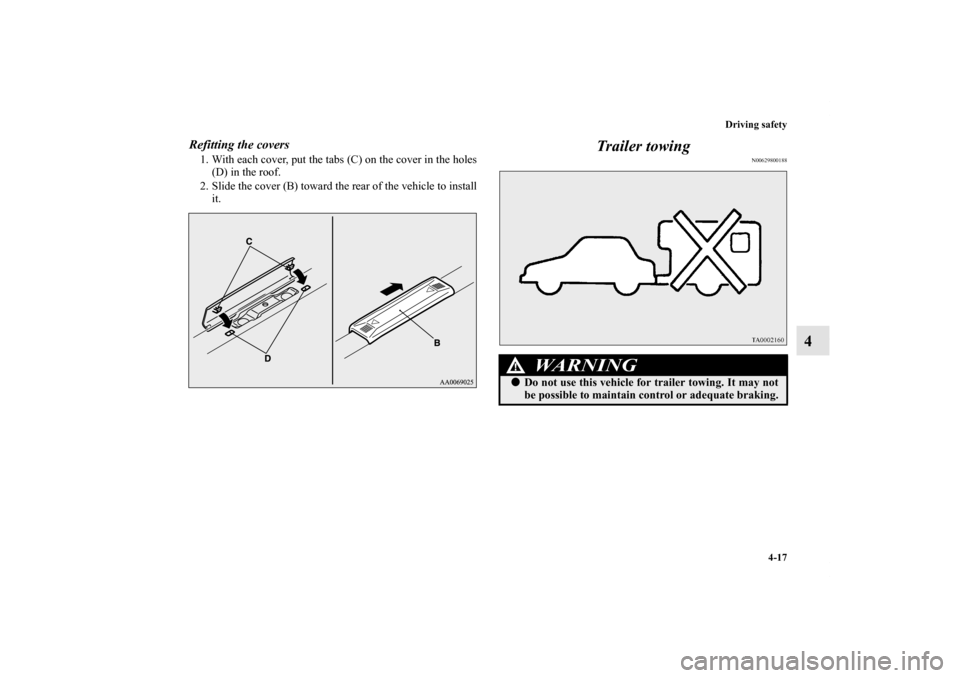

Refitting the covers1. With each cover, put the tabs (C) on the cover in the holes
(D) in the roof.
2. Slide the cover (B) toward the rear of the vehicle to install
it.
Trailer towing
N00629800188
WA R N I N G
!
Do not use this vehicle for trailer towing. It may not
be possible to maintain control or adequate braking.
BK0150800US.book 17 ページ ２０１２年３月２９日　木曜日　午後２時３８分

BK0150800US.book 18 ページ ２０１２年３月２９日　木曜日　午後２時３８分

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Heater without air conditioning function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Manual air conditioning with MAX A/C mode
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 12
Manual air conditioning without MAX A/C mode
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 22
Automatic air conditioning with Fahrenheit scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 31
Automatic air conditioning with Celsius scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 41
Important air conditioning operating tips . . . . . . .5- 51
Air purifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 52
AM/FM electronically tuned radio with CD player
(RBDS and MP3 compatible)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 52
AM/FM electronically tuned radio with 6 CD
autochanger (RBDS and MP3 compatible)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 80
To play tracks from USB device
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 111To play tracks from a Bluetooth® device
(vehicles with Bluetooth® 2.0 interface) . . . . . . 5- 128
To use the external audio input function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 132
Steering wheel audio remote control switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 134
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 137
Error codes (SIRIUS Satellite Radio)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 139
Error codes (iPod) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 141
Error codes (USB memory device) . . . . . . . . . . . . 5- 143
Handling of compact discs (CD) . . . . . . . . . . . . . . 5- 145
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 148
Digital clock (if so equipped) . . . . . . . . . . . . . . . . 5- 149
General information about your radio . . . . . . . . . . 5- 150
BK0150800US.book 1 ページ ２０１２年３月２９日　木曜日　午後２時３８分

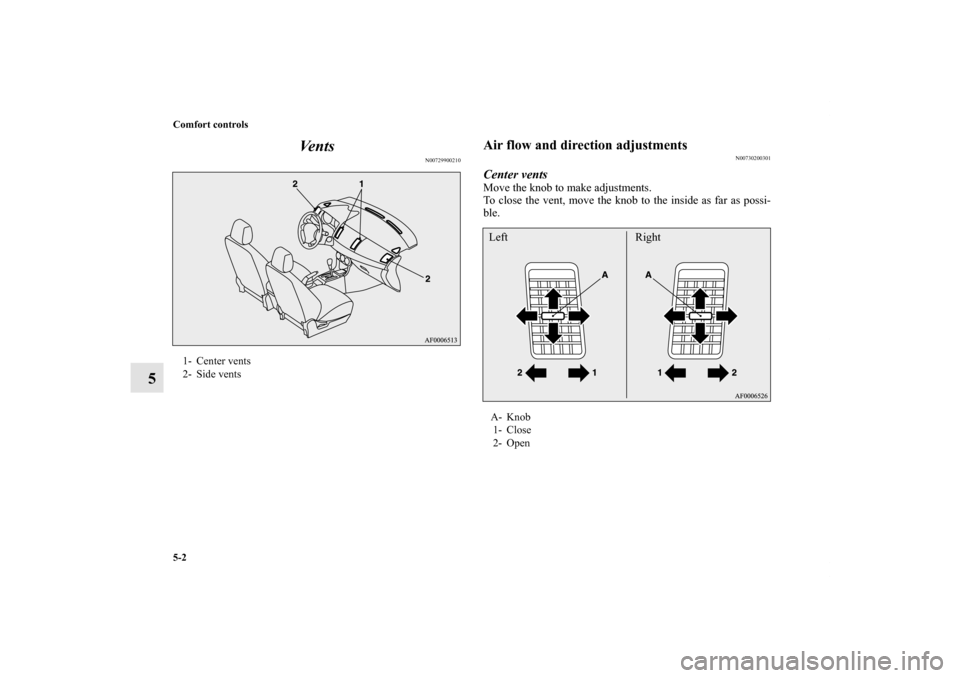

5-2 Comfort controls
5Ve n t s
N00729900210
Air flow and direction adjustments
N00730200301
Center ventsMove the knob to make adjustments.
To close the vent, move the knob to the inside as far as possi-
ble.
1- Center vents
2- Side vents
A- Knob
1- Close
2- OpenLeft Right
BK0150800US.book 2 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Comfort controls
5-3
5
Side ventsMove the knob to make adjustments.
To close the vent, move the knob to the outside as far as possi-
ble.NOTE
On rare occasions, air from the vents of an air-conditioned
vehicle may be foggy. This is only moist air cooling sud-
denly and does not indicate a problem.

Do not let drinks or other liquids get into the vents as they
could prevent the air conditioning from operating nor-
mally.
Changing the mode selection
N00736400493
To change the position and amount of air flowing from the
vents, turn the mode selection dial. Refer to “Mode selection
dial” on page 5-7, 5-13, 5-23, 5-33, 5-43.
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the vents.
: Small amount of air from the vents
: Medium amount of air from the vents
: Large amount of air from the ventsFace positionAir flows only to the upper part of the passenger compartment.
A- Knob
1- Close
2- OpenLeft Right
BK0150800US.book 3 ページ ２０１２年３月２９日　木曜日　午後２時３８分

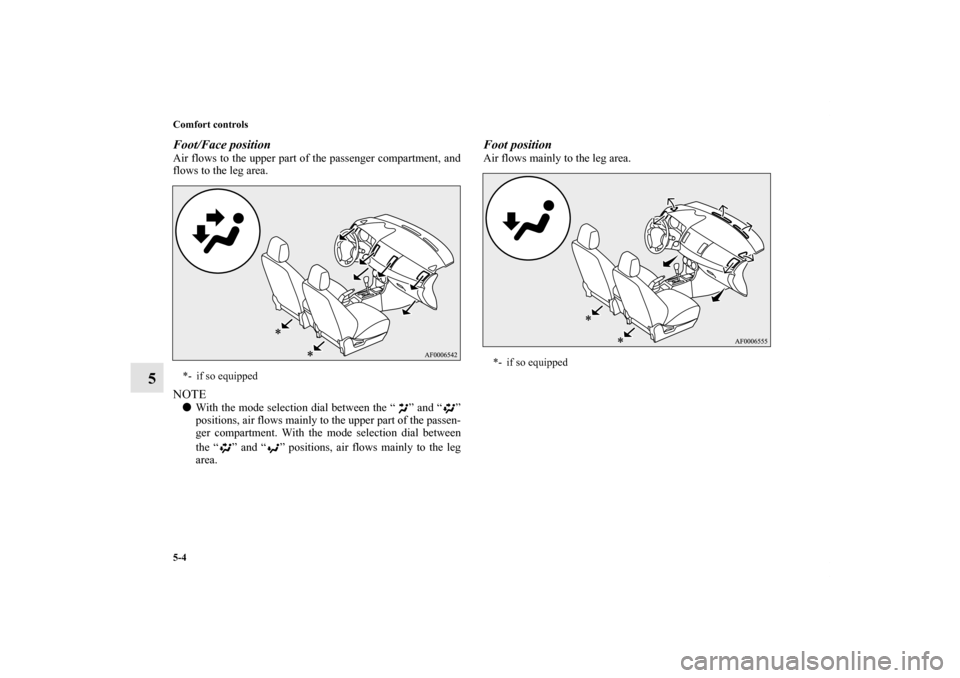

5-4 Comfort controls
5
Foot/Face positionAir flows to the upper part of the passenger compartment, and
flows to the leg area.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
Foot positionAir flows mainly to the leg area.
*- if so equipped
*- if so equipped
BK0150800US.book 4 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Comfort controls
5-5
5
Foot/Defroster positionAir flows to the leg area, the windshield and the door windows.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ”and “ ” positions, air
flows mainly to the windshield and the door windows.
Defroster positionAir flows mainly to the windshield and the door windows.
*- if so equipped
BK0150800US.book 5 ページ ２０１２年３月２９日　木曜日　午後２時３８分
