7-66 Vehicle care and maintenance
7
3. Turn the socket (C) counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0150800US.book 66 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Vehicle care and maintenance
7-67
7
Parking and side-marker lights (for vehicles with
high intensity discharge headlights)
N00917300538
1. To create enough work space, turn the steering wheel all
the way in the direction opposite to the side you wish to
replace.
2. Remove the clips (A), and screws (B) or bolts (B) to turn
up the cover (C).Ty p e 1
Ty p e 2
BK0150800US.book 67 ページ ２０１２年３月２９日　木曜日　午後２時３８分

7-68 Vehicle care and maintenance
7
3. Turn the socket (D) counterclockwise to remove it.
4. Pull the bulb out of the socket.5. To install the bulb, perform the removal steps in reverse.
BK0150800US.book 68 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Vehicle care and maintenance
7-69
7
Front turn signal lights
N00943400325

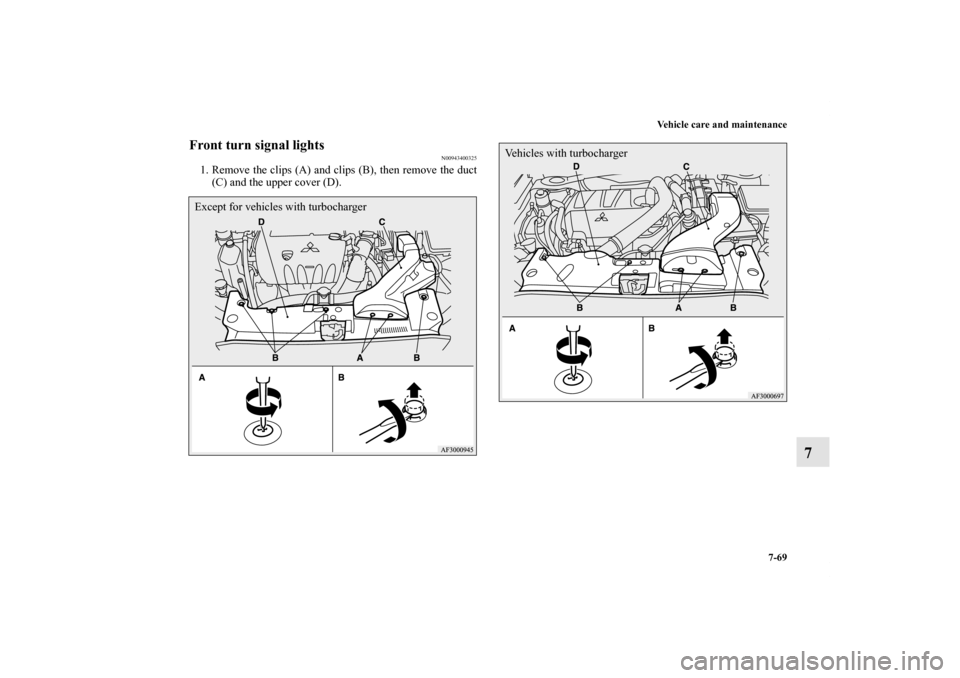

1. Remove the clips (A) and clips (B), then remove the duct
(C) and the upper cover (D).Except for vehicles with turbocharger
Vehicles with turbocharger
BK0150800US.book 69 ページ ２０１２年３月２９日　木曜日　午後２時３８分

7-70 Vehicle care and maintenance
7

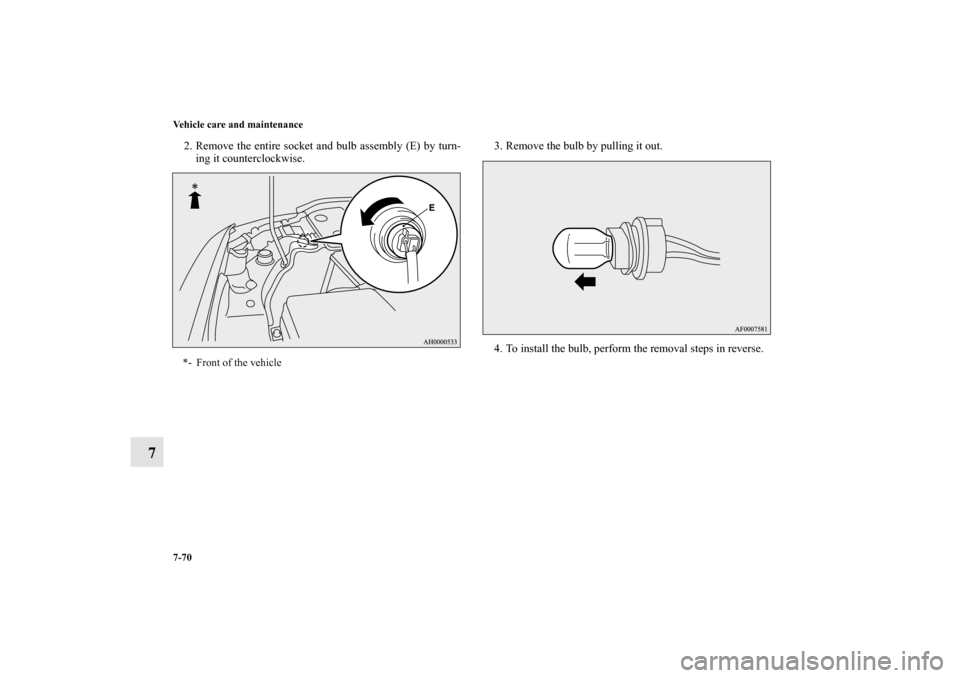

2. Remove the entire socket and bulb assembly (E) by turn-
ing it counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0150800US.book 70 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Vehicle care and maintenance
7-71
7

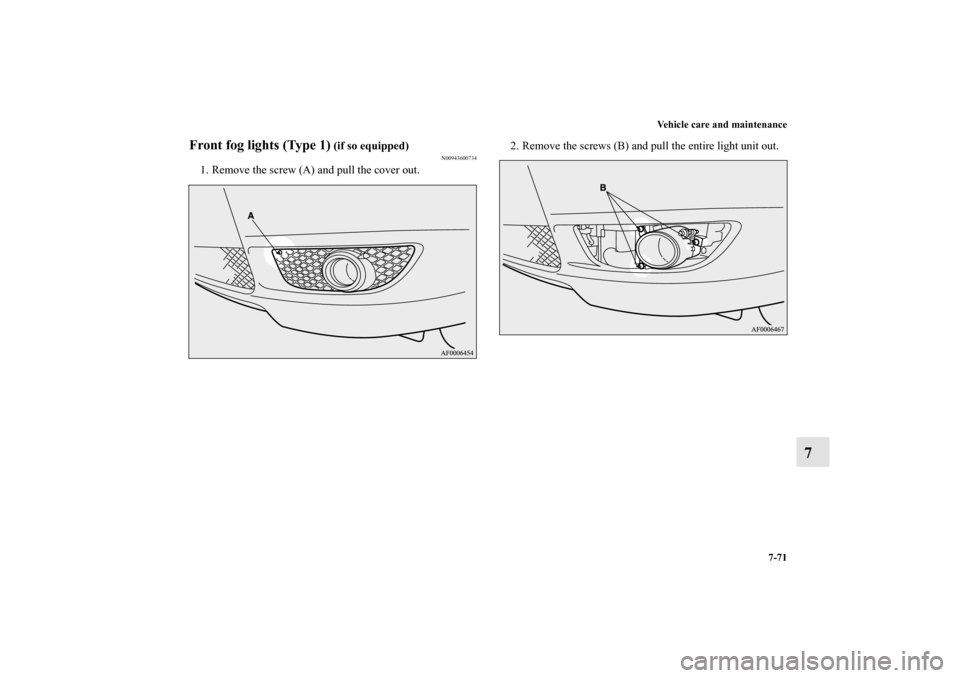

Front fog lights (Type 1)
(if so equipped)
N00943600734
1. Remove the screw (A) and pull the cover out.2. Remove the screws (B) and pull the entire light unit out.
BK0150800US.book 71 ページ ２０１２年３月２９日　木曜日　午後２時３８分

7-72 Vehicle care and maintenance
7
NOTE
When unfastening the screws, be careful not to mistakenly
move the beam position adjustment screw (C).3. Push the connector (D) to disconnect and remove the fog
light.
BK0150800US.book 72 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Vehicle care and maintenance
7-73
7
4. Remove the bulb assembly (E) by turning it counterclock-
wise.
5. To install the bulb, perform the removal steps in reverse.
NOTE
When mounting the cover, align the hooks (F) on the
cover with the hole in the body.
