2013 MITSUBISHI LANCER Owners Manual

3-154 Features and controls
3
“ASC OFF” switch
N00559400179
The ASC is automatically activated when the ignition switch is
turned to the “ON” position. You can deactivate the system by
pressing down the “ASC OFF” switch for 3 seconds or longer.
When the ASC is deactivated, the display/indicator will turn
on. To reactivate the ASC, momentarily press the “ASC OFF”
switch ; the display/indicator is turned off.
NOTE
Using the “ASC OFF” switch turns off both the skid con-
trol function and the traction control function.

When moving out of mud, sand or fresh snow, pressing
the accelerator pedal may not allow the engine speed to
increase. In such situations, temporarily turning off ASC
with the “ASC OFF” switch will make it easier to move
out your vehicle.

If you continue to press the “ASC OFF” switch after the
ASC is turned off, the “mistaken operation protection
function” will activate and the ASC will turn back on.
CAUTION
!
For safety reasons, the “ASC OFF” switch should be
operated when your vehicle is stopped.
Be sure to keep the ASC on while driving in normal
circumstances.
BK0150800US.book 154 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-155
3
ASC operation display or ASC OFF display
N00559500183
NOTE
The combination of items shown on the display varies
depending on the vehicle model.
NOTE
The display/indicator may come on when you start the
engine. This means that the battery voltage momentarily
dropped when the engine was started. It does not indicate
a malfunction, provided that the display goes out immedi-
ately.

When a spare tire has been put on your vehicle, the grip-
ping ability of the tire will be lower, making it more likely
that the display/indicator will blink.
-ASC operation display/ASC indicator
The display/indicator will blink when the ASC is operat-
ing.
-ASC OFF display/ASC OFF indicator
This display/incicator will turn on when the ASC is
turned off with the “ASC OFF” switch.
CAUTION
!
When display/indicator blinks, ASC is operating,
which means that the road is slippery or that your
vehicle’s wheels are beginning to slip. If this hap-
pens, drive slower.
If the temperature in the braking system continues
to increase due to continuous brake control on a
slippery road surface, the display/indicator will
blink. To prevent the brake system from overheat-
ing, the brake control of the traction control func-
tion will be temporarily suspended. The engine
control of the traction control function and normal
brake operation will not be affected. Park your vehi-
cle in a safe place. When the temperature in the
braking system has come down, the display/indi-
cator will be turned off and the traction control
function will start operating again.
BK0150800US.book 155 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-156 Features and controls
3
ASC warning display
N00559500196
If an abnormal condition occurs in the system, the following
display/indicator will turn on.
Warning display type 1
Warning display type 2 NOTE
The combination of items shown on the display varies
depending on the vehicle model.
To w i n g
N00546300015
-ASC indicator
-ASC OFF display/ASC OFF indicator
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the dis-
play/indicator goes out. If they go out, there is no
abnormal condition. If they do not go out or if they
turn on frequently, it is not necessary to stop the
vehicle immediately, but you should have your vehi-
cle inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as
possible.
CAUTION
!
When towing the vehicle with only the front wheels
or only the rear wheels raised off the ground, do not
place the ignition switch in the “ON” position. Plac-
ing the ignition switch in the “ON” position could
cause the ASC to operate, resulting in an accident.
Note that the correct towing method depends on the
transmission type and the vehicle’s drive configura-
tion.
For details, refer to “Towing” on page 6-22.
BK0150800US.book 156 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-157
3 Power steering system
N00518000310
The power steering system operates while the engine is run-
ning. It helps reduce the effort needed to turn the steering
wheel.
The power steering system has mechanical steering capability
in case the power assist is lost. If the power assist is lost for
some reason, you will still be able to steer your vehicle, but
you will notice it takes much more effort to steer. If this hap-
pens, have your vehicle inspected at an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Hydraulic power steering system (HPS)
(if so
equipped)
N00547100052
Electric power steering system (EPS)
(if so
equipped)
N00547200053
NOTE
During repeated full-lock turning of the steering wheel
(for example, while you are manoeuvring the vehicle into
a parking space), a protection function may be activated to
prevent overheating of the power steering system. This
function will make the steering wheel gradually harder to
turn. In this event, limit your turning of the steering wheel
for a while. When the system has cooled down, the steer-
ing effort will return to normal.

If you turn the steering wheel while the vehicle is station-
ary with the headlights on, the headlights may become
dim. This behavior is not abnormal. The headlights will
return to their original brightness after a short while.
WA R N I N G
!
Do not stop the engine while the vehicle is moving.
Stopping the engine would make the steering wheel
extremely hard to turn, possibly resulting in an acci-
dent.
CAUTION
!
Do not leave the steering wheel turned all the way in
one direction. This can cause damage to the power
steering system.
BK0150800US.book 157 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-158 Features and controls
3
Electronic power steering system warning displayTy p e 1
Ty p e 2
If there is a malfunction in the system, the warning display will
appear on the information screen in the multi-information dis-
play.
Cruise control
(if so equipped)
N00518300528
Cruise control is an automatic speed control system. It lets you
keep the same driving speed. Cruise control can be activated at
about 25 mph (40 km/h) or more. It is especially useful for
freeway driving. Cruise control does not work at speeds below
about 25 mph (40 km/h).NOTE
Cruise control may not be able to keep your speed on
uphills or downhills.

Your speed may drop on a steep uphill. You may have to
use the accelerator pedal if you want to stay at your set
speed.
CAUTION
!
If the warning display appears while the engine is
running, have the vehicle inspected by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible. It may become harder to
turn the steering wheel.
CAUTION
!
For safety reasons, the cruise control system should
be set to the “OFF” position by pressing the “ON
OFF” switch (A) when you are not using the cruise
control system.
Do not use cruise control when driving conditions
will not allow you to stay at the same speed, such as
in heavy traffic or on roads that are winding, icy,
snowy, wet, slippery or on a steep downhill slope.
On vehicles with manual transaxle, do not move the
gearshift lever to the “N” (Neutral) position while
driving at a set speed without depressing the clutch
pedal. The engine will run too fast and might be
damaged.
BK0150800US.book 158 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-159
3

Your speed may increase to more than the set speed on a
steep downhill. You must use the brake to control your
speed.Cruise control switchesA- “ON OFF” switch
To activate and deactivate the cruise control function.
B- “COAST SET” switch
To reduce the set speed and to set the speed of constant-speed
driving.C- “ACC RES” switch
To increase the set speed and to resume to the previous set
speed.
D- “CANCEL” switch
To terminate constant-speed driving.
NOTE
When operating the cruise control switches, correctly
press each cruise control switch.
The cruise control may be turned off automatically if two
or more of the cruise control switches are pressed at the
same time.
Ty p e 1
Ty p e 2
BK0150800US.book 159 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-160 Features and controls
3

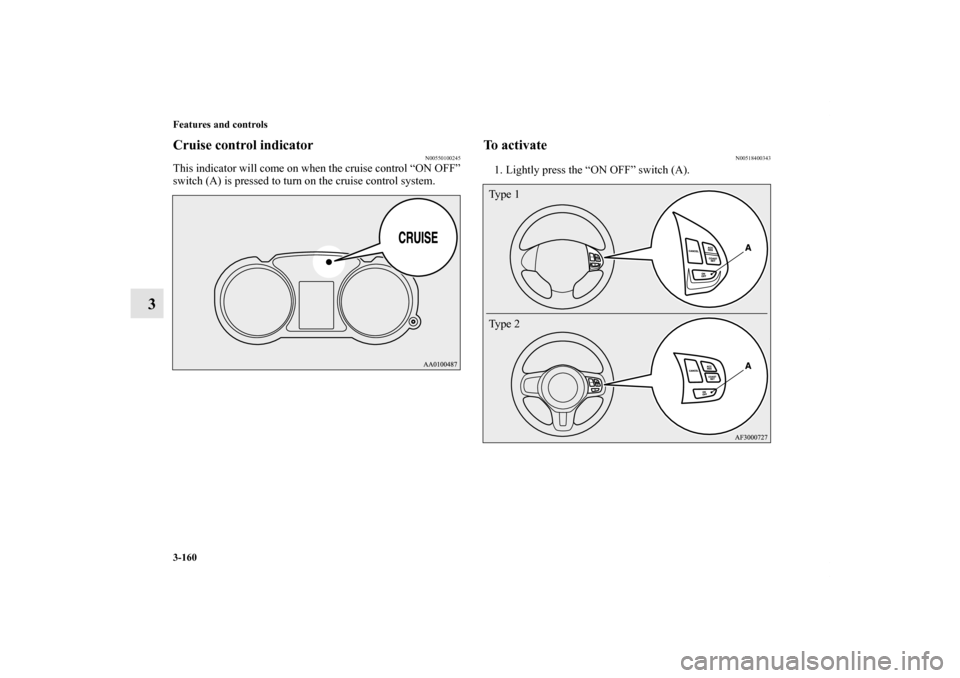

Cruise control indicator
N00550100245
This indicator will come on when the cruise control “ON OFF”
switch (A) is pressed to turn on the cruise control system.
To activate
N00518400343
1. Lightly press the “ON OFF” switch (A).Ty p e 1
Ty p e 2
BK0150800US.book 160 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-161
3
NOTE
If the cruise control is on when the ignition switch is
turned to “OFF” position, cruise control will turn on auto-
matically and the “CRUISE” control indicator will illumi-
nate the next time you start the engine.

If the battery voltage is insufficient, the memory data for
the cruise control will be erased. As a result, the
“CRUISE” control indicator may not come on when you
restart the engine. If this happens, press the “ON OFF”
switch once again to activate the cruise control.
2. Confirm that the Twin Clutch SST control mode is set to
“Normal” (on vehicles with Twin Clutch SST).
Refer to “Twin Clutch SST control mode” on page 3-121.NOTE
The cruising speed cannot be set when the Twin Clutch
SST control mode is set to “Sport” mode.3. Accelerate or decelerate to your desired speed, then press
and release the “COAST SET” switch (B) when the
“CRUISE” indicator light is illuminated. The vehicle will
then maintain the desired speed.
NOTE
The speed when you released the “COAST SET” switch
will be set as the cruising speed.Ty p e 1
Ty p e 2
