Overview
Instruments and controls (Driver’s area)
N00100201286
Combination headlights and dimmer
switch P.3-235
Turn signal lever P.3-244
Front fog light switch (if so
equipped) P.3-246
Supplemental restraint sys-
tem - airbag (for driver’s
seat) P.2-35
Horn switch P.3-256 Instrument cluster P.3-179
Cruise control switches (if so
equipped) P.3-158 Wiper and washer switch
P. 3 - 2 4 7
Fuses P.7-45
Engine hood release lever
P. 7 - 4Sportronic steering wheel paddle
shifter (if so equipped) P.3-107
Ignition switch P.3-86
Steering wheel tilt lock
lever P.3-80
Supplemental restraint system - driver’s
knee airbag P.2-35
Bluetooth
® 2.0 interface (if so equipped) P.3-257 Steering wheel audio remote
control switches (if so
equipped) P.5-134 Multi-information meter switch P.3-183 Except for RALLIART
Headlight leveling switch
(if so equipped) P.3-243
Active stability control
(ASC) OFF switch (if so
equipped) P.3-152
BK0150800US.book 1 ページ ２０１２年３月２９日　木曜日　午後２時３８分

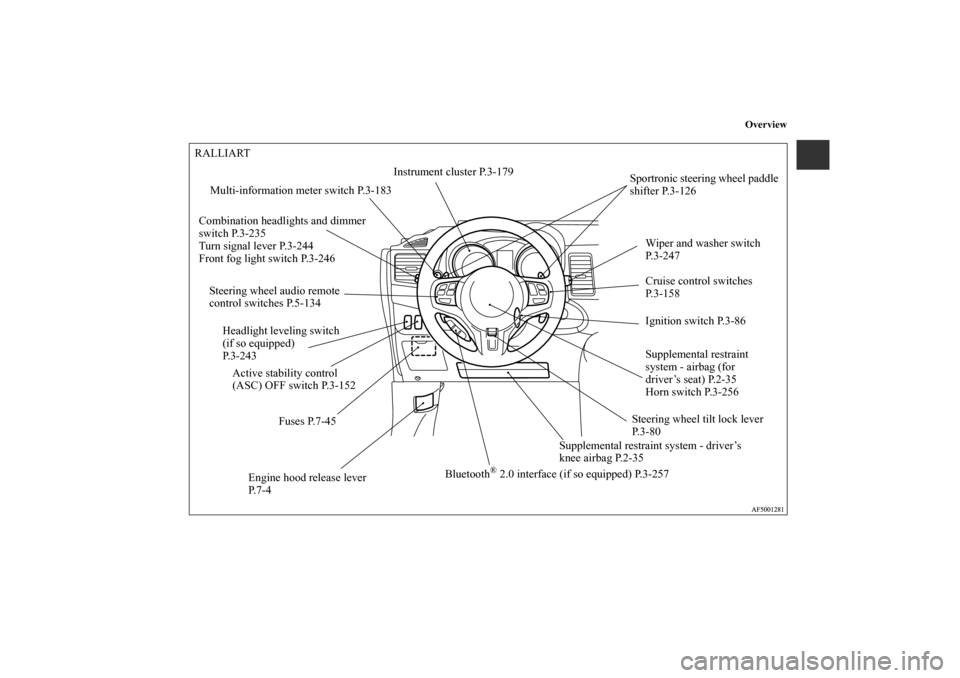

Overview
Sportronic steering wheel paddle
shifter P.3-126
Wiper and washer switch
P.3-247
Cruise control switches
P.3-158
Ignition switch P.3-86
Supplemental restraint
system - airbag (for
driver’s seat) P.2-35
Horn switch P.3-256
Steering wheel tilt lock lever
P. 3 - 8 0
Supplemental restraint system - driver’s
knee airbag P.2-35
Bluetooth
® 2.0 interface (if so equipped) P.3-257 Steering wheel audio remote
control switches P.5-134
Engine hood release lever
P. 7 - 4Fuses P.7-45 Combination headlights and dimmer
switch P.3-235
Turn signal lever P.3-244
Front fog light switch P.3-246Multi-information meter switch P.3-183Instrument cluster P.3-179 RALLIART
Headlight leveling switch
(if so equipped)
P. 3 - 2 4 3
Active stability control
(ASC) OFF switch P.3-152
BK0150800US.book 2 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Overview
Outside (Front)
N00100601163
[Except for vehicles with high intensity discharge
headlights type]
Front turn-signal lights P.3-244, 7-54, 7-69
Front side-marker and
parking lights P.3-235,
7-54, 7-65
Headlights, low beam
P.3-235, 7-54, 7-57
Headlights, high beam P.3-235, 7-54, 7-60[For vehicles with high intensity discharge head-
lights type]
Headlights, low/high beam
P.3-235, 7-54, 7-64
Daytime running lights P.7-54, 7-62 Except for RALLIART
Windshield wiper and washer
P. 3 - 2 4 7
Engine compartment P.7-7
Engine hood P.7-4Sunroof (if so equipped) P.3-75
Fuel tank filler
P. 1 - 4
Outside rearview mirrors P.3-84
Side turn-signal lights P.3-244, 7-54
Front fog lights (if so equipped) P.3-246, 7-54, 7-71Locking and unlocking P.3-52
Keyless entry system
(if so equipped) P.3-9
F.A.S.T.-key (Free-hand
Advanced Security Transmitter)
(if so equipped) P.3-17
Front turn-signal lights P.3-244, 7-54, 7-69
Front side-marker and
parking lights P.3-235,
7-54, 7-67
BK0150800US.book 9 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Overview
Sunroof (if so equipped) P.3-75
Windshield wiper and washer
P.3-247
Engine compartment P.7-7
Engine hood P.7-4Locking and unlocking P.3-52
Keyless entry system
(if so equipped) P.3-9
F.A.S.T.-key (Free-hand
Advanced Security Transmitter)
(if so equipped) P.3-17
Fuel tank filler P.1-4
Outside rearview mirrors
P. 3 - 8 4
Side turn-signal lights P.3-244, 7-54
Front fog lights P.3-246, 7-54, 7-74
[Except for vehicles with high intensity discharge
headlights type][For vehicles with high intensity discharge head-
lights type] RALLIART
Front turn-signal lights P.3-244, 7-54, 7-69
Front side-marker and
parking lights P.3-235,
7-54, 7-65
Headlights, low beam P.3-
235, 7-54, 7-64
Headlights, high beam P.3-235, 7-54, 7-60Headlights, low/high beam
P.3-235, 7-54, 7-64
Daytime running lights P.7-54, 7-62 Front turn-signal lights P.3-244, 7-54, 7-69
Front side-marker and
parking lights P.3-235,
7-54, 7-67
BK0150800US.book 10 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701048
NOTE
For information regarding warning displays in the multi-information display, refer to “Multi-information display indicators”
on page 3-182.

These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact an authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.P.3-231
or
Brake warning light
If this light comes on while driving, check to see that the parking
brake is fully released.

If this light stays on after releasing the parking brake, stop and check
the brake fluid level.

If the brake fluid level is correct, there may be a system malfunction.
Avoid hard braking and high speeds, and contact an authorized
Mitsubishi Motors dealer or a repair facility of your choice for assis-
tance.P.3-229
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or “Check
engine light”)
Although your vehicle will usually be drivable and not need towing,
have the engine system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible. If the
vehicle is not drivable, contact emergency roadside assistance at 1-
888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-4878 (for
vehicles sold in Canada), an authorized Mitsubishi Motors dealer, or
local towing company for assistance.P.3-230
BK0150800US.book 1 ページ ２０１２年３月２９日　木曜日　午後２時３８分

2 Quick index
Anti-lock braking system warning light
When this light comes on, the anti-lock braking system is not func-
tioning and only the ordinary braking system is functioning.

Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-150.

If the light does not go out after the test, or if it comes on again, we
recommend that you have the system checked at an authorized
Mitsubishi Motors dealer or a repair facility of your choice as soon as
possible.P.3-149,
3-150
SRS warning light
It is not necessary to stop the vehicle immediately, but we recommend
that you have the airbag and the pre-tensioner seat belt system
checked at an authorized Mitsubishi Motors dealer as soon as possi-
ble.P. 2 - 2 3 ,
2-45
Tire pressure monitoring system warning light
If the warning light comes on, you should stop and adjust the tires to
the proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-31.)
Once adjustments have been made, the warning light will go off after
a few minutes of driving.

If the warning light blinks for approximately 1 minute and then
remain continuously illuminated, the system is not operating properly.
If the system returns to normal, the warning light will go off. If the
warning light does not go off, have the vehicle inspected at an autho-
rized Mitsubishi Motors dealer.P.3-169
Warning light
Do this
Ref. page
BK0150800US.book 2 ページ ２０１２年３月２９日　木曜日　午後２時３８分

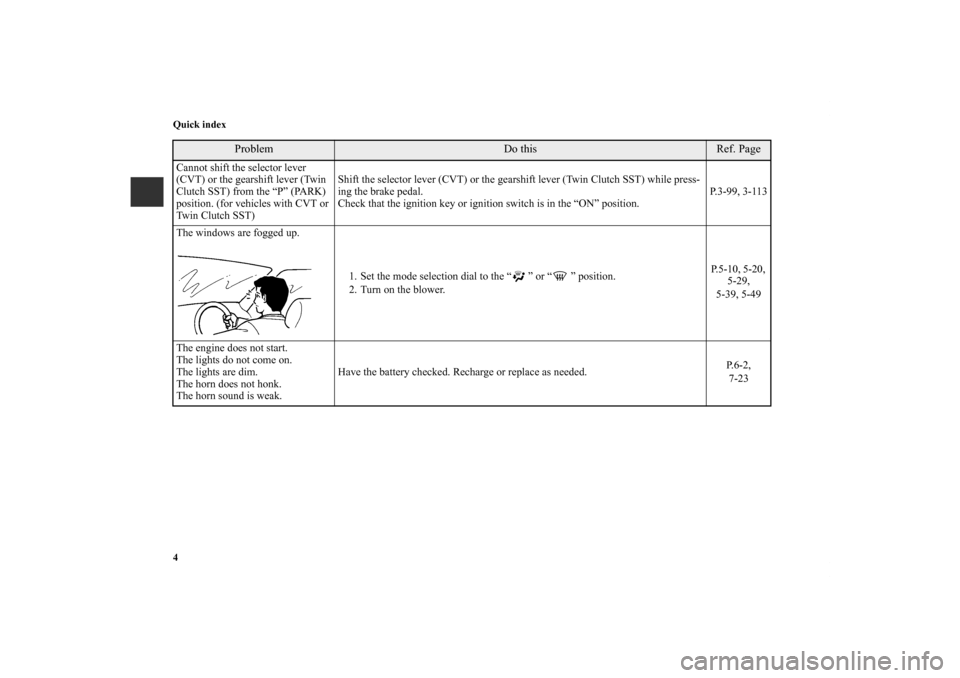

4 Quick indexCannot shift the selector lever
(CVT) or the gearshift lever (Twin
Clutch SST) from the “P” (PARK)
position. (for vehicles with CVT or
Tw i n C l u t c h S S T )Shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) while press-
ing the brake pedal.
Check that the ignition key or ignition switch is in the “ON” position.P.3-99, 3-113
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-10, 5-20,
5-29,
5-39, 5-49
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P.6-2,
7-23
Problem
Do this
Ref. Page
BK0150800US.book 4 ページ ２０１２年３月２９日　木曜日　午後２時３８分

6 Quick index

Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
Problem
Do this
Ref. page
The brakes are not functioning
properly after driving through
water. Dry out the brakes by driving slowly while lightly pressing the brake pedal. P.4-8
The CVT makes no engine speed to
vehicle speed ratio change when
accelerating. The initial movement
of the vehicle is slow when the
vehicle starts moving.
(for vehicles with CVT)There may be a problem in the CVT.
If the or warning lights on the multi-information display will not turn off, or if
they are coming on frequently, please have the vehicle checked at your nearest
Mitsubishi Motors dealer. P. 3 - 1 1 2
Twin Clutch SST does not shift.
Vehicle cannot move.
Acceleration is slow.
The vehicle does not creep.
A large shock is felt when shifting.
Shifting occurs at higher engine
speed.
Response is slow.
(for vehicles with Twin Clutch
SST)The temperature of the Twin Clutch SST fluid is high, a safety device in the Twin
Clutch SST has been activated due to a possible malfunction in the Twin Clutch
SST, or there is a possible malfunction in the engine electronic control module.P.3-118, 3-
132, 3-230
WA R N I N G
!
