2013 MAZDA MODEL CX-5 Owners Manual (in English)

Black plate (473,1)
qTire Pressure Label
qEngine Number
Forward
Identification Numbers
9-3
CX-5_8CA5-EA-11L_Edition3 Page473
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (474,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,998 ml (1,998 cc, 121.9 cu in)
Compression ratio 13.0
qElectrical System
Item Classification
Battery 12V-48AH/5HR, 12V-52AH/5HR
Spark plug Mazda Genuine spark plug
*1PE01-18110
PE02-18110
*1 This Mazda genuine spark plug features specially shaped electrodes to ensure optimum performance of the
SKYACTIV-G engine. For details, contact an Authorized Mazda Dealer.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 6-21.
Manual transaxle oilAPI Service GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF FZ
Transfer case oilAPI Service GL-5
SAE 80W-90
Rear differential oilAPI Service GL-5
SAE 80W-90
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
9-4
Specifications
CX-5_8CA5-EA-11L_Edition3 Page474
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (475,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
CoolantU.S.A. and
CanadaManual transaxle 7.4 L (7.8 US qt, 6.5 Imp qt)
Automatic transaxle 7.6 L (8.0 US qt, 6.7 Imp qt)
MexicoManual transaxle 7.5 L (7.9 US qt, 6.6 Imp qt)
Automatic transaxle 7.8 L (8.2 US qt, 6.9 Imp qt)
Manual transaxle fluid 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic transaxle fluid 7.8 L (8.2 US qt, 6.9 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Fuel tank2WD 56.0 L (14.8 US gal, 12.3 Imp gal)
AWD 58.0 L (15.3 US gal, 12.8 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall length 4,540 mm (178.7 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,710 mm (67.3 in)
Front tread 1,585 mm (62.4 in)
Rear tread 1,590 mm (62.6 in)
Wheelbase 2,700 mm (106.3 in)
qWeights
2WD
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,927 kg (4,248 lbs) 1,961 kg (4,323 lbs)
GAWR
(Gross Axle Weight Rating)Front 964 kg (2,125 lbs) 1,000 kg (2,205 lbs)
Rear 966 kg (2,130 lbs) 964 kg (2,125 lbs)
AW D
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,024 kg (4,462 lbs)
GAWR
(Gross Axle Weight Rating)Front 1,016 kg (2,240 lbs)
Rear 1,011 kg (2,229 lbs)
Specifications
9-5
CX-5_8CA5-EA-11L_Edition3 Page475
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (476,1)
qAir Conditioner
The type of refrigerant used is indicated on a label attached to the inside of the engine compartment. Check the
label before recharging the refrigerant. Refer to Climate Control System on page 5-2.
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
With halogen bulb headlights
HeadlightsLow beam 55 H11 (H11)
High beam
60 HB3 (HB3)
Daytime running lights
With xenon fusion bulb headlights
Headlights High/Low beam 35 D4S (D4S)
Daytime running lights 13 P13W (―)
Front turn signal lights/
Parking lights (Front side-marker lights)27/8―(#1157NA)
Fog lights
í55 H11 (H11)
Side turn signal lights LED*1―(―)
High-mount brake light LED*1―(―)
Rear turn signal lights 21 WY21W (22.3CP)
Brake lights/Taillights 21/5 W21/5W (#7443)
Rear side-marker lights 5 W5W (4CP)
Taillights (Liftgate side) 5 W5W (4CP)
Reverse light 18 W16W (#921)
License plate lights 5 W5W (―)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage ECE R
Overhead light (Front)/Map lights 8―
Rear map light 8―
Luggage compartment light 5―
Vanity mirror lights
í2―
9-6íSome models.
Specifications
CX-5_8CA5-EA-11L_Edition3 Page476
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (477,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 6-36.
After adjusting the tire pressure, initialization of the tire pressure monitoring system is
necessary to make the system operates normally.
Refer to Tire Pressure Monitoring System Initialization on page 4-73.
Standard tire
(U.S.A. and Canada)
Tire sizeInflation pressure
Front Rear
P225/65R17 100H 230 kPa (34 psi) 230 kPa (34 psi)
P225/55R19 99V 250 kPa (36 psi) 250 kPa (36 psi)
(Mexico)
Tire sizeInflation pressure
Up to 3 persons―Full load
225/65R17 102VFront 230 kPa (2.3 bar, 33 psi) 260 kPa (2.6 bar, 38 psi)
Rear 230 kPa (2.3 bar, 33 psi) 280 kPa (2.8 bar, 41 psi)
225/55R19 99VFront 250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
1 person's weight: About 75 kg
Temporary spare tire
(U.S.A. and Canada)
Tire size Inflation pressure
T145/90D16 106M
420 kPa (60 psi)
T155/90D18 103M
(Mexico)
Tire size Inflation pressure
185/80R17 95M 250 kPa (36 psi)
Specifications
9-7
CX-5_8CA5-EA-11L_Edition3 Page477
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (478,1)
qFuses
Refer to Fuses on page 6-49.
9-8
Specifications
CX-5_8CA5-EA-11L_Edition3 Page478
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (479,1)
Personalization Features
For vehicles with audio (On-screen function type), the following function settings can be changed by the customer.
For vehicles without audio (On-screen function type), the following function settings can be changed at an
Authorized Mazda Dealer. Consult an Authorized Mazda Dealer for details.
Items in which the function setting can be changed differ depending on the market and specification.
Item Feature Factory Setting Available Settings
Power door lock
*1Changes the auto lock/unlock function setting
for all the doors according to the vehicle speed,
the vehicle power supply condition, and the
selector lever positionLock: Driving,
Unlock: IGN OffOff/Lock When
Driving/Lock: Shift
From P, Unlock: In
P/Lock When Shifting
Out Of P
Keyless entry systemThe method for unlocking the doors using the
transmitter can be changed
*3Once: Driver's,
Twice: All DoorsTouch Once: All Doors
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed60 seconds 30 seconds/90 seconds
Advanced keyless
entry systemThe volume of the answer-back beep during
advanced keyless entry system operation can be
changed
*3Medium Off/Low/High
The function to automatically lock the doors
when leaving the vehicle while carrying the key
can be changedOff On
The method for unlocking the doors using the
request switch can be changed
*3Once: Driver's,
Twice: All DoorsTouch Once: All Doors
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed60 seconds 30 seconds/90 seconds
Illumination entryThe time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar)30 minutes 60 minutes/10 minutes
The time required for the interior lamp to turn
off automatically after all doors are closed can
be changed15 seconds7.5 seconds/30
seconds/60 seconds
Lane-change signal
(Smart turn)The smart turn function can be changed Off On
Auto-wiper control The auto-wiper control function can be changedOn
(Rain Sensing)Off (Intermittent)
Personalization Features
9-9
CX-5_8CA5-EA-11L_Edition3 Page479
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

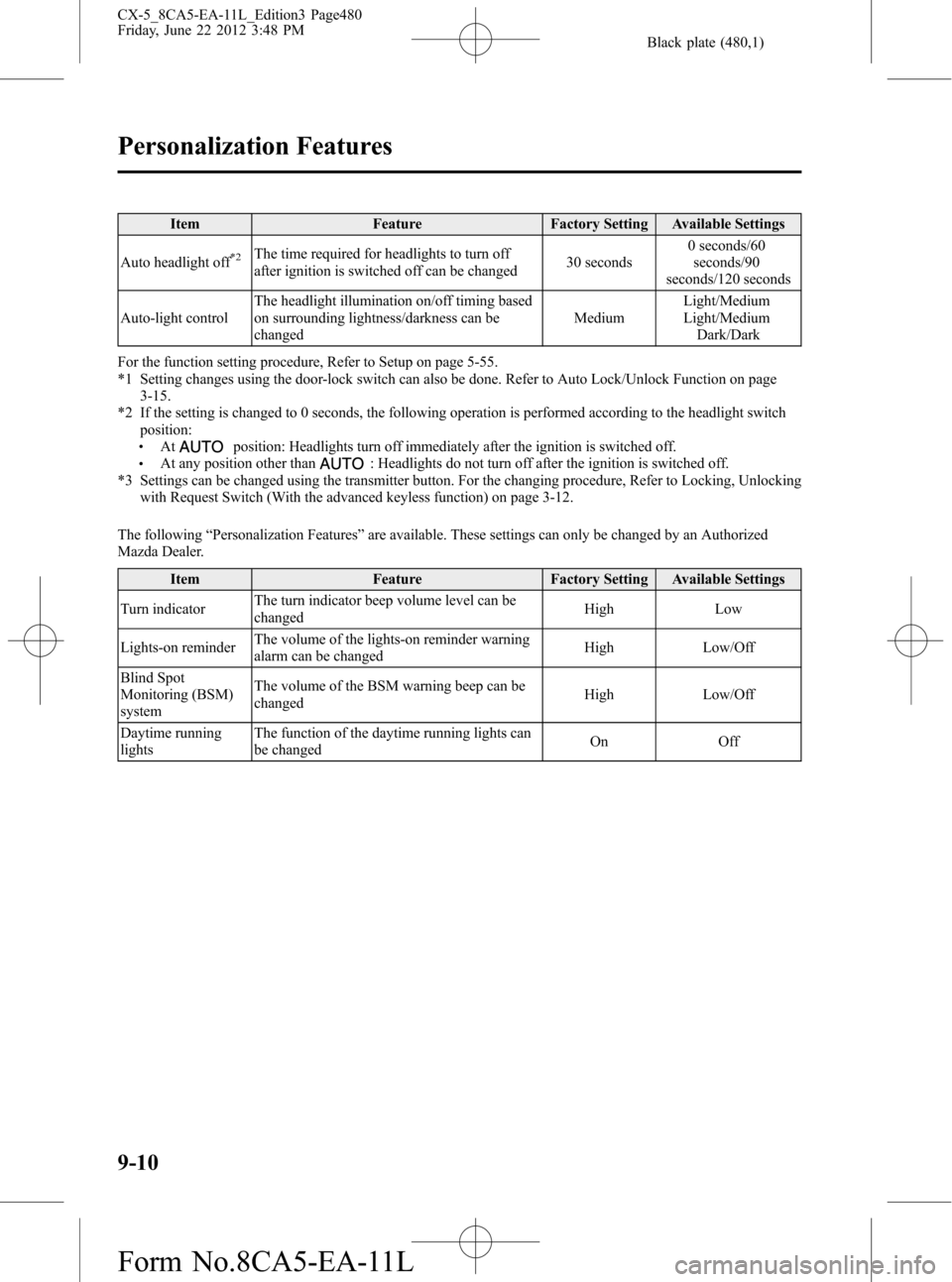

Black plate (480,1)
Item Feature Factory Setting Available Settings
Auto headlight off
*2The time required for headlights to turn off
after ignition is switched off can be changed30 seconds0 seconds/60
seconds/90
seconds/120 seconds
Auto-light controlThe headlight illumination on/off timing based
on surrounding lightness/darkness can be
changedMediumLight/Medium
Light/Medium
Dark/Dark
For the function setting procedure, Refer to Setup on page 5-55.
*1 Setting changes using the door-lock switch can also be done. Refer to Auto Lock/Unlock Function on page
3-15.
*2 If the setting is changed to 0 seconds, the following operation is performed according to the headlight switch
position:
lAtposition: Headlights turn off immediately after the ignition is switched off.lAt any position other than: Headlights do not turn off after the ignition is switched off.
*3 Settings can be changed using the transmitter button. For the changing procedure, Refer to Locking, Unlocking
with Request Switch (With the advanced keyless function) on page 3-12.
The following“Personalization Features”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Item Feature Factory Setting Available Settings
Turn indicatorThe turn indicator beep volume level can be
changedHigh Low
Lights-on reminderThe volume of the lights-on reminder warning
alarm can be changedHigh Low/Off
Blind Spot
Monitoring (BSM)
systemThe volume of the BSM warning beep can be
changedHigh Low/Off
Daytime running
lightsThe function of the daytime running lights can
be changedOn Off
9-10
Personalization Features
CX-5_8CA5-EA-11L_Edition3 Page480
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L
