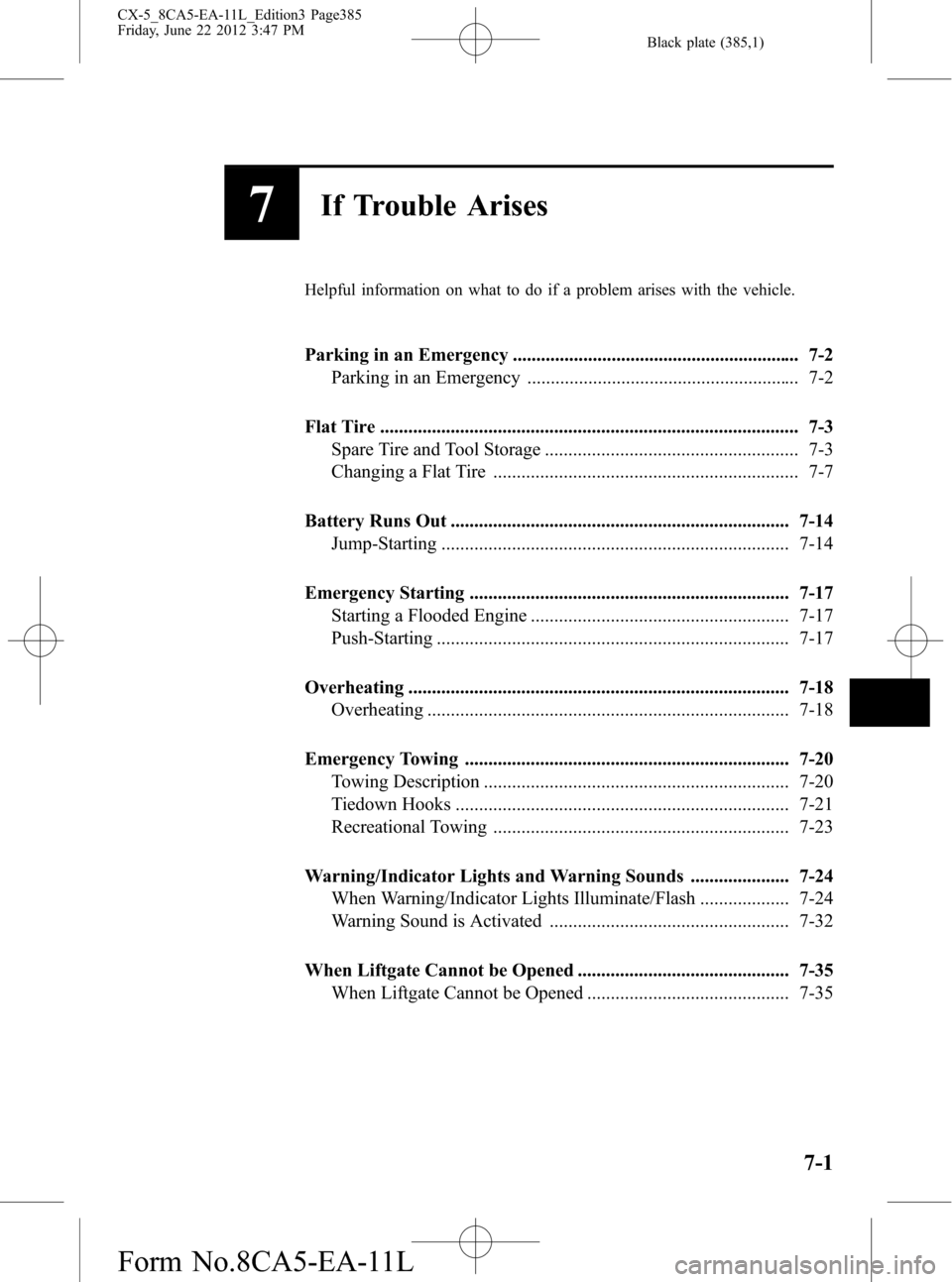

2013 MAZDA MODEL CX-5 Owners Manual (in English)

Black plate (385,1)
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-7
Battery Runs Out ........................................................................ 7-14
Jump-Starting .......................................................................... 7-14
Emergency Starting .................................................................... 7-17
Starting a Flooded Engine ....................................................... 7-17
Push-Starting ........................................................................... 7-17
Overheating ................................................................................. 7-18
Overheating ............................................................................. 7-18
Emergency Towing ..................................................................... 7-20
Towing Description ................................................................. 7-20
Tiedown Hooks ....................................................................... 7-21
Recreational Towing ............................................................... 7-23
Warning/Indicator Lights and Warning Sounds ..................... 7-24
When Warning/Indicator Lights Illuminate/Flash ................... 7-24
Warning Sound is Activated ................................................... 7-32
When Liftgate Cannot be Opened ............................................. 7-35
When Liftgate Cannot be Opened ........................................... 7-35
7-1
CX-5_8CA5-EA-11L_Edition3 Page385
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (386,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash. The hazard
warning indicator lights in the instrument
cluster flash simultaneously.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
If Trouble Arises
Parking in an Emergency
CX-5_8CA5-EA-11L_Edition3 Page386
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (387,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Except Mexico
Spare tireSpare tire hold-down bolt
Tire hold-down boltJack
Lug wrenchJack leverTiedown eyelet (Short type)Tiedown eyelet (Long type)
If Trouble Arises
Flat Tire
7-3
CX-5_8CA5-EA-11L_Edition3 Page387
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (388,1)
Mexico
Spare tireSpare tire hold-down boltJack
Lug wrenchJack lever
Tiedown eyelet (Short type) Tiedown eyelet (Long type)
7-4
If Trouble Arises
Flat Tire
CX-5_8CA5-EA-11L_Edition3 Page388
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (389,1)
qJack
To remove the jack
1. Open the trunk board.
2. Secure the trunk board by attaching the
hook to the head restraint.
Without luggage compartment cover
With luggage compartment cover
3. Remove the jack.
To secure the jack
Perform the removal procedure in reverse.
Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
qSpare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
If Trouble Arises
Flat Tire
7-5
CX-5_8CA5-EA-11L_Edition3 Page389
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (390,1)
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound
roads, and have an accident. Move a
regular tire to the front wheel and
install the temporary spare tire to the
rear.
CAUTION
ØWhen using the temporary spare
tire, driving stability may decrease
compared to when using only the
conventional tire. Drive carefully.
ØTo avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
ØDo not exceed 80 km/h (50
mph).
ØAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire, so the ground
clearance is reduced about
10 mm (0.4 in).
ØDo not use a tire chain on this
tire because it will not fit
properly.
ØDo not use your temporary
spare tire on any other vehicle,
it has been designed only for
your Mazda.
ØUse only one temporary spare
tire on your vehicle at the same
time.
To remove the spare tire
1. Open the trunk board.
2. Secure the trunk board by attaching the
hook to the head restraint.
Without luggage compartment cover
With luggage compartment cover
7-6
If Trouble Arises
Flat Tire
CX-5_8CA5-EA-11L_Edition3 Page390
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (391,1)
3. Turn the spare tire hold-down bolt
counterclockwise.
Spare tire hold-down bolt
To secure the spare tire
Store the spare tire in the reverse order of
removal. After storing, verify that the
spare tire is stored securely.
Changing a Flat Tire
NOTE
If the following occurs while driving, it could
indicate a flat tire.
lSteering becomes difficult.lThe vehicle begins to vibrate excessively.lThe vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone. No person should place
any portion of their body under a
vehicle that is supported by a jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated before
using it.
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic
transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.
3. Turn on the hazard warning flasher.
If Trouble Arises
Flat Tire
7-7
CX-5_8CA5-EA-11L_Edition3 Page391
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (392,1)
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire
(page 7-3).
6. Block the wheel diagonally opposite
the flat tire. When blocking a wheel,
place a tire block both in front and
behind the tire.
NOTE
When blocking a tire, use rocks or wood blocks
of sufficient size if possible to hold the tire in
place.
qRemoving a Flat Tire
1. If your vehicle is equipped with steel
wheels, pry off the center cap with the
beveled end of the jack lever.
CAUTION
Use the jack lever when removing the
center cap. Using your hands to
remove it may cause an injury. In
addition, using a tool other than the
jack lever may cause damage to the
wheel or the center cap.
2. Loosen the lug nuts by turning them
counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.
3. Place the jack on the ground.
4. Turn the jack screw in the direction
shown in the figure and adjust the jack
head so that it is close to the jack-up
position.
Jack head
