2013 MAZDA MODEL CX-5 Owners Manual (in English)

Black plate (65,1)
Driver and Front Passenger Occupant Classification Systemí
First, please read“Supplemental Restraint System (SRS) Precautions”(page 2-38)
carefully.
qDriver Seat Slide Position Sensor
Your vehicle is equipped with a driver seat slide position sensor as a part of the
supplemental restraint system. The sensor is located under the driver seat. The sensor
determines whether the driver seat is fore or aft of a reference position and sends the seat
position to the diagnostic module (SAS unit). The SAS unit is designed to control the
deployment of the driver air bag depending on how close the driver seat is to the steering
wheel.
A system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-15.
qFront Passenger Seat Weight Sensor
Your vehicle is equipped with a front passenger seat weight sensors as a part of the
supplemental restraint system. These sensors are located under both of the front passenger
seat rails. These sensors determine the total seated weight on the front passenger seat and
monitor the seat belt buckle for the front passenger seat. The SAS unit is designed to
prevent the front passenger front and side air bags and seat belt pretensioner system from
deploying if the front passenger air bag deactivation indicator light illuminates.
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
system deactivates the front passenger front and side air bags and also the seat belt
pretensioner system when the front passenger air bag deactivation indicator light
illuminates. Refer to the following table for the front passenger air bag deactivation
indicator light illumination conditions.
This system shuts off the front passenger front and side air bags and seat belt pretensioner
system, so make sure the front passenger air bag deactivation indicator light illuminates
according to the following table.
The air bag/front seat belt pretensioner system warning light flashes and the front
passenger air bag deactivation indicator light illuminates if the sensors have a possible
malfunction. If this happens, the front passenger front and side air bags and seat belt
pretensioner system will not deploy.
Essential Safety Equipment
SRS Air Bags
2-53íSome models. CX-5_8CA5-EA-11L_Edition3 Page65
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (66,1)
Front passenger air bag deactivation indicator light
This indicator light illuminates to remind you that the front passenger front and side air
bags and seat belt pretensioner will not deploy during a collision.
Fully Automatic Type climate control Manual Type climate control
If the front passenger weight sensors are normal, the indicator light illuminates when the
ignition is switched ON. The light turns off after a few seconds.
The front/passenger air bag deactivation indicator light illuminates or is off under the following conditions:
Condition detected by the
front passenger occupant
classification systemFront passenger air bag
deactivation indicator lightFront passenger front and
side air bagsFront passenger seat
belt pretensioner
system
Empty (Not occupied) On Deactivated Deactivated
Child or child-restraint
system
*1On Deactivated Deactivated
Adult
*2Off Ready Ready
*1 : If a larger child sits on the front passenger seat, the sensors might detect the child as being an adult depending
on the child's physique.
*2 : If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child
depending on the person's physique.
The curtain air bag is ready for inflating regardless of the chart above.
If the front passenger air bag deactivation indicator light does not illuminate when the
ignition is switched ON and does not illuminate as indicated in the above chart, do not
allow a child to sit in the front passenger seat and consult an Authorized Mazda Dealer as
soon as possible. The system may not work properly in an accident.
2-54
Essential Safety Equipment
SRS Air Bags
CX-5_8CA5-EA-11L_Edition3 Page66
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (67,1)
WARNING
Do not decrease the total seated weight on the front passenger seat:
When an adult or large child sits on the front passenger seat, decreasing the total
seated weight on the front passenger seat required for air bag deployment is
dangerous. The front passenger seat weight sensors will detect the reduced total
seated weight condition and the front passenger front and side air bags and seat
belt pretensioner system will not deploy during an accident. The front passenger will
not have the supplementary protection of the air bag, which could result in serious
injury. Decreasing the total seated weight on the front passenger seat could result in
an air bag not deploying under the following conditions, for example:
Essential Safety Equipment
SRS Air Bags
2-55
CX-5_8CA5-EA-11L_Edition3 Page67
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (68,1)
ØA front passenger is seated as shown in the following figure:
ØA rear passenger pushes up on the front passenger seat with their feet.
ØLuggage or other items placed under the front passenger seat or between the
front passenger seat and driver seat that push up the front passenger seat
bottom.
ØAny accessories which might decrease the total seated weight on the front
passenger seat are attached to the front passenger seat.
The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the front passenger air bag deactivation indicator light illuminates.
2-56
Essential Safety Equipment
SRS Air Bags
CX-5_8CA5-EA-11L_Edition3 Page68
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (69,1)
Do not increase the total seated weight on the front passenger seat:
When an infant or small child sits on the front passenger seat, increasing the total
seated weight on the front passenger seat is dangerous. The front passenger seat
weight sensors will detect the increased total seated weight, which could result in the
unexpected deployment of the front passenger front and side air bags and seat belt
pretensioner system in an accident and may cause serious injury. Increasing the total
seated weight on the front passenger seat could result in the front passenger front
and side air bags and seat belt pretensioner system deployment in an accident under
the following conditions, for example:
ØLuggage or other items are placed on the seat with the child in the child-restraint
system.
ØA rear passenger or luggage push or pull down on the front passenger seatback.
ØA rear passenger steps on the front passenger seat rails with their feet.
ØLuggage or other items are placed on the seatback or hung on the head restraint.
ØHeavy items are placed in the seatback map pocket.
ØThe seat is washed.
ØLiquids are spilled on the seat.
ØThe front passenger seat is moved backward, pushing into luggage or other items
placed behind it.
ØThe front passenger seatback contacts the rear seat.
ØLuggage or other items are placed between the front passenger seat and driver
seat.
ØAny accessories which might increase the total seated weight on the front
passenger seat are attached to the front passenger seat.
CAUTION
ØTo assure proper deployment of the front air bag and to prevent damage to the
sensors in the front seat bottoms:
ØDo not place sharp objects on the front seat bottoms or leave heavy luggage on
them.
ØDo not spill any liquids on the front seats or under the front seats.
ØTo allow the sensors to function properly, always perform the following:
ØAdjust the front seats as far back as possible and always sit upright against the
seatbacks with seat belts worn properly.
ØIf you place your child on the front passenger seat, secure the child-restraint
system properly and slide the front passenger seat as far back as possible(page
2-29).
Essential Safety Equipment
SRS Air Bags
2-57
CX-5_8CA5-EA-11L_Edition3 Page69
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (70,1)
NOTElThe system requires about 10 seconds to alternate between turning the front passenger front and
side air bags and seat belt pretensioner system on or off.
lThe front passenger air bag deactivation indicator light may illuminate repeatedly if luggage or
other items are put on the front passenger seat, or if the temperature of the vehicle's interior
changes suddenly.
lThe front passenger air bag deactivation indicator light may illuminate for 10 seconds if the total
seated weight on the front passenger seat changes.
lThe air bag/front seat belt pretensioner system warning light might illuminate if the front
passenger seat receives a severe impact.
lIf the front passenger air bag deactivation indicator light does not illuminate after installing a
child-restraint system on the front passenger seat, first, re-install your child-restraint system
according to the procedure in this owner's manual. Then, if the front passenger air bag
deactivation indicator light still does not illuminate, install the child-restraint system on the rear
seat and consult an Authorized Mazda Dealer as soon as possible.
lIf the front passenger air bag deactivation indicator light illuminates when an adult is seated in
the front passenger seat, have the passenger re-adjust their posture by sitting with their feet on the
floor, and then re-fastening the seat belt. If the front passenger air bag deactivation indicator light
still illuminates, move the passenger to the rear seat. If sitting in the rear seat is not possible, slide
the front passenger seat as far back as possible. Consult an Authorized Mazda Dealer as soon as
possible.
qDriver and Front Passenger Buckle Switches
The buckle switches on the front seat belts detect whether or not the front seat belts are
securely fastened and further control the deployment of the air bags.
2-58
Essential Safety Equipment
SRS Air Bags
CX-5_8CA5-EA-11L_Edition3 Page70
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (71,1)

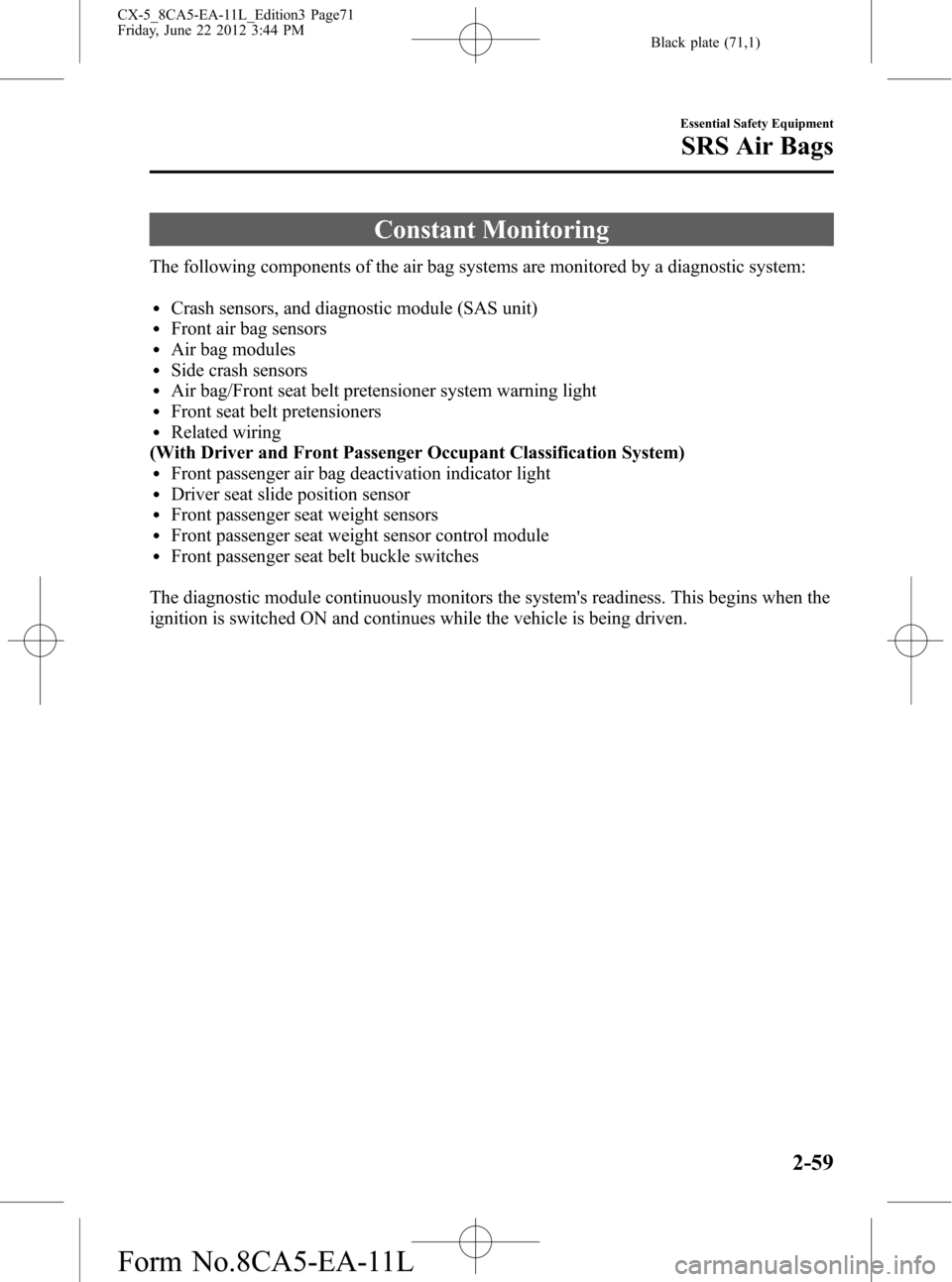

Constant Monitoring
The following components of the air bag systems are monitored by a diagnostic system:
lCrash sensors, and diagnostic module (SAS unit)lFront air bag sensorslAir bag moduleslSide crash sensorslAir bag/Front seat belt pretensioner system warning lightlFront seat belt pretensionerslRelated wiring
(With Driver and Front Passenger Occupant Classification System)
lFront passenger air bag deactivation indicator lightlDriver seat slide position sensorlFront passenger seat weight sensorslFront passenger seat weight sensor control modulelFront passenger seat belt buckle switches
The diagnostic module continuously monitors the system's readiness. This begins when the
ignition is switched ON and continues while the vehicle is being driven.
