Black plate (169,1)
AFS OFF switch
Pressing the AFS OFF switch turns off the
AFS. The AFS OFF indicator light in the
instrument cluster illuminates.
Pressing the AFS OFF switch again turns
off the switch illumination and turns on
the AFS operation. The AFS OFF
indicator light turns off.
qDaytime Running Lights
Some countries require moving vehicles
to have their lights on (daytime running
lights) during the daytime.
Daytime running lights turn on
automatically when the ignition is
switched ON.
They turn off when the parking brake is
operated or the shift lever is shifted to the
P position (automatic transaxle vehicle).
NOTE
(Except Canada)
The daytime running lights can be deactivated.
Refer to Personalization Features on page 9-9.
Fog Lightsí
Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position before turning on the fog lights.
Fog light switch
To turn the fog lights off, rotate the fog
light switch to the
position or turn
the headlight switch to the
or
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beams.
l(With auto-light control)
If the fog light switch is in the
position
and the headlight switch is in the
position, the fog lights will turn on when
the headlights, the exterior lights and
dashboard illumination turn on.
When Driving
Switches and Controls
4-45íSome models. CX-5_8CA5-EA-11L_Edition3 Page169
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (170,1)

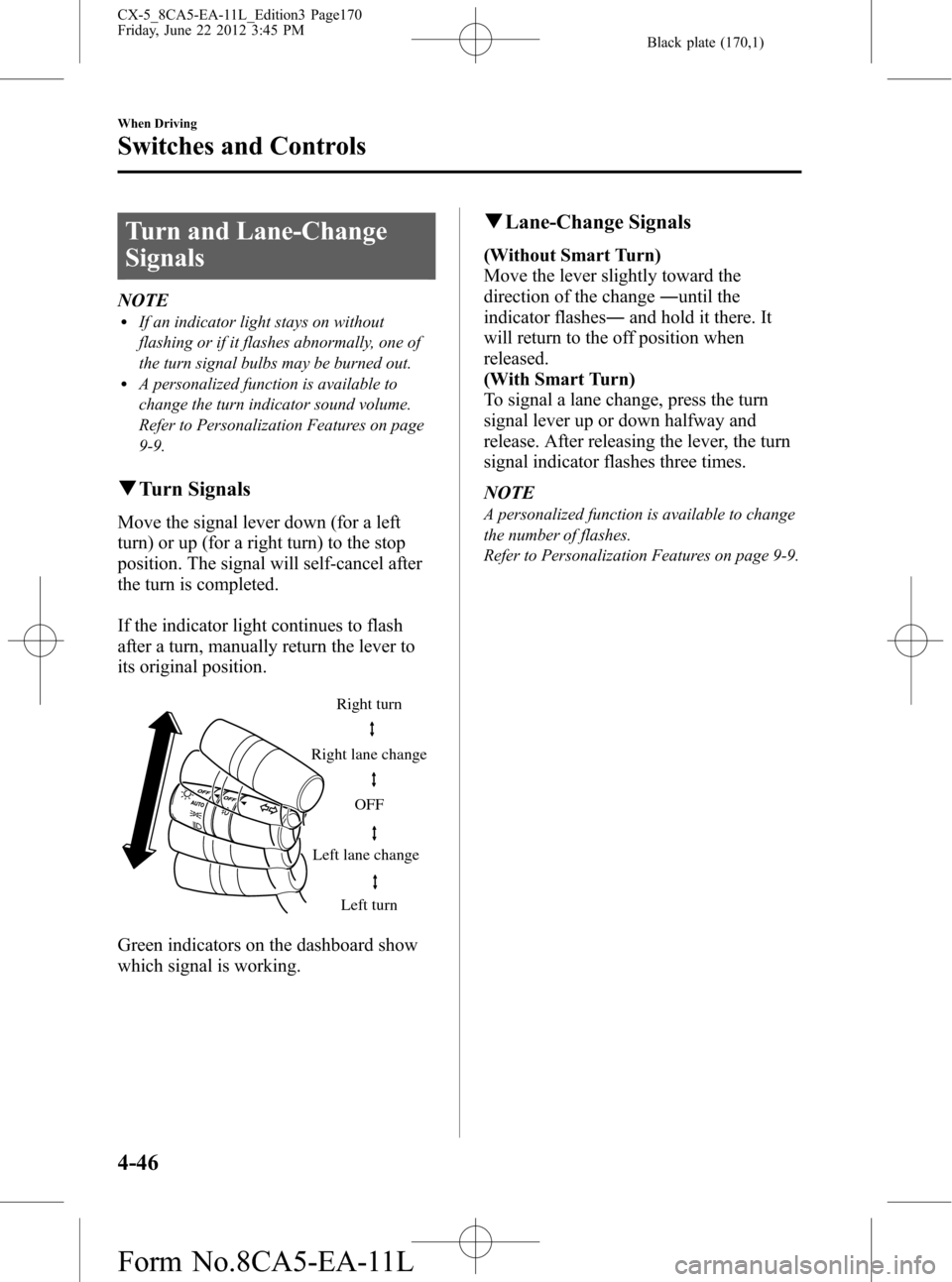

Turn and Lane-Change
Signals
NOTElIf an indicator light stays on without
flashing or if it flashes abnormally, one of
the turn signal bulbs may be burned out.
lA personalized function is available to
change the turn indicator sound volume.
Refer to Personalization Features on page
9-9.
qTurn Signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn Right lane change
Left lane changeOFF
Green indicators on the dashboard show
which signal is working.
qLane-Change Signals
(Without Smart Turn)
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
(With Smart Turn)
To signal a lane change, press the turn
signal lever up or down halfway and
release. After releasing the lever, the turn
signal indicator flashes three times.
NOTE
A personalized function is available to change
the number of flashes.
Refer to Personalization Features on page 9-9.
4-46
When Driving
Switches and Controls
CX-5_8CA5-EA-11L_Edition3 Page170
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (171,1)
Windshield Wipers and
Washer
The ignition must be switched ON.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions:
Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid.NOTE
Because heavy ice and snow can jam the wiper
blades, the wiper motor is protected from
motor breakdown, overheating and possible
fire by a circuit breaker. This mechanism will
automatically stop operation of the blades, but
only for about 5 minutes.
If this happens, turn off the wiper switch and
park off the right-of-way, and remove the snow
and ice.
After 5 minutes, turn on the switch and the
blades should operate normally. If they do not
resume functioning, consult an Authorized
Mazda Dealer as soon as possible. Drive to
the side of the road and park off the right-of-
way. Wait until the weather clears before trying
to drive with the wipers inoperative.
qWindshield Wipers
Turn the wipers on by pressing the lever
up or down.
With intermittent wiper
Switch
PositionWiper operation
MIST Single wipe cycle (mist)
INT Intermittent
LO Low speed
HI High speed
When Driving
Switches and Controls
4-47
CX-5_8CA5-EA-11L_Edition3 Page171
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (172,1)
With auto-wiper control
Switch
PositionWiper operation
MIST Single wipe cycle (mist)
AUTO Auto control
LO Low speed
HI High speed
Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.
INT ringFast
Slow
Auto-wiper control
When the wiper lever is in the
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wipers on or off automatically
(off―intermittent―low speed―high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch downward for higher
sensitivity (faster response) or rotate it
upward for less sensitivity (slower
response).
Higher sensitivity
Less sensitivitySwitch
Center
position
4-48
When Driving
Switches and Controls
CX-5_8CA5-EA-11L_Edition3 Page172
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (173,1)
CAUTION
ØDo not shade the rain sensor by
adhering a sticker or a label on
the windshield. Otherwise the rain
sensor will not operate correctly.
Rain sensor
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely―this is
particularly important when
clearing ice and snow―when it is
most likely that the engine is left
running.
When Driving
Switches and Controls
4-49
CX-5_8CA5-EA-11L_Edition3 Page173
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (174,1)
NOTElSwitching the auto-wiper lever from the
to theposition while driving
activates the windshield wipers once, after
which they operate according to the rainfall
amount.
lThe auto-wiper control may not operate
when the rain sensor temperature is about
_
10 °C (14 °F) or lower, or about 85 °C
(185 °F) or higher.
lIf the windshield is coated with water
repellent, the rain sensor may not be able to
sense the amount of rainfall correctly and
auto-wiper control may not operate
properly.
lIf dirt or foreign matter (Such as ice or
matter containing salt water) adheres to the
windshield above the rain sensor or if the
windshield is iced, it could cause the wipers
to move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper control will
stop operation. In this case, set the wiper
lever to the low speed position or high
speed position for manual operation, or
remove the ice, dirt or foreign matter by
hand to restore the auto-wiper operation.
lIf the auto-wiper lever is left in the
position, the wipers could operate
automatically from the effect of strong light
sources, electromagnetic waves, or infrared
light because the rain sensor uses an
optical sensor. It is recommended that the
auto-wiper lever be switched to the
position other than when driving the vehicle
under rainy conditions.
lThe auto-wiper control functions can be
turned off.
Refer to Personalization Features on page
9-9.
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
Washer OFF
NOTE
With the wiper lever in theor
intermittent position/
position, the
wipers will operate continuously until the lever
is released.
If the washer does not work, inspect the
fluid level (page 6-26). If it's normal,
consult an Authorized Mazda Dealer.
4-50
When Driving
Switches and Controls
CX-5_8CA5-EA-11L_Edition3 Page174
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (175,1)
Rear Window Wiper and
Washer
The ignition must be switched ON.
qRear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
Switch
PositionWiper operation
INT Intermittent
ON Normal
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer does not work, inspect the
fluid level (page 6-26). If it's normal and
the washer still does not work, consult an
Authorized Mazda Dealer.
Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition must be switched ON.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
Fully Automatic Type Climate Control
Indicator light
When Driving
Switches and Controls
4-51
CX-5_8CA5-EA-11L_Edition3 Page175
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (176,1)
Manual Type Climate Control
Indicator light
CAUTION
Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for melting snow.
If there is an accumulation of snow on the rear
window, remove it before using the defroster.
qMirror Defrosterí
To turn on the mirror defrosters, switch
the ignition ON and press the rear window
defroster switch (page 4-51).
Horn
To sound the horn, press themark on
the steering wheel.
