2013 MAZDA MODEL CX-5 Owners Manual (in English)

Black plate (369,1)

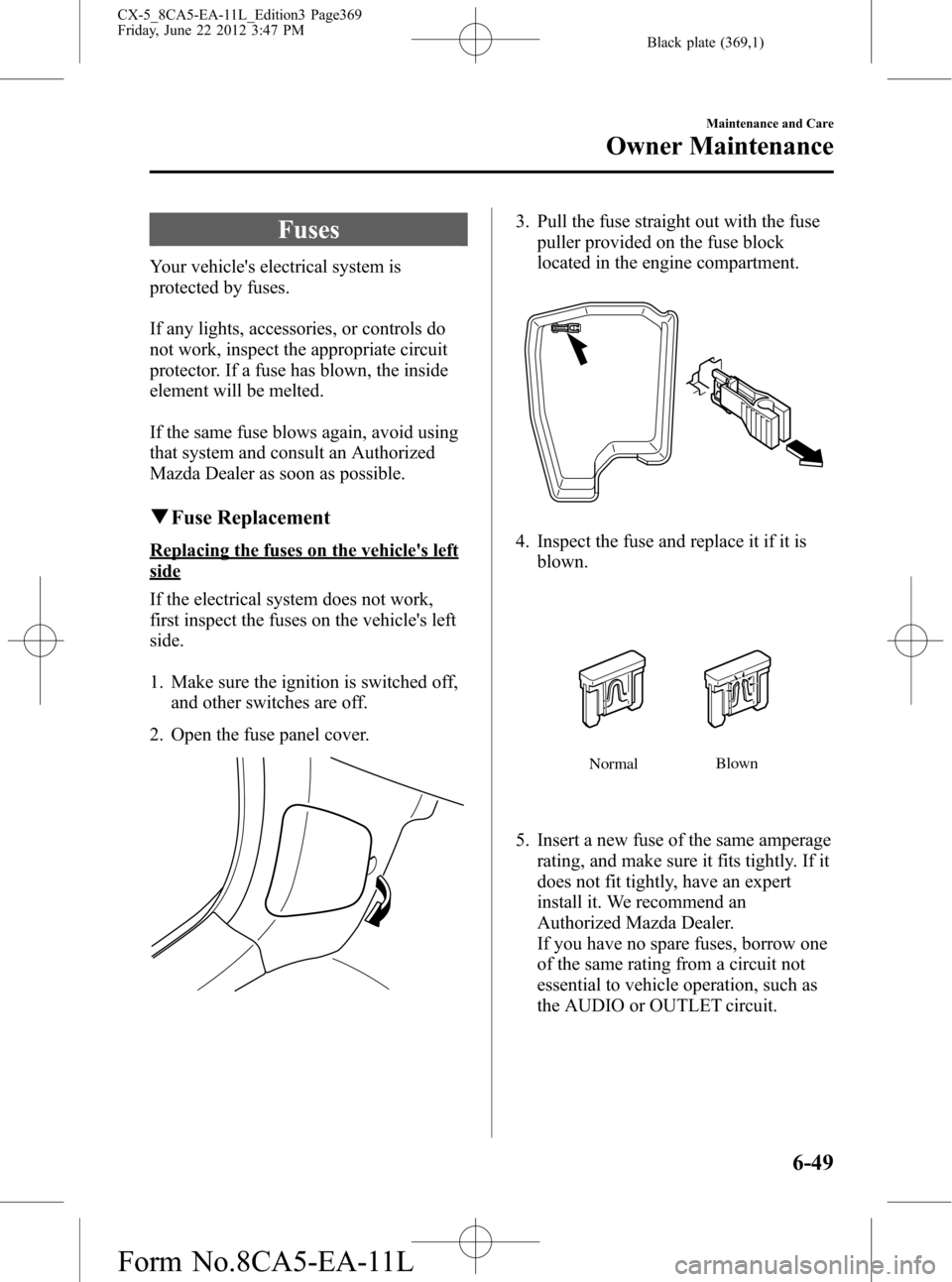

Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
Maintenance and Care
Owner Maintenance
6-49
CX-5_8CA5-EA-11L_Edition3 Page369
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (370,1)
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.
6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that
it is securely installed.
6-50
Maintenance and Care
Owner Maintenance
CX-5_8CA5-EA-11L_Edition3 Page370
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (371,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 ADD FAN GE 30 A Cooling fan
2 IG2 30 A For protection of various circuits
3 INJECTOR 30 A Engine control system
4 FAN DE――
5 P.WINDOW1 30 A Power windows
6―― ―
7 ADD FAN DE――
8 EVVT 20 A Engine control system
9 DEFOG 40 A Rear window defroster
10 DCDC DE――
11 FAN GE 30 A Cooling fan
12―― ―
13―― ―
14―― ―
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17
50 A For protection of various circuits
Maintenance and Care
Owner Maintenance
6-51
CX-5_8CA5-EA-11L_Edition3 Page371
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (372,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
20 DCDC REG――
21 ENGINE.IG1 7.5 A Engine control system
22 C/U IG1 15 A For protection of various circuits
23H/L LOW L
HID L15 A Headlight (LH)
*1, Headlight low beam (LH)*2
24 H/L LOW R 15 A Headlight low beam (RH)*2
25 ENGINE3 15 A Engine control system
26 ENGINE2 15 A Engine control system
27 ENGINE1 15 A Engine control system
28 AT 15 A Transaxle control system
29 H/CLEAN――
30 A/C 7.5 A Air conditioner
31 AT PUMP――
32 STOP 10 A Brake lights
33 R.WIPER 15 A Rear window wiper
34 H/L HI 20 A Headlight high beam
*2
35 HID R 15 A Headlight (RH)*1
36 FOG 15 A Fog lightsí
377.5 A Engine control system
38 AUDIO2 7.5 A Audio system
39―― ―
40 METER2――
41 METER1 10 A Instrument cluster
42 SRS1 7.5 A Air bag
43 BOSE 25 A Bose
®Sound System-equipped model
44 AUDIO1 15 A Audio system
45 ABS/DSC S 30 A ABS, Dynamic stability control system
46 FUEL PUMP 15 A Fuel system
47 FUEL WARM――
48 TAIL 15 A Taillights, License plate lights
49―― ―
50 HAZARD 25 AHazard warning flashers, Turn signal lights, Parking lights
(Front side-marker lights)
51 DRL 15 A Daytime running lights
í
52 R.OUTLET2 15 A Accessory sockets
6-52
Maintenance and Care
íSome models.
Owner Maintenance
CX-5_8CA5-EA-11L_Edition3 Page372
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (373,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
53 HORN 15 A Horn
54 ROOM 15 A Overhead light
*1 With xenon fusion headlights
*2 With halogen headlights
Fuse block (Left side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 P.SEAT D 30 A Power seat
í
2 P.WINDOW3――
3 R.OUTLET3 15 A Accessory sockets
4 P.WINDOW2 25 A Power windows
5 SRS2/ESCL 15 A Seat weight sensor
í
6 D.LOCK 25 A Power door locks
7 SEAT WARM 20 A Seat warmerí
8 SUNROOF 10 A Moonroofí
9 F.OUTLET 15 A Accessory sockets
10 MIRROR 7.5 A Power control mirror
11 R.OUTLET1――
12―― ―
Maintenance and Care
Owner Maintenance
6-53íSome models. CX-5_8CA5-EA-11L_Edition3 Page373
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (374,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
13―― ―
14―― ―
15―― ―
16―― ―
17 M.DEF 7.5 A Mirror defroster
í
18―― ―
19―― ―
20―― ―
21―― ―
6-54
Maintenance and Care
íSome models.
Owner Maintenance
CX-5_8CA5-EA-11L_Edition3 Page374
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (375,1)
Exterior Care
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
Etching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
Damage Caused by Bird Dropping,
Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these are
not removed they can eat away the clear
and color base coat of the vehicle's
paintwork.When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
Water Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Maintenance and Care
Appearance Care
6-55
CX-5_8CA5-EA-11L_Edition3 Page375
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (376,1)
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
Paint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
lThe paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of paint
chipping.
lChipped paint can lead to rust forming on
your Mazda. Before this happens, repair the
damage by using Mazda touch-up paint
according to the instructions in this section.
Failure to repair the affected area could
lead to serious rusting and expensive
repairs.
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
qMaintaining the Finish
Washing
CAUTION
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely―this is
particularly important when
clearing ice and snow―when it is
most likely that the engine is left
running.
ØDo not spray water in the engine
compartment. Otherwise, it could
result in engine-starting problems
or damage to electrical parts.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
