UNDERSTANDING YOUR INSTRUMENT PANELCONTENTS  INSTRUMENT PANEL FEATURES ......... .298
 INSTRUMENT CLUSTER ................ .299
 INSTRUMENT CLUSTER DESCRIPTIONS .... .300
 COMPASS AND TRIP COMPUTER — IF
EQUIPPED .......................... .315
▫ Control Buttons ...................... .316
▫ Compass/Temperature Display ........... .317
▫ Trip Conditions ...................... .320
 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) — IF EQUIPPED .......... .321 ▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... .324
▫ Oil Change Required ................. .325
▫ EVIC Main Menu .................... .326
▫ Compass Display / ECO (Fuel Saver Mode)
— If Equipped ...................... .326
▫ Average Fuel Economy ................. .329
▫ Distance To Empty (DTE) ............... .330
▫ Elapsed Time ....................... .330
▫ EVIC Units Selection (UNITS IN Display) . . . .330 4

▫ System Status ....................... .331
▫ Personal Settings (Customer-Programmable
Features) .......................... .331
 MEDIA CENTER 230 (REQ) — AM/FM STEREO
RADIO AND 6–DISC CD/DVD CHANGER
(MP3/WMA AUX JACK) ................ .335
▫ Operating Instructions - Radio Mode ....... .335
▫ Operation Instructions - (DISC MODE for CD
and MP3/WMA Audio Play, DVD-VIDEO) . . .344
▫ Notes On Playing MP3/WMA Files ........ .346
▫ LIST Button (DISC Mode for MP3/WMA Play) . .348
▫ INFO Button (DISC Mode for MP3/WMA Play) . .349
▫ Uconnect™ Multimedia (Satellite Radio) — If
Equipped .......................... .377  MEDIA CENTER 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV
— IF EQUIPPED ...................... .355
▫ Operating Instructions (Voice Command System)
— If Equipped ...................... .355
▫ Operating Instructions (Uconnect™ Phone)
— If Equipped ...................... .355
 MEDIA CENTER 130 (SALES CODE RES) .... .356
▫ Operating Instructions — Radio Mode ...... .356
▫ Operation Instructions — CD MODE For
CD And MP3 Audio Play ............... .359
▫ Notes on Playing MP3 Files ............. .362
▫ Operation Instructions - Auxiliary Mode .... .364
 MEDIA CENTER 130 WITH SATELLITE
RADIO (SALES CODE RES+RSC) .......... .365296 UNDERSTANDING YOUR INSTRUMENT PANEL

▫ Operating Instructions — Radio Mode ...... .365
▫ Operation Instructions — CD MODE for
CD and MP3 Audio Play ............... .371
▫ Notes On Playing MP3 Files ............. .374
▫ LIST Button (CD Mode for MP3 Play) ...... .376
▫ INFO Button (CD Mode for MP3 Play) ..... .376
▫ Uconnect™ Multimedia (Satellite Radio)
— If Equipped ...................... .377
 iPod  /USB/MP3 CONTROL — IF EQUIPPED . .382
▫ Connecting The iPod  Or External USB
Device ............................ .382
▫ Using This Feature .................... .383
▫ Controlling The iPod  Or External USB Device
Using Radio Buttons .................. .384 ▫ Play Mode ......................... .384
▫ List Or Browse Mode .................. .386
▫ Bluetooth Streaming Audio (BTSA) ........ .388
 STEERING WHEEL AUDIO CONTROLS ..... .389
▫ Radio Operation ..................... .390
▫ CD Player .......................... .390
 CD/DVD DISC MAINTENANCE .......... .390
 RADIO OPERATION AND MOBILE PHONES . .391
 CLIMATE CONTROLS .................. .391
▫ Manual Heating And Air Conditioning ..... .392
▫ Automatic Temperature Control (ATC)
— If Equipped ...................... .396
▫ Operating Tips ...................... .4014 UNDERSTANDING YOUR INSTRUMENT PANEL 297

INSTRUMENT PANEL FEATURES
1 — Air Outlet 7 — Climate Controls
2 — Instrument Cluster 8 — Power Outlet
3 — Radio 9 — Lower Switch Bank
4 — Assist Handle 10 — Power Mirror Switch — If Equipped
5 — Glove Compartment 11 — Horn
6 — Power Window Switches298 UNDERSTANDING YOUR INSTRUMENT PANEL

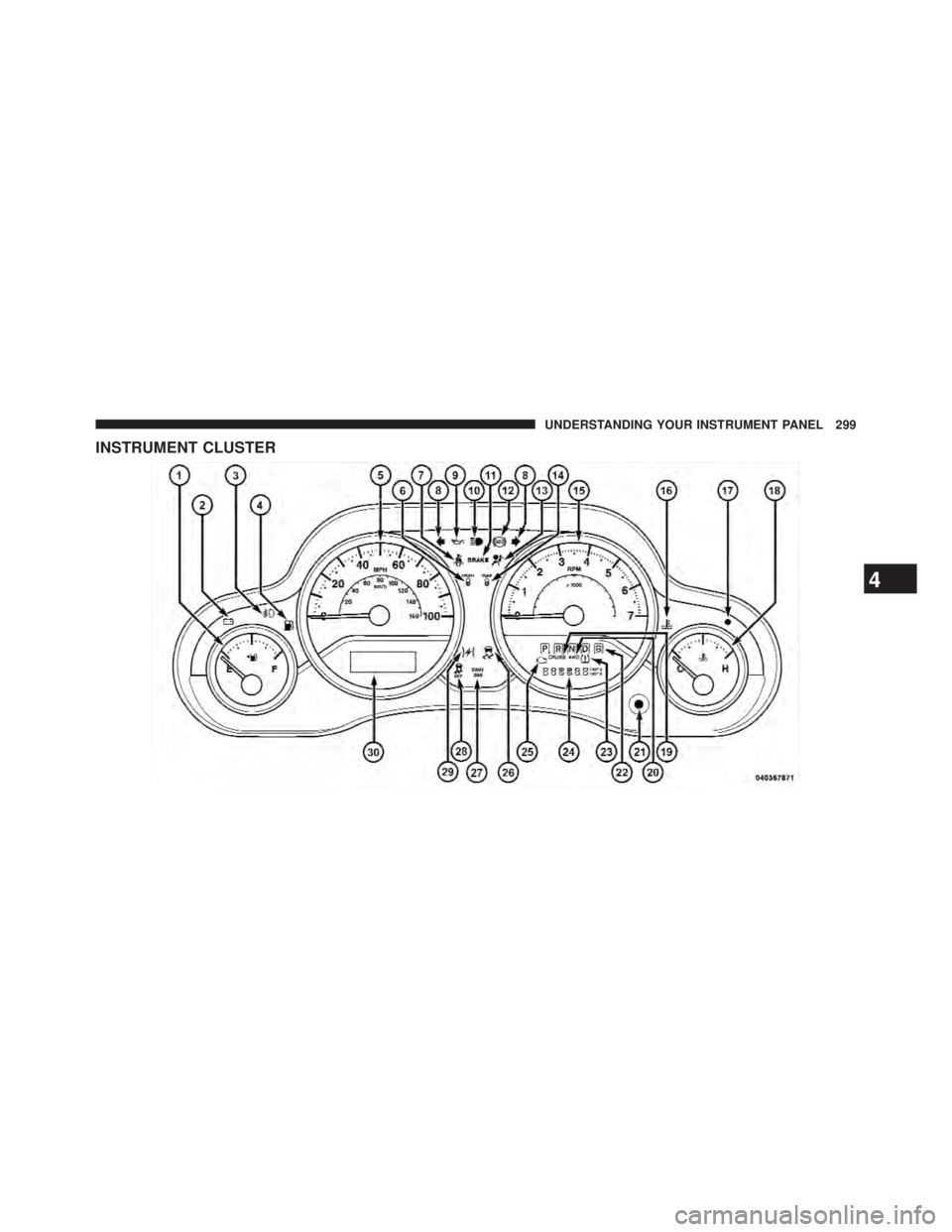

INSTRUMENT CLUSTER
4 UNDERSTANDING YOUR INSTRUMENT PANEL 299

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition switch is in the ON/RUN position.
2. Charging System Light
This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned to ON/RUN, and remain
on briefly as a bulb check. If the light stays on or comes
on while driving, turn off some of the vehicle’s non-
essential electrical devices or increase engine speed (if at
idle). If the charging system light remains on, it means
that the vehicle is experiencing a problem with the
charging system. Obtain SERVICE IMMEDIATELY. See
an authorized dealer.
If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”. 3. Front Fog Light Indicator — If Equipped
This indicator will illuminate when the front fog
lights are on.
4. Low Fuel Warning Light
When the fuel level reaches approximately 2.8 gal
(10.6L) this light will turn on and a single chime
will sound.
5. Speedometer
Indicates vehicle speed.
6. Front Axle Lock Indicator — If Equipped
Indicates when the front axle lock has been
activated.300 UNDERSTANDING YOUR INSTRUMENT PANEL

7. Seat Belt Reminder Light
When the ignition switch is first turned to ON/
RUN, this light will turn on for four to eight
seconds as a bulb check. During the bulb check, if
the driver’s seat belt is unbuckled, a chime will sound.
After the bulb check or when driving, if the driver seat
belt remains unbuckled, the Seat Belt Reminder Light
will flash or remain on continuously. Refer to “Occupant
Restraints” in “Things To Know Before Starting Your
Vehicle” for further information.
8. Turn Signal Indicators
The left or right arrow will flash with the corre-
sponding exterior turn signal lights when the turn
signal lever is operated. A chime will sound if the vehicle is
driven more than 1 mile (1.6 km) with either turn signal on.
NOTE: If either indicator flashes at a rapid rate, check
for a defective outside light bulb. 9. Oil Pressure Warning Light
This light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started; if the bulb does not come on, have the system
checked by an authorized dealer. If the light turns on while
driving, stop the vehicle and shut off the engine as soon as
possible. A chime will sound when this light turns on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood.
10. High Beam Indicator
This indicator shows that the high beam head-
lights are on. Push the multifunction control lever
away from you to switch the headlights to high beam.
Pull the lever toward you to switch the headlights back to
low beam. If the driver’s door is open, and the headlights
or park lights are left on, the high beam indicator light
will remain illuminated and a chime will sound. 4 UNDERSTANDING YOUR INSTRUMENT PANEL 301

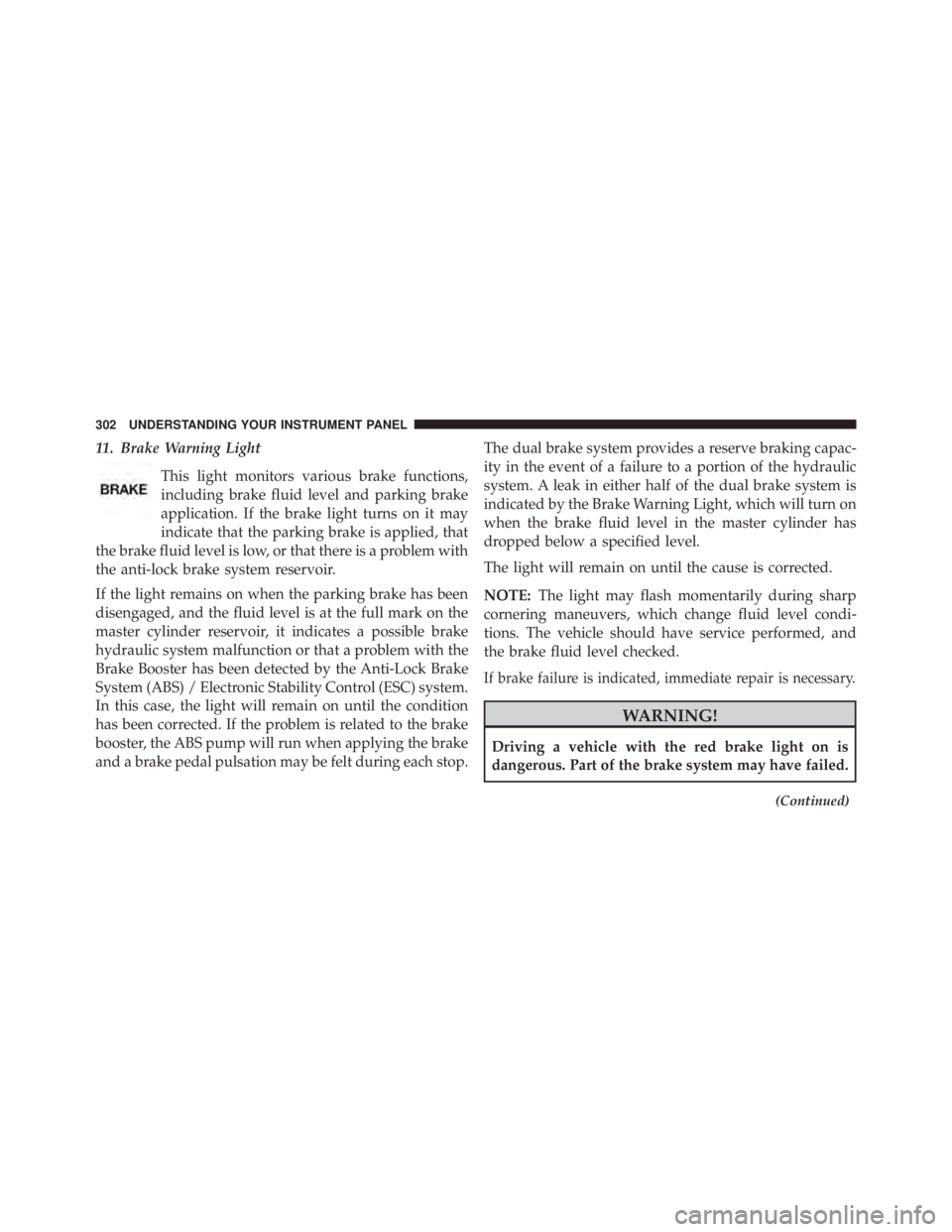

11. Brake Warning Light
This light monitors various brake functions,
including brake fluid level and parking brake
application. If the brake light turns on it may
indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with
the anti-lock brake system reservoir.
If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with the
Brake Booster has been detected by the Anti-Lock Brake
System (ABS) / Electronic Stability Control (ESC) system.
In this case, the light will remain on until the condition
has been corrected. If the problem is related to the brake
booster, the ABS pump will run when applying the brake
and a brake pedal pulsation may be felt during each stop. The dual brake system provides a reserve braking capac-
ity in the event of a failure to a portion of the hydraulic
system. A leak in either half of the dual brake system is
indicated by the Brake Warning Light, which will turn on
when the brake fluid level in the master cylinder has
dropped below a specified level.
The light will remain on until the cause is corrected.
NOTE: The light may flash momentarily during sharp
cornering maneuvers, which change fluid level condi-
tions. The vehicle should have service performed, and
the brake fluid level checked.
If brake failure is indicated, immediate repair is necessary.
WARNING!Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have failed. (Continued)302 UNDERSTANDING YOUR INSTRUMENT PANEL
