17. Run the first zipper fully around to the right side of
the window.
18. Grasp the swing gate bar and position it into the

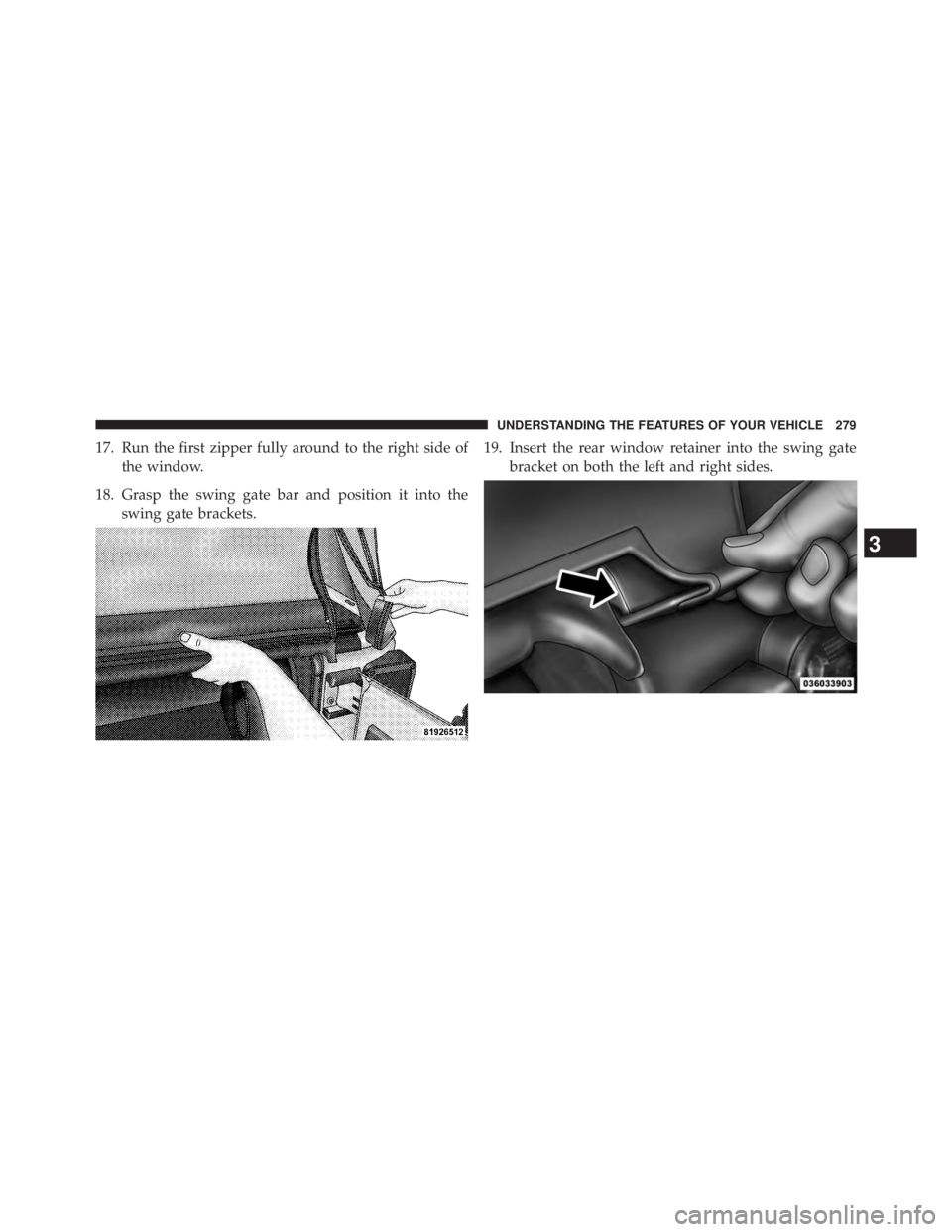

swing gate brackets. 19. Insert the rear window retainer into the swing gate
bracket on both the left and right sides.
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 279

20. Complete the installation of the sail panel by insert-
ing the rest of the retainer into the body channel.
21. Close the header latches and return the sun visors to
their secured position. SUNRIDER  (TWO-DOOR MODELS) —
IF EQUIPPED
CAUTION!Operating the top, opening a door or lowering a
window while the top is wet may allow water to drip
into the vehicle’s interior.
NOTE: If you are going to be driving faster than 40 mph
(64 km/h) with the Sunrider  feature open, it is recom-
mended that you remove the rear window of the vehicle.280 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

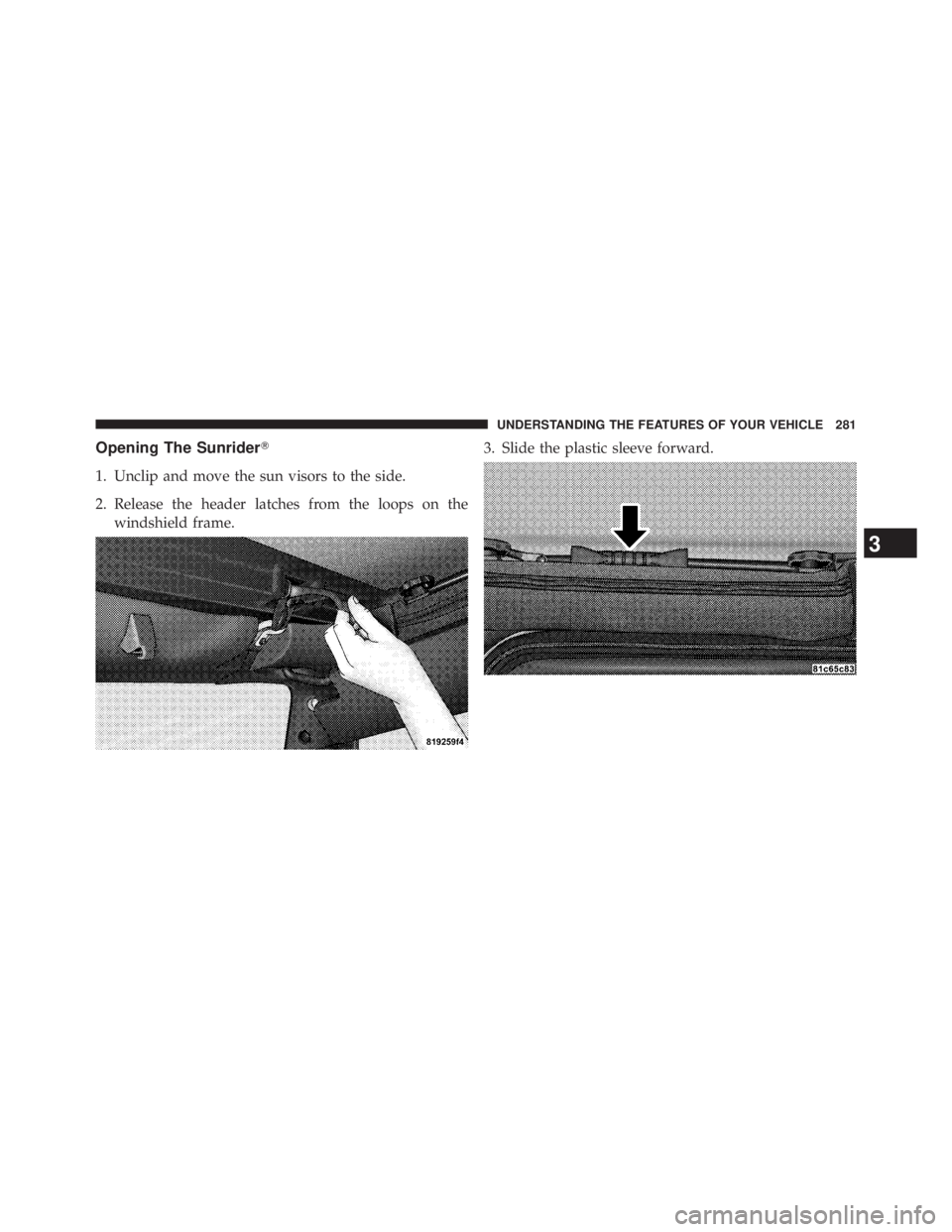

Opening The Sunrider
1. Unclip and move the sun visors to the side.
2. Release the header latches from the loops on the
windshield frame. 3. Slide the plastic sleeve forward.
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 281

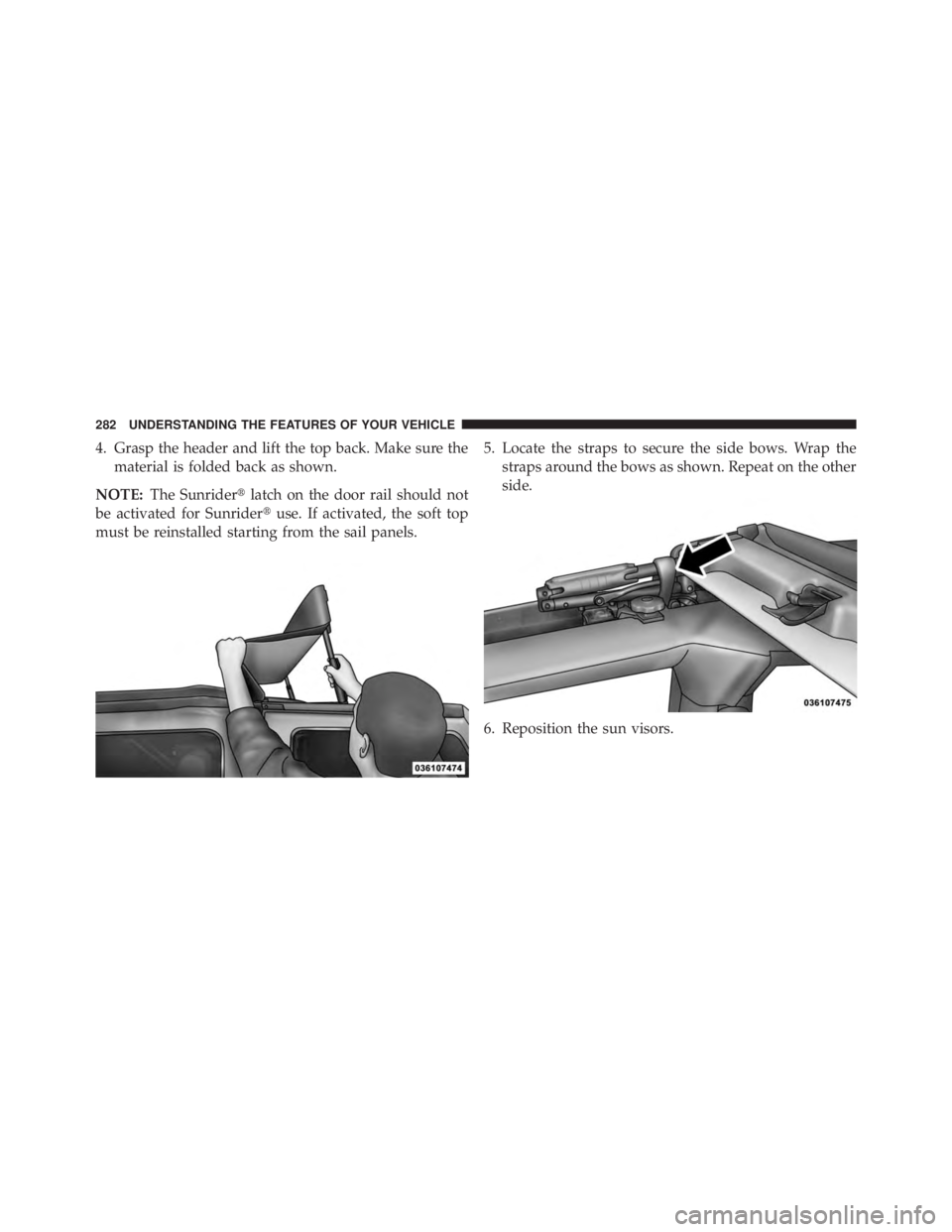

4. Grasp the header and lift the top back. Make sure the
material is folded back as shown.
NOTE: The Sunrider  latch on the door rail should not
be activated for Sunrider  use. If activated, the soft top
must be reinstalled starting from the sail panels. 5. Locate the straps to secure the side bows. Wrap the
straps around the bows as shown. Repeat on the other
side.
6. Reposition the sun visors.282 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Closing The Sunrider
1. Remove the straps from the side bows.
2. Unclip and move the sun visors to the side.
3. Grasp the front header and pull it to the front of the
vehicle.
4. Hook the header latches to the loops on the wind-
shield frame, close latches, and return the sun visors to
their original positions.
5. Slide the plastic sleeve rearward over the Sunrider
link. SUNRIDER  (FOUR-DOOR MODELS) —
IF EQUIPPED
CAUTION!Operating the top, opening a door or lowering a
window while the top is wet may allow water to drip
into the vehicle’s interior.
NOTE: If you are going to be driving faster than 40 mph
(64 km/h) with the Sunrider  feature open, it is recom-
mended that you remove the rear window of the vehicle.
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 283

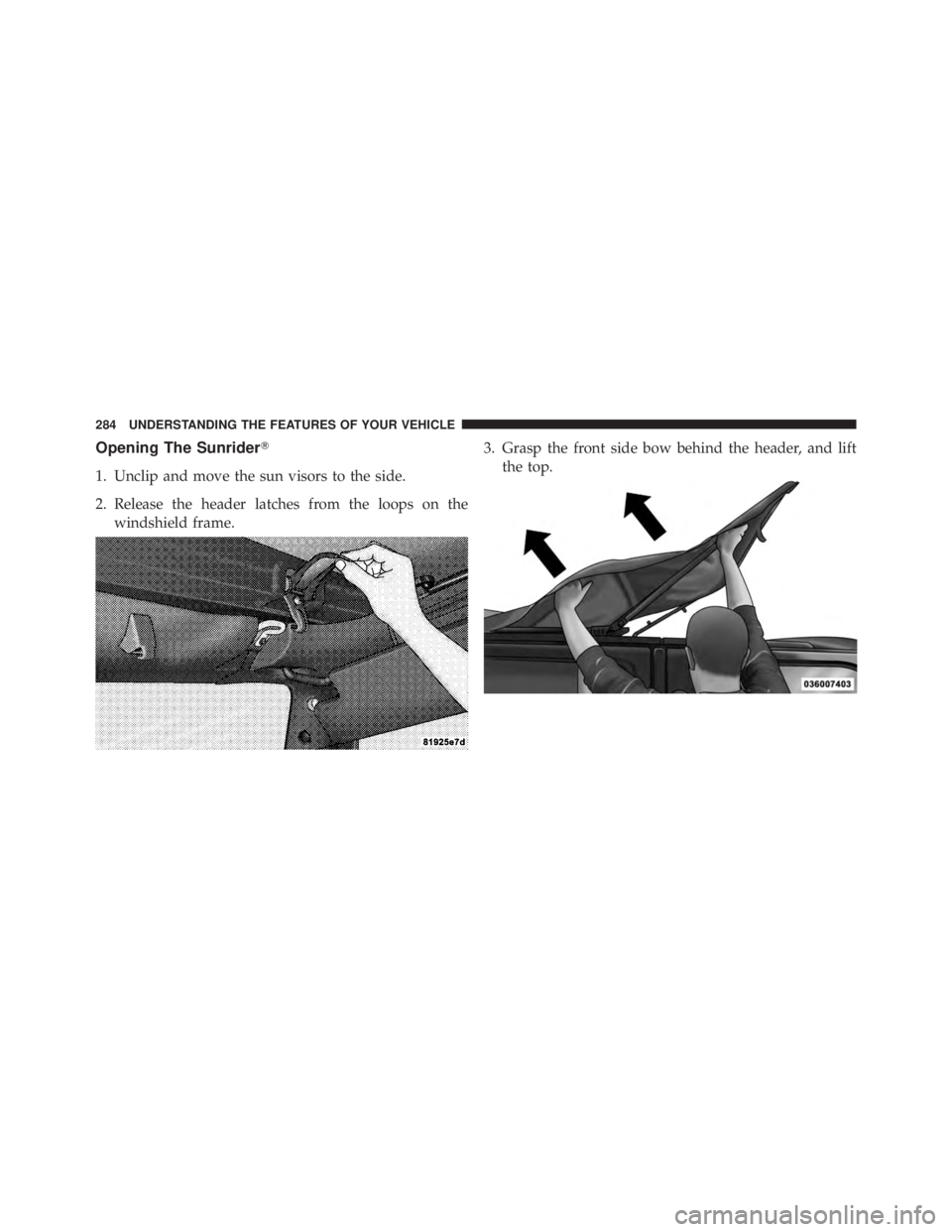

Opening The Sunrider
1. Unclip and move the sun visors to the side.
2. Release the header latches from the loops on the
windshield frame. 3. Grasp the front side bow behind the header, and lift
the top.284 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

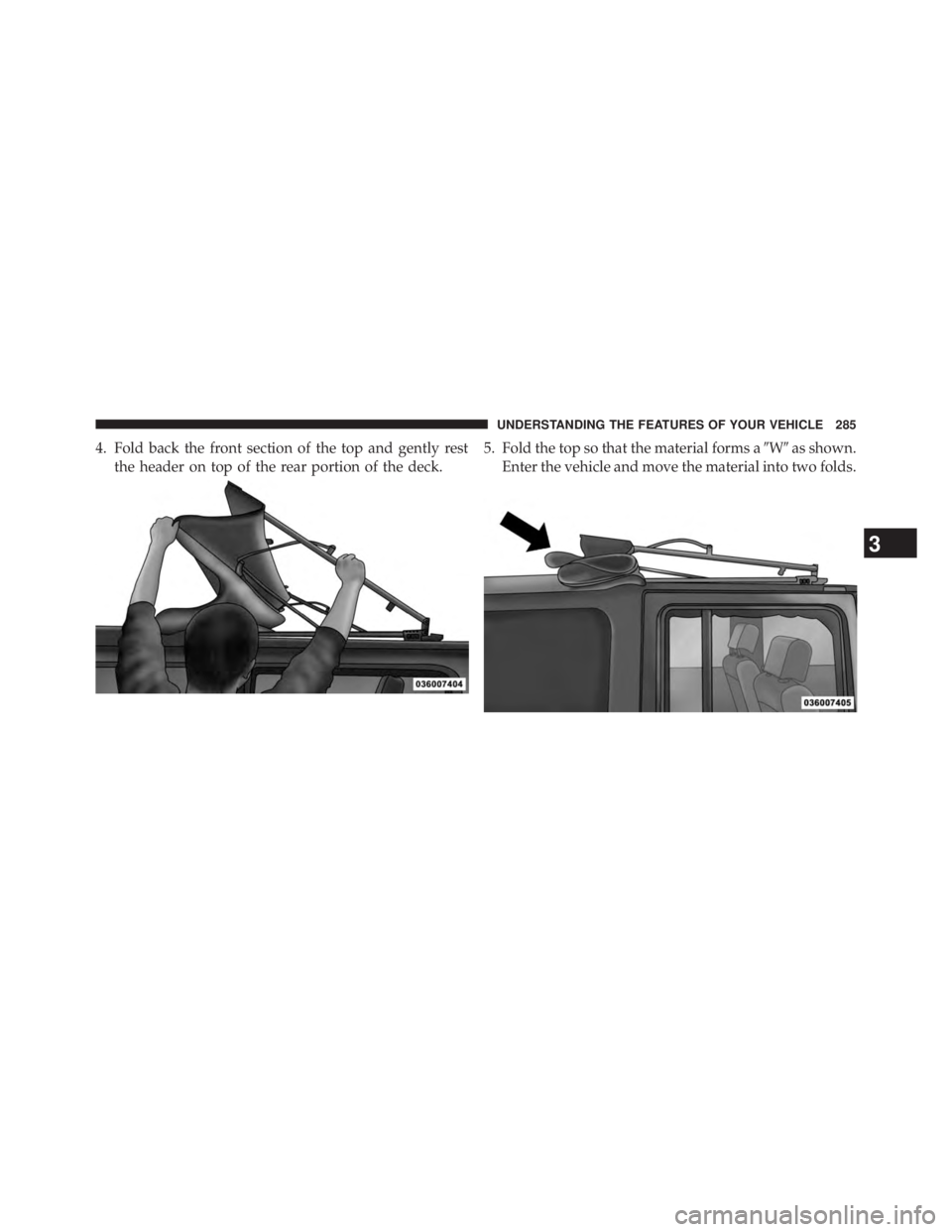

4. Fold back the front section of the top and gently rest
the header on top of the rear portion of the deck. 5. Fold the top so that the material forms a  W  as shown.
Enter the vehicle and move the material into two folds.
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 285

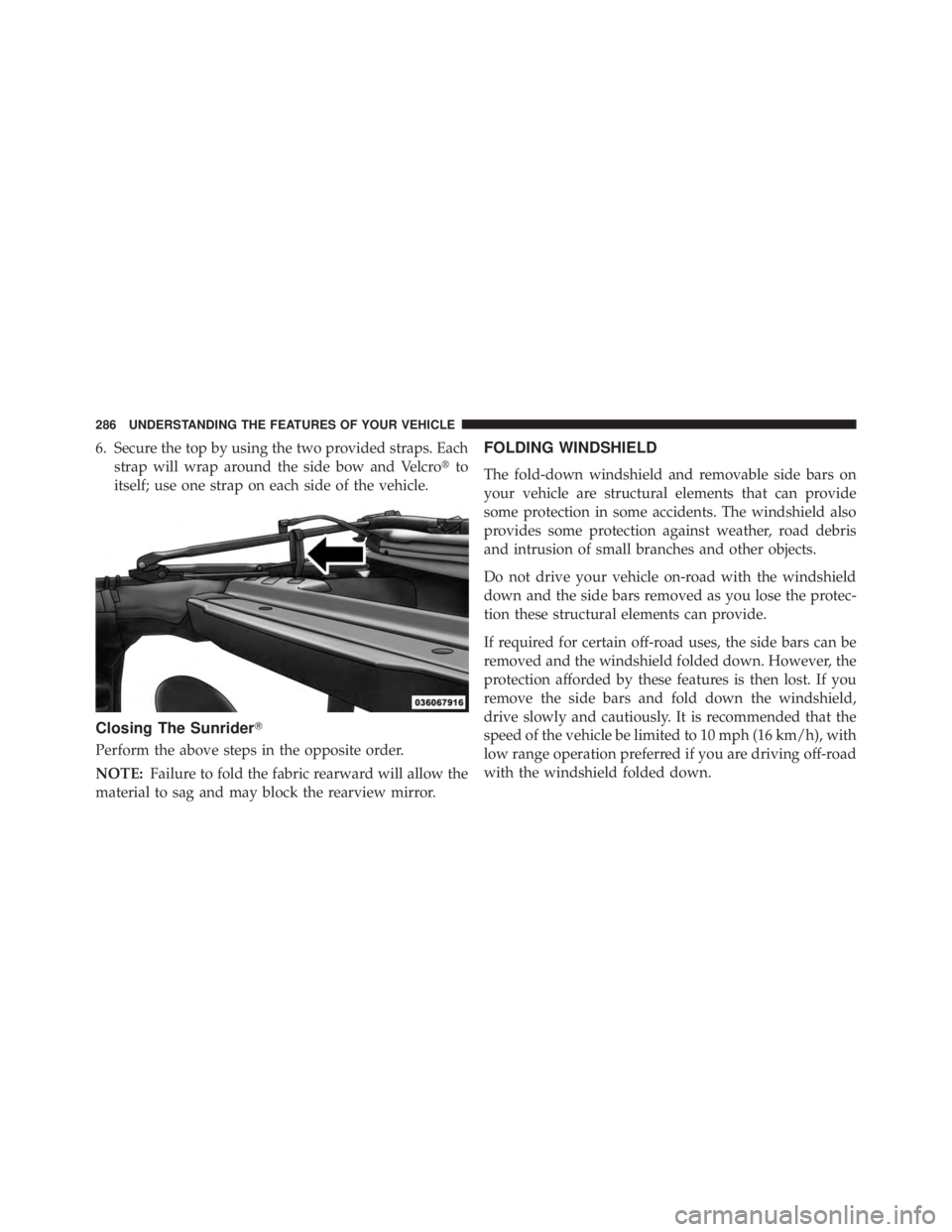

6. Secure the top by using the two provided straps. Each
strap will wrap around the side bow and Velcro  to
itself; use one strap on each side of the vehicle.
Closing The Sunrider
Perform the above steps in the opposite order.
NOTE: Failure to fold the fabric rearward will allow the
material to sag and may block the rearview mirror. FOLDING WINDSHIELD
The fold-down windshield and removable side bars on
your vehicle are structural elements that can provide
some protection in some accidents. The windshield also
provides some protection against weather, road debris
and intrusion of small branches and other objects.
Do not drive your vehicle on-road with the windshield
down and the side bars removed as you lose the protec-
tion these structural elements can provide.
If required for certain off-road uses, the side bars can be
removed and the windshield folded down. However, the
protection afforded by these features is then lost. If you
remove the side bars and fold down the windshield,
drive slowly and cautiously. It is recommended that the
speed of the vehicle be limited to 10 mph (16 km/h), with
low range operation preferred if you are driving off-road
with the windshield folded down.286 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
