2013 JEEP WRANGLER UNLIMITED Owners Manual

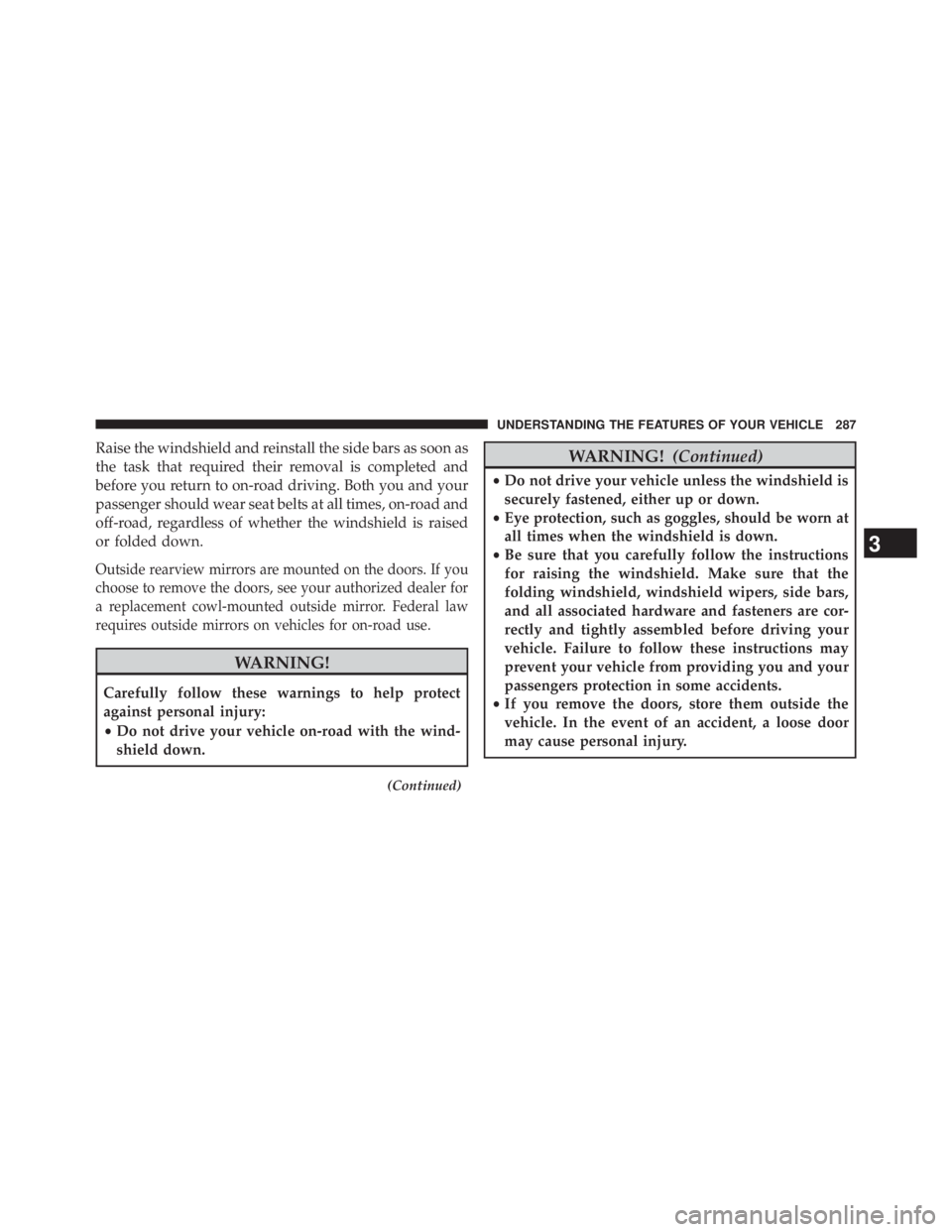

Raise the windshield and reinstall the side bars as soon as
the task that required their removal is completed and
before you return to on-road driving. Both you and your
passenger should wear seat belts at all times, on-road and
off-road, regardless of whether the windshield is raised
or folded down.
Outside rearview mirrors are mounted on the doors. If you
choose to remove the doors, see your authorized dealer for
a replacement cowl-mounted outside mirror. Federal law
requires outside mirrors on vehicles for on-road use.
WARNING!Carefully follow these warnings to help protect
against personal injury:
• Do not drive your vehicle on-road with the wind-
shield down. (Continued) WARNING! (Continued)• Do not drive your vehicle unless the windshield is
securely fastened, either up or down.
• Eye protection, such as goggles, should be worn at
all times when the windshield is down.
• Be sure that you carefully follow the instructions
for raising the windshield. Make sure that the
folding windshield, windshield wipers, side bars,
and all associated hardware and fasteners are cor-
rectly and tightly assembled before driving your
vehicle. Failure to follow these instructions may
prevent your vehicle from providing you and your
passengers protection in some accidents.
• If you remove the doors, store them outside the
vehicle. In the event of an accident, a loose door
may cause personal injury. 3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 287

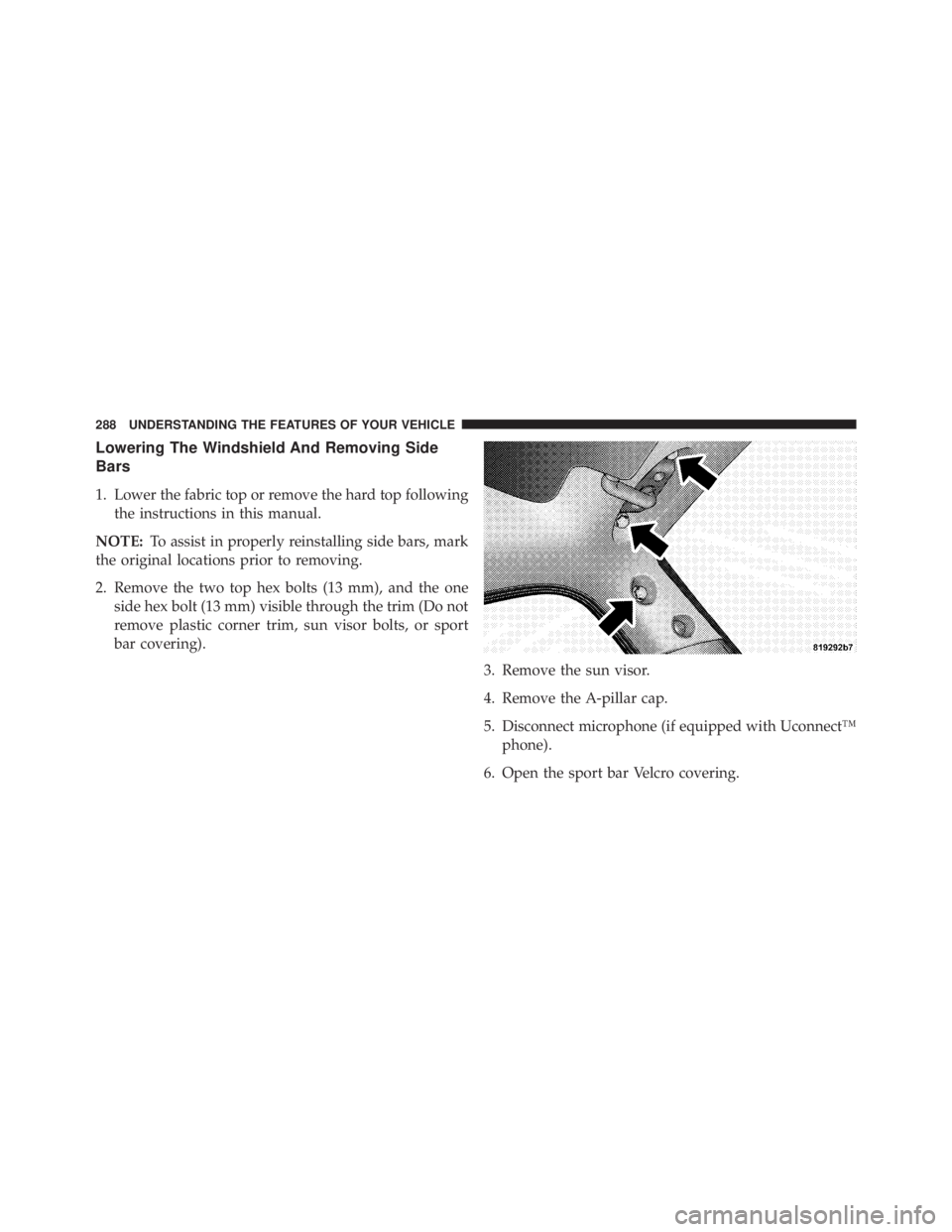

Lowering The Windshield And Removing Side
Bars
1. Lower the fabric top or remove the hard top following
the instructions in this manual.
NOTE: To assist in properly reinstalling side bars, mark
the original locations prior to removing.
2. Remove the two top hex bolts (13 mm), and the one
side hex bolt (13 mm) visible through the trim (Do not
remove plastic corner trim, sun visor bolts, or sport
bar covering).
3. Remove the sun visor.
4. Remove the A-pillar cap.
5. Disconnect microphone (if equipped with Uconnect™
phone).
6. Open the sport bar Velcro covering.288 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

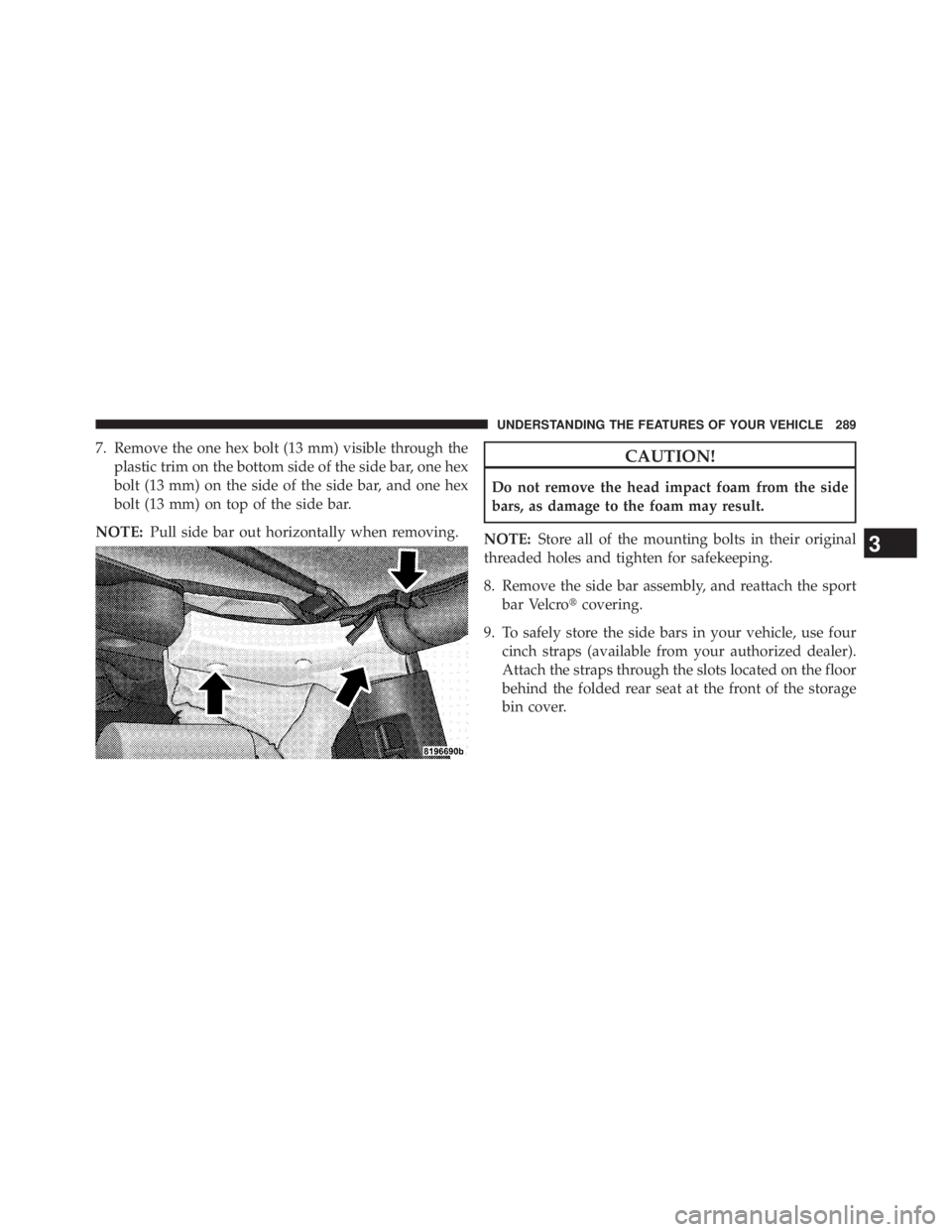

7. Remove the one hex bolt (13 mm) visible through the
plastic trim on the bottom side of the side bar, one hex
bolt (13 mm) on the side of the side bar, and one hex
bolt (13 mm) on top of the side bar.
NOTE: Pull side bar out horizontally when removing. CAUTION!Do not remove the head impact foam from the side
bars, as damage to the foam may result.
NOTE: Store all of the mounting bolts in their original
threaded holes and tighten for safekeeping.
8. Remove the side bar assembly, and reattach the sport
bar Velcro  covering.
9. To safely store the side bars in your vehicle, use four
cinch straps (available from your authorized dealer).
Attach the straps through the slots located on the floor
behind the folded rear seat at the front of the storage
bin cover.
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 289

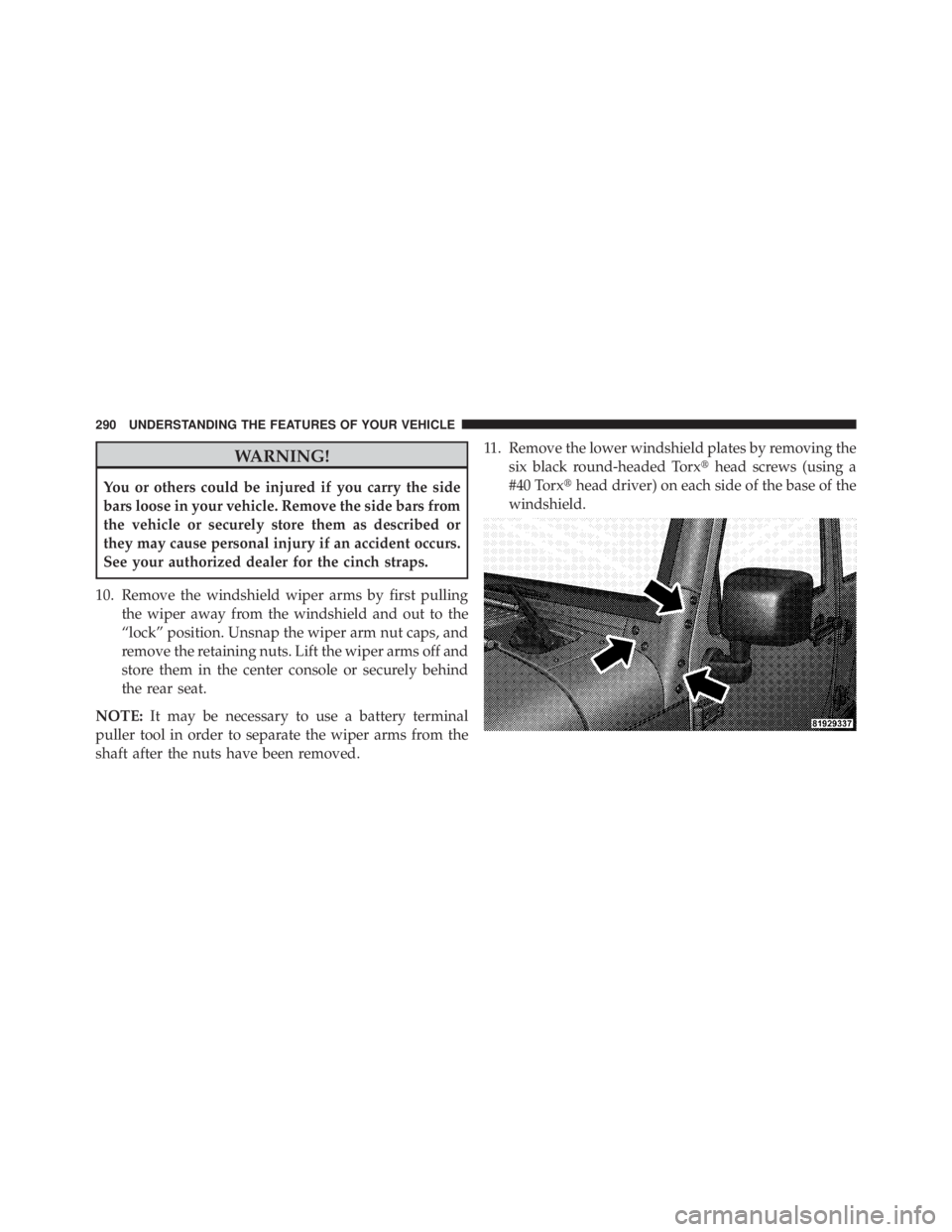

WARNING!You or others could be injured if you carry the side
bars loose in your vehicle. Remove the side bars from
the vehicle or securely store them as described or
they may cause personal injury if an accident occurs.
See your authorized dealer for the cinch straps.
10. Remove the windshield wiper arms by first pulling
the wiper away from the windshield and out to the
“lock” position. Unsnap the wiper arm nut caps, and
remove the retaining nuts. Lift the wiper arms off and
store them in the center console or securely behind
the rear seat.
NOTE: It may be necessary to use a battery terminal
puller tool in order to separate the wiper arms from the
shaft after the nuts have been removed. 11. Remove the lower windshield plates by removing the
six black round-headed Torx  head screws (using a
#40 Torx  head driver) on each side of the base of the
windshield.290 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

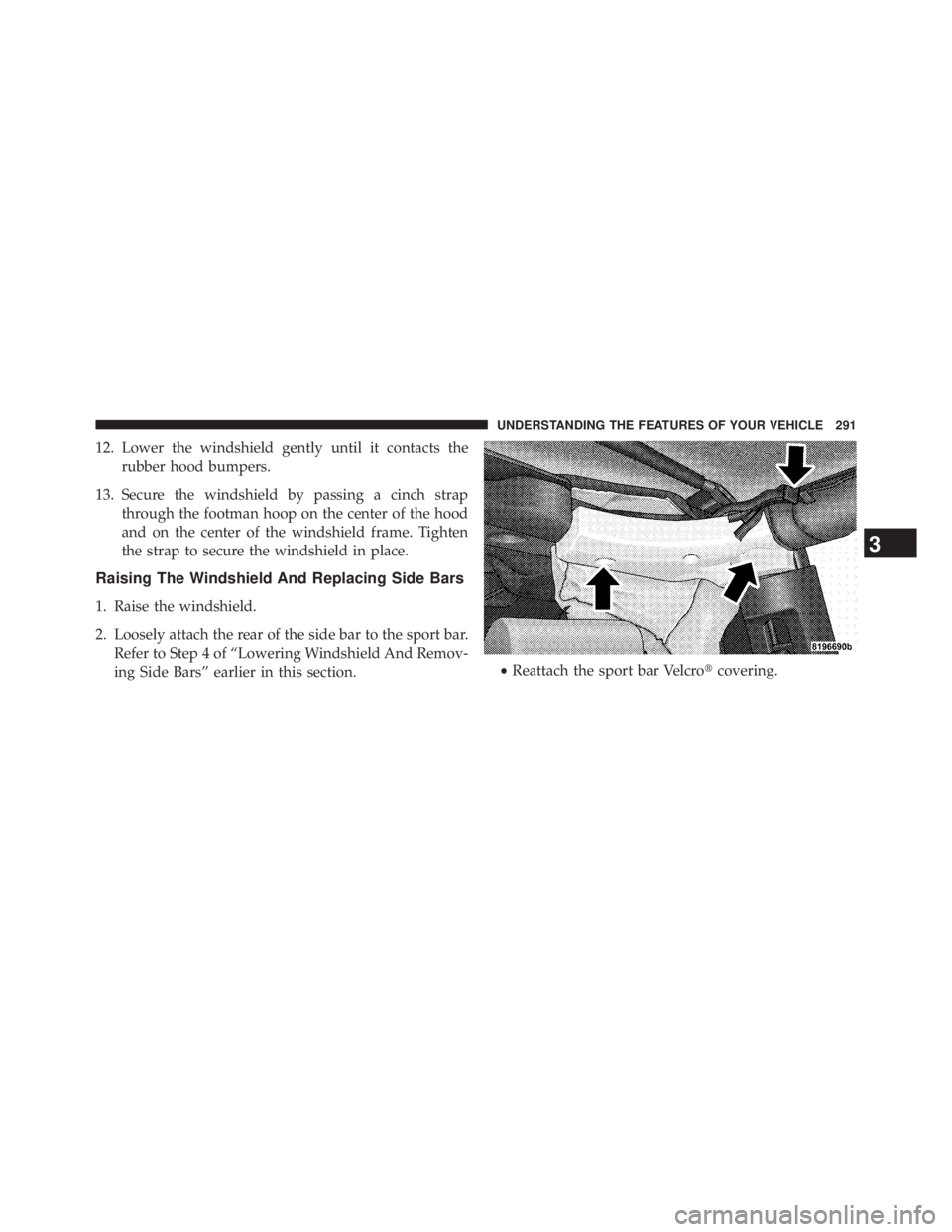

12. Lower the windshield gently until it contacts the
rubber hood bumpers.
13. Secure the windshield by passing a cinch strap
through the footman hoop on the center of the hood
and on the center of the windshield frame. Tighten
the strap to secure the windshield in place.
Raising The Windshield And Replacing Side Bars
1. Raise the windshield.
2. Loosely attach the rear of the side bar to the sport bar.
Refer to Step 4 of “Lowering Windshield And Remov-
ing Side Bars” earlier in this section. • Reattach the sport bar Velcro  covering.
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 291

3. Attach the front of the side bar to the windshield
frame.
• Install the top two hex bolts (13 mm) first, then the
lower side hex bolt (13 mm). The lower side bolt will
not align until the top two bolts are installed.
4. Tighten all side bar attachment bolts. 5. Install the lower windshield plates with the six black
round-headed Torx  head screws (using a #40 Torx
head driver) on each side of the base of the wind-
shield.
6. Reinstall the wiper arms.292 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

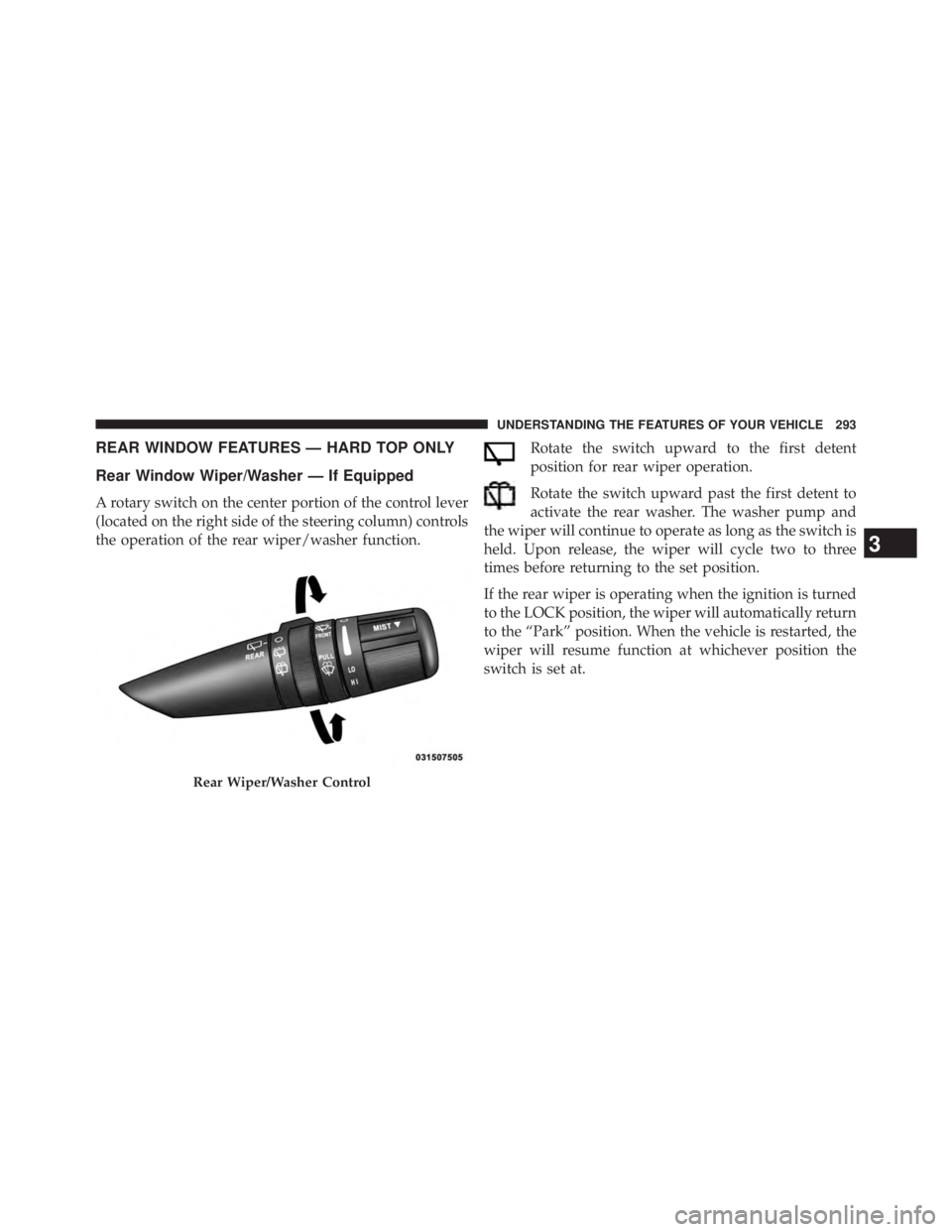

REAR WINDOW FEATURES — HARD TOP ONLY
Rear Window Wiper/Washer — If Equipped
A rotary switch on the center portion of the control lever
(located on the right side of the steering column) controls
the operation of the rear wiper/washer function. Rotate the switch upward to the first detent
position for rear wiper operation.
Rotate the switch upward past the first detent to
activate the rear washer. The washer pump and
the wiper will continue to operate as long as the switch is
held. Upon release, the wiper will cycle two to three
times before returning to the set position.
If the rear wiper is operating when the ignition is turned
to the LOCK position, the wiper will automatically return
to the “Park” position. When the vehicle is restarted, the
wiper will resume function at whichever position the
switch is set at.
Rear Wiper/Washer Control
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 293

Rear Window Defroster — If Equipped
The rear window defroster button is located on
the bottom right-side of the blower control knob.
Press this button to turn on the rear window defroster.
An indicator in the button will illuminate when the rear
window defroster is on. The rear window defroster
automatically turns off after approximately 10 minutes.
For an additional five minutes of operation, press the
button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating. CAUTION!Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.294 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
