BULB REPLACEMENT
NOTE: Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side
and working toward the other.
4. Turn both park and turn signal socket assemblies
1/4 turn counterclockwise and remove.
5. Remove the four screws holding the metal retaining
ring. 6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.
CAUTION!Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
12. Reinstall bulb housing. Rotate the bulb 1/4 turn
clockwise.
7 MAINTAINING YOUR VEHICLE 607

Front Park/Turn Signal
1. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
2. Pull the bottom of the grille away starting at one side
and working toward the other.
3. Turn the socket assembly 1/4 turn counterclockwise
and remove from housing. Pull the bulb straight from
the socket to replace.
Front Side Marker
1. Reach under the front fender flare and locate the front
side marker socket.
2. Turn the socket assembly counterclockwise 1/3 turn
and remove it from the housing. Pull the bulb straight
from the socket to replace. Front Fog Lamp
1. Reach under the vehicle to access the back of the front
fog lamp.
2. Disconnect the wire harness connector from the front
fog lamp connector receptacle.
3. Firmly grasp the bulb by the two latch features and
squeeze them together to unlock the bulb from the
back of the front fog lamp housing.
4. Pull the bulb straight out from the keyed opening in
the housing and then connect the replacement bulb.
CAUTION!Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.608 MAINTAINING YOUR VEHICLE

Rear Tail, Stop, Turn Signal, And Backup Lamp
1. Remove the two inboard screws attaching the tail light
housing to the body. DO NOT REMOVE THE
OUTER SCREWS AT ANY TIME.
2. Separate the housing from the body by pushing the lamp
inboard while pulling the lamp away from the body. 3. Rotate the appropriate socket 1/4 turn counterclock-
wise, then remove it from the housing.
4. Pull the bulb straight from the socket to replace.
Center High-Mounted Stop Lamp (CHMSL)
The stop lamp is mounted on a bracket that extends
upward from the tailgate behind the spare tire. If service
is needed, obtain the LED/Cover Assembly from your
local authorized dealer.
1. Remove the spare tire.
2. Remove the four screws holding the lens/cover in
place on the spare tire carrier.
3. Disconnect the wire harness from the back of the LED
cover.
7 MAINTAINING YOUR VEHICLE 609

FLUID CAPACITIES
U.S. Metric
Fuel (Approximate) — Two Door Models 18.6 Gallons 70 Liters
Fuel (Approximate) — Four Door Models 22.5 Gallons 85 Liters
Engine Oil with Filter
3.6L Engine 6 Quarts 5.6 Liters
Cooling System *
3.6L Engine (MOPAR  Antifreeze/Engine Coolant
10 Year/152,000 Mile Formula or equivalent) 10.5 Quarts 9.9 Liters
* Includes coolant recovery bottle filled to MAX level. 610 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant MOPAR  Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic
Additive Technology) or equivalent meeting the requirements of Chrysler
Material Standard MS-12106.
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAR  Engine Oil Filter or equivalent.
Spark Plugs RER8ZWYCB4 (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
7 MAINTAINING YOUR VEHICLE 611

Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission –
If Equipped MOPAR  ATF+4  Automatic Transmission Fluid or equivalent licensed
ATF+4  product.
Manual Transmission –
If Equipped MOPAR  Manual Transmission Lubricant or equivalent (meeting the require-
ments of Chrysler Material Standard MS-9224).
Transfer Case MOPAR  ATF+4  Automatic Transmission Fluid or equivalent licensed
ATF+4  product.
Axle Differential (Front) MOPAR  Gear & Axle Lubricant (SAE 80W-90) (API GL-5) or equivalent.
Axle Differential (Rear) 226 RBI (Model 44) – MOPAR  Gear & Axle Lubricant (SAE 80W-90) (API GL-5)
or equivalent. For trailer towing, use MOPAR  Synthetic Gear & Axle Lubricant
(SAE 75W-140) or equivalent. Models equipped with Trac-Lok™ require an additive.
Brake Master Cylinder MOPAR  DOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAE J1703
brake fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids.
Power Steering Reservoir MOPAR  Power Steering Fluid +4, MOPAR  ATF+4  Automatic Transmission
Fluid or equivalent licensed ATF+4  product.612 MAINTAINING YOUR VEHICLE

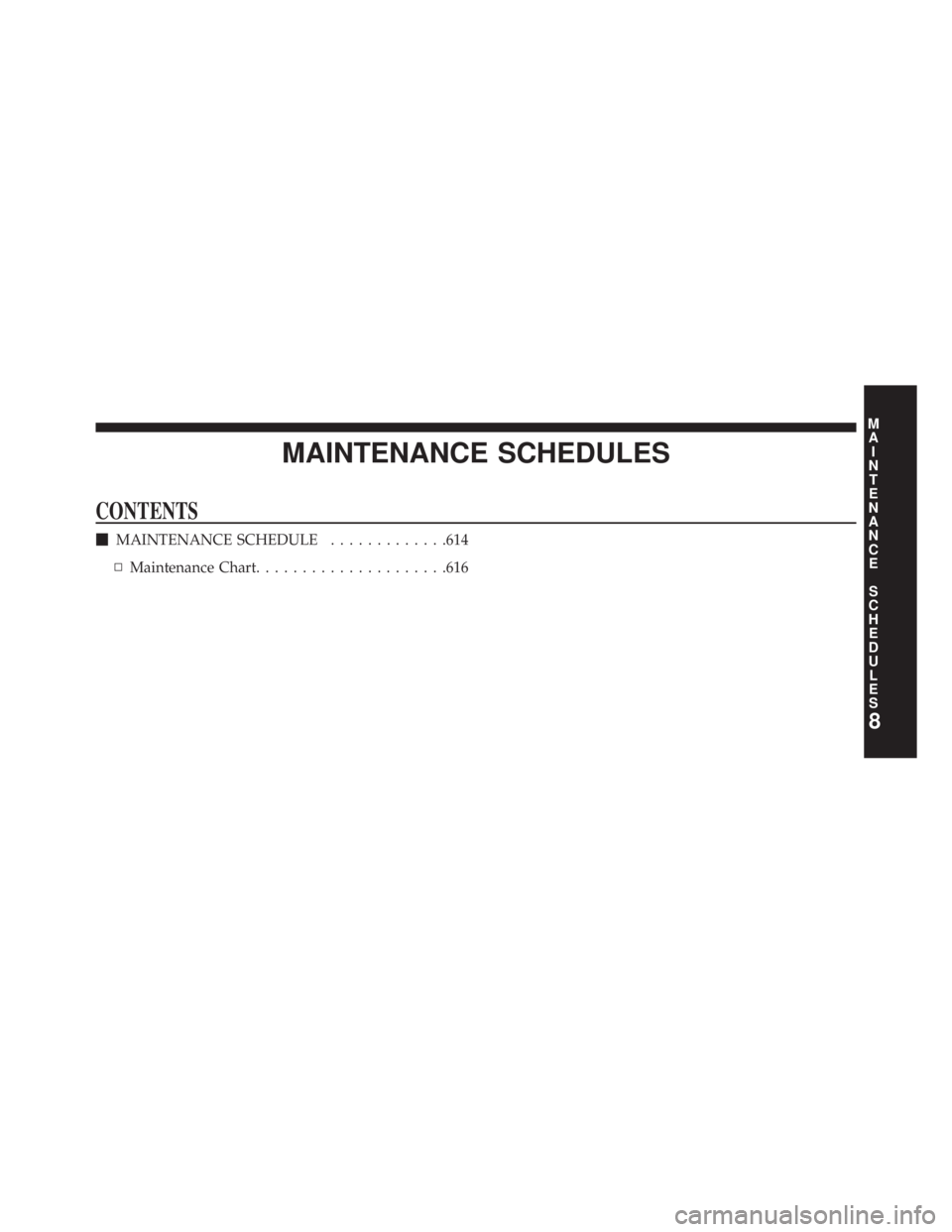

MAINTENANCE SCHEDULESCONTENTS  MAINTENANCE SCHEDULE ............ .614
