Lowering The Soft Top
1 — Header Bow 6 — Quarter Window
2 — 2–Bow 7 — Check Strap
3 — 3–Bow 8 — Front Retainer — Quarter Window
4 — Sail Panel 9 — Bottom Retainer — Quarter Window
5 — Body Side Retainer
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 231

1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail Panels232 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE: Clean side and rear windows before removal to
assist in preventing scratching during removal of the soft
top. If zippers are difficult to operate due to road dust,
etc., clean them with a mild soap solution and a small
brush. Cleaning products are available through your
authorized dealer.
1. If your vehicle has half doors, remove each half-door
window by opening the door and lifting the half-door
window out.
NOTE: Stow the half-door windows carefully outside of
the vehicle, never inside, to avoid scratches.
2. Unclip and move the sun visors to the side. 3. Release the header latches and leave the hooks in the
loops on the windshield.
4. Open the swing gate.
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 233

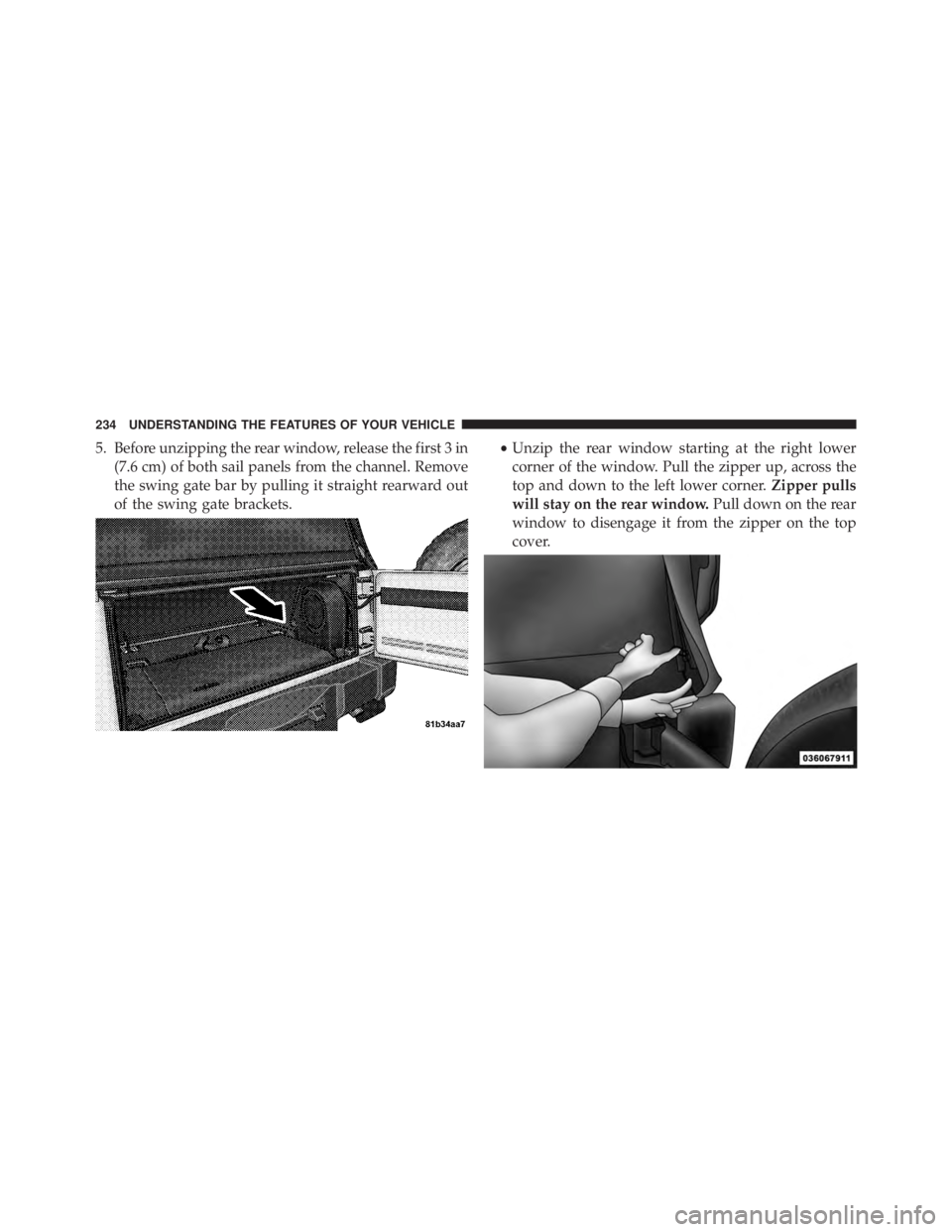

5. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove
the swing gate bar by pulling it straight rearward out
of the swing gate brackets. • Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner. Zipper pulls
will stay on the rear window. Pull down on the rear
window to disengage it from the zipper on the top
cover.234 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

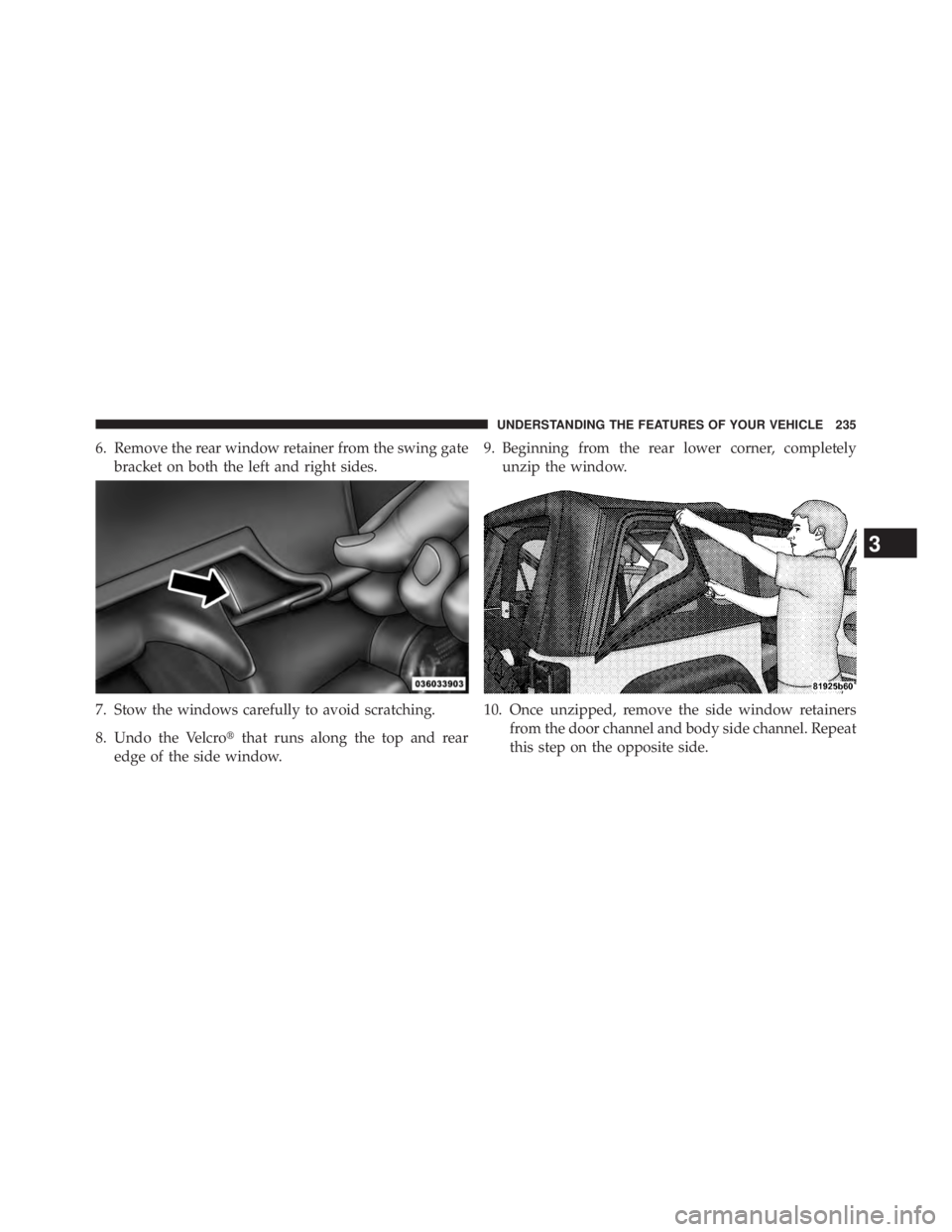

6. Remove the rear window retainer from the swing gate
bracket on both the left and right sides.
7. Stow the windows carefully to avoid scratching.
8. Undo the Velcro  that runs along the top and rear
edge of the side window. 9. Beginning from the rear lower corner, completely
unzip the window.
10. Once unzipped, remove the side window retainers
from the door channel and body side channel. Repeat
this step on the opposite side. 3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 235

11. Finish releasing the sail panel retainers from the body
side channel at the rear corners of the vehicle.
NOTE: When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow. 12. As you begin to lower the top, fold the sail panels so
that they rest on top of the soft top.236 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

13. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket
forward while rolling the entire bracket back in
toward the vehicle to disengage. 14. Completely release the latches from the loops on the
windshield frame. If your vehicle is not equipped
with the Sunrider  package, proceed to Step 15.
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 237

15. Make sure the plastic sleeves are slid rearward over
the Sunrider  link (Sunrider  Models only). 16. Unlatch the side bows from both door rails (Sunrider
